Introduction
Thank you for purchasing the RAF R.666 Burger Maker. This appliance is designed for convenient and efficient preparation of homemade burgers and other grilled items. Please read this manual thoroughly before first use to ensure safe operation and optimal performance. Keep this manual for future reference.
Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off,” then remove plug from wall outlet.
- Do not use the appliance for other than intended use.
Product Overview
The RAF R.666 Burger Maker is designed for ease of use and efficient cooking. It features non-stick cooking plates and a cool-touch exterior for safe handling.
Image: The RAF R.666 Burger Maker shown with its main features, including 600W power, uniform heat, easy cleaning, and non-stick coating.
Image: A closed view of the RAF R.666 Burger Maker, showcasing its compact design.
Image: The burger maker open, revealing the removable cooking ring for easy patty formation and cleaning.
Components:
- Main Unit with Heating Plates
- Removable Cooking Ring
- Cool-Touch Handle
- Power Indicator Light
- Preheat/Ready Indicator Light
- Power Cord
Setup
- Unpacking: Carefully remove the burger maker from its packaging. Retain packaging for storage or disposal.
- Initial Cleaning: Before first use, wipe the cooking plates with a damp cloth and dry thoroughly. Do not immerse the main unit in water.
- Placement: Place the appliance on a stable, heat-resistant, and dry surface. Ensure there is adequate ventilation around the unit.
- Power Connection: Ensure the voltage of your power outlet matches the specifications of the appliance (220-240V). Plug the power cord into a grounded electrical outlet.
- First Use Burn-off: For the first use, it is recommended to operate the appliance empty for approximately 5-10 minutes to burn off any manufacturing residues. A slight odor or smoke may be present; this is normal. Ensure the area is well-ventilated. Unplug and allow to cool before proceeding.

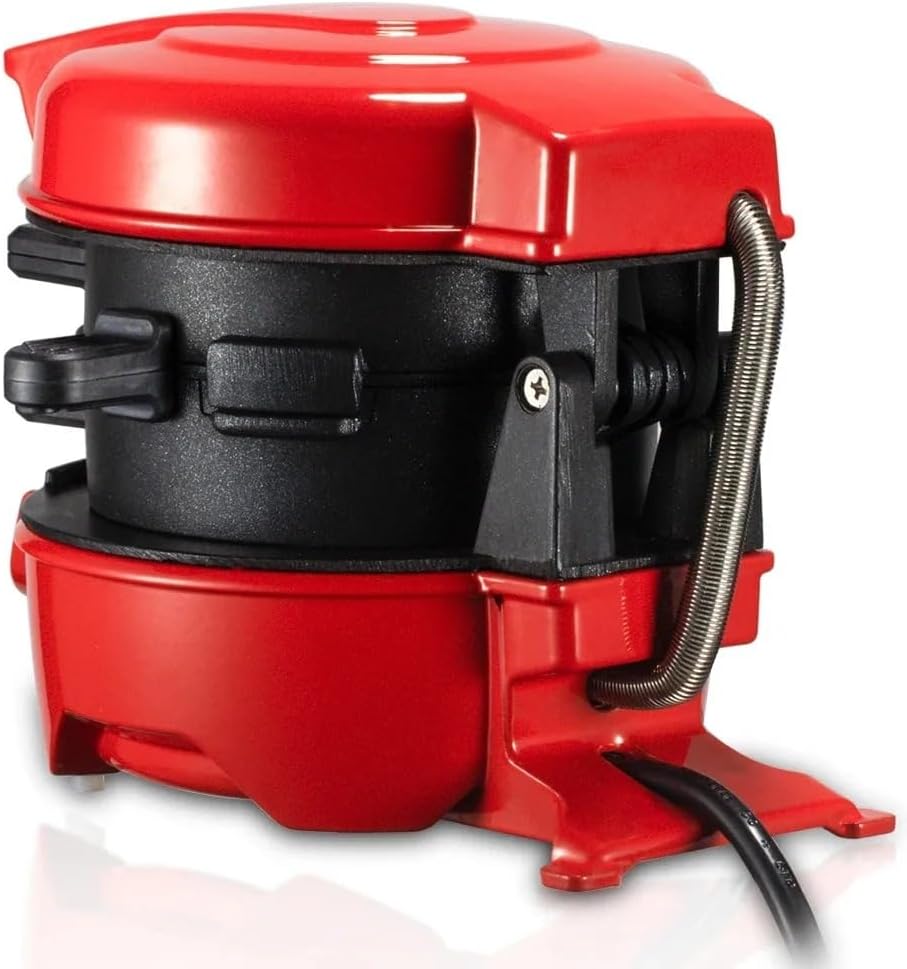

Image: Side view of the burger maker, showing the power cord connection point.
Operating Instructions
Follow these steps to prepare your delicious burgers:
- Preheating: Close the burger maker and plug it into a power outlet. The Power indicator light (red) will illuminate. The Preheat indicator light (green) will turn on, indicating the appliance is heating. Once the green light turns off, the burger maker has reached its optimal cooking temperature.
- Preparing Ingredients: While the unit preheats, prepare your burger patty and other ingredients (e.g., egg, cheese, bread).
- Cooking the Bottom Layer: Open the burger maker. Place the bottom half of your bun or bread on the bottom cooking plate.
- Adding the Patty: Place the removable cooking ring on top of the bottom bun. Add your burger patty into the cooking ring. You can also add an egg or other ingredients here.
- Adding Top Layers: Place cheese, vegetables, or the top half of your bun on top of the patty/egg.
- Closing and Cooking: Carefully close the lid of the burger maker. The green indicator light may cycle on and off during cooking to maintain temperature.
- Cooking Time: Cook for approximately 4-8 minutes, or until your ingredients are cooked to your desired doneness. Cooking times may vary based on ingredients and personal preference.
- Removing the Burger: Once cooked, open the lid. Carefully slide out the removable cooking ring. Use a heat-resistant spatula to remove your assembled burger. Be cautious of hot steam.
- Repeat: Close the lid to allow the unit to reheat for the next burger, if desired.
- Finishing: When finished cooking, unplug the appliance from the power outlet.
Image: Close-up view of the control panel, showing the green 'PREHEAT' and red 'POWER' indicator lights.
Image: The burger maker open, illustrating the top cooking plate and the space for ingredients.
Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your RAF R.666 Burger Maker.
- Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
- Wipe Cooking Plates: The non-stick cooking plates are easy to clean. Use a damp cloth or sponge with a small amount of mild detergent to wipe away food residues. For stubborn residue, a plastic scraper can be used. Do not use abrasive cleaners or metal scouring pads, as these can damage the non-stick coating.
- Clean Removable Ring: The removable cooking ring can be washed by hand with warm, soapy water. Rinse thoroughly and dry.
- Clean Exterior: Wipe the exterior of the appliance with a damp cloth. Do not use harsh chemicals or abrasive materials.
- Storage: Once clean and dry, store the burger maker in a cool, dry place.
Image: A close-up view of the non-stick cooking surface, highlighting its smooth finish for easy cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction. | Ensure the appliance is securely plugged into a working power outlet. Check the circuit breaker. |
| Food sticks to the cooking plates. | Insufficient preheating; damaged non-stick coating; no oil/butter used. | Ensure the appliance is fully preheated (green light off). Lightly grease the plates with cooking spray or butter before adding food. Avoid using metal utensils that can damage the coating. |
| Smoke or odor during first use. | Manufacturing residues burning off. | This is normal for the first use. Ensure adequate ventilation. If smoke persists after initial use, discontinue use and contact support. |
| Food not cooking evenly. | Uneven distribution of ingredients; insufficient preheating. | Ensure ingredients are spread evenly. Allow the appliance to fully preheat before adding food. |
Specifications
| Feature | Detail |
|---|---|
| Model | R.666 |
| Brand | RAF |
| Power | 600 Watts |
| Voltage | 220-240 Volts |
| Frequency | 50/60 Hz |
| Special Features | Non-stick coating, Cool-touch handle |
| Material | Metal, Non-stick coating |
| Color | Multi-color (Red/Black) |
| Product Dimensions (D x W x H) | 14 cm x 16.5 cm x 18 cm |
| Item Weight | 550 grams |

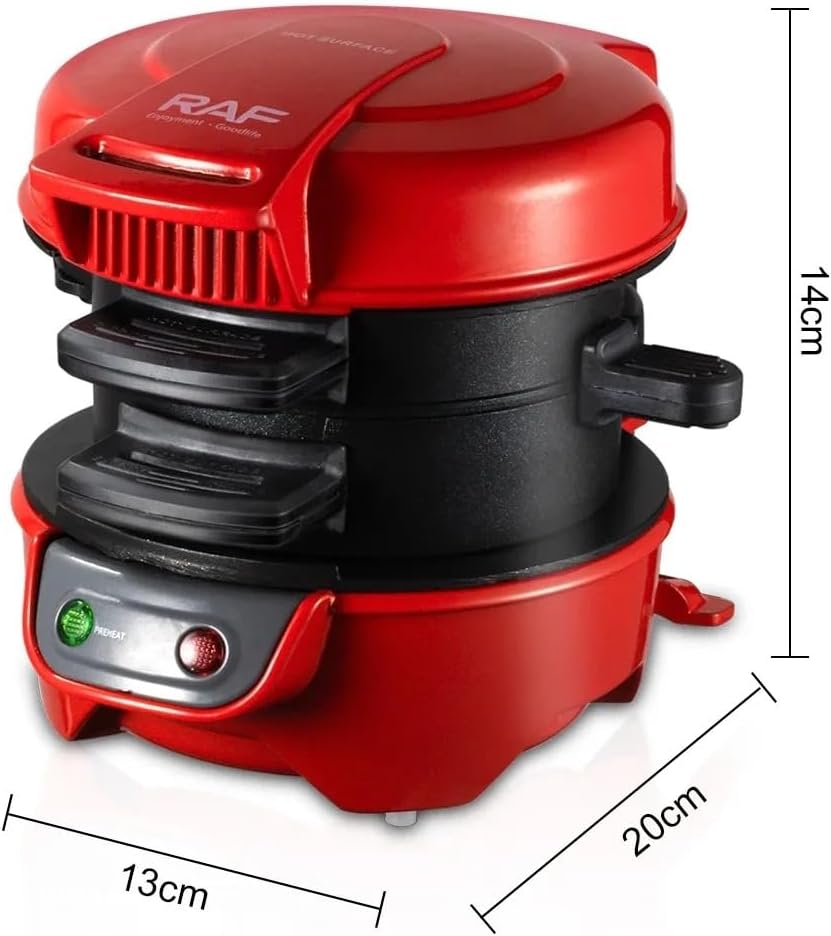

Image: The RAF R.666 Burger Maker with its approximate dimensions (Depth 13cm, Width 20cm, Height 14cm) indicated.
Warranty and Support
The RAF R.666 Burger Maker comes with a 3-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal household use.
For warranty claims, technical support, or service inquiries, please contact your retailer or the manufacturer's customer service. Please have your proof of purchase and model number (R.666) ready when contacting support.
