AITKEN Glow Plug Control Module (GPCM) User Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your AITKEN Glow Plug Control Module (GPCM). The GPCM is a critical component designed to ensure efficient engine starting, especially in cold weather conditions, by controlling the glow plugs in diesel engines. Proper installation and understanding of its function are vital for optimal vehicle performance and longevity.

Product Overview

The AITKEN Glow Plug Control Module (GPCM) is engineered as a direct replacement for the original equipment part, restoring proper glow plug function. It features an OEM design for precision electronic control and is built for a long lifespan. This module plays a key role in preheating the engine, which facilitates faster and more efficient starts in low temperatures.

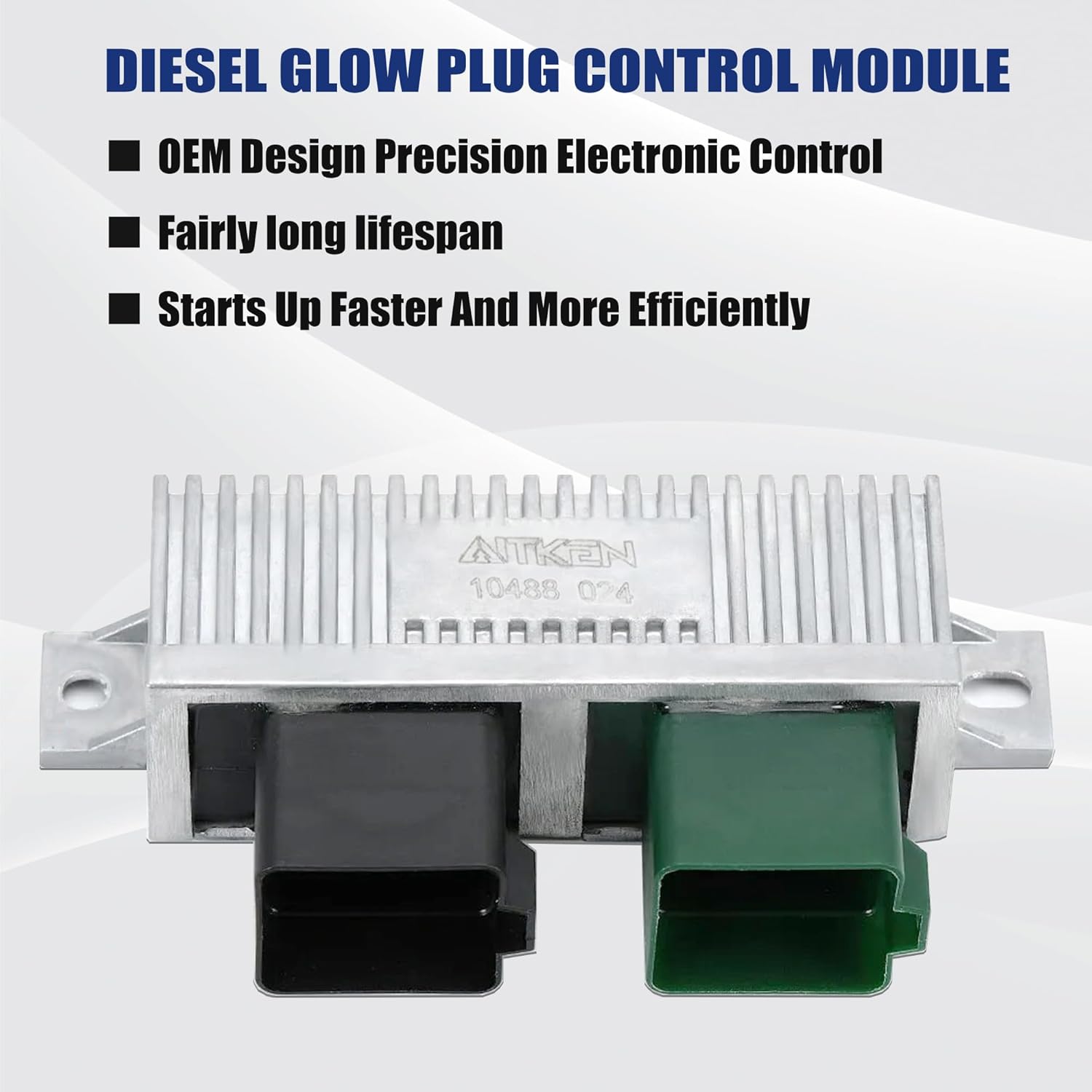

Image: AITKEN Diesel Glow Plug Control Module, emphasizing OEM design, long lifespan, and quick start capabilities.

The module is strategically positioned in the preheating chamber above the engine cylinders and below the injectors. Its electric heating element efficiently warms up the diesel fuel before injection, promoting better atomization for smoother engine operation.

Image: The AITKEN Glow Plug Control Module, illustrating its durable construction and the two interfaces with 14 pins.

Compatibility

This AITKEN Glow Plug Control Module is compatible with a range of Ford vehicles. Please verify fitment for your specific vehicle year, make, and model before installation.

Compatible Vehicle Models:

• FORD E-350: 1999-2010
• FORD E-450: 1999-2010
• FORD E-550: 2002-2003
• FORD ECONOLINE SUPER DUTY: 1999
• FORD EXCURSION: 2000-2005
• FORD F-250 SUPER DUTY: 1999-2010
• FORD F-350 SUPER DUTY: 1999-2010
• FORD F-450 SUPER DUTY: 1999-2010
• FORD F-550 SUPER DUTY: 1999-2010
• FORD F-650: 2000-2008
• FORD F-750: 2000-2008

Reference OEM Part Numbers:

• YC3Z12B533AA
• YC3Z12B533AC
• 904-282
• DY-876
• DY876
• RY467
• YC3Z-12B533-AA
• YC3Z 12B53 3AA

Image: Visual representation of compatible Ford models and corresponding OEM part numbers for the AITKEN GPCM.

Installation (Setup)

The AITKEN Glow Plug Control Module is designed for straightforward installation. However, it is recommended that installation be performed by a qualified technician to ensure proper function and safety. Always disconnect the vehicle's battery before beginning any electrical work.

Installation Steps:

1. Locate the existing Glow Plug Control Module in your vehicle. It is typically found in the preheating chamber area.
2. Carefully disconnect the electrical connectors from the old module.
3. Remove any mounting nuts or bolts securing the old module.
4. Position the new AITKEN GPCM in place.
5. Connect the plug(s) to the new module, ensuring a secure and proper connection.
6. Tighten the two nuts or bolts to secure the module firmly.
7. Reconnect the vehicle's battery.
8. Test the vehicle's starting system to confirm proper operation.

Image: Visual guide demonstrating the connection of the plug and securing of the module during installation.

Safety Warning: Incorrect installation of electrical components can lead to vehicle damage or fire. If you are unsure about any step, consult a professional mechanic.

Operation

The Glow Plug Control Module operates automatically to assist in starting your diesel engine. When the ignition is turned on, especially in cold conditions, the GPCM activates the glow plugs. These glow plugs heat the air within the engine's combustion chambers, raising the temperature to facilitate diesel ignition. Once the engine starts or reaches a certain operating temperature, the GPCM deactivates the glow plugs. This process ensures quick engine starts and reduces strain on the starter motor and battery.

Maintenance

The AITKEN Glow Plug Control Module is designed to be a maintenance-free component. Regular vehicle maintenance, including checking your vehicle's electrical system and ensuring all connections are clean and secure, will help prolong the life of all electrical components, including the GPCM. If you suspect any issues with the module, it is recommended to have it inspected by a qualified technician.

Troubleshooting

If you experience issues related to engine starting, particularly in cold weather, or if your vehicle's diagnostic system indicates a problem with the glow plug system, the GPCM may be a contributing factor. Common symptoms of a faulty GPCM include:

• Difficulty starting the engine in cold weather.
• Check Engine Light (CEL) or Glow Plug Warning Light illuminated on the dashboard.
• Rough idling or misfires immediately after starting.
• Excessive white smoke from the exhaust during startup.

Before replacing the GPCM, it is advisable to check the glow plugs themselves, the wiring harness, and the vehicle's battery and charging system. A professional diagnostic scan can help pinpoint the exact cause of the issue.

Important Note: There have been isolated reports of issues with aftermarket glow plug modules leading to electrical problems. If you observe any signs of overheating, burning smell, or smoke from the module or surrounding wiring, immediately disconnect the battery if safe to do so and seek professional assistance. Do not attempt to operate the vehicle.

Specifications

What's in the Box

• 1 x AITKEN Glow Plug Control Module

Image: The AITKEN Glow Plug Control Module as packaged for delivery.

Warranty and Support

AITKEN is committed to customer satisfaction. While specific warranty details are not provided in this manual, for any inquiries, technical assistance, or support regarding your Glow Plug Control Module, please contact the AITKEN customer service team. Your satisfaction is our priority, and we are dedicated to resolving any issues you may encounter.

For further assistance, please refer to the contact information provided with your purchase or visit the official AITKEN website.
