LoVinson Queen Size Metal Platform Bed Frame Instruction Manual

1. Product Overview

This manual provides detailed instructions for the assembly, use, and maintenance of your LoVinson Queen Size Metal Platform Bed Frame. This bed frame features an elegant butterfly pattern design on both the headboard and footboard, strong metal slat support, and is designed for easy assembly without the need for a box spring.

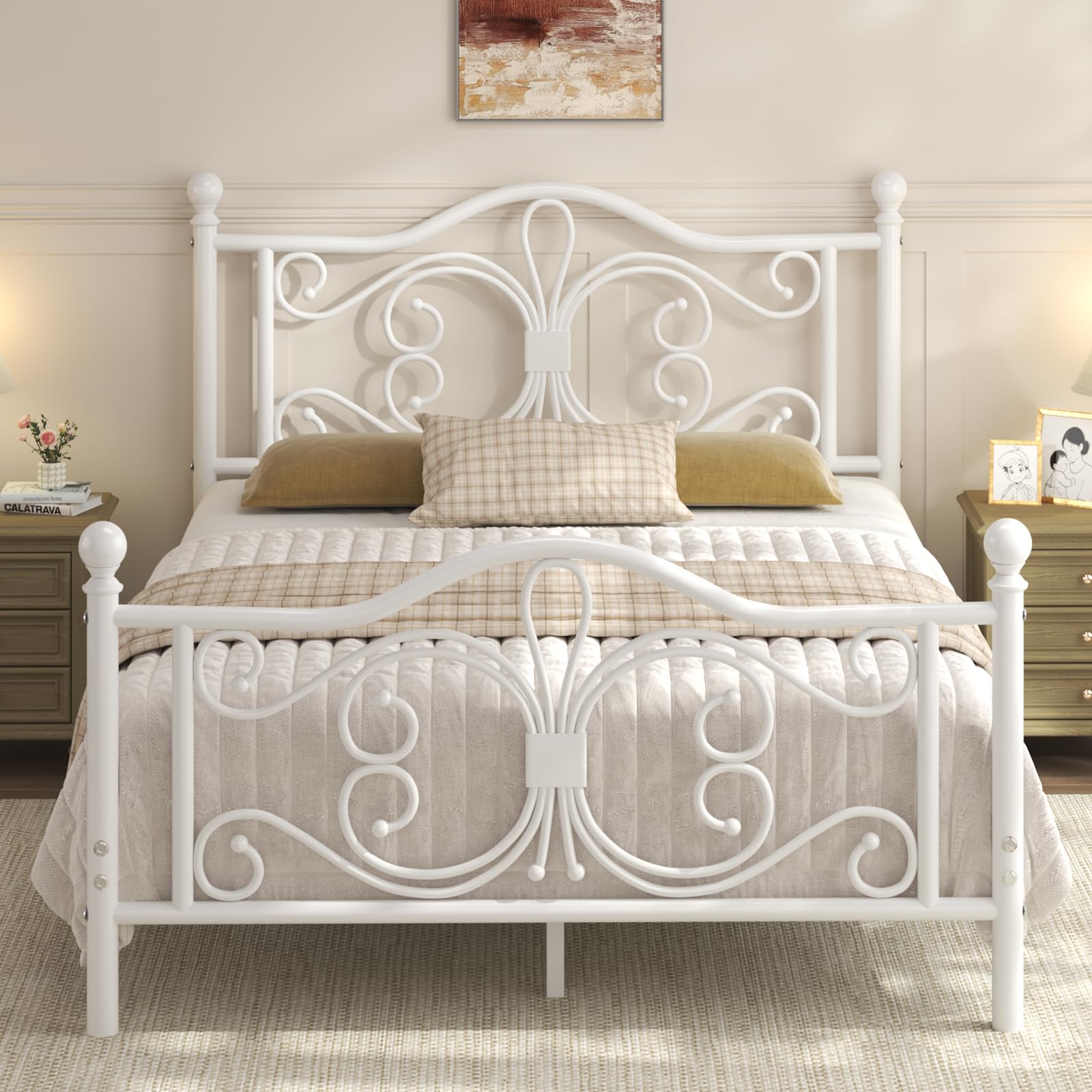

Image 1.1: Fully assembled LoVinson Queen Size Metal Platform Bed Frame.

2. Safety Information

Please read and understand all safety warnings before assembly and use.

• Use only with compatible mattress types.
• Be cautious of sharp edges and pinch points during assembly.
• Do not exceed the weight capacity of 1500 pounds.
• Ensure all bolts are securely tightened before use. Periodically check and re-tighten all connections.
• Do not allow children to play on or under the bed frame.

3. Package Contents

Verify that all components are present before beginning assembly. All accessories are packed in one box and labeled.

• Headboard
• Footboard
• Metal Slats
• Screws and Fasteners
• Installation Manual (this document)
• Assembly Tools (typically an Allen wrench)

Image 3.1: Example of included components and hardware.

4. Assembly Instructions

The assembly process is estimated to take approximately 45 minutes with clear installation instructions provided. It is recommended to assemble the bed frame with two people.

4.1. General Assembly Steps

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Identify the headboard, footboard, side rails, and support legs.
3. Attach the side rails to the headboard and footboard using the provided screws and tools. Ensure all connections are finger-tightened first.
4. Install the central support beam and its legs, if applicable.
5. Place the metal slats across the frame. Ensure the EVA silent sponge is correctly positioned between the metal strips to prevent noise.
6. Secure all slats to the frame according to the specific instructions in your package.
7. Once all components are in place, fully tighten all screws and bolts.
8. Verify the frame is stable and level before placing a mattress on it.

Image 4.1: Bed frame dimensions and structure.

Image 4.2: Anti-squeak EVA foam application during slat installation.

Image 4.3: High foot design to prevent mattress sliding.

5. Usage and Features

5.1. Mattress Compatibility

This platform bed frame is designed to be used without a box spring. It is compatible with mattresses ranging from 8 to 12 inches in thickness. The sturdy metal slats provide ample support for your mattress.

5.2. Under-bed Storage

The bed frame offers 11.8 inches (approximately 10.4 inches of usable space) of clearance from the ground, providing spacious storage underneath. This space can be utilized for storage boxes, luggage, or other items to help keep your room tidy.

Image 5.1: Example of under-bed storage space.

5.3. Noise-Free Design

EVA silent sponge is equipped between the metal slats to effectively prevent friction and reduce noise, ensuring a quiet sleep experience.

5.4. Elegant Design

The classic metal bed frame features a butterfly pattern design on both the headboard and footboard, adding an elegant and romantic aesthetic to your bedroom. The metal material is polished and treated with electrostatic spraying and high-temperature baking for a matte, scratch-resistant finish.

Image 5.2: Detail of the butterfly pattern headboard.

6. Maintenance

To maintain the appearance and longevity of your bed frame:

• Wipe with a damp cloth for general cleaning.
• For deeper cleaning, wipe with a dry cloth after using a damp cloth.
• Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish.
• Periodically check all bolts and screws and tighten them as needed to ensure stability.

7. Specifications

8. Troubleshooting

If you encounter any issues during assembly or use, please refer to the following common solutions:

• Squeaking Noise: Ensure all bolts are securely tightened. Check that the EVA silent sponge is correctly placed between all metal slats and the frame.
• Unstable Frame: Re-check all connections to ensure they are fully tightened. Make sure the bed frame is on a level surface.
• Missing Parts: Carefully check all packaging materials. If parts are still missing, contact customer support with your model number and a description of the missing parts.
• Difficulty Assembling: Review the assembly instructions carefully. Ensure you are using the correct screws for each step. It may be helpful to have a second person assist with assembly.

9. Warranty and Support

For warranty information or further assistance, please contact LoVinson customer support. Keep your purchase receipt and model number (LV-HDH036-006-WH) handy for faster service.

You can visit the LoVinson store on Amazon for more information: LoVinson Amazon Store
