PHNHOLUN Electric Dirt Bike User Manual

1. Introduction and Safety Guidelines

Thank you for choosing the PHNHOLUN Electric Dirt Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your electric bicycle. Please read this manual thoroughly before your first ride and keep it for future reference. Failure to follow these instructions may result in serious injury or damage to the product.

General Safety Warnings:

• Always wear a helmet and appropriate safety gear when riding.
• Familiarize yourself with local traffic laws and regulations.
• Perform a pre-ride inspection before each use, checking brakes, tires, battery, and all fasteners.
• Do not ride under the influence of alcohol or drugs.
• Avoid riding in adverse weather conditions, such as heavy rain or snow, which can reduce visibility and traction.
• Ensure the battery is securely locked in place before riding.

2. Product Overview

The PHNHOLUN Electric Dirt Bike is designed for versatile riding across various terrains. It features a powerful motor, a long-range removable battery, and robust suspension for a comfortable and dynamic riding experience.

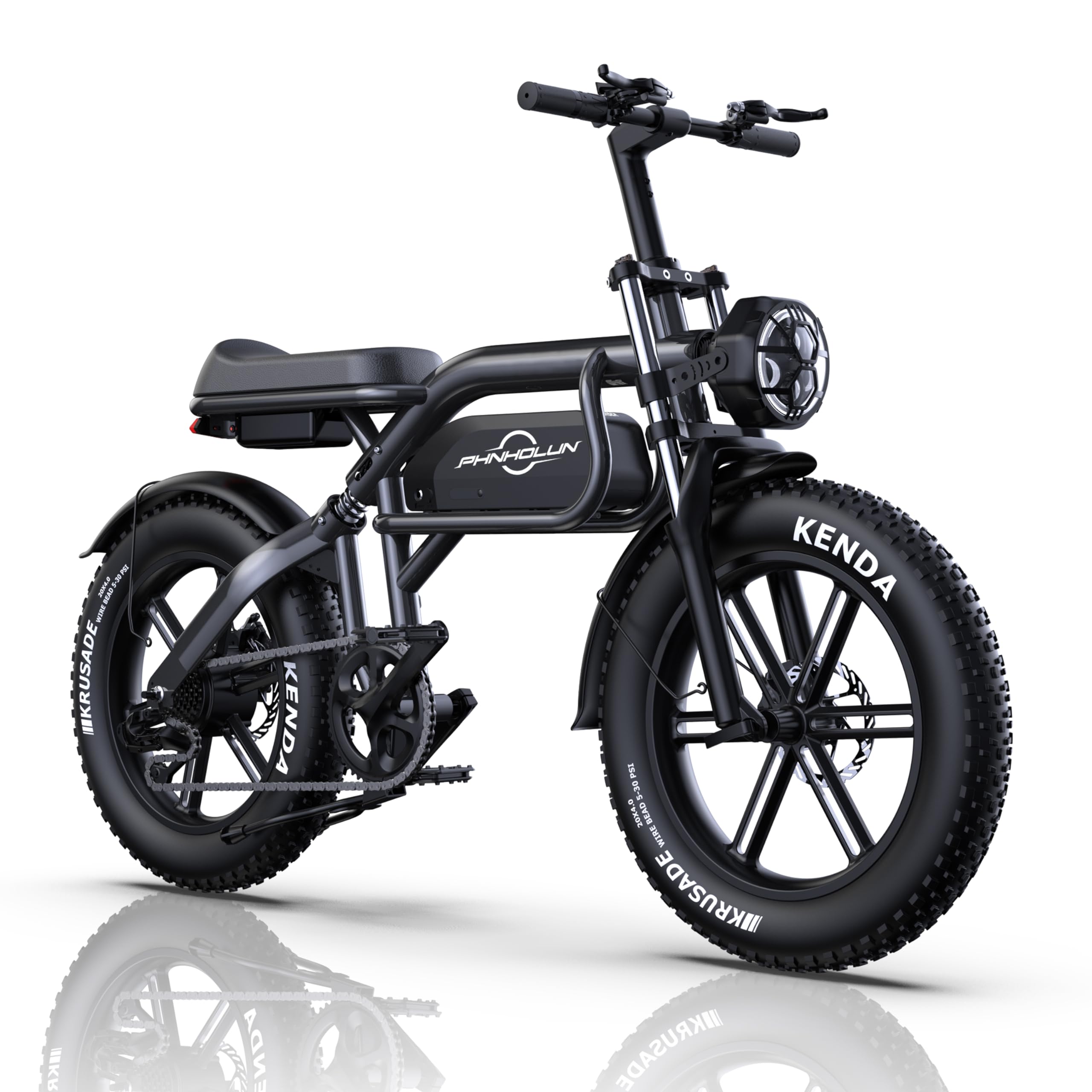

Image: Overview of the PHNHOLUN Electric Dirt Bike's main features, highlighting the 1000W motor, 20"x4.0 fat tires, 32mph max speed, 48V 20Ah lithium battery, full suspension, and 7-speed Shimano gears.

Key Components:

• Motor: 1000W (1500W Peak) high-speed brushless motor.
• Battery: Detachable 48V 20Ah Lithium Battery.
• Tires: 20-inch x 4.0 fat tires for all-terrain traction.
• Suspension: Dual suspension system (Front Hydraulic Shock, Rear Air Shock).
• Brakes: Dual Disc Brake system for reliable stopping power.
• Gears: 7-speed gear system.
• Display: Digital LCD display for riding data.

3. Assembly and Setup

Your PHNHOLUN Electric Dirt Bike comes partially assembled. Follow these steps to complete the assembly and prepare for your first ride.

3.1 Unpacking

1. Carefully remove the bike and all components from the packaging.
2. Inspect for any shipping damage. Contact customer support immediately if damage is found.
3. Retain packaging materials for potential future transport or returns.

3.2 Handlebar Installation

• Attach the handlebar to the stem, ensuring it is centered and the brake levers and shifters are in a comfortable position.
• Tighten the stem bolts securely.

3.3 Pedal Installation

• Identify the left (L) and right (R) pedals.
• The right pedal (R) threads clockwise into the right crank arm.
• The left pedal (L) threads counter-clockwise into the left crank arm.
• Tighten pedals firmly with a wrench.

3.4 Seat Adjustment

• Adjust the seat post height so your feet can comfortably touch the ground when stopped, or for optimal pedaling efficiency.
• Secure the quick-release lever or seat post clamp tightly.

3.5 Tire Pressure Check

• Check the tire pressure using a gauge. The recommended pressure range is typically printed on the tire sidewall (e.g., 5-30 PSI for fat tires).
• Inflate tires to the recommended pressure.

4. Battery Information and Charging

The PHNHOLUN Electric Dirt Bike is equipped with a powerful 48V 20Ah removable lithium battery, offering an extended range of 40-75 miles on a single charge.

Image: Detailed view of the removable 48V 20Ah lithium battery, highlighting its large capacity, BMS safety protection, and typical range.

4.1 Charging the Battery

1. Ensure the bike is turned off.
2. Locate the charging port on the battery. The battery can be charged while installed on the bike or removed.
3. Connect the charger to the charging port, then plug the charger into a standard electrical outlet.
4. The charger indicator light will typically show red during charging and turn green when fully charged.
5. Charging time may vary, but typically takes several hours for a full charge.
6. Disconnect the charger once charging is complete.

4.2 Battery Removal and Installation

• To remove: Turn the key to the unlock position and slide the battery out of its compartment.
• To install: Slide the battery back into the compartment until it clicks into place. Turn the key to the lock position to secure it.

4.3 Battery Care

• Avoid fully discharging the battery regularly.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Charge the battery at least once every two months if not in use to maintain its health.

5. Operating Instructions

Familiarize yourself with the controls and riding modes before operating your electric dirt bike.

5.1 Powering On/Off

• To power on: Press and hold the power button on the LCD display for a few seconds.
• To power off: Press and hold the power button again until the display turns off.

5.2 Digital LCD Display

The multi-function LCD display provides real-time riding data:

• Battery Level: Indicates remaining battery charge.
• Speed: Current riding speed.
• Modes: Displays the current pedal assist level (PAS).
• Mileage: Trip distance and total odometer.
• Other indicators may include headlight status, error codes, etc.

5.3 Riding Modes

Your e-bike offers multiple riding modes:

• Pedal Assist System (PAS): Provides motor assistance as you pedal. Use the '+' and '-' buttons on the control panel to adjust assist levels (typically 1-5). Higher levels provide more assistance.
• Throttle Mode: Engages the motor without pedaling. Twist the throttle grip to accelerate. Use with caution, especially at higher speeds.
• Manual Mode: Ride like a traditional bicycle with no motor assistance.

5.4 Gear Shifting

The 7-speed gear system allows you to adjust pedaling effort for different terrains and speeds. Use the shifter on the handlebar to change gears. Shift to a lower gear for climbing hills and a higher gear for flat terrain or downhill riding.

5.5 Braking

The dual disc brake system provides effective stopping power. Apply both front and rear brakes simultaneously for balanced and controlled braking. Avoid sudden, hard braking, especially at high speeds or on loose surfaces.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your PHNHOLUN Electric Dirt Bike.

6.1 Cleaning

• Clean the bike regularly with a damp cloth. Avoid using high-pressure washers directly on electrical components.
• Keep the battery compartment and charging port clean and dry.

6.2 Tire Maintenance

• Check tire pressure before each ride.
• Inspect tires for wear, cuts, or punctures. Replace worn tires promptly.

6.3 Brake System

• Regularly check brake pads for wear and replace them when necessary.
• Ensure brake levers are firm and responsive. Adjust brake cables if there is excessive slack.

6.4 Chain and Drivetrain

• Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
• Inspect gears and derailleur for proper alignment and function.

6.5 Fasteners

• Periodically check all bolts, nuts, and quick-release levers to ensure they are securely tightened.

7. Troubleshooting

This section addresses common issues you might encounter with your electric dirt bike.

If you encounter issues not listed here or cannot resolve a problem, please contact customer support.

8. Specifications

Detailed technical specifications for the PHNHOLUN Electric Dirt Bike.

Image: Dimension reference for the PHNHOLUN Electric Dirt Bike, including recommended rider height, bike weight, and maximum load capacity.

9. Warranty and Customer Support

For warranty information, please refer to the warranty card included with your purchase or visit the official PHNHOLUN website. If you have any questions, require technical assistance, or need to order replacement parts, please contact PHNHOLUN customer support through the contact information provided with your product or on the brand's official channels.
