TOP-HEATER RV Water Heater Element 1500W 120V (Model 02462-2) Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and effective installation, operation, and maintenance of your TOP-HEATER 1500W 120V RV Water Heater Element, Model 02462-2. Please read all instructions carefully before proceeding with installation or use to ensure proper function and safety.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in electric shock, fire, property damage, or personal injury.

• Always disconnect power to the water heater at the circuit breaker before performing any installation, maintenance, or troubleshooting.
• Ensure the water supply to the water heater is turned off and the tank is drained to the appropriate level before removing or installing heating elements.
• Hot water can cause severe burns. Exercise extreme caution when draining the tank or handling components that have been exposed to hot water.
• Wear appropriate personal protective equipment, including safety glasses and gloves, during installation and maintenance.
• This product operates at 120V and 1500W. Ensure your electrical system is compatible and properly grounded.
• If you are unsure about any step, consult a qualified electrician or plumber.

3. Product Overview

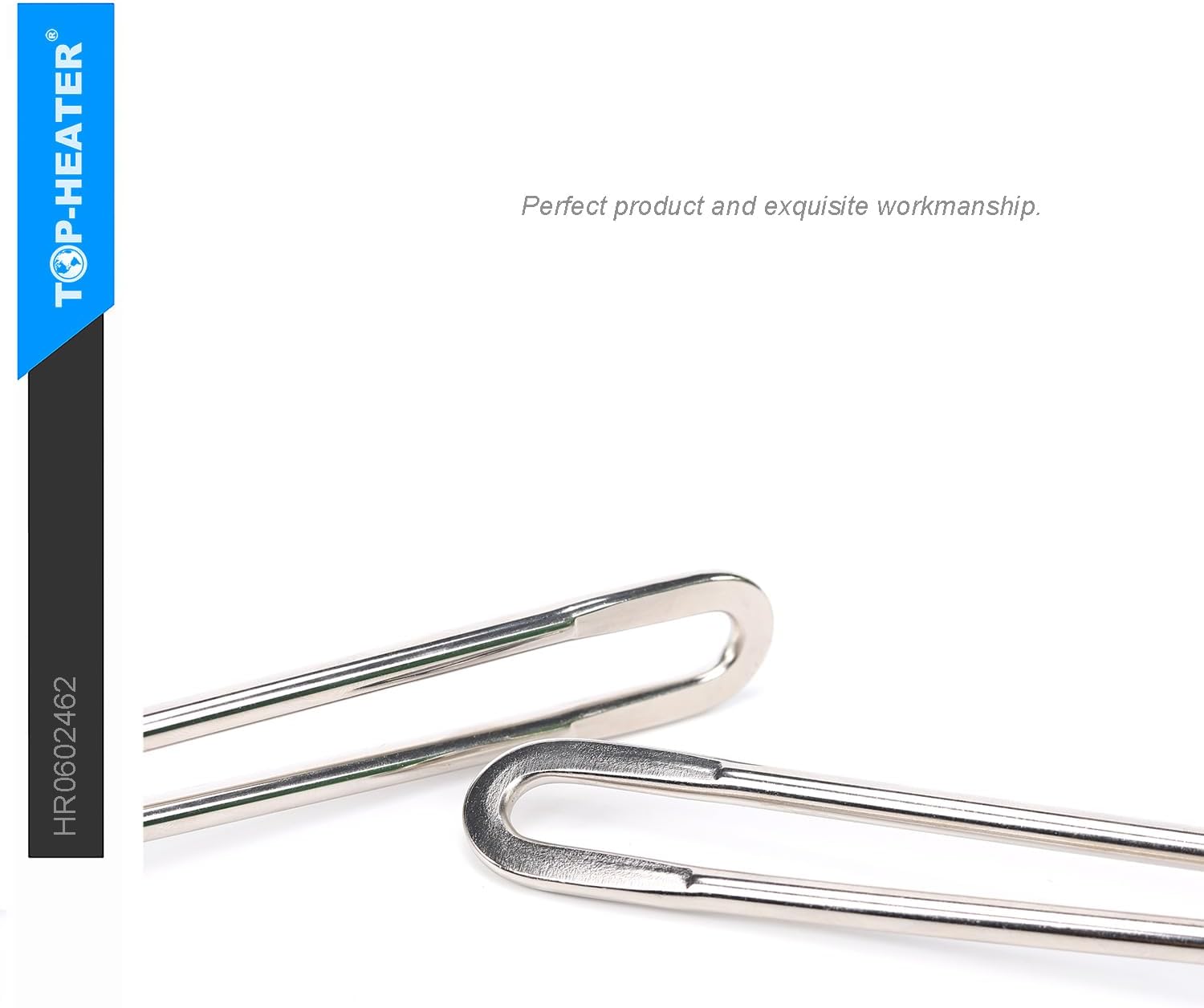

The TOP-HEATER 1500W 120V RV Water Heater Element (Model 02462-2) is designed for efficient water heating in recreational vehicles. It features a copper heater with nickel coating for enhanced corrosion resistance, high stability, good thermal conductivity, and fast heating. This element is UL certified, ensuring quality and safety.

4. Compatibility

This TOP-HEATER water heater element is designed to be compatible with various Atwood, Dometic, and Suburban models. Please verify your water heater's specifications before ordering to ensure proper fit.

Compatible Models:

• GCH6A-8E, GCH6-6E, GC6A-7E, G6A-6E, G6A-7E, G6A-8E, GCH6A-7E
• GCG6A-9E, GC6AA-7E, GC6AA-8E, GC6AA-9E
• GCH10A-2E, GCH10A-3E, GC10A-2E, GC10A-3E
• G6A-3E, GH6-4E, GCH6A-10E, GCH10A-4E
• SW10DEM, SW10DE, SW10DEL, SW10PE, SW10PER
• SW6DE, SW6DEL, SW6DEM, SW6PE, SW6PER
• SW12, SW16, XT Series, etc.

Note: Minimum tank diameter 10". This replacement element must match the voltage and wattage of the element being replaced and should not exceed the appliance's nameplate rating.

5. Setup & Installation

Follow these steps carefully to replace your water heater element. Refer to the safety information before beginning.

5.1. Preparation

1. Disconnect Power: Locate your RV's main electrical panel and turn off the circuit breaker supplying power to the water heater. Verify power is off using a voltage tester.
2. Turn Off Water Supply: Close the water intake valve to the water heater.
3. Drain Tank: Attach a garden hose to the drain valve at the bottom of the water heater. Open the drain valve. If replacing the upper element, drain half the tank. If replacing the lower element, fully drain the tank. Open a hot water faucet inside your RV to help release water from the tank. Once drained, close the drain valve.
4. Access Element: Use a Phillips head screwdriver to remove the mounting screw securing the access cover of the element you are replacing. Remove the cover. Move any insulation out of the way and remove the plastic cover protecting the element terminals.

5.2. Removing the Old Element

5. Disconnect Wires: Note the orientation of the wires attached to the heating element terminals. Loosen the screws to detach the wires.
6. Unthread Element: Use a 1 1/2 inch socket or a specialized heating element wrench to unthread the old element by rotating it counter-clockwise. Carefully remove the old element from the tank.

5.3. Installing the New Element

7. Check Gasket: Before installing the new heating element, confirm that the gasket is properly seated on the element.
8. Insert and Tighten: Carefully insert the new element into the tank opening. Hand-thread it clockwise until snug, then use the 1 1/2 inch socket or heating element wrench to tighten it securely. Do not overtighten.
9. Connect Wires: Attach the wires to the appropriate terminals on the new element, ensuring they match the original orientation. Tighten the screws to secure the connections.

5.4. Finalization

10. Replace Covers: Reposition the plastic cover over the terminals, then replace the insulation and the outer access cover. Secure the outer cover with its mounting screw.
11. Refill Tank: Open the water intake valve to allow the tank to refill completely. Close any open hot water faucets once water flows steadily. Check for leaks around the new element.
12. Restore Power: Once the tank is full and there are no leaks, restore power to the water heater at the circuit breaker.

6. Maintenance

Regular maintenance helps ensure the longevity and efficiency of your water heater element and the overall water heater system.

• Annual Inspection: Annually inspect the heating element for signs of corrosion, mineral buildup, or damage. Replace if necessary.
• Flush Tank: Periodically flush your water heater tank to remove sediment buildup, which can reduce efficiency and shorten element lifespan.
• Check Anode Rod: Inspect and replace the anode rod as recommended by your water heater manufacturer. A healthy anode rod protects the tank and elements from corrosion.
• Electrical Connections: Ensure all electrical connections remain tight and free from corrosion.

7. Troubleshooting

If you experience issues with your water heater after element replacement, consider the following common problems and solutions:

For issues not covered here, please contact TOP-HEATER customer support or a qualified technician.

8. Specifications

9. Warranty & Support

For warranty information, please refer to the documentation included with your purchase or contact TOP-HEATER directly. Keep your proof of purchase for warranty claims.

For technical support or further assistance, please contact TOP-HEATER customer service through their official website or the contact information provided with your product.
