Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your WinZo WZ5088DS two-piece extra tall dual flush elongated toilet. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. Retain this manual for future reference.

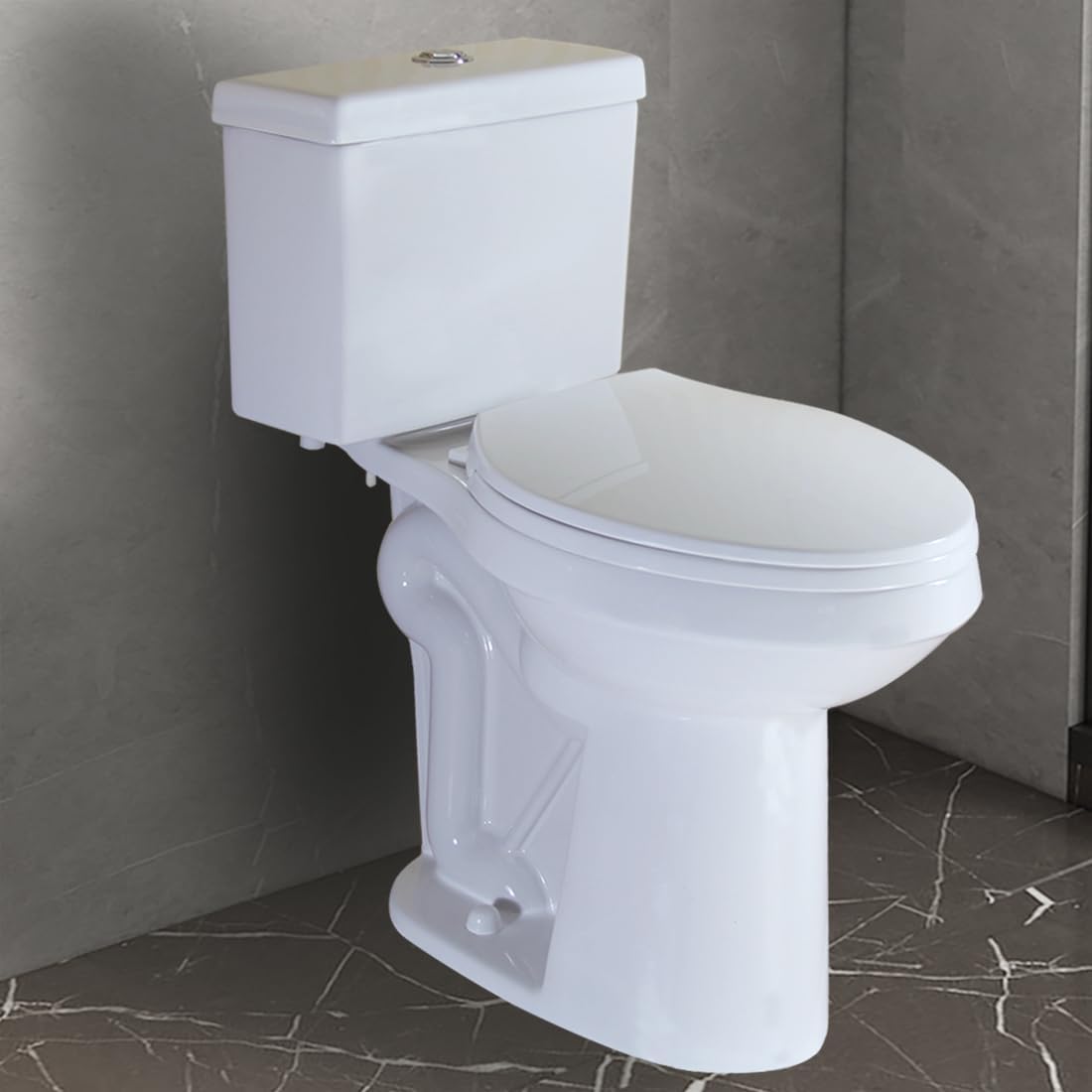

A complete view of the WinZo WZ5088DS two-piece extra tall toilet, featuring its white porcelain finish and elongated bowl design.
Product Features
- Extra Tall Bowl: The toilet bowl height from the floor to the seat lid is 20 inches, providing enhanced comfort and ease of use, particularly for seniors, individuals with disabilities, and taller persons.
- 10-inch Rough-in: Designed for specific bathroom layouts, this toilet features a 10-inch rough-in, offering a retrofit solution for older homes or spaces with limited dimensions.
- Dual Flush System: Equipped with a 3-inch top-mounted dual flush valve, allowing for efficient water usage with options for a partial flush (less water for liquid waste) and a full flush (more water for solid waste).
- Elongated Bowl: The elongated bowl shape provides additional comfort.
- Soft-Closing Seat: Includes a quick-install, soft-closing toilet seat that closes slowly and quietly, preventing slamming.
- Two-Piece Design: Consists of a separate tank and bowl for easier installation and maintenance.
An annotated diagram highlighting key features of the WinZo WZ5088DS toilet, including the 3-inch flush valve, soft-closing seat, extra raised bowl, stainless steel bolts, and easy installation points.
A visual comparison between the WinZo WZ5088DS 20-inch extra tall toilet and a standard 16-inch toilet, demonstrating the significant height difference for improved user comfort.
Package Contents
The WinZo WZ5088DS toilet is shipped in two separate packages. Please ensure both packages have arrived before beginning installation.
- Toilet Bowl
- Toilet Tank
- Soft-Closing Toilet Seat and Seat Bolts
- Flush Valve and Fill Valve
- Tank Screws
- Floor Fixing Bolts
- Wax Ring
Dimensions and Specifications
| Specification | Value |
|---|---|
| Model Number | WZ5088DS |
| Color | White |
| Product Dimensions (D x W x H) | 15" x 28" x 32" |
| Material | Porcelain |
| Item Weight | 86 Pounds |
| Installation Type | Floor Mounted |
| Shape | Elongated (Oval) |
| Seat Material Type | Polypropylene (PP) |
| Rough-in | 10 inches |
| Seat Height (from floor) | 20 inches |

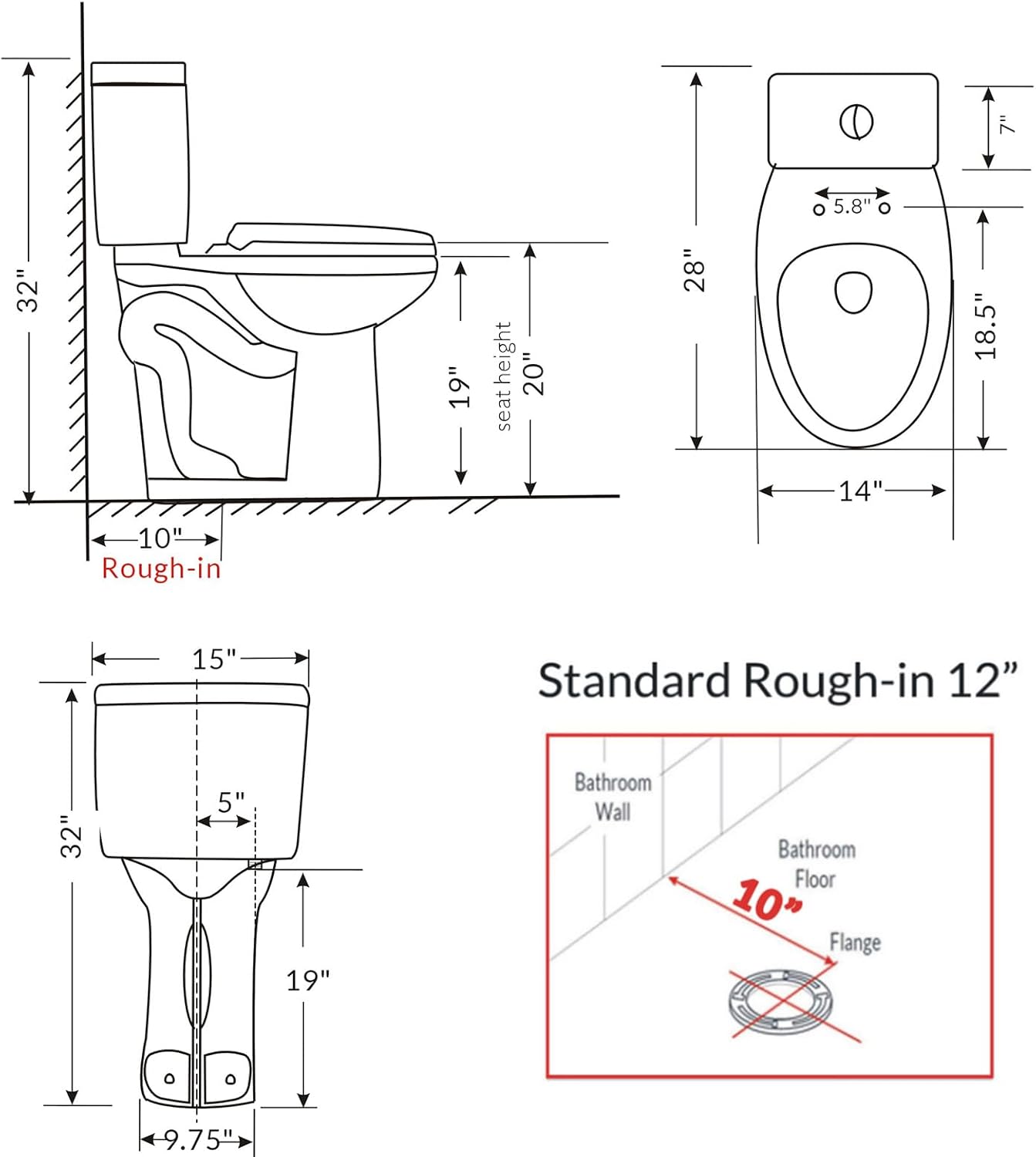

A detailed technical drawing providing overall dimensions of the WinZo WZ5088DS toilet, including its 10-inch rough-in measurement from the wall to the center of the floor flange.
Setup and Installation
Professional installation is recommended. Ensure all local plumbing codes are followed. The toilet is shipped in two separate boxes (bowl and tank). Verify all components are present before starting.
- Preparation: Turn off the water supply to the bathroom. Remove the old toilet if applicable and clean the flange area. Ensure the 10-inch rough-in measurement from the finished wall to the center of the floor drain is accurate.
- Install Floor Bolts: Secure the floor fixing bolts to the flange.
- Install Wax Ring: Place the wax ring around the horn of the toilet bowl.
- Set the Bowl: Carefully lower the toilet bowl onto the floor bolts, ensuring it is level and the wax ring creates a seal. Tighten the nuts onto the floor bolts evenly, but do not overtighten to avoid cracking the porcelain.
- Assemble Tank Components: Install the flush valve, fill valve, and tank screws into the toilet tank according to the included diagrams.
- Attach Tank to Bowl: Place the tank onto the bowl, aligning the tank screws with the holes in the bowl. Securely tighten the tank bolts, ensuring a watertight seal between the tank and bowl.
- Connect Water Supply: Connect the water supply line to the fill valve on the tank.
- Install Toilet Seat: Attach the soft-closing toilet seat using the provided seat bolts.
- Test: Turn on the water supply and check for leaks. Flush the toilet multiple times to ensure proper operation.
Operating Instructions
The WinZo WZ5088DS toilet features a dual flush system for water conservation.
- Partial Flush: For liquid waste, press the smaller button on the top of the tank lid. This uses less water.
- Full Flush: For solid waste, press the larger button on the top of the tank lid. This uses the full volume of water for a powerful flush.
A close-up view inside the toilet tank, showing the 3-inch dual flush valve system which allows for water-saving flushing options.
Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your toilet.
- Cleaning the Exterior: Use a soft cloth and mild, non-abrasive cleaner to wipe down the exterior surfaces. Avoid harsh chemicals or abrasive pads that can damage the finish.
- Cleaning the Bowl: Use a toilet brush and a non-abrasive toilet bowl cleaner. Flush thoroughly after cleaning.
- Seat Maintenance: The soft-closing seat can be easily removed for thorough cleaning. Refer to the seat installation instructions for removal and reattachment.
- Inspect for Leaks: Periodically check for any signs of water leaks around the base, tank, or water supply line. Address any leaks promptly.
An image depicting the ease of cleaning the toilet bowl interior with a cloth.
Troubleshooting
If you encounter issues with your WinZo WZ5088DS toilet, refer to the following common troubleshooting steps:
- Toilet Leaks:
- Around the base: Ensure floor bolts are tightened evenly. Check the wax ring for proper seal.
- Between tank and bowl: Ensure tank bolts are tightened evenly and the tank-to-bowl gasket is properly seated.
- From water supply line: Check connections and ensure the supply line is securely tightened.
- Weak Flush:
- Check water level in the tank. It should be at the fill line.
- Ensure the flush valve flapper/seal is operating correctly and not obstructed.
- Inspect the rim jets under the bowl rim for clogs and clean if necessary.
- Toilet Runs Continuously:
- Check the fill valve for proper adjustment; the water level should not be too high.
- Ensure the flush valve flapper/seal is seating correctly and not worn or obstructed.
- Tank and Bowl Alignment Issues:
- During installation, ensure the tank is carefully aligned with the bowl's mounting holes before tightening. Slight adjustments may be needed to achieve proper fit. Verify that the rough-in measurement is precisely 10 inches from the finished wall to the center of the floor flange.
For issues not resolved by these steps, please contact WinZo customer support.
Warranty and Support
All WinZo toilets are factory flush tested to ensure optimal performance and quality. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any product inquiries, technical assistance, or warranty claims, please contact WinZo customer support directly. Contact information can typically be found on the WinZo official website or through your retailer.
