F FABOBJECTS K4580 High-Precision Multi-Functional Compass User Manual

1. Introduction

Thank you for choosing the F FABOBJECTS K4580 High-Precision Multi-Functional Compass. This robust and reliable instrument is designed for outdoor enthusiasts, hikers, campers, and anyone requiring accurate navigation in various environments. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your compass to ensure optimal performance and longevity.

2. Product Overview

The K4580 compass features a durable army green casing, a high-precision magnetic needle, and multiple functions for advanced navigation. Familiarize yourself with its components before use.

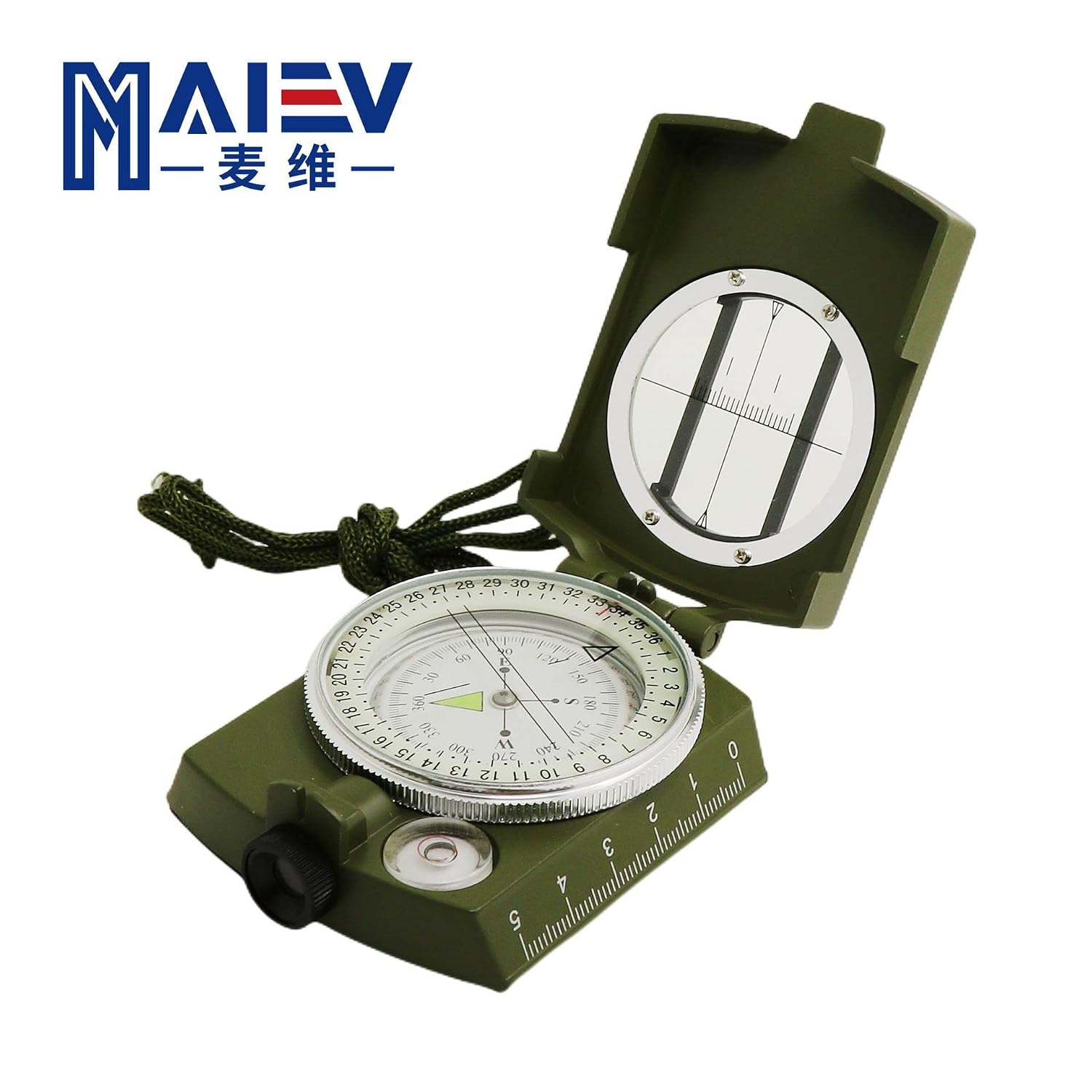

Figure 2.1: The K4580 compass in its open position, displaying the main compass dial, sighting mirror, and attached lanyard. The robust casing is visible.

Figure 2.2: The K4580 compass in its closed, compact state. Note the integrated ruler on the side and the adjustment knob for declination or other settings.

Key Components:

• Magnetic Needle: Points to magnetic north.
• Compass Dial: Graduated in degrees (0-360) for precise bearing readings.
• Sighting Mirror: Used for taking accurate bearings to distant objects.
• Sighting Line/Hairline: Aligns with the target for precise readings.
• Luminous Markings: For use in low-light conditions.
• Clinometer: Measures angles of slope or elevation.
• Ruler/Scale: Integrated for map work.
• Adjustment Knob: For setting declination or other specific functions.

3. Setup

Before using your K4580 compass, ensure it is ready for accurate navigation.

1. Unpack: Carefully remove the compass from its packaging.
2. Inspect: Check for any visible damage. Ensure the needle moves freely and is not stuck.
3. Lanyard Attachment: If not already attached, secure the provided lanyard to the compass for easy carrying and to prevent loss.
4. Magnetic Interference: Keep the compass away from magnetic objects such as mobile phones, metal objects, power lines, and other electronic devices, as these can interfere with the needle's accuracy.

4. Operating Instructions

The K4580 compass can be used for basic orientation and taking precise bearings.

4.1. Basic Orientation (Finding North)

1. Open the compass fully so the sighting mirror is upright.
2. Hold the compass flat and level in the palm of your hand, away from any magnetic interference.
3. Allow the magnetic needle to settle. The red (or marked) end of the needle indicates magnetic north.
4. Rotate yourself and the compass until the magnetic needle aligns with the 'N' (North) marking on the compass dial. You are now facing magnetic north.

4.2. Taking a Bearing to an Object

1. Identify the object you wish to take a bearing to.
2. Open the compass and hold it at eye level.
3. Look through the sighting notch and align the sighting line (hairline) with the target object.
4. While keeping the sighting line on the target, look into the sighting mirror to read the degree marking on the compass dial that aligns with the magnetic needle. This is your magnetic bearing to the object.
5. Note on Declination: Magnetic North is not the same as True North. For precise navigation, especially with maps, you may need to adjust for magnetic declination. Consult a local map or online resources for the declination value in your area and adjust your bearing accordingly using the compass's adjustment knob if available, or by adding/subtracting the declination value from your reading.

4.3. Using the Clinometer

The clinometer allows you to measure angles of slope or elevation.

1. Locate the clinometer scale and its associated needle or bubble level.
2. To measure the angle of a slope, place the base of the compass flat on the slope or hold it parallel to the slope. Read the angle indicated by the clinometer needle.
3. To measure the angle of elevation to an object (e.g., a mountain peak), sight the object through the compass and read the angle on the clinometer scale.

5. Maintenance

Proper care will extend the life and accuracy of your K4580 compass.

• Cleaning: Wipe the compass with a soft, damp cloth. Do not use harsh chemicals or abrasive materials, as these can damage the casing or lens.
• Storage: Store the compass in a cool, dry place, away from direct sunlight and strong magnetic fields. Keep it in its closed position to protect the dial and mirror.
• Avoid Drops: While durable, dropping the compass can affect its precision. Handle with care.
• Water Exposure: The compass is designed for outdoor use but is not fully submersible. Avoid prolonged exposure to heavy rain or immersion in water.

6. Troubleshooting

If you encounter issues with your compass, refer to the following common problems and solutions.

• Needle is sluggish or stuck:
  • Ensure the compass is held perfectly level.
  • Move away from any potential magnetic interference (metal objects, electronics, power lines).
  • Gently tap the compass to free the needle if it's slightly stuck (rare). If the issue persists, the compass may be damaged.
• Inaccurate readings:
  • Verify there are no magnetic objects nearby.
  • Ensure you are holding the compass flat and level.
  • Remember to account for magnetic declination if comparing to a true north map.
• Luminous markings not glowing:
  • The luminous markings require exposure to light to charge. Expose the compass to a light source for a few minutes before use in darkness.

7. Specifications

8. Safety Information

• Keep out of reach of small children.
• Do not attempt to disassemble the compass, as this may damage the precision components and void any potential warranty.
• Avoid exposing the compass to extreme temperatures.
• Always carry a map and know how to use it in conjunction with your compass for reliable navigation.
