Important Safety Instructions
Please read all instructions carefully before operating the pump. Failure to follow these instructions may result in property damage or injury.
- Always disconnect the power supply before performing any maintenance or handling the pump.
- Do not operate the pump dry. Ensure the pump is fully submerged in water during operation to prevent damage.
- This pump is designed for use with fresh water and marine water only.
- Ensure all electrical connections are dry and secure. Do not expose the power supply or controller to water.
- Keep the pump and all components out of reach of children and pets.
- Inspect the power cord and pump for any damage before each use. Do not use if damaged.
Package Contents
Verify that all items listed below are included in your package:
- Jebao DCS-2000 DC Water Pump
- DC Pump Controller
- Power Supply (AC Adapter)
- Intake Screen Cover
- Barbed Fittings (16mm & 20mm)
- Fitting Nut and O-ring
- Adhesive Pad for Controller
- User Manual (this document)

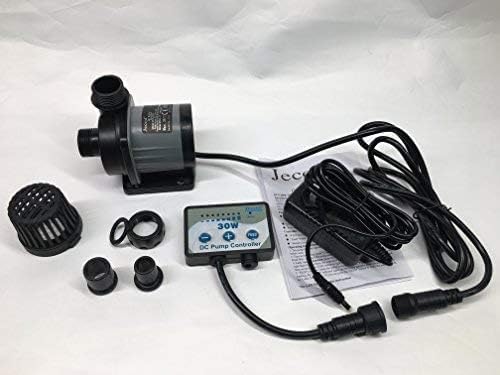

Image: All included components of the Jebao DCS-2000 pump system.
Product Overview
The Jebao DCS-2000 is a high-performance, controllable DC water pump designed for various aquarium applications, including sumps, circulation, and return systems. It features an innovative electronic motor for energy efficiency and a wear-resistant ceramic shaft for extended operational life. The included controller allows for precise flow adjustment and a convenient feeding mode.
Image: The Jebao DCS-2000 pump, controller, and power supply.
Key Features:
- Adjustable 8-speed flow control with feeding function.
- Max flow rate of 520 GPH (2000 LPH) and max lift head up to 7.22 ft (2.2 M).
- Low power consumption of 20W.
- Operates on a safe and durable DC 24V power supply for ultra-quiet operation.
- Equipped with a Fe2Q3 magnet rotor and wear-resistant anti-corrosion ceramic shaft for longer life and higher efficiency.
- Automatic power-off protection upon no water detection.
- Suitable for both submersible and inline/external pump applications.
Setup
Installation Steps:
- Choose Installation Method: The DCS-2000 pump can be used either fully submerged in water or as an inline/external pump.
- Attach Fittings: Select the appropriate barbed fitting (16mm or 20mm) for your tubing. Securely attach the fitting to the pump's outlet using the fitting nut and O-ring. For submersible use, ensure the intake screen cover is attached to the pump's inlet.
- Position the Pump: Place the pump in your desired location within the aquarium sump or external setup. Ensure it is stable and will not vibrate excessively.
- Connect Controller: Connect the pump's cable to the 'DC Pump' port on the controller.
- Connect Power Supply: Plug the power supply (AC adapter) into the controller's power input port.
- Secure Controller: Use the provided adhesive pad to mount the controller in a dry, accessible location away from water splashes.
- Power On: Plug the power supply into a suitable electrical outlet. The pump will start operating.

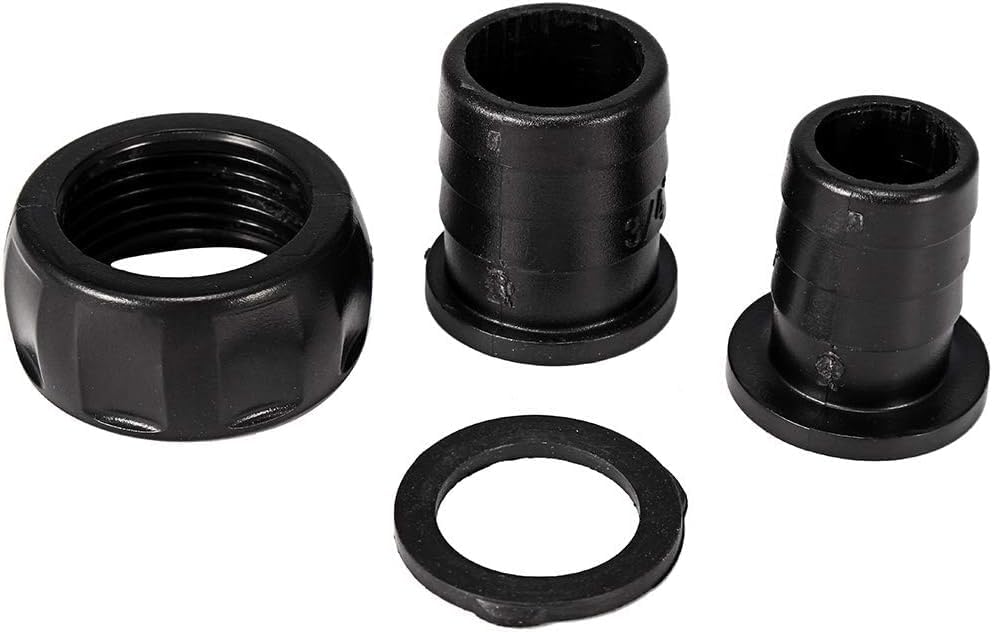

Image: Barbed fittings and O-ring for connection.
Image: Pump dimensions for installation planning.
Operating Instructions
The DC Pump Controller allows you to adjust the flow rate and activate a feeding mode.
Image: DC Pump Controller interface.
Controller Functions:
- Flow Adjustment: Use the + and - buttons to increase or decrease the pump's flow rate. There are 8 adjustable speed settings. The LED indicators on the controller will show the current speed level.
- Feeding Mode: Press the FEED button to activate the feeding mode. The pump will suspend operation for 10 minutes, allowing fish to feed without strong currents. After 10 minutes, the pump will automatically resume its previous operating speed.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your pump.
- Cleaning: Periodically remove the pump from the water and disassemble the impeller cover and impeller. Clean any accumulated debris, algae, or calcium deposits from the impeller, ceramic shaft, and pump housing. Use a soft brush and warm water. For stubborn deposits, a mild vinegar solution can be used, followed by thorough rinsing.
- Impeller Inspection: Check the ceramic shaft and impeller for any signs of wear or damage. Replace if necessary.
- Intake Screen: Ensure the intake screen is clear of obstructions to maintain proper water flow.
- Cable Inspection: Regularly inspect the power cable and controller cable for any nicks, cuts, or damage.
Troubleshooting
If you encounter issues with your pump, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump not running | No power; Controller or pump connection loose; Impeller jammed; Dry run protection activated. | Check power outlet and connections. Ensure pump is fully submerged. Clean impeller and housing. Disconnect and reconnect power to reset. |
| Low flow rate | Impeller or intake screen clogged; Tubing kinked or obstructed; Pump speed set too low. | Clean impeller and intake screen. Check and clear tubing. Increase pump speed using the controller. |
| Excessive noise/vibration | Debris in impeller; Impeller worn or damaged; Pump not stable. | Clean impeller. Inspect and replace worn impeller/shaft. Ensure pump is placed on a stable surface. |
| Pump cycles on/off | Dry run protection activating due to low water level or air in pump. | Ensure adequate water level. Bleed any trapped air from the pump by tilting it while submerged. |
Specifications
| Specification | Value |
|---|---|
| Model | DCS-2000 |
| Max Flow Rate | 2000 LPH (520 GPH) |
| Max Lift Head | 2.2 M (7.22 FT) |
| Wattage | 20W |
| Input Voltage | 110-240V 50/60HZ |
| Output Voltage | DC 24V |
| Pump Dimensions (with intake screen) | 125L x 67W x 97H mm (4.92L x 2.64W x 3.82H inch) |
| Pump Dimensions (without intake screen) | 100L x 67W x 97H mm (3.94L x 2.64W x 3.82H inch) |
| Wire Length | 1.5 M |
| Fitting/Connector Outside Diameter | 16MM / 20MM |
| Material | Ceramic Shaft |
| Suitable For | Fresh Water and Marine Water |
Warranty and Support
For warranty information or technical support, please refer to the specific warranty card included with your product or contact the seller/manufacturer directly. Keep your purchase receipt as proof of purchase.
Manufacturer: JEBAO
Country of Origin: China
