recteq RT-1300BI
recteq E-Series Built-In 1300 Pellet Grill Instruction Manual
Model: RT-1300BI
Introduction
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your recteq E-Series Built-In 1300 Pellet Grill. Please read this manual thoroughly before using the appliance to ensure proper function and to prevent potential hazards. Retain this manual for future reference.
Image: Front view of the recteq E-Series Built-In 1300 Pellet Grill, showcasing its stainless steel construction and control panel.
Safety Information
WARNING: Failure to follow these safety instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.
- For outdoor use only. Do not operate indoors or in an enclosed area.
- Maintain a minimum clearance of 18 inches from combustible materials on all sides and the rear of the grill.
- Keep children and pets away from the grill at all times.
- Never use gasoline, kerosene, or alcohol for lighting or relighting the grill.
- Always use heat-resistant gloves when handling hot components.
- Ensure the grill is placed on a level, non-combustible surface.
- Disconnect power before performing any maintenance or cleaning.
- Only use food-grade wood pellets designed for pellet grills.
Setup and Installation
1. Unpacking
Carefully remove all components from the packaging. Inspect for any damage during transit. Ensure all parts listed in the packing list are present.
2. Built-In Installation
The E-Series Built-In 1300 is designed for integration into an outdoor kitchen island. Proper ventilation and clearances are crucial for safe operation.
- Cutout Dimensions: Ensure your outdoor kitchen cutout meets the specified dimensions. A minimum width of 37 inches and a recommended depth of 26.75 inches are required. The height range for the cutout is 12.5 to 16.5 inches.
- Clearance: Maintain an 18-inch clearance in all directions from combustible materials.
- Ventilation: Ensure adequate airflow around the grill's components, especially the hopper and exhaust. Consult local building codes for specific outdoor appliance installation requirements.
Image: Diagram illustrating the minimum width (37"), recommended depth (26.75"), and height range (12.5" x 16.5") for the built-in cutout, along with the 18" required clearance.
3. Initial Burn-In Procedure
Before cooking any food, perform an initial burn-in to remove any manufacturing oils or residues.
- Fill the pellet hopper with food-grade wood pellets.
- Plug the grill into a grounded electrical outlet.
- Turn the grill on and set the temperature to 350°F (175°C).
- Allow the grill to run at this temperature for at least 45 minutes.
- Turn off the grill and allow it to cool completely before first use.
Image: A person pouring wood pellets into the hopper of a recteq pellet grill, demonstrating the pellet loading process.
Operating Instructions
1. Powering On and Temperature Setting
To power on the grill, press the power button on the control panel. Use the temperature adjustment controls to set your desired cooking temperature. The grill will automatically feed pellets to reach and maintain the set temperature.
Image: The recteq E-Series Built-In 1300 grill with its lid open, revealing the two-tier cooking grates, ready for use.
2. Smart Grill Technology (Wi-Fi App)
Your recteq E-Series Built-In 1300 features dual-band Wi-Fi connectivity, allowing you to monitor and control your grill remotely via the recteq mobile application.
- Download the official recteq app from your device's app store.
- Follow the in-app instructions to connect your grill to your home Wi-Fi network.
- Once connected, you can monitor internal grill temperature, set target temperatures, and track food probe temperatures from your smartphone.
Image: A hand holding a smartphone, demonstrating the recteq mobile application interface used for controlling and monitoring the grill remotely.
3. Cooking Capacity
The E-Series Built-In 1300 offers ample cooking space for various foods.
- Main Rack Size: 32.5" x 19"
- Two Top Racks Size: 33.5" x 8.5" each
- Approximate Capacity: 130 wings, 55 burgers, 10 racks of ribs, or 10 pork butts.

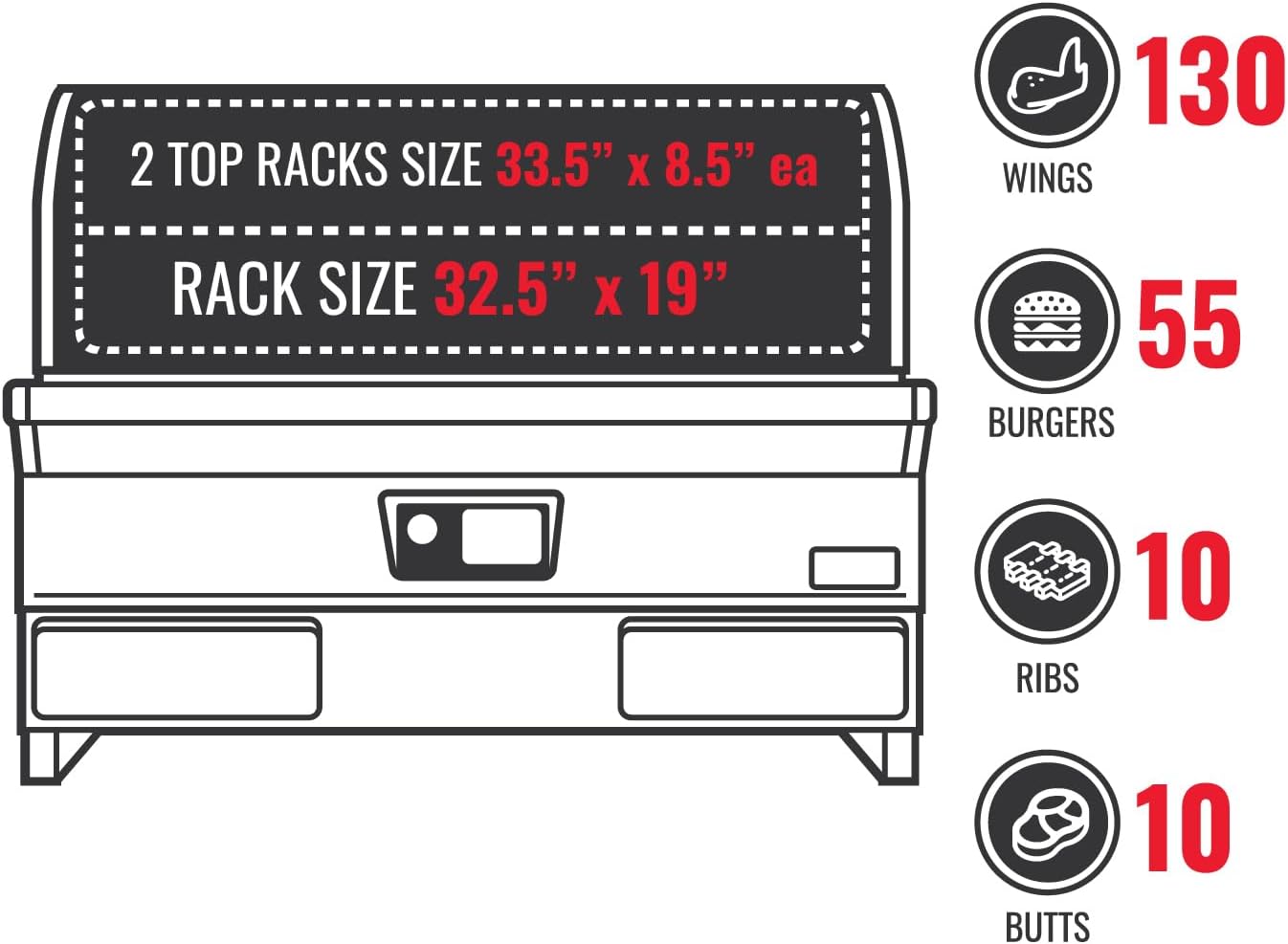

Image: A diagram detailing the cooking rack dimensions and approximate food capacities for the recteq E-Series Built-In 1300, including wings, burgers, ribs, and pork butts.
Maintenance
1. Cleaning Cooking Grates
After each use, allow the grill to cool. Use a grill brush to scrape off any food residue from the cooking grates. For deeper cleaning, grates can be removed and washed with warm, soapy water.
2. Ash Removal
Regularly remove ash from the fire pot and ash collection system to ensure proper airflow and prevent ignition issues. Ensure the grill is completely cool before attempting ash removal.
3. Hopper Cleaning
Periodically empty and clean the pellet hopper, especially if changing pellet flavors or storing the grill for an extended period. This prevents moisture absorption and pellet degradation.
4. Exterior Care
Wipe down the stainless steel exterior with a damp cloth and a mild detergent. For stubborn stains, use a stainless steel cleaner. Avoid abrasive cleaners that can scratch the surface.
Troubleshooting
This section addresses common issues you might encounter with your recteq E-Series Built-In 1300.
| Problem | Possible Cause | Solution |
|---|---|---|
| Grill not powering on | No power, tripped breaker, loose connection | Check power cord, outlet, and circuit breaker. Ensure all connections are secure. |
| Temperature fluctuations | Low pellets, dirty fire pot, open lid, extreme weather | Check pellet level. Clean fire pot and ash. Keep lid closed. Shield grill from wind. |
| Pellets not feeding | Auger jam, empty hopper, wet pellets | Ensure hopper has pellets. Clear any auger obstructions. Use dry pellets. |
| Wi-Fi connectivity issues | Out of range, incorrect password, router issues | Move grill closer to router. Re-enter Wi-Fi password. Restart router and grill. |
If you encounter issues not listed here or require further assistance, please contact recteq customer support.
Specifications
| Brand | recteq |
| Model Number | RT-1300BI |
| UPC | 810021996172 |
| Item Weight | 288 pounds |
| Color | Stainless Steel |
| Internal Cooking Space | Approximately 1300 square inches |
| Hopper Capacity | 27 lbs |
| Temperature Range | 180°F - 700°F |
| Overall Dimensions (Approx.) | 36.5" Width x 29" Height (as per diagram) |
Image: A diagram illustrating the overall dimensions of the recteq E-Series Built-In 1300 grill, showing a width of 36.5 inches and a height of 29 inches.
Warranty Information
The recteq E-Series Built-In 1300 Pellet Grill is covered by a comprehensive 6-year bumper-to-bumper warranty. This warranty covers defects in materials and workmanship under normal use and service. For specific terms and conditions, please refer to the official recteq website or contact customer support.
Customer Support
For any questions, technical assistance, or warranty claims, please contact recteq's dedicated customer support team. Our support team is 100% US-based and available to assist you.
- Website: Visit the official recteq website for FAQs, support resources, and contact information.
- Phone: Refer to the recteq website for current customer service phone numbers and operating hours.
Image: A recteq customer service representative, viewed from behind, wearing a headset and working at a computer, symbolizing the company's US-based support team.
