AOKLEY 178F Diesel Recoil Starter Twin Pawl User Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your AOKLEY 178F Diesel Recoil Starter Twin Pawl. This recoil starter is designed for use with Kama 178F/FS and similar 6HP diesel engines, commonly found in cultivators, tillers, and generators. Please read this manual thoroughly before attempting any installation or operation.

Retain this manual for future reference. If you have any questions or require assistance, please refer to the support section.

2. Safety Instructions

Always prioritize safety when working with engine components. Failure to follow these instructions may result in personal injury or damage to equipment.

• Read the Engine Manual: Before installing or operating this recoil starter, consult the engine manufacturer's manual for specific safety precautions and procedures.
• Wear Protective Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling engine parts.
• Engine Off and Cool: Ensure the engine is completely shut off and has cooled down before performing any installation, maintenance, or inspection. Disconnect the spark plug wire (if applicable) or battery to prevent accidental starting.
• Secure Work Area: Work in a well-lit, stable, and clean environment. Keep children and bystanders away from the work area.
• Use Correct Tools: Use only the appropriate tools for installation and removal. Incorrect tools can cause damage to the starter or engine.
• Inspect for Damage: Before each use, inspect the recoil starter for any signs of damage, cracks, or wear. Do not use a damaged starter.
• Proper Installation: Ensure the recoil starter is correctly and securely installed according to the instructions to prevent malfunction during operation.

3. Product Overview

The AOKLEY 178F Diesel Recoil Starter is a replacement pull-start mechanism featuring a twin pawl design for reliable engagement. It is designed for specific diesel engine models.

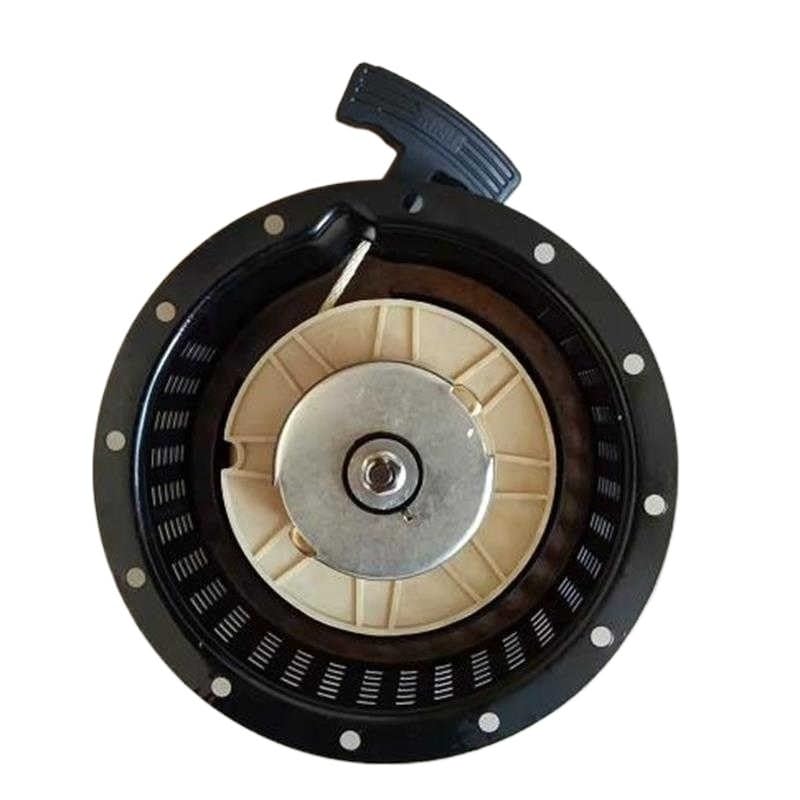

Figure 3.1: AOKLEY 178F Diesel Recoil Starter Assembly. This image shows the complete recoil starter unit, including the housing, pull rope, grip, and internal spring mechanism. The central hub with the twin pawls is visible, designed to engage with the engine's flywheel cup for starting.

Key Features:

• Twin Pawl Design: Ensures robust and consistent engagement with the engine's flywheel.
• Durable Construction: Built to withstand the demands of diesel engine starting.
• Compatibility: Specifically designed for Kama 178F/FS and similar 6HP diesel engines (296cc/306cc 4-stroke).
• Complete Assembly: Supplied as a ready-to-install unit.

4. Setup and Installation

Follow these steps carefully to install the recoil starter. Refer to your engine's service manual for specific torque specifications or additional instructions.

1. Preparation:
   • Ensure the engine is turned off and cool.
   • Gather necessary tools: typically a socket wrench set or screwdrivers, depending on the engine's mounting hardware.
2. Remove Old Starter (if applicable):
   • Locate the existing recoil starter assembly on the engine.
   • Unscrew the mounting bolts or nuts that secure the starter to the engine housing.
   • Carefully remove the old starter, noting its orientation.
3. Inspect Mounting Area:
   • Clean any debris or rust from the engine's mounting surface where the new starter will sit.
   • Inspect the flywheel cup for any damage or excessive wear.
4. Install New Starter:
   • Align the new AOKLEY recoil starter with the mounting holes on the engine.
   • Ensure the pawls are correctly positioned to engage with the flywheel cup.
   • Insert the mounting bolts/nuts and hand-tighten them.
   • Gradually tighten all mounting hardware in a crisscross pattern to ensure even pressure, referring to the engine manual for torque specifications if available. Do not overtighten.
5. Test Engagement:
   • Gently pull the starter rope a few times to confirm that the pawls engage and disengage smoothly with the flywheel cup. The rope should retract fully without binding.

5. Operating Instructions

Once the recoil starter is properly installed, follow the engine manufacturer's instructions for starting your diesel engine. The recoil starter's function is to provide the initial rotation of the engine's crankshaft.

1. Engine Preparation: Ensure the engine's fuel supply is open, the decompression lever (if present) is set correctly, and any other pre-start checks are completed as per your engine's manual.
2. Grip the Handle: Firmly grasp the starter handle.
3. Pull Slowly: Pull the starter rope slowly until you feel resistance. This indicates the pawls have engaged the flywheel.
4. Pull Firmly: Once resistance is felt, pull the rope with a rapid, smooth, and full stroke. Do not yank the rope abruptly or let it snap back.
5. Allow Retraction: Allow the rope to retract slowly and completely into the starter housing. Do not release the handle until the rope is fully retracted.
6. Repeat if Necessary: If the engine does not start, repeat the pulling procedure. Avoid excessive pulling if the engine is not responding, and check for other engine issues.

Important: Never allow the starter rope to snap back against the starter housing. This can damage the recoil mechanism and shorten its lifespan.

6. Maintenance

Regular inspection and minor maintenance can extend the life of your recoil starter.

• Cleanliness: Keep the recoil starter housing clean and free of dirt, dust, and debris. A build-up of foreign material can impede the rope's retraction or the pawls' engagement.
• Rope Inspection: Periodically inspect the starter rope for fraying, cuts, or excessive wear. Replace the rope if any damage is observed.
• Pawl and Spring Inspection: If accessible, inspect the pawls and return spring for proper function and wear. These components are critical for reliable starting. If the rope does not retract fully or the pawls do not engage, internal components may need replacement or servicing by a qualified technician.
• Lubrication: Lightly lubricate the pivot points of the pawls with a small amount of light oil or dry lubricant if they appear stiff or sticky. Avoid over-lubrication, which can attract dirt.
• Storage: When the engine is not in use for extended periods, store it in a clean, dry environment to protect the recoil starter from moisture and corrosion.

7. Troubleshooting

If you encounter issues with your recoil starter, consider the following common problems and solutions:

For issues not listed here, or if solutions do not resolve the problem, it is recommended to consult a qualified engine technician.

8. Specifications

9. Warranty and Support

AOKLEY products are manufactured to high standards. For warranty information or technical support, please contact your retailer or the AOKLEY customer service department. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official AOKLEY website or contact their customer support channels. Specific warranty terms may vary by region and retailer.
