Phoenix Portable Power Wheelchair User Manual

Introduction

Welcome to the user manual for your new Phoenix Portable Power Wheelchair. This innovative mobility device is engineered for durability, ease of use, and comfort, providing you with enhanced independence and mobility. Its lightweight design, combined with powerful motors, makes it suitable for various environments, from indoor spaces to outdoor trails.

The Phoenix is designed to be easily foldable, making it convenient for transport and storage. It features a simple-touch joystick controller that can be adjusted for both right-handed and left-handed users, ensuring intuitive operation. The comfortable memory foam seat cushion, covered in breathable nylon fabric, is easily removable and washable for lasting freshness.

Image: Front view of the Phoenix Portable Power Wheelchair in silver.

Setup

Before using your Phoenix Portable Power Wheelchair, please follow these setup instructions:

1. Unboxing: Carefully remove the wheelchair and all accessories from its packaging. Inspect for any visible damage.
2. Unfolding: The Phoenix is designed for easy unfolding. Gently pull the frame apart until it locks into its open position. Ensure all locking mechanisms are securely engaged.
3. Footrest Deployment: Lower the footrest into position.
4. Joystick Attachment: Attach the joystick controller to either the left or right armrest, depending on your preference. Ensure it is securely fastened.
5. Battery Installation/Connection: The wheelchair comes with two Lithium Ion batteries. Ensure they are properly inserted and connected according to the diagrams in the quick start guide (not included in this manual).
6. Initial Charge: For optimal performance, fully charge the batteries before first use. Refer to the charging section for details.

Image: The Phoenix wheelchair shown in its compact, folded position, highlighting its portability.

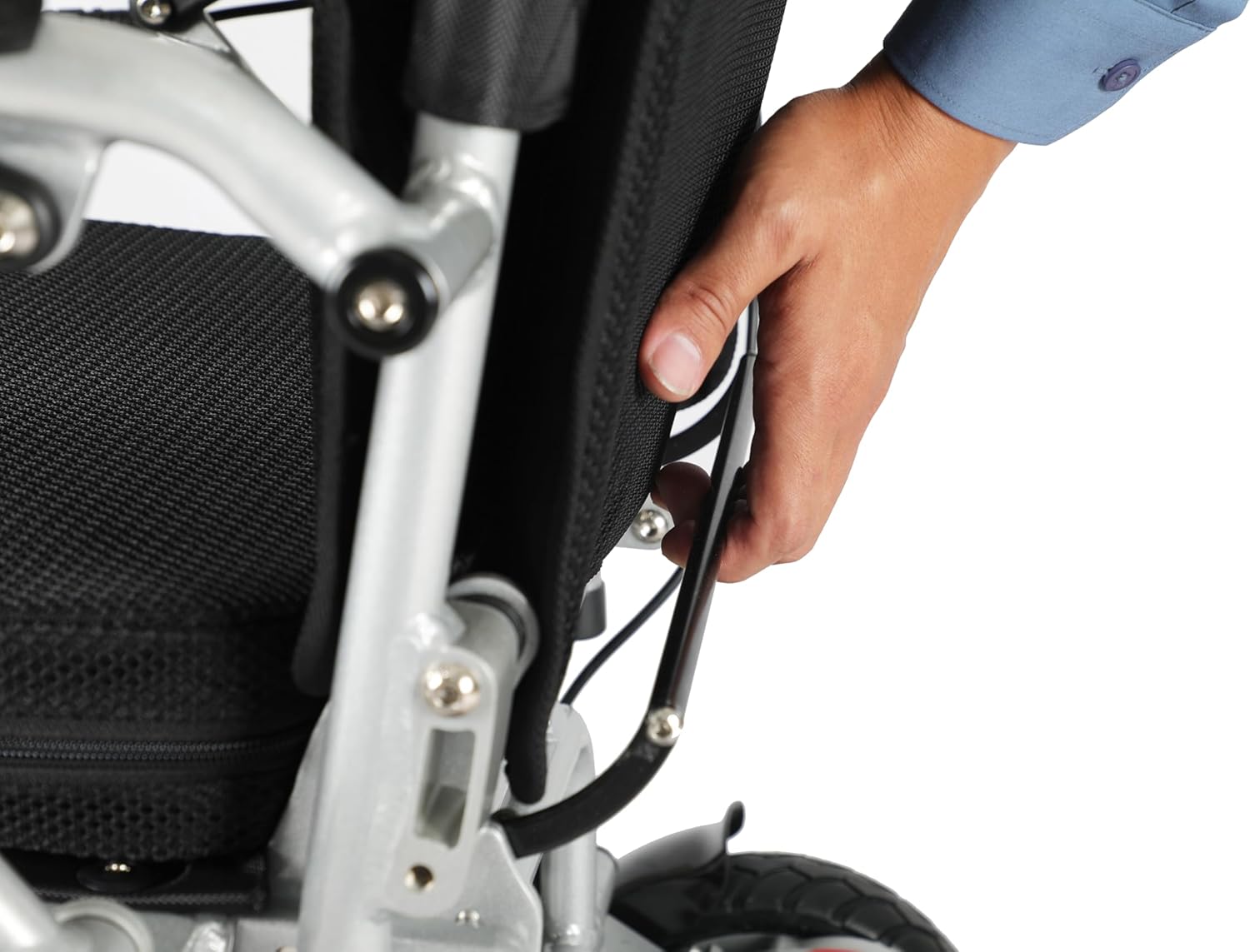

Image: A hand demonstrating the adjustment of the seat on the Phoenix wheelchair.

Operating Instructions

Controls

The Phoenix Power Wheelchair is controlled via a simple-touch joystick. This joystick allows for precise movement and speed control.

• Power Button: Press to turn the wheelchair on or off.
• Joystick: Push the joystick forward to move forward, pull back to move backward, and push left or right to turn. The further you push the joystick, the faster the wheelchair will move.
• Speed Adjustment: Use the '+' and '-' buttons on the controller to increase or decrease the maximum speed.
• Horn: Press the horn button to alert others.

Image: A close-up view of the intuitive joystick controller for the Phoenix wheelchair.

Driving

The Phoenix is equipped with two 180-watt motors, providing a total of 360 watts of power. This robust power allows the wheelchair to handle various terrains, including ramps, hills, and inclines, with ease. Its heavy-duty front casters and front forks are designed to tolerate high impact from rough terrain, ensuring a smooth and stable ride.

Always ensure your path is clear and be mindful of your surroundings. Practice in an open, safe area before navigating crowded or challenging environments.

Maintenance

Regular maintenance will ensure the longevity and optimal performance of your Phoenix Portable Power Wheelchair.

• Cleaning: Wipe down the frame and surfaces with a damp cloth. Avoid using abrasive cleaners. The breathable nylon fabric covering the memory foam seat cushion is easily removed and washable for lasting freshness.
• Battery Care: The wheelchair uses Lithium Ion batteries. Always charge them fully after each use. Avoid completely draining the batteries. Store the wheelchair in a cool, dry place when not in use, and ensure batteries are charged periodically if stored for extended periods.
• Tire Inspection: The Phoenix features flat-free tires, reducing the need for inflation. Periodically inspect tires for wear and tear or embedded debris.
• Joints and Fasteners: Regularly check all bolts, screws, and joints to ensure they are tight and secure. Do not overtighten.
• Joystick: Keep the joystick clean and free of dust or debris to ensure smooth operation.

Troubleshooting

If you encounter any issues with your Phoenix Portable Power Wheelchair, refer to the following common troubleshooting tips:

• Wheelchair Not Powering On:
  • Ensure the power button is pressed firmly.
  • Check battery connections and ensure batteries are fully charged.
  • Verify that the joystick cable is securely connected to the wheelchair.
• Wheelchair Not Moving:
  • Confirm the power is on and the joystick is responsive.
  • Check for any obstructions around the wheels or motors.
  • Ensure the motors are engaged and not in 'freewheel' mode (if applicable, refer to specific product diagrams).
• Unusual Noises:
  • Stop using the wheelchair immediately.
  • Inspect for loose parts, debris caught in wheels, or motor issues.
  • Contact customer support if the noise persists or indicates a malfunction.

For issues not covered here, please contact Discover Your Mobility customer support.

Specifications

Warranty and Support

Your Phoenix Portable Power Wheelchair is manufactured by Discover Your Mobility. For specific warranty information, please refer to the documentation included with your purchase or contact Discover Your Mobility directly.

Return Policy: This product typically has a 30-day refund/replacement return policy. Please check your purchase details for exact terms.

Customer Support: For any questions, technical assistance, or service requests, please contact Discover Your Mobility customer support. You can find their contact information on their official website or through your purchase platform.
