Introduction
This manual provides instructions for the Ontheone PVM9005SJ8SS Microwave Charcoal Filter replacement. This filter is designed to capture odors and contaminants from microwave oven vents, improving kitchen air quality. For optimal performance, the filter should be replaced regularly.
Product Features

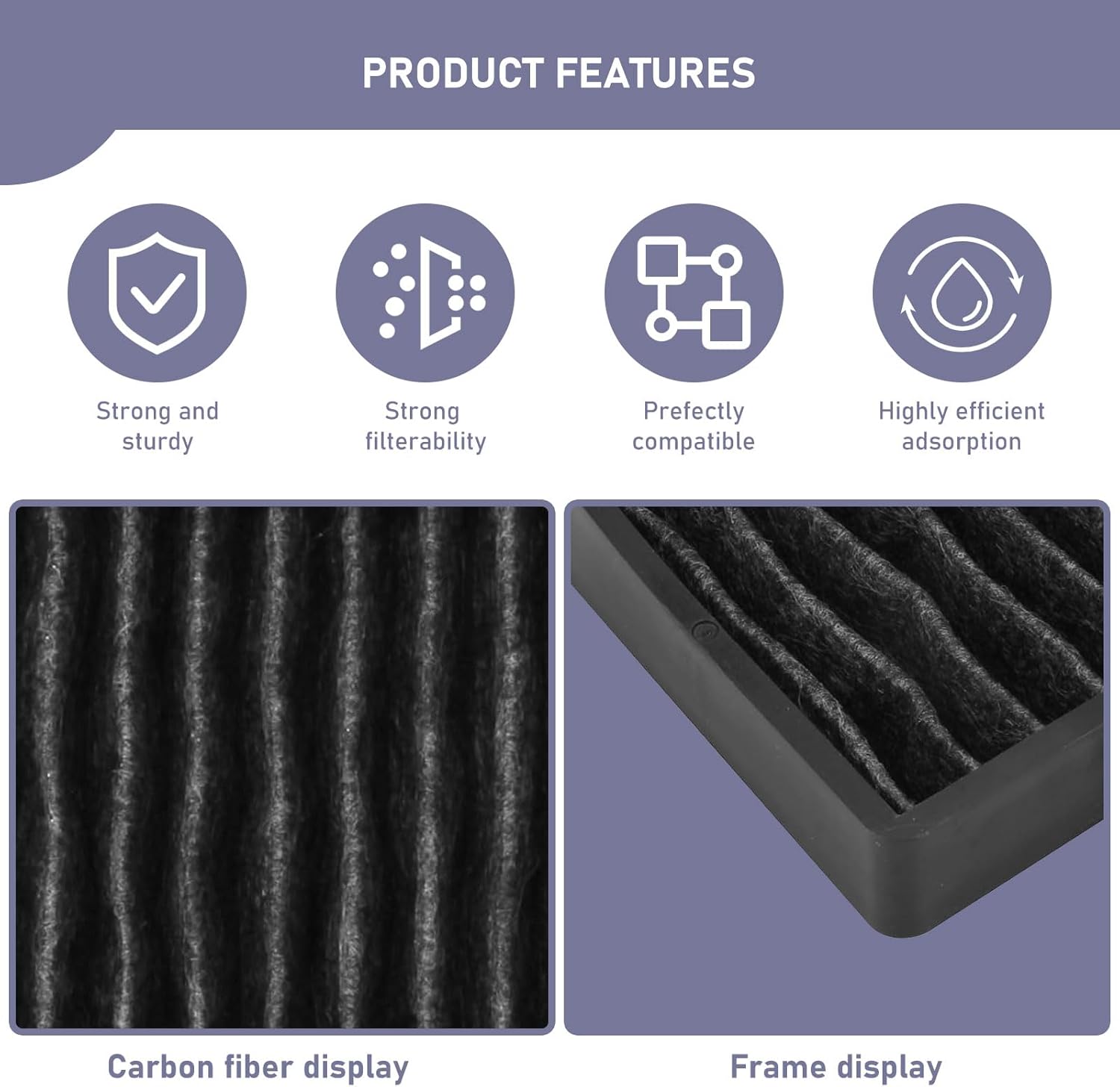

Image 1: Product Features Overview. This image illustrates the key characteristics of the charcoal filter, including its robust construction, effective filtration capabilities, compatibility, and high adsorption efficiency for odors.
- Material: Constructed from activated carbon for efficient adsorption and filtration.
- Design: Features a corner design for enhanced stability and compatibility.
- Function: Filters odors and contaminants from microwave oven vents.
- Dimensions: Approximately 11 inches (Length) x 2.56 inches (Width) x 0.7 inches (Height).
Compatibility
This charcoal filter is compatible with various GE Microwave models. Please verify your microwave model number before purchasing to ensure proper fit and function.
Image 2: Compatible Models. This image displays a microwave oven and lists specific GE microwave models that are compatible with this replacement charcoal filter.
Known Compatible Models:
- GE Microwave PVM9005SJ8SS
- GE Microwave JVM7195SK6SS
- GE Microwave PNM9216SK5SS
- GE Microwave JVM7195EK5ES
- GE Microwave JNM7196SK6SS
- GE Microwave JNM7196DK5BB
- GE Microwave JVM7195DK5WW
Specifications
Image 3: Product Dimensions. This image provides a visual representation of the charcoal filter's length, width, and height measurements.
| Attribute | Value |
|---|---|
| Model Number | GE-2 |
| Manufacturer | Ontheone |
| Product Dimensions (L x W x H) | 10.9 x 2.6 x 0.7 inches |
| Item Weight | 2.39 ounces |
| Color | Black |
| Package Quantity | 2 filters |
Installation
The charcoal filter is typically located above the microwave door. Refer to your microwave oven's specific user manual for detailed instructions on accessing and replacing the filter compartment.
- Locate the Filter Compartment: Identify the charcoal filter access panel, usually situated above the microwave door or behind the vent grille.
- Remove Old Filter: Carefully open the compartment and remove the old charcoal filter. Note its orientation for correct installation of the new filter.
- Insert New Filter: Place the new Ontheone charcoal filter into the compartment, ensuring it is securely seated.
- Close Compartment: Close the filter access panel or reattach the vent grille.
Image 4: Installation Location. This image illustrates the typical placement of the charcoal filter within a microwave oven and the direction for insertion.
Important: Always unplug your microwave oven from the power source before attempting any maintenance or filter replacement.
Operating Principle
The charcoal filter functions by drawing air from the microwave oven through its activated carbon material. The activated carbon adsorbs cooking odors, smoke particles, and other airborne contaminants, releasing cleaner air back into the kitchen environment. This process helps maintain a fresh-smelling kitchen.
Image 5: Filter Function. This image shows a microwave oven and the charcoal filter, highlighting its purpose in keeping the kitchen air fresh.
Maintenance
For optimal performance and to ensure effective odor removal, the charcoal filter should be replaced regularly.
- Replacement Frequency: It is recommended to replace the filter every 3 to 4 months, depending on usage frequency and cooking habits.
- Non-Cleanable: This charcoal filter is not designed to be cleaned or washed. Attempting to clean it will reduce its effectiveness and may damage the filter material.
- Signs of Replacement: If you notice persistent cooking odors or reduced air circulation from your microwave's vent, it may be time to replace the filter.
Troubleshooting
If you experience issues after replacing the charcoal filter, consider the following:
- Persistent Odors: Ensure the new filter is correctly installed and fully seated in its compartment. If odors persist, the filter may be saturated, or the replacement frequency needs to be increased.
- Improper Fit: Double-check that the filter dimensions match your microwave's requirements. Refer to the compatibility section and your microwave's manual.
- Reduced Airflow: Verify that the filter is not obstructed and that the microwave's ventilation system is clear.
Warranty and Support
For any questions regarding the Ontheone PVM9005SJ8SS Microwave Charcoal Filter replacement, or if you encounter any issues not covered in this manual, please contact Ontheone customer support. Refer to the product packaging or the retailer's website for contact information.
