Introduction
The DYMROGE Heating Pad Wrap is designed to provide targeted heat therapy for various body parts. Its flexible design allows for easy application to areas such as the ankle, leg, elbow, and wrist, offering a comfortable and customizable thermal experience. This manual provides essential information for the safe and effective use of your heating pad wrap.
Safety Information
WARNING:
- Always use the heating pad over clothing to prevent direct skin contact and potential burns.
- It is recommended to start with the lowest heating level and gradually increase as needed.
- Do not use on bare skin.
- Not suitable for pregnant women, children, or individuals unable to communicate discomfort.
- Avoid use if you are diabetic or suffer from skin sensitivity issues. Consult a physician if you have any medical conditions.
- Do not wet the product or immerse it in water.
- Do not disassemble or attempt to repair the device. Contact customer support if issues arise.
- Always read the label, warnings, and instructions provided on the product packaging before use.
Indications: This heating pad is intended for pain relief from muscle aches, joint stiffness, or localized discomfort in areas such as ankles, legs, elbows, wrists, and forearms.
Image: Important usage notes, including safety warnings and recommended initial low heat setting.
Package Contents
Please check the package to ensure all items are present:
- 1x DYMROGE Heating Pad Wrap
- 1x Power Adapter
- 1x User Manual
Image: The heating pad wrap, power adapter, and user manual included in the package.
Setup
- Unpack: Carefully remove all components from the packaging.
- Connect Power: Connect the power cable from the adapter to the heating pad wrap.
- Plug In: Insert the power adapter into a standard electrical outlet.
- Positioning: Wrap the heating pad around the desired body part (e.g., arm, wrist, elbow, knee, ankle, leg) over your clothing. Secure it using the adhesive closure.

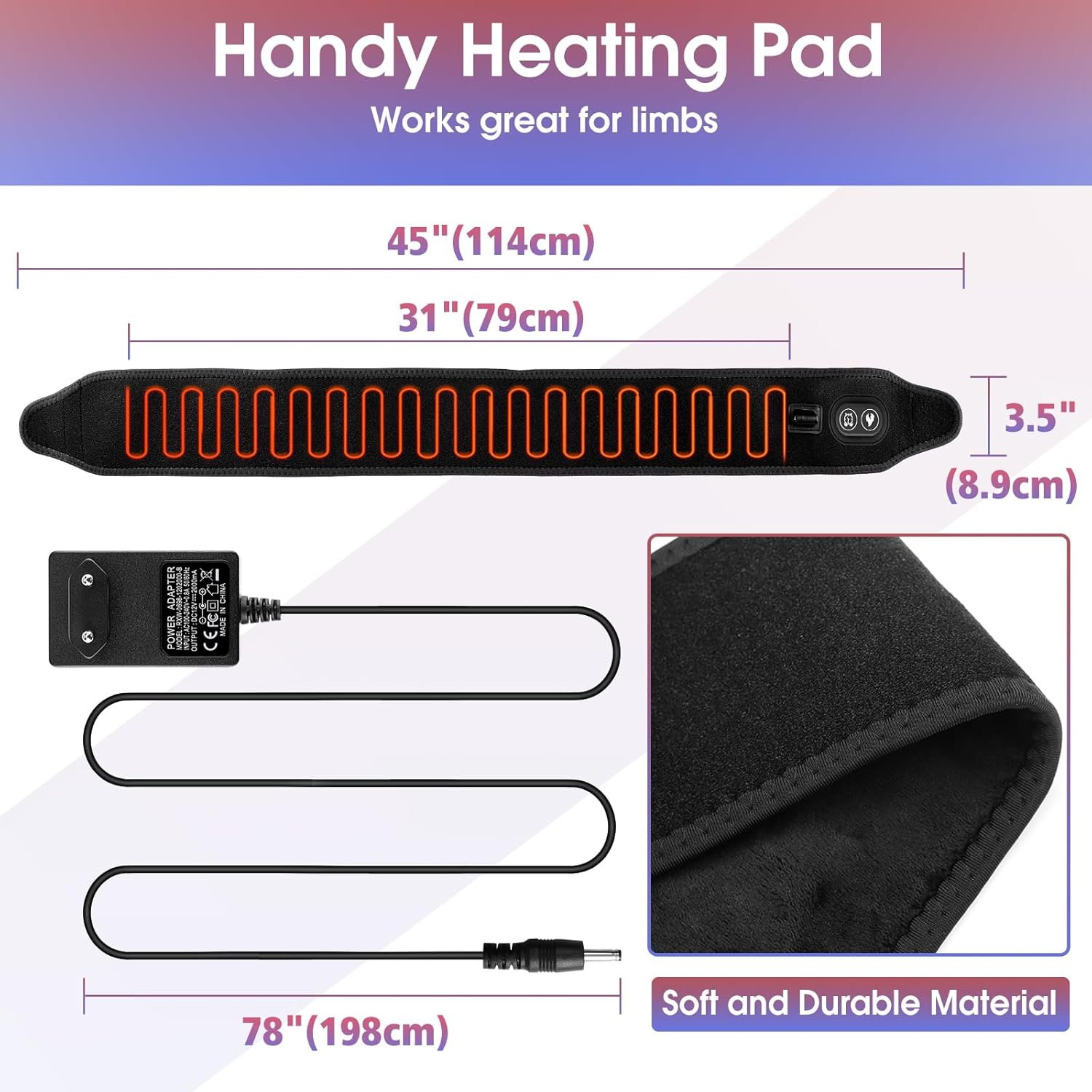

Image: Detailed view of the heating pad wrap, its dimensions, and the power adapter.
Operating Instructions
The heating pad wrap features intuitive controls for adjusting heat levels and setting a timer.
Power On/Off
- To turn on, press and hold the power button on the control panel. The indicator light will illuminate.
- To turn off, press and hold the power button again.
Adjusting Heat Levels
The device offers 4 rapid heating levels, ranging from 40°C to 60°C (104°F-140°F). Press the heat button to cycle through the temperature settings:
- Level 1 (Green Light): 40°C-45°C (104°F-113°F)
- Level 2 (Blue Light): 45°C-50°C (113°F-122°F)
- Level 3 (Yellow Light): 50°C-55°C (122°F-131°F)
- Level 4 (Red Light): 55°C-60°C (131°F-140°F)
Always start with the lowest setting and adjust to a comfortable temperature.
Setting the Timer
To prevent overheating and ensure safety, you can set a timer for the heating session. Press the timer button to select from 3 timing settings:
- 15 Minutes
- 30 Minutes
- 45 Minutes
The device will automatically shut off after the selected time has elapsed. A default 15-minute timer is activated upon powering on.
Image: Examples of how the heating pad wrap can be easily applied to multiple areas of the body.
Maintenance
Cleaning
- Always unplug the device from the power outlet before cleaning.
- Wipe the surface of the heating pad wrap with a soft, damp cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals.
- Ensure the product is completely dry before storing or next use.
- Do not machine wash or tumble dry.
Storage
- Store the heating pad wrap in a cool, dry place, away from direct sunlight and moisture.
- Avoid folding the pad tightly or placing heavy objects on it, which could damage the internal heating elements.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Not properly connected to power; power outlet issue. | Ensure the power adapter is securely connected to both the heating pad and a working electrical outlet. Try a different outlet. |
| Heating pad is not getting warm. | Incorrect heat setting; device malfunction. | Increase the heat level using the control button. If the issue persists, contact customer support. |
| Heating pad turns off unexpectedly. | Timer has expired; power interruption. | Check the timer setting. If the timer has not expired, check the power connection. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 102334 |
| Brand | DYMROGE |
| Power Input | 12V (as per product image) |
| Heating Levels | 4 levels (40°C-60°C / 104°F-140°F) |
| Timer Settings | 3 settings (15, 30, 45 minutes) |
| Heating Area Length | 79 cm (31 inches) |
| Heating Pad Length | 114 cm (45 inches) |
| Power Cord Length | 198 cm (78 inches) |
| Dimensions (Package) | 15.5 x 11.3 x 8.7 cm |
| Weight (Package) | 360 grams |
| Color | Black |
| Country of Origin | China |
Image: Comparison of product specifications, including power, temperature range, and dimensions.
Warranty and Support
Warranty Information
For detailed warranty information, please refer to the warranty card included with your product or contact DYMROGE customer support. Keep your purchase receipt as proof of purchase.
Customer Support
If you have any questions, concerns, or require assistance with your DYMROGE Heating Pad Wrap, please contact our customer support team. Contact details can typically be found on the product packaging or on the official DYMROGE website.
