MetalMax 2 Drawer Vertical File Cabinet with Lock

1. Important Safety Information

Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Be cautious during assembly. Some components may have sharp edges.
• Be aware of the item's weight. It is recommended to have assistance during certain assembly steps.
• Follow the installation instructions precisely. Do not deviate from the steps provided.
• Do not exceed the cabinet's load limit. Each drawer has a weight capacity of 22 lbs. Overloading can cause instability or damage.
• Ensure the cabinet is placed on a level and stable surface to prevent tipping.

2. Product Overview

The MetalMax 2 Drawer Vertical File Cabinet is designed for organizing letter-size files in home or office environments. It features a robust steel construction with a powder-coated finish for durability and ease of cleaning. The integrated locking system provides security for your documents.

Figure 2.1: MetalMax 2 Drawer Vertical File Cabinet (Cream color).

3. Package Contents

Before beginning assembly, please verify that all components listed below are present and undamaged.

• 1 x Metal Storage Cabinet (Assembly Required)
• 1 x Accessories Package (includes screws, keys, etc.)
• 1 x User Manual (this document)

4. Specifications

Figure 4.1: Product Dimensions and Drawer Capacity.

5. Assembly Instructions

Assembly is required for this filing cabinet. It is recommended to have a second person assist with assembly, although it can be completed by one person. A power screwdriver with a magnetic bit and a flashlight can help expedite the process.

5.1 Preparation

• Unpack all components carefully. Retain original packaging until assembly is complete in case of returns.
• Identify all numbered parts and hardware from the accessories package.
• Clear a spacious, clean, and flat work area.

5.2 Assembly Steps

1. Refer to the detailed installation instructions provided in the accessories package for step-by-step diagrams and part identification.
2. Pay close attention to the orientation of each part as depicted in the diagrams. Incorrect orientation can lead to misalignment.
3. Begin by assembling the main frame of the cabinet. Secure panels using the provided screws.
4. Install the drawer slides onto the cabinet frame, ensuring they are correctly aligned and move smoothly.
5. Assemble each drawer separately, attaching the front, back, and side panels, and then installing the drawer bottom.
6. Attach the recessed handles to the drawer fronts.
7. Carefully insert the assembled drawers into the cabinet frame, aligning them with the drawer slides.
8. Install the adjustable feet to the bottom of the cabinet. Adjust them to ensure the cabinet is level and stable.
9. Test the locking mechanism and drawer operation.

Figure 5.1: Visual representation of the assembly process.

6. Operating Instructions

6.1 Using the Drawers

• To open a drawer, gently pull the recessed handle. The premium ball bearing sliders ensure smooth operation.
• To close a drawer, push it firmly until it is fully seated. Noise reduction pads help minimize sound during closing.
• The drawers are designed to accommodate letter-size files. Ensure files are properly hung or placed to prevent obstruction.
• Avoid forcing drawers open or closed if they encounter resistance. Check for obstructions.

6.2 Locking Mechanism

• The cabinet is equipped with a single lock that secures both drawers simultaneously.
• Insert one of the three provided keys into the lock cylinder located on the front of the cabinet.
• Turn the key clockwise to lock the drawers. Ensure both drawers are fully closed before attempting to lock.
• Turn the key counter-clockwise to unlock the drawers.
• Remove the key after locking or unlocking to prevent it from being lost or damaged. Store spare keys in a secure location.

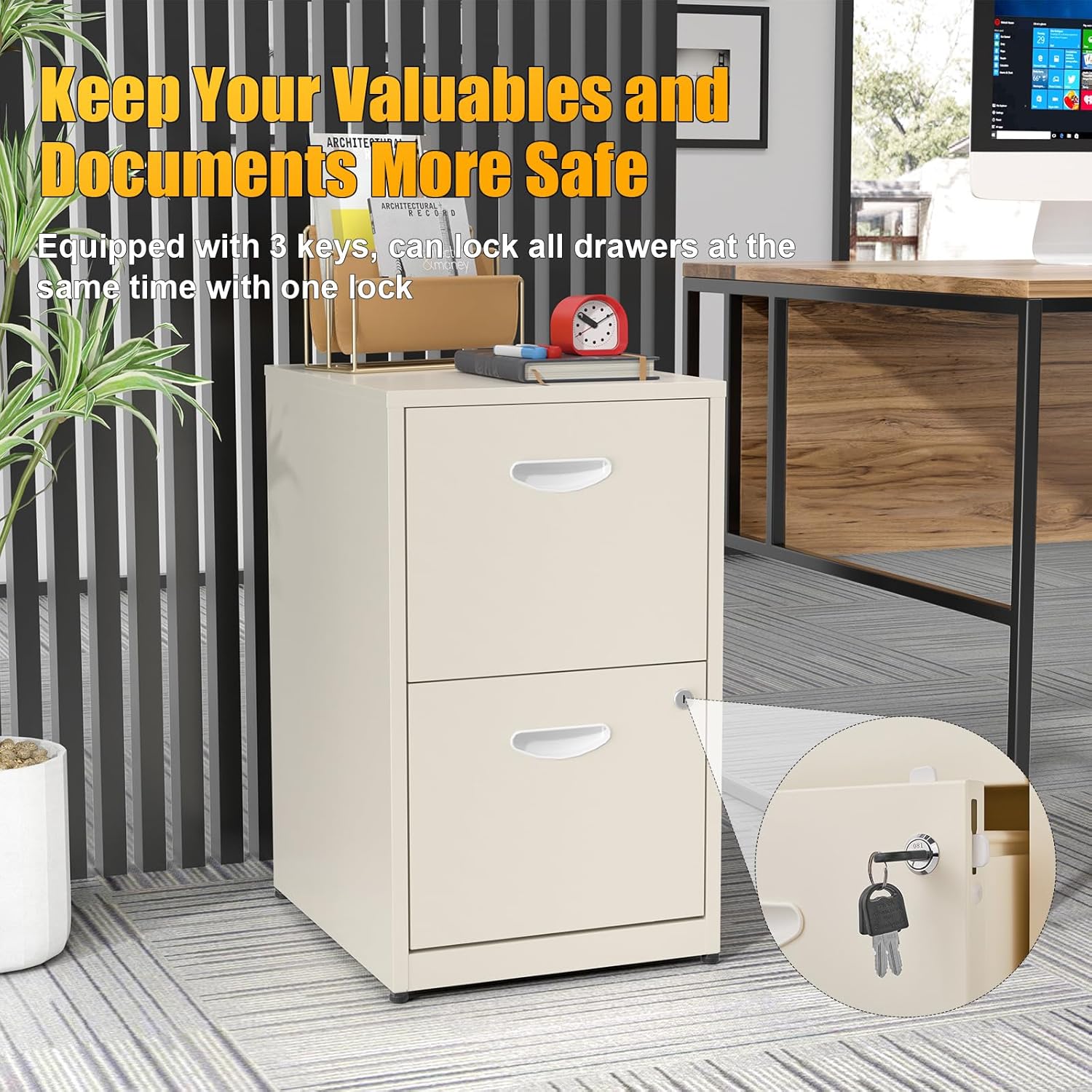

Figure 6.1: Detail of the locking system with keys.

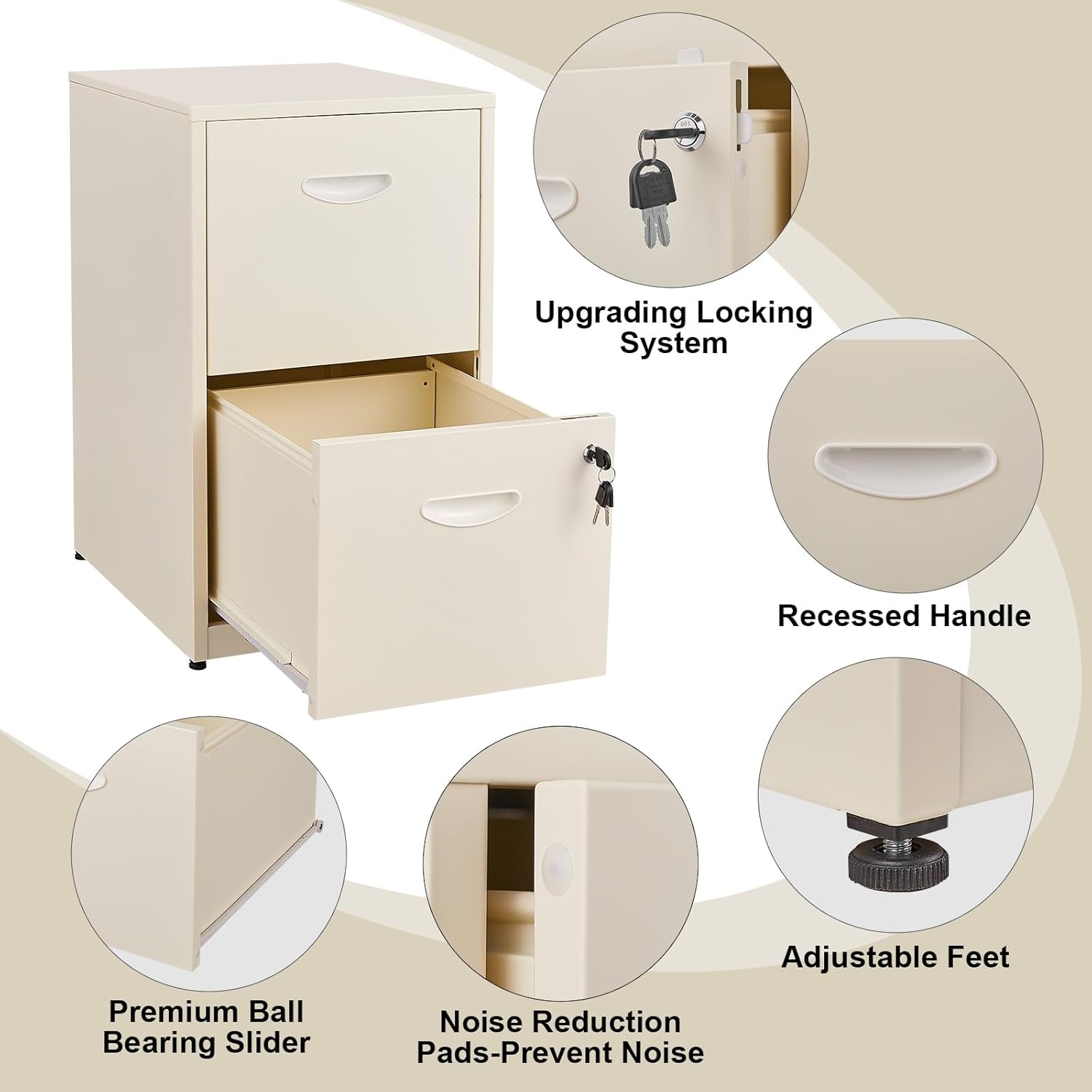

Figure 6.2: Key features of the MetalMax filing cabinet.

7. Maintenance

Regular maintenance will help prolong the life and appearance of your filing cabinet.

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying with a clean cloth. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
• Drawer Slides: Periodically check the drawer slides for smooth operation. If they become stiff, a small amount of silicone-based lubricant can be applied to the moving parts.
• Adjustable Feet: Ensure the adjustable feet remain properly tightened and adjusted to maintain stability.

8. Troubleshooting

8.1 Common Issues and Solutions

• Drawers do not close smoothly:
  • Check for any obstructions inside the drawer or along the slides.
  • Ensure the drawer slides are properly aligned and securely fastened to both the drawer and the cabinet frame.
  • Verify that the cabinet is on a level surface. Adjust the feet if necessary.
• Cabinet is wobbly or unstable:
  • Adjust the leveling feet on the bottom of the cabinet until it is stable on all four corners.
  • Ensure all assembly screws are securely tightened.
• Lock is not engaging:
  • Make sure both drawers are fully closed and pushed in completely before attempting to lock.
  • Check if the key is fully inserted and turned correctly.
• Missing parts or damaged components:
  • Review the package contents list (Section 3).
  • Contact MetalMax customer support for assistance (refer to Section 9).

9. Warranty and Support

MetalMax is committed to providing quality products. For any questions, concerns, or support needs regarding your 2 Drawer Vertical File Cabinet, please refer to the following:

• Customer Service: For direct support, please visit the official MetalMax store on Amazon: MetalMax Store.
• Warranty Information: Specific warranty details may be included with your purchase documentation or available through MetalMax customer service.
