Introduction
This manual provides essential information for setting up, operating, and maintaining your Dell Latitude 3410 Laptop. Please read this manual thoroughly before using your device to ensure optimal performance and longevity.
Figure 1: Front view of the Dell Latitude 3410 Laptop.
Product Overview
The Dell Latitude 3410 is a 14-inch laptop designed for productivity, featuring a 1920x1080 FHD display, an Intel Core i5-10210U processor, 8GB RAM, and a 256GB SSD. It comes pre-installed with Windows 10 Pro.
Physical Features and Ports
Figure 2: Side view illustrating the various ports and connectors.
The laptop features a variety of ports for connectivity. Refer to the diagram above for port identification.
- Left Side:
- 1. SD Card Reader
- 2. USB 2.0 Port
- 3. USB 3.2 Gen 1 Type-A Port
- 4. USB 3.2 Gen 1 Type-A Port with PowerShare
- 5. USB 3.2 Gen 1 Type-C Port (DisplayPort/Power Delivery)
- 6. Headset Jack
- Right Side:
- 7. Power Adapter Port
- 8. HDMI 1.4b Port
- 9. RJ-45 Ethernet Port
- 10. USB 3.2 Gen 1 Type-A Port
- Noble Wedge Lock Slot

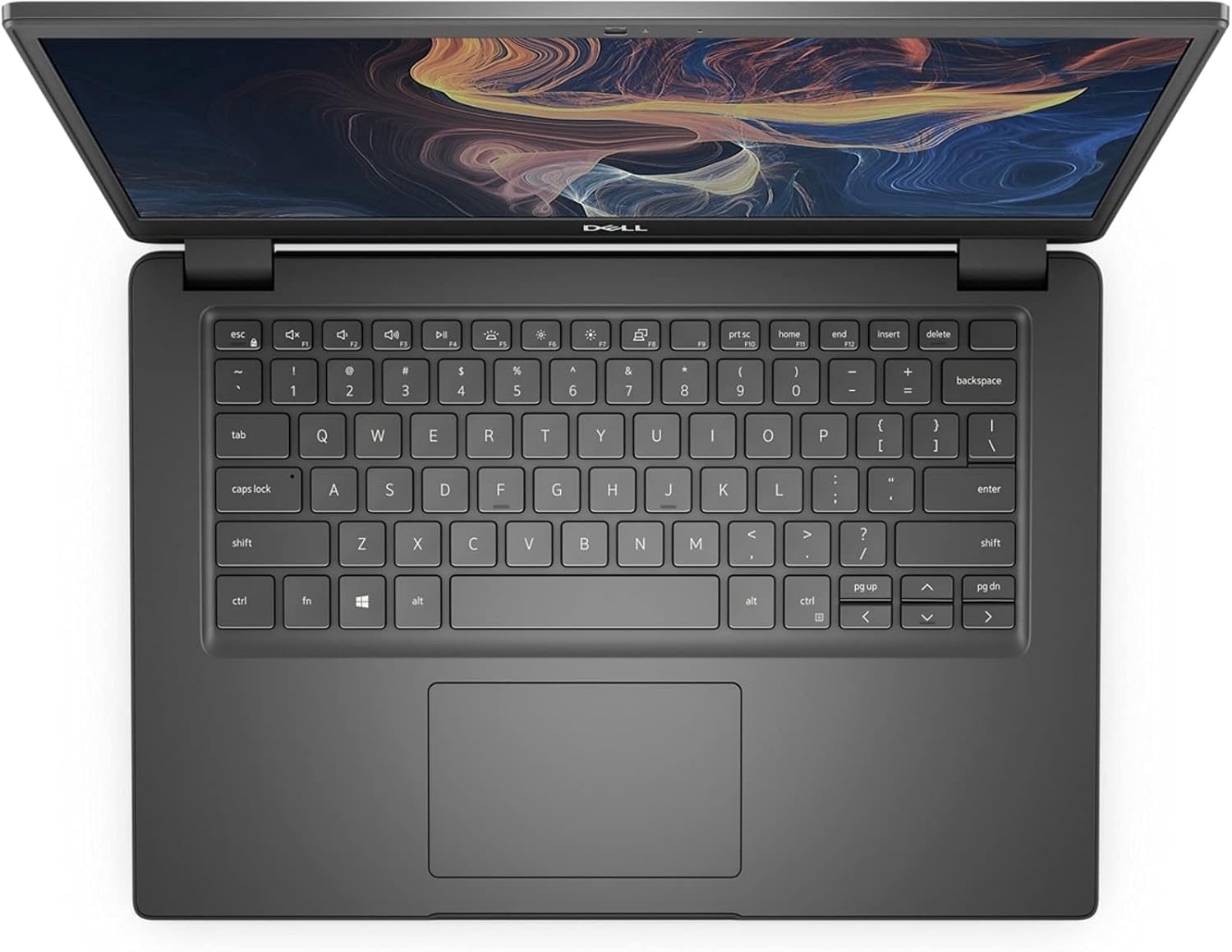

Figure 3: Keyboard and Touchpad Layout.
The laptop features a full-sized keyboard and a precision touchpad for navigation and input.
Setup
Unpacking and Initial Inspection
Carefully remove the laptop and all accessories from the packaging. Verify that all components are present:
- Dell Latitude 3410 Laptop
- Power Adapter and Power Cord
- Documentation (this manual, safety information)
Inspect the laptop for any physical damage. If any damage is found or components are missing, contact your vendor immediately.
Connecting the Power Adapter
Connect the power adapter to the power adapter port on the right side of the laptop. Plug the power cord into a grounded electrical outlet. The battery will begin charging automatically.
First Boot and Operating System Setup
Press the power button located on the top-right of the keyboard to turn on the laptop. The laptop will guide you through the initial Windows 10 Pro setup process. Follow the on-screen instructions to configure language, region, network settings, and user accounts.
Operating Your Laptop
Using the Keyboard and Touchpad
The keyboard provides standard QWERTY layout with function keys (F1-F12) that can be used in combination with the Fn key for special functions (e.g., volume control, brightness adjustment). The touchpad supports multi-touch gestures for scrolling, zooming, and other actions.
Connecting to a Network
Your laptop supports both Wi-Fi and wired Ethernet connections.
- Wi-Fi: Click the network icon in the system tray, select your desired Wi-Fi network, enter the password if prompted, and click Connect.
- Ethernet: Connect an Ethernet cable from your router or modem to the RJ-45 port on the right side of the laptop. The connection will be established automatically.
Connecting External Devices
Use the available USB ports (USB 2.0, USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-C) to connect peripherals such as external hard drives, USB flash drives, mice, and keyboards. The HDMI port allows you to connect an external monitor or projector.
Maintenance
Cleaning Your Laptop
To clean the laptop, use a soft, lint-free cloth slightly dampened with water or a specialized screen cleaner. Avoid using harsh chemicals or abrasive materials. For the keyboard, use compressed air to remove dust and debris.
Battery Care
To maximize battery life, avoid extreme temperatures. It is recommended to occasionally discharge the battery completely and then fully recharge it. If storing the laptop for an extended period, ensure the battery is charged to about 50%.
Software Updates
Regularly check for and install operating system updates (Windows Update) and driver updates (Dell SupportAssist or Dell's official website) to ensure optimal performance, security, and compatibility.
Troubleshooting
Common Issues and Solutions
- Laptop does not power on:
Ensure the power adapter is securely connected to both the laptop and a working electrical outlet. Check the power indicator light on the adapter. Try a different outlet if necessary. If the battery is completely drained, it may take a few minutes of charging before the laptop can power on.
- No display on screen:
Check if the laptop is powered on. Try adjusting the screen brightness using the function keys (Fn + F11/F12). If an external monitor is connected, ensure it is properly connected and selected as the display output (Fn + F8).
- Wi-Fi not connecting:
Ensure Wi-Fi is enabled (Fn + F2 or through Windows settings). Restart your router and modem. Forget the network in Windows settings and try reconnecting. Ensure your Wi-Fi drivers are up to date.
- Slow performance:
Close unnecessary applications. Check Task Manager for processes consuming high CPU or RAM. Ensure sufficient free space on the SSD. Run a disk cleanup and defragmentation (for HDD, though this model has SSD). Scan for malware.
For more advanced troubleshooting, refer to Dell's official support website or contact Dell technical support.
Specifications
The following table outlines the key technical specifications of the Dell Latitude 3410 Laptop:
| Feature | Specification |
|---|---|
| Model | Latitude 3410 Laptop |
| Display | 14-inch FHD (1920x1080) Non-Touch |
| Processor | Intel Core i5-10210U (4 cores @ 4.2 GHz) |
| RAM | 8 GB DDR4 SDRAM @ 3200MHz |
| Storage | 256 GB PCIe NVMe M.2 SSD |
| Graphics | Integrated Intel Graphics |
| Operating System | Windows 10 Pro |
| Wireless Connectivity | Wi-Fi, Bluetooth |
| Ports | USB 2.0, USB 3.2 Gen 1 Type-A (x2), USB 3.2 Gen 1 Type-C, HDMI 1.4b, RJ-45, Headset Jack, SD Card Reader, Noble Wedge Lock Slot |
| Dimensions (LxWxH) | 8.91 x 12.85 x 0.72 inches |
| Weight | 3.37 pounds |
| Color | Black |
Warranty and Support
Specific warranty details for your Dell Latitude 3410 Laptop are not provided in this document. For comprehensive warranty information, technical support, and service options, please visit the official Dell support website or contact Dell customer service directly.
You can typically find support resources by searching for "Dell Support" and your laptop model "Latitude 3410" on the internet.
