Outsunny 14' x 33" Round Above Ground Swimming Pool Instruction Manual

1. Introduction

Thank you for choosing the Outsunny 14' x 33" Round Above Ground Swimming Pool. This manual provides essential information for the safe assembly, operation, and maintenance of your new pool. Please read all instructions carefully before setup and keep this manual for future reference.

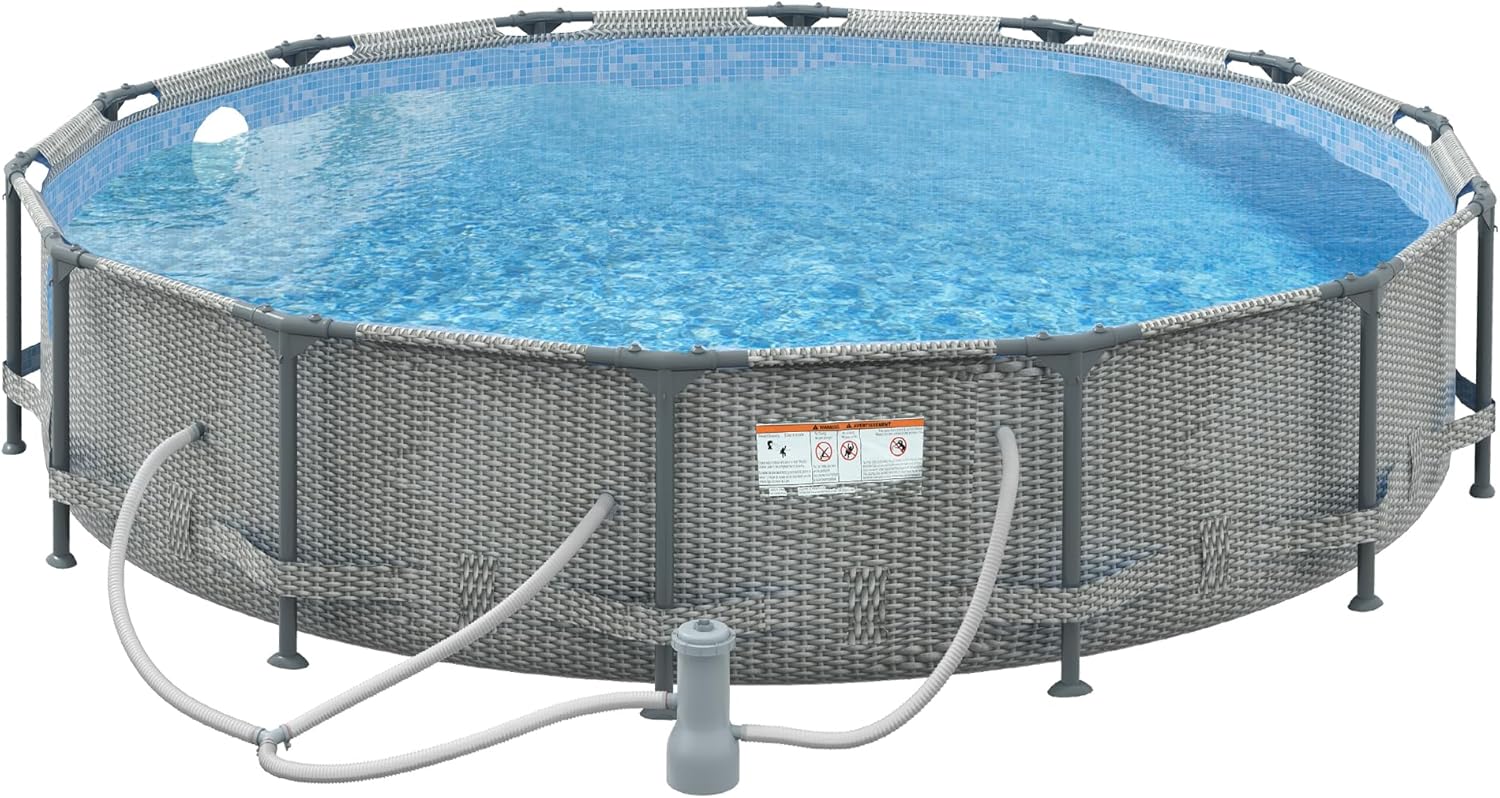

Image 1.1: The Outsunny 14' x 33" Round Above Ground Swimming Pool, showcasing its full assembled view with the filter pump connected.

2. Safety Information

WARNING: Failure to follow these instructions can result in serious injury or death.

• Always supervise children in and around the pool.
• Do not dive or jump into the pool.
• Ensure the pool is set up on a level, stable surface.
• Keep electrical cords away from water.
• Do not allow rough play or running around the pool.
• Regularly check the pool for damage and perform necessary repairs.

3. Components List

Before beginning assembly, ensure all components listed below are present and undamaged. Refer to your packaging for a detailed parts diagram.

• Pool Liner (High-density PVC Sidewall)
• Powder-coated Steel Frame Components
• Cartridge Filter Pump (530 gal/h circulation capacity)
• Filter Cartridge
• Hoses and Clamps for Filter Pump
• Repair Patch
• Drain Plug

Image 3.1: An illustration showing the various components of the Outsunny frame pool, including the liner, frame pieces, and pump.

4. Setup

4.1 Site Preparation

1. Select a firm, level surface free of sharp objects, debris, and excessive slopes.
2. Ensure the chosen area has adequate drainage and is away from electrical outlets or overhead power lines.
3. For fewer wrinkles, unfold the pool material and leave it out in direct sunlight for approximately 2 hours before assembly. This makes the PVC more pliable.

4.2 Frame Assembly

1. Lay out the pool liner in the prepared area, ensuring the drain plug is accessible.
2. Assemble the steel frame according to the included diagram, connecting the horizontal beams and vertical supports. Ensure all connections are secure.
3. Insert the frame poles through the sleeves provided on the pool liner.
4. Connect the corner joints and T-connectors to complete the frame structure.

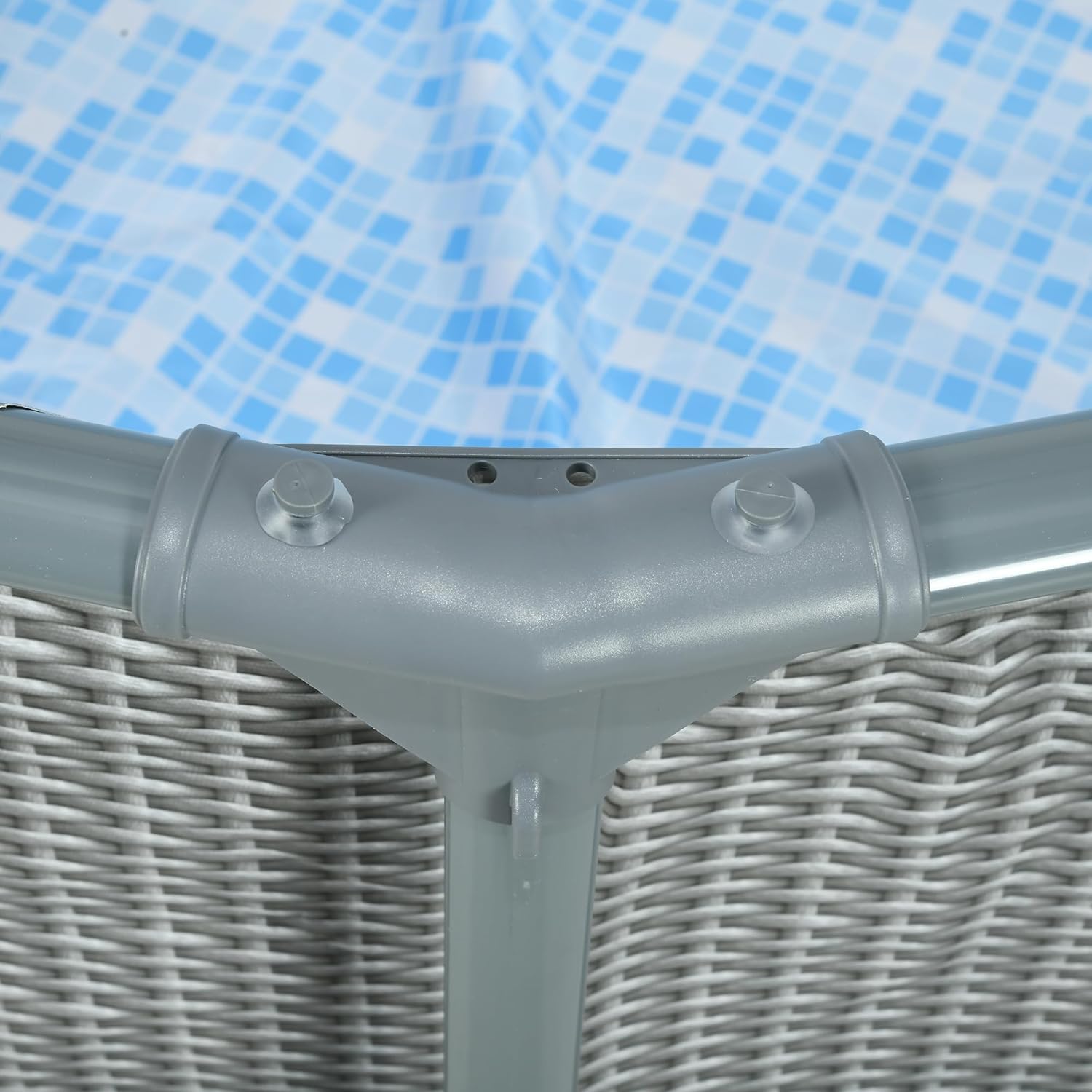

Image 4.1: A close-up view of the sturdy frame connection point, illustrating how the steel poles interlock to form the pool's structure.

4.3 Filter Pump Connection

1. Position the filter pump near the pool, ensuring it is on a stable, level surface and away from the pool edge.
2. Connect the inlet and outlet hoses from the pool to the corresponding ports on the filter pump. Secure all connections with clamps to prevent water leakage.
3. Insert the filter cartridge into the pump housing.

4.4 Filling the Pool

1. Begin filling the pool with water. As the water level rises, gently smooth out any wrinkles in the pool liner from the center outwards.
2. Fill the pool to the recommended water line, typically indicated on the liner or in the pump manual. Do not overfill.

5. Operating Instructions

5.1 Filter Pump Operation

The included cartridge filter pump is designed to circulate and filter the pool water, helping to keep it clean. It has a circulation capacity of up to 530 gallons per hour.

1. Ensure the pump is properly connected and the power cord is plugged into a grounded outlet.
2. Turn on the pump. Allow it to run for several hours daily to ensure proper water circulation and filtration. The exact duration depends on pool usage and water quality.
3. Regularly check the filter cartridge for debris and clean or replace as needed.

Image 5.1: A diagram illustrating the inflow and outflow connections of the filter pump, highlighting its role in maintaining clean water.

5.2 Underwater Windows

This pool features integrated underwater windows, allowing for unique viewing experiences and enhanced supervision. Ensure these windows are kept clean for optimal clarity.

Image 5.2: Detailed views of key pool features, including the drain plug for easy emptying, hose clamps for secure connections, see-through windows for underwater visibility, and wide feet for stable support.

6. Maintenance

6.1 Water Quality

• Regularly test pool water for pH and chlorine levels. Adjust chemicals as necessary to maintain proper balance.
• Skim debris from the water surface daily.
• Vacuum the pool floor as needed to remove settled dirt.

6.2 Filter Cartridge Cleaning/Replacement

• Turn off and unplug the filter pump before performing any maintenance.
• Remove the filter cartridge and rinse it thoroughly with a garden hose.
• Replace the cartridge every 2-4 weeks, or more frequently if the water remains cloudy despite cleaning.

6.3 Draining the Pool

To drain the pool, locate the drain plug at the bottom of the pool liner. Connect a garden hose to the drain plug adapter (if provided) and direct the water to a suitable drainage area. Open the drain plug to allow water to flow out.

Image 6.1: A close-up view of the drain plug mechanism located at the bottom of the pool liner, designed for easy water drainage.

6.4 Repair Patch Application

In case of minor punctures or tears, use the included repair patch. Clean and dry the affected area thoroughly before applying the patch firmly over the damage. Allow sufficient time for the adhesive to cure before refilling the pool.

6.5 Winterization (Off-Season Storage)

1. Completely drain the pool.
2. Clean the pool liner and frame components thoroughly.
3. Disassemble the frame and liner. Ensure all parts are dry before storing to prevent mold or corrosion.
4. Store the pool and its components in a dry, protected area, away from extreme temperatures.

7. Troubleshooting

8. Specifications

Image 8.1: A diagram illustrating the overall dimensions of the pool, showing its 168.1" diameter and 33.1" height.

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact Outsunny customer support directly. Keep your proof of purchase for any warranty claims.

For further assistance, troubleshooting not covered in this manual, or to order replacement parts, please visit the official Outsunny website or contact their customer service department. You can often find contact details on the brand's Amazon store page or their official website.

Outsunny Store Link: Visit the Outsunny Store on Amazon
