Electrolux EAF5B Air Fryer User Manual

1. Introduction

Thank you for choosing the Electrolux EAF5B Air Fryer. This appliance is designed to provide a healthier way to cook your favorite foods, using rapid air circulation to fry, bake, and reheat with significantly less oil. With its 5-liter capacity and 1500W power, it offers efficient and convenient cooking for a variety of dishes. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Do not immerse the appliance, cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Keep the appliance and its cord out of reach of children.
• Do not block any air vents.
• Do not place the appliance against a wall or other appliances. Leave at least 10 cm free space on the back and sides and 10 cm free space above the appliance.
• Do not place anything on top of the appliance.
• Do not use the appliance for any purpose other than described in this manual.
• Always unplug the appliance when not in use and before cleaning.
• The outer surfaces may become hot during use. Do not touch hot surfaces. Use handles or knobs.

3. Product Overview

Familiarize yourself with the components of your Electrolux EAF5B Air Fryer.

Figure 3.1: Front view of the Electrolux EAF5B Air Fryer, showcasing its sleek black design and digital control panel.

Figure 3.2: Angled view of the air fryer, highlighting its compact form factor and the wooden top accent.

Control Panel Features:

• Digital Display: Shows temperature and time settings.
• Temperature Controls (+/-): Adjust cooking temperature (80-200 °C).
• Timer Controls (+/-): Set cooking time (0-60 minutes).
• Power Button: Turns the appliance on/off.
• Preset Programs: 8 dedicated buttons for common dishes (e.g., AirFry, Bake, Reheat).
• Start/Pause Button: Initiates or pauses the cooking cycle.

Figure 3.3: Close-up of the digital control panel, showing temperature, time, and preset program buttons.

4. Setup and First Use

1. Unpacking: Carefully remove the air fryer and all packaging materials.
2. Cleaning: Before first use, clean the basket and pan with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a damp cloth. Ensure all parts are completely dry before use.
3. Placement: Place the air fryer on a stable, horizontal, and heat-resistant surface. Ensure there is adequate air circulation around the appliance (at least 10 cm clearance on all sides).
4. Pre-heating (Optional): For best results, pre-heat the air fryer for 3-5 minutes at the desired cooking temperature before adding food.

5. Operating Instructions

General Operation:

1. Plug the power cord into a grounded wall outlet.
2. Carefully pull the basket out of the air fryer.
3. Place the ingredients into the basket. Do not exceed the MAX fill line.
4. Slide the basket back into the air fryer.
5. Press the Power button to turn on the appliance.
6. Select a preset program or manually set the temperature (80-200 °C) and time (0-60 minutes) using the +/- buttons.
7. Press the Start/Pause button to begin cooking.
8. During cooking, the built-in shake reminder will alert you when it's time to shake or flip ingredients for even cooking.
9. Once the timer reaches zero, the appliance will automatically turn off. Carefully pull out the basket and remove the cooked food.

Figure 5.1: Demonstrating how to pull out the air fryer basket to check or shake food during cooking.

Using Preset Programs:

The Electrolux EAF5B comes with 8 convenient preset programs. Simply press the corresponding button on the control panel, and the appliance will automatically set the optimal time and temperature for that dish. You can still adjust these settings manually if desired.

Shake Reminder:

For certain foods, especially fries or smaller items, the air fryer features an automatic shake reminder. This prompt ensures your food cooks evenly and achieves optimal crispiness. When the reminder appears, carefully remove the basket, shake the contents, and reinsert the basket to resume cooking.

Figure 5.2: Visual comparison illustrating the health benefits of air frying, showing significantly less oil compared to traditional deep frying.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and optimal performance of your air fryer.

1. Before Cleaning: Always unplug the appliance and allow it to cool down completely before cleaning.
2. Removable Parts: The basket and pan feature a non-stick coating and are dishwasher-safe. For manual cleaning, use hot water, dish soap, and a non-abrasive sponge.
3. Appliance Body: Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads.
4. Heating Element: Use a cleaning brush to remove any food residue from the heating element inside the appliance.
5. Storage: Store the cleaned and dry air fryer in a cool, dry place.

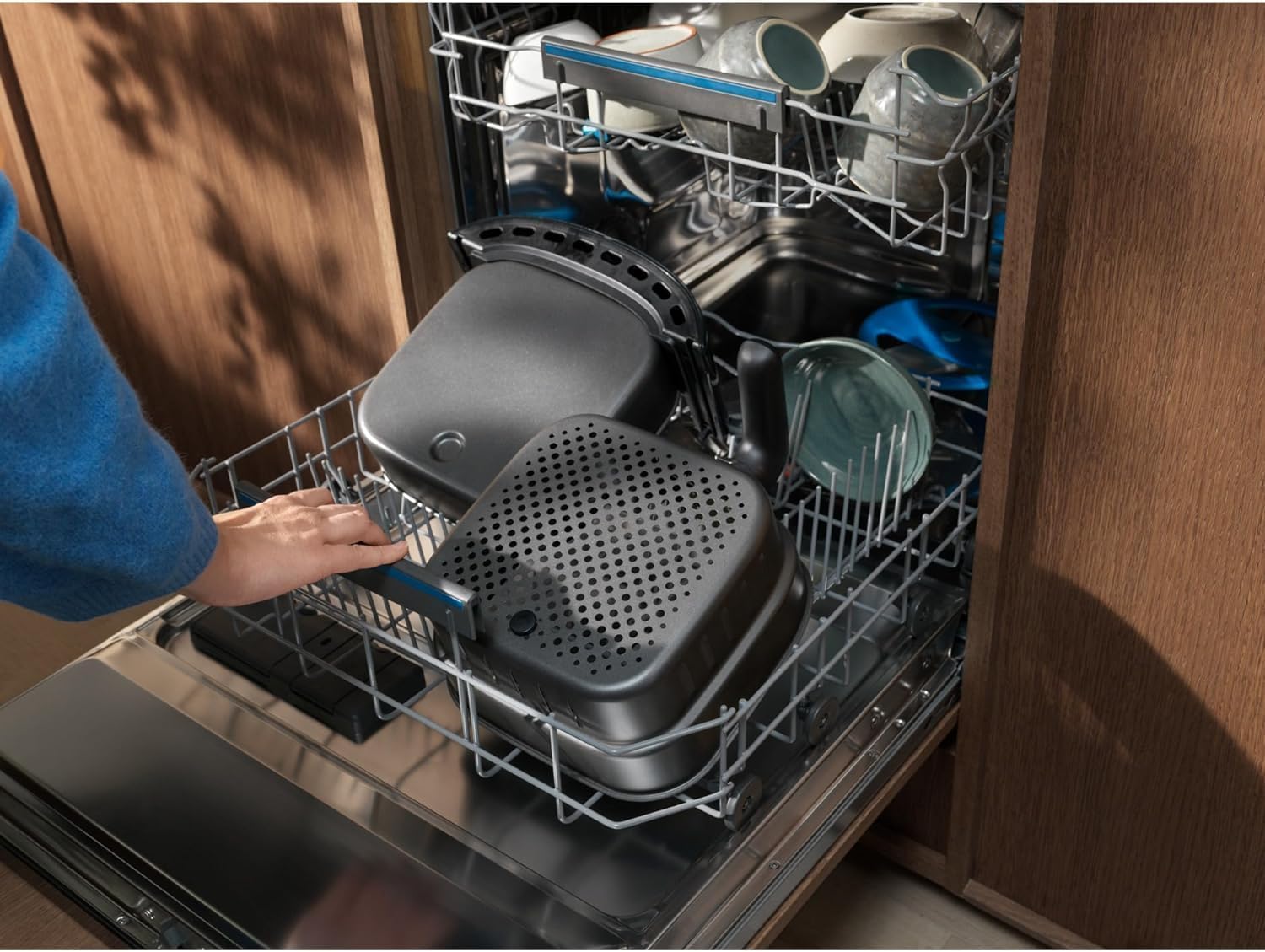

Figure 6.1: The removable basket and pan of the air fryer placed in a dishwasher, demonstrating their dishwasher-safe feature for easy cleaning.

7. Troubleshooting

If you encounter issues with your Electrolux EAF5B Air Fryer, refer to the table below for common problems and solutions.

If the problem persists after trying these solutions, please contact Electrolux customer support.

8. Specifications

Technical specifications for the Electrolux EAF5B Air Fryer.

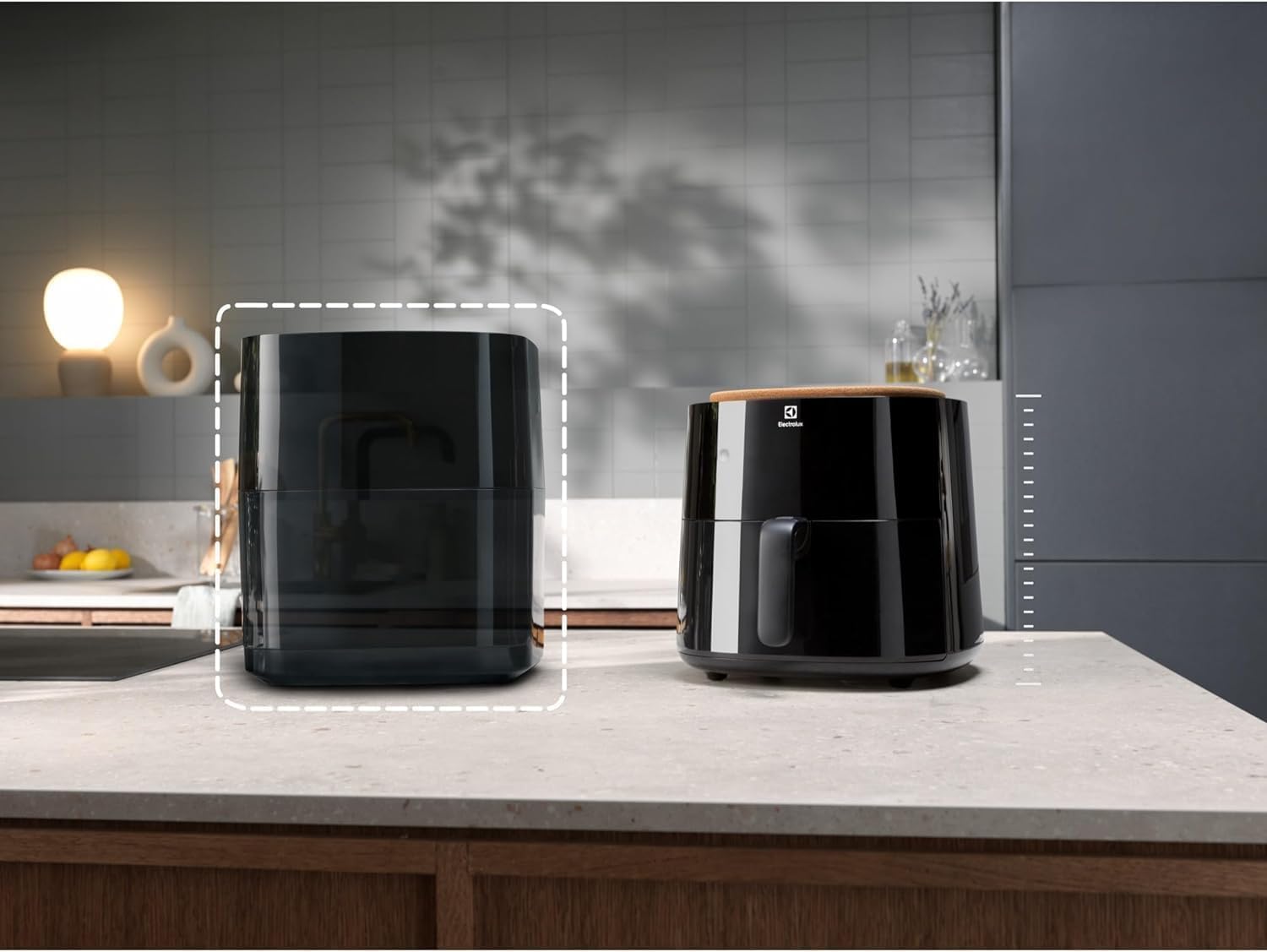

Figure 8.1: The compact design of the Electrolux EAF5B Air Fryer, illustrating its space-saving dimensions on a kitchen counter.

9. Warranty and Support

Electrolux products are manufactured to the highest quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Electrolux website. For technical support, spare parts, or service, please contact Electrolux customer service in your region. Keep your proof of purchase for warranty claims.

Online Resources: For additional recipes, tips, and FAQs, visit the official Electrolux website: www.electrolux.com
