1. Product Overview
This YITAYMLI Smart LED Bathroom Cabinet is designed to enhance your bathroom experience with integrated lighting, defogging, and smart display features. Crafted from durable multi-layer solid wood, it offers both functionality and a modern aesthetic.
The cabinet includes a high-definition silver mirror, LED lighting with adjustable brightness and color temperature, an intelligent defogging system, and a smart display for time and temperature. It also features partitioned storage and a convenient tissue dispenser.
2. Key Features
- Durable Construction: Made from high-quality multi-layer solid wood lacquer-free board, ensuring stability, water resistance, and long-term durability.
- Intelligent Defogging: Features a built-in heating film for quick, one-touch defogging, maintaining a clear mirror surface in humid conditions.
- Integrated LED Lighting: High-definition silver mirrors with ambient LED light tubes above and below, plus soft LED lighting on the sides. Brightness and color temperature (white, neutral, warm) are adjustable.
- Smart Display: Displays real-time clock and temperature.
- Thoughtful Design: Includes an internal tissue box design to keep countertops tidy and dry. Equipped with 304 stainless steel damping cushion hinges for silent and smooth door operation.
- Ample Storage: Partitioned interior for organized storage of bathroom essentials.
3. Product Specifications
| Feature | Detail |
|---|---|
| Brand | YITAYMLI |
| Model Number | 5289412651 |
| Color | White |
| Dimensions (L x W x H) | 100cm x 12cm x 70cm (39.4"D x 4.7"W x 27.6"H) |
| Material | Multi-layer Solid Wood Board, High-definition Silver Mirror |
| Mounting Type | Wall Mount |
| Lighting | LED (Adjustable Brightness & Color Temperature) |
| Special Features | Defogging, Smart Dimming, Clock Display, Temperature Display, Tissue Box Design, Damping Hinges |
| Assembly Required | No |
| Item Weight | 15000 Grams (33.1 pounds) |
Note: Product dimensions are approximate and may vary slightly.
4. Setup and Installation
The YITAYMLI Smart LED Bathroom Cabinet is designed for wall-mounted installation and comes pre-assembled. All necessary hardware and instructions are included to facilitate the installation process.
4.1 Pre-Installation Checklist
- Ensure the wall is structurally sound and capable of supporting the cabinet's weight (approximately 33.1 lbs / 15 kg).
- Verify the electrical wiring for the LED lights and defogging function is accessible and meets local electrical codes. Professional electrical installation is recommended.
- Gather necessary tools: drill, level, measuring tape, screwdriver, pencil.
4.2 Installation Steps
- Measure and Mark: Determine the desired height and position for the cabinet. Use a level to mark the drilling points accurately on the wall. Refer to the product dimensions for precise placement.
Image 4.1: Product dimensions for accurate installation. The cabinet measures 100cm (39.4 inches) wide, 12cm (4.7 inches) deep, and 70cm (27.6 inches) high.
- Drill Holes: Drill holes at the marked positions using an appropriate drill bit for your wall type. Insert wall anchors if required.
- Mount Bracket/Hardware: Secure the mounting bracket or hardware to the wall using the provided screws. Ensure it is firmly attached and level.
- Hang Cabinet: Carefully lift the cabinet and align it with the wall-mounted hardware. Secure the cabinet in place according to the specific instructions provided in the packaging.
- Electrical Connection: Connect the electrical wiring for the LED lights and defogging function. This step should be performed by a qualified electrician to ensure safety and compliance with electrical codes.
- Final Check: Ensure the cabinet is securely mounted, level, and all electrical connections are safe.
For detailed installation instructions, please refer to the manual included in your product packaging. If you encounter any issues, contact customer support.
5. Operating Instructions
The YITAYMLI Smart LED Bathroom Cabinet features intuitive touch controls for its various functions.
5.1 Powering On/Off and Basic Functions
The cabinet's smart features are controlled via touch sensors located on the mirror surface. These typically include controls for lighting, defogging, and display settings.
Image 5.1: Overview of smart features and controls on the mirror surface.
5.2 LED Lighting Control
- Turn On/Off: Tap the light icon on the mirror to toggle the LED lights.
- Adjust Brightness: Press and hold the light icon to cycle through brightness levels (0% to 100%). Release when the desired brightness is reached.
- Change Color Temperature: Tap the color temperature icon (if available) to switch between white light, neutral light, and warm light.
Image 5.2: Controls for adjusting LED light brightness and color temperature.
5.3 Defogging Function
- Activate Defogging: Tap the defogging icon (often represented by a cloud or steam symbol) on the mirror surface. The built-in heating film will activate to clear condensation.
- Deactivate Defogging: Tap the defogging icon again to turn off the function.
Image 5.3: Activating the one-touch thermal smart defogging function.
5.4 Clock and Temperature Display
The mirror features an integrated display showing the current time and temperature. These are typically always on or can be toggled via a dedicated touch control (refer to your specific product's on-mirror icons for details).
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your YITAYMLI Smart LED Bathroom Cabinet.
6.1 Cleaning the Mirror and Cabinet Surfaces
- Mirror: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the edges or electrical components. Wipe gently.
- Cabinet Surfaces: Wipe the solid wood surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for wood or lacquered surfaces. Dry immediately with a clean, dry cloth. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
Image 6.1: The multi-layer solid wood construction is designed for moisture resistance, but proper cleaning is still recommended.
6.2 Hinge Care
The cabinet features damping buffer hinges for smooth operation. Periodically check the hinges for any signs of loosening. Tighten screws if necessary. Avoid applying excessive force when opening or closing the cabinet doors.

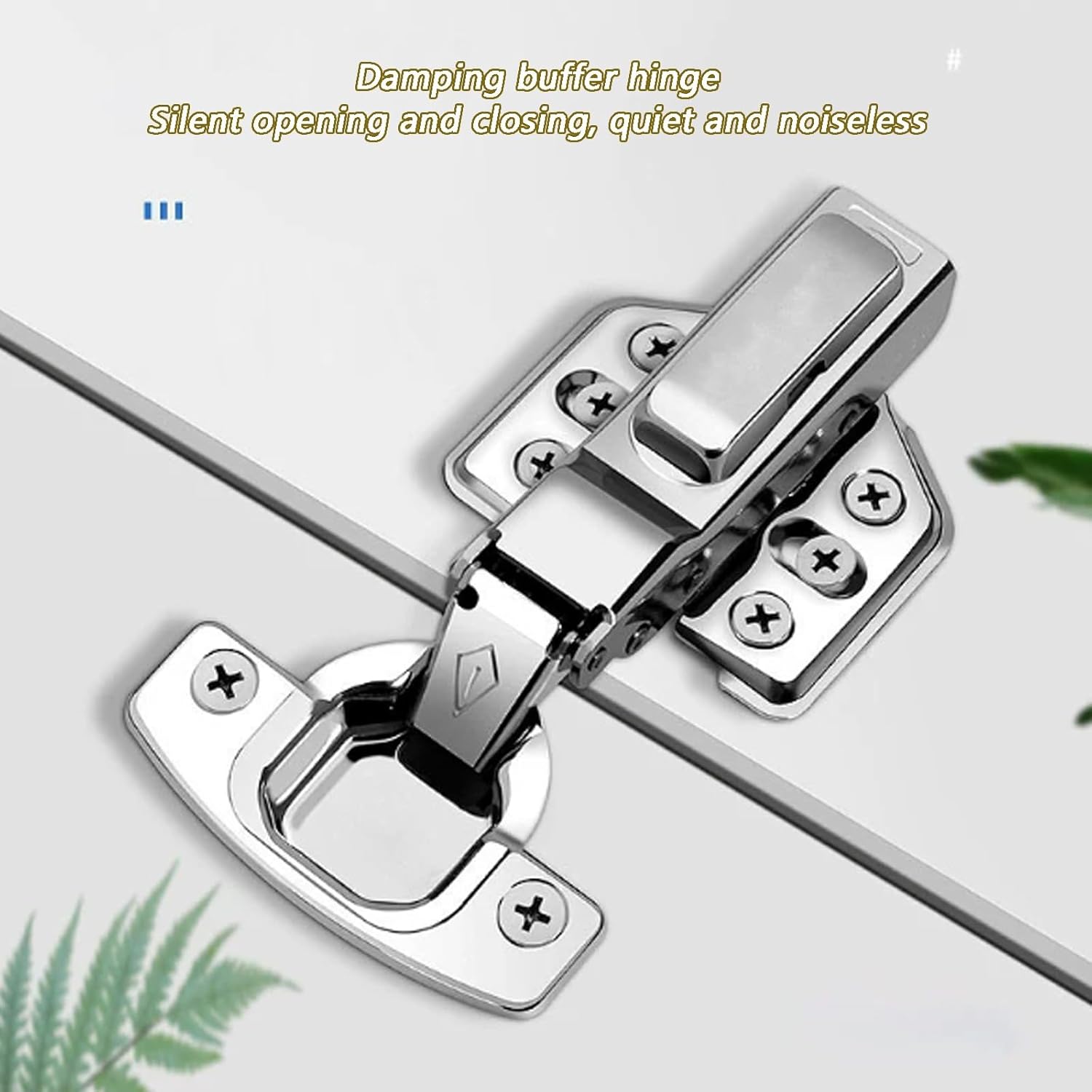

Image 6.2: Damping buffer hinges ensure quiet and smooth door movement.
6.3 Electrical Components
Ensure all electrical connections remain dry. Do not spray water directly onto the cabinet or its electrical components. If any electrical issues arise, disconnect power and consult a qualified electrician.
7. Troubleshooting
This section addresses common issues you might encounter with your smart LED bathroom cabinet.
| Problem | Possible Cause | Solution |
|---|---|---|
| LED Lights Not Working | No power supply; loose connection; faulty LED driver. | Check power outlet and circuit breaker. Ensure all electrical connections are secure (consult an electrician). If problem persists, contact customer support. |
| Defogging Not Activating | Defogging function not turned on; power issue. | Tap the defogging icon on the mirror. Verify power supply to the unit. |
| Mirror Remains Foggy | Defogging function active but ineffective; extreme humidity. | Allow a few minutes for the defogging to take effect. Ensure bathroom ventilation is adequate. If the issue persists, contact customer support. |
| Touch Controls Unresponsive | Temporary electrical glitch; dirty mirror surface. | Clean the mirror surface around the touch controls. Try cycling the main power to the cabinet (turn off at breaker for 30 seconds, then turn back on). |
| Clock/Temperature Display Incorrect | Initial setup required; sensor malfunction. | Refer to the product manual for instructions on setting the clock. If temperature is consistently inaccurate, contact customer support. |
8. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact the seller directly. If you require technical assistance, have questions about installation, or need to report a defect, please reach out to YITAYMLI customer support through the retailer where the product was purchased.
Please have your model number (5289412651) and purchase date ready when contacting support.
