1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your HOFSTEIN Naofe Outdoor Floor Lamp. Please read this manual thoroughly before installation and retain it for future reference. This outdoor lamp is designed for garden and pathway illumination, featuring an antique candelabra style with three E27 lamp holders and an IP44 rating for outdoor use.

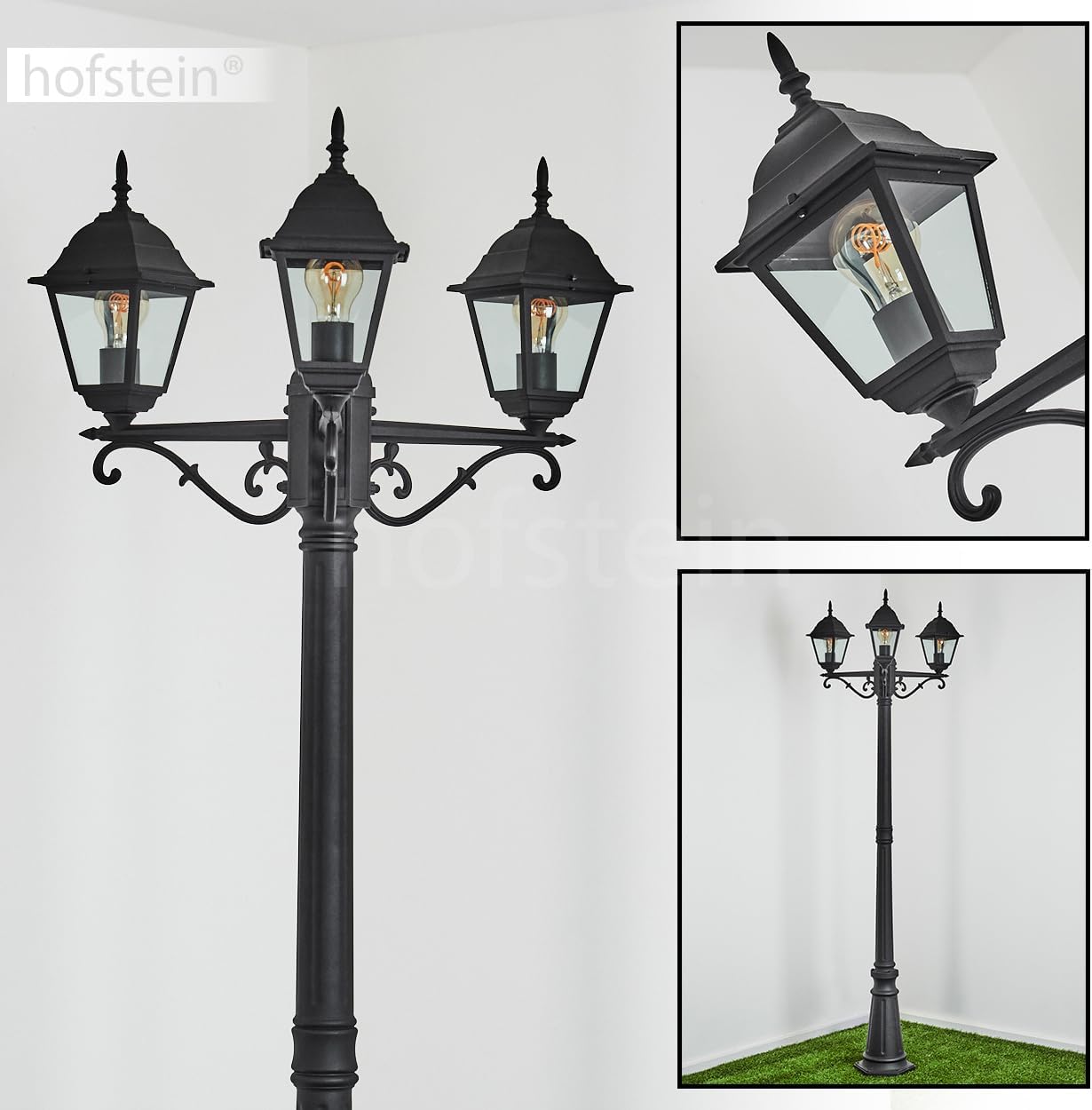

Image 1.1: Fully assembled HOFSTEIN Naofe Outdoor Floor Lamp.
2. Safety Instructions
- Electrical Safety: Always disconnect the main power supply before installation, maintenance, or bulb replacement. Installation should be performed by a qualified electrician to ensure compliance with local electrical codes.
- Outdoor Use: This lamp is rated IP44, providing protection against solid objects larger than 1mm and splashing water from any direction. Ensure all seals are correctly fitted during assembly to maintain this rating.
- Bulb Requirements: Use only E27 base bulbs. Do not exceed the maximum wattage of 60 Watts per lamp holder. Bulbs are not included with this product.
- Mounting: Ensure the lamp is securely mounted on a stable, level surface capable of supporting its weight.
- Temperature: Do not touch the lamp or bulbs immediately after use, as they may be hot.
- Cleaning: Use only a soft, dry, or slightly damp cloth for cleaning. Avoid abrasive cleaners or solvents.
3. Package Contents
Carefully unpack all components and check against the list below. If any parts are missing or damaged, contact your retailer immediately.
- Lamp Base
- Pole Sections (typically 2-3 sections)
- Lamp Head Assembly with 3 arms and E27 sockets
- 3 x Lamp Housings/Shades (metal frame with glass panels)
- Mounting Hardware (screws, anchors, washers)
- Instruction Manual (this document)
Note: Light bulbs are not included and must be purchased separately.
Image 3.1: Exploded view of lamp components.
4. Setup and Installation
Tools Required: Screwdriver, adjustable wrench, drill, measuring tape, wire strippers, electrical tape (optional), safety glasses, gloves.
- Preparation: Ensure the power supply to the installation area is switched off at the main circuit breaker. Choose a suitable, stable location for the lamp.
- Mount the Base: Position the lamp base on the desired surface. Mark the drilling points. Drill holes and secure the base using the provided mounting hardware. Ensure the base is level and firmly attached.
- Assemble Pole Sections: Carefully connect the pole sections, ensuring all wiring passes through without pinching. Twist or secure sections as per design until the full pole height is achieved.
- Attach Lamp Head Assembly: Secure the lamp head assembly to the top pole section. Ensure it is oriented correctly and firmly fastened.
- Wiring: Connect the lamp's internal wiring to your main power supply. This step must be performed by a qualified electrician. Ensure all connections are secure and properly insulated.
- Install Lamp Housings: Attach the three lamp housings (shades) to the arms of the lamp head assembly. Ensure the glass panels are securely in place and any seals are properly seated to maintain the IP44 rating.
- Insert Bulbs: Screw E27 bulbs (max 60W each, not included) into the lamp holders.
- Final Check: Double-check all connections and ensure the lamp is stable. Restore power and test the lamp.
Image 4.1: Lamp dimensions for installation planning.
5. Operating Instructions
The HOFSTEIN Naofe Outdoor Floor Lamp operates via your external power switch. There is no integrated switch on the lamp itself.
- Turning On/Off: Use the wall switch or external timer connected to the lamp's power supply to turn the light on or off.
- Bulb Replacement: To replace a bulb, ensure the power supply is disconnected. Carefully unscrew the old bulb and screw in a new E27 bulb (max 60W). Ensure the lamp housing is securely reassembled afterward.
- Dimming: This lamp is not designed for dimmable operation. Do not use with external dimmers unless the installed bulbs are specifically rated for dimming and the electrical circuit supports it.
Image 5.1: Close-up of a single lamp head.
6. Maintenance
- Cleaning: Regularly clean the lamp with a soft, damp cloth to remove dirt and debris. Avoid using harsh chemicals, abrasive cleaners, or high-pressure water jets, as these can damage the finish or compromise the IP rating.
- Inspection: Periodically inspect the lamp for any signs of damage, such as cracked glass, loose connections, or corrosion. Address any issues promptly to ensure safety and longevity.
- Seals: Ensure all seals and gaskets remain intact and properly seated, especially after bulb replacement or any maintenance involving opening the lamp housings. This is crucial for maintaining the IP44 weather protection.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up | No power supply; Faulty bulb; Loose wiring connection; Faulty switch/timer | Check circuit breaker; Replace bulb; Check wiring (by qualified electrician); Test switch/timer |
| Light flickers | Loose bulb; Incorrect bulb type; Unstable power supply | Tighten bulb; Ensure E27, max 60W; Consult electrician for power supply check |
| Water inside lamp housing | Damaged seal; Improperly installed housing/glass panel | Disconnect power, drain water, inspect and replace damaged seals, reassemble housing correctly. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | H3676950 |
| Brand | HOFSTEIN |
| Type | Outdoor Floor Lamp / Pathway Light |
| Height | 190 cm |
| Diameter | 70 cm |
| Material (Luminaire) | Aluminum |
| Material (Shade) | Metal, Glass |
| Color (Luminaire) | Anthracite (Black) |
| Color (Shade) | Transparent, Black |
| Number of Lights | 3 |
| Bulb Socket Type | E27 |
| Max Wattage per Bulb | 60 Watt |
| Voltage | 230 Volt |
| IP Rating | IP44 |
| Dimmable | No (Non-variable intensity) |
| Style | Antique, Country House |
| Special Features | Motion detector (if applicable, check product variant) |
9. Warranty Information
This product is subject to the standard return policy of 30 days from the date of purchase. For specific warranty details beyond the return period, please refer to the terms and conditions provided by the seller, HOFSTEIN, or contact them directly. Keep your proof of purchase for any warranty claims.
10. Support and Contact
If you encounter any issues or have questions regarding your HOFSTEIN Naofe Outdoor Floor Lamp that are not covered in this manual, please contact the seller, HOFSTEIN, through their official store page or the platform where you purchased the product.
