perfektGarten Idler Pulley Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your perfektGarten Idler Pulley, Model 1195, replacing part number 756-3054. This idler pulley is designed to maintain correct belt tension and alignment in various lawn mower and outdoor power equipment models, ensuring efficient power transmission and smooth operation. Please read these instructions carefully before proceeding with any installation or maintenance.

The perfektGarten Idler Pulley is compatible with a wide range of equipment from brands such as MTD, Yard-Man, Cub Cadet, Efco, Oleo-Mac, and Gutbrod. Refer to the 'Compatibility' section for a detailed list of supported models.

2. Product Specifications

• Outer Diameter: 81 mm
• Center Hole Diameter: 9.67 mm
• Height: 28.5 mm
• Replaces Part Numbers: 756-3054A, 7563054A, 756-3054, 7563054
• Manufacturer Model Number: 1195

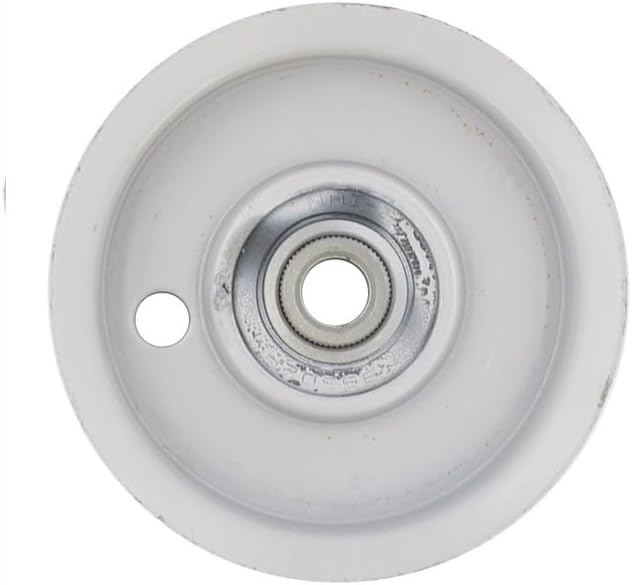

Image 2.1: perfektGarten Idler Pulley with key dimensions highlighted. This image shows the outer diameter, center hole diameter, and height of the pulley.

3. Compatibility

This idler pulley is compatible with a wide range of lawn mowers and outdoor power equipment. Please verify your equipment's part number and specifications against the details provided to ensure proper fitment.

MTD Models: 13/92, 130/92 H, 155/92 A, 155/92 LE, 16/92 H, 160/92 H, 16-92 H Swiss Platinum, 175/105 H, 180/105 H, 180/92 H, 180/92 HT, 185/92 HT, 185/92 /92, 20/105 H, 200/105 H, 200/105 HT, 220/105 H, 22/105 H, 24/105 H, 25/105 H, Advance PE 160 HK, Advance PN 180 HK, Blue Attraction 92-155 H, Celebration 105, Celebration 105 H, Celebration 92 A, DL 92 BH, DL 92 H, DL 920 H, JE 125 H, JE 135 A, JE 135 H, JE 145 A, JE 150 H, JE 180 H, JN 130 A, JN 135 AT, JN 150 A, JN 150 H, JN 155 A, JN 160 H, JN 175 H, JN 175 HB, JN 180 H, JN 200 AT, LE 125/92 H, LE 135 H, LE 155 H, LE 160/92 H, LE 180/92 H, LN 175 H, LN 200 H, LT 105 EX HK, LT 76 H, LT 92 EXH, LT 92 EXHB, LT 92 H, Optima LE 145 H, Optima LE 155 H, Optima LN 165 H, Optima LN 175 H, Optima LN 180 H, Optima LN 200 H, P 155 HE, P 200 HN, Platinum RD, Platinum RD 20/92 H, Platinum RD 23/105 H, Power 1750, RA 125/76 H, RH 135/105 B, RH 150/105, RH 150/92 B, RH 155/105 H, RH 165/105 H, RH 170/105 H, RH 175/105 H, RH 5 A, RH 180/105 B, SE 135 A, SE 150 H, SE 155 H, SE 160 AT, SG 155 A, SG 175 H, Smart RE 130 H, Smart RE 130 HM, SN 135 A, SN 150 A, SN 155 H, SN 170 A, SN 180 AT, SN 180 H, SN 200 HAT, SN 210 A, White Passion 92.165 H.

Yard-Man Models: AE 5150 K, AE 5165, AN 5170, AN 5175, AN 5185, HE 5150 K, HN 5150 K, HN 5180 B, HN 5200, HS 5200, HS 5220 K, J 5240 K, YM 22/105.

Wolf Garten Models: Ambition 76.125 H, Ambition 92.130 H, Ambition 105.175 H, Blue Power 92.160 H, Blue Power 105.200 H.

Other Compatible Brands and Models: Fleurelle AMH1303, Black Line B 150/92A, Bolens BL 155/92 A, BL 200/105 H, Best Garden BM1392HRBK, Cub Cadet CC1016RD-E, CC1020RD, CC1023RD, CC1024RD-J, CC1024RD-N, CC1025RD-J, Silverline Silvertrac 15/92 A, Silvertrac 175/105 H, Silvertrac 18/92 H, Silvertrac 22/105 H, Gartenland GL13,5-92H, Gutbrod GLX105RA, GLX105RH, GLX105RHL, GLX105RHL-SK, GLX107SAL, GLX122RHL, GLX92RA, GLX92RHLK, GLX92SHL, JLX105RH, Efco Kommand 105/22 H Plus, Oleo-Mac Krosser 92/16 H, Krosser Plus 105, Xpider XT1692PH, Verts Loisirs VL165H42TD, RMH514-105A, RMH518-105H, RMH520-105H, Sunline RTH 155/105 H Argenté, Coupe SC 180/105, Massey Ferguson MF36-15RD, MF41-18RD, MF41-18RH, MF48-23RD, MF48-24RD, MF48-25RD, Motec MTR400, M Tech M155/105A, M200/105H, Gazon 703, 705, and other MTD Group models.

4. Safety Information

Always prioritize safety when working with machinery. Failure to follow these safety guidelines may result in serious injury or damage to equipment.

• Disconnect Power: Before performing any installation, maintenance, or inspection, ensure the equipment's engine is off and the spark plug wire is disconnected to prevent accidental starting.
• Wear Protective Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
• Consult Equipment Manual: Refer to your specific equipment's owner's manual or service manual for detailed instructions and safety precautions relevant to your model.
• Secure Equipment: Ensure the equipment is stable and properly supported before working underneath or around moving parts.
• Use Correct Tools: Use only the appropriate tools for the task to avoid damage to parts or injury.
• Professional Installation Recommended: If you are unsure about any step, it is recommended to seek assistance from a qualified service technician.

5. Setup and Installation

The idler pulley is a critical component in the belt drive system of your lawn mower. Proper installation is essential for optimal performance and longevity. The following are general steps for replacing an idler pulley. Always consult your specific equipment's service manual for precise instructions.

1. Preparation: Ensure the equipment is turned off, cooled down, and the spark plug wire is disconnected. Position the equipment on a flat, stable surface.
2. Access the Pulley: Depending on your equipment model, you may need to remove deck covers, guards, or other components to gain access to the idler pulley and belt system.
3. Document Belt Routing: Before removing the old belt, take a photograph or draw a diagram of the belt's routing path. This will be crucial for correct reinstallation.
4. Relieve Tension and Remove Belt: Use appropriate tools to relieve tension on the belt and carefully remove it from the pulleys.
5. Remove Old Pulley: Locate the faulty idler pulley. It is typically secured by a bolt or nut. Use a wrench or socket to remove the fastener and detach the old pulley. Note any washers or spacers and their orientation.
6. Install New Pulley: Place the new perfektGarten Idler Pulley (Model 1195) onto the mounting post. Ensure any washers or spacers are correctly positioned. Secure the pulley with the original fastener, tightening it to the torque specifications provided in your equipment's manual. Do not overtighten.
7. Re-route Belt: Following your documented routing path, carefully re-route the belt around all pulleys, including the new idler pulley. Ensure the belt is seated correctly in all grooves.
8. Tension Adjustment: Verify that the belt tension is correct. Some systems have adjustable tensioners. Refer to your equipment manual for proper tensioning procedures.
9. Reassemble and Test: Reinstall any covers or guards that were removed. Reconnect the spark plug wire. Start the engine and carefully test the equipment's operation to ensure the belt system functions smoothly without unusual noises or slippage.

Image 5.1: Top view of the perfektGarten Idler Pulley, showing its general appearance.

Image 5.2: Side view of the perfektGarten Idler Pulley, illustrating its profile and bearing.

6. Operating Principles

The perfektGarten Idler Pulley functions as a crucial component within the belt drive system of your equipment. Its primary roles include:

• Maintaining Belt Tension: The idler pulley applies constant tension to the drive belt, preventing slippage and ensuring efficient power transfer from the engine to the driven components (e.g., mower blades, transmission).
• Guiding the Belt: It helps to guide the belt along its correct path, preventing it from rubbing against other components or coming off the system.
• Absorbing Vibrations: By maintaining proper tension, the idler pulley can help to dampen vibrations and reduce noise generated by the belt drive system.

A properly functioning idler pulley contributes to the overall efficiency, longevity, and safety of your equipment.

7. Maintenance

Regular inspection and maintenance of your idler pulley will extend its lifespan and ensure reliable operation of your equipment. Perform these checks periodically, especially before and after periods of heavy use.

• Visual Inspection: Check the pulley for any signs of wear, cracks, chips, or deformation. The pulley surface should be smooth and free from grooves that could damage the belt.
• Bearing Check: With the belt removed, spin the pulley by hand. It should rotate smoothly and quietly. Listen for any grinding, squealing, or excessive play in the bearing. A noisy or stiff bearing indicates it needs replacement.
• Cleanliness: Keep the pulley and surrounding belt area free from dirt, grass clippings, and debris, which can cause premature wear or belt slippage.
• Belt Condition: While inspecting the pulley, also check the condition of the drive belt for cracks, fraying, or glazing. A worn belt can also affect pulley performance.
• Lubrication: This idler pulley typically uses sealed bearings that do not require external lubrication. Do not attempt to lubricate sealed bearings unless specifically instructed by your equipment's manual.

Replace the idler pulley immediately if any signs of significant wear or bearing failure are observed to prevent further damage to your equipment.

8. Troubleshooting

If you experience issues with your equipment's belt drive system, the idler pulley may be a contributing factor. Here are some common problems and potential solutions:

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician or refer to your equipment's specific service manual.

9. Warranty and Support

Specific warranty information for the perfektGarten Idler Pulley (Model 1195) is not provided within this manual. For details regarding warranty coverage, terms, and conditions, please contact the seller directly.

For further assistance or inquiries, you may contact the seller, perfektgarten, through the platform where the purchase was made.
