1. Safety Information
Read all instructions carefully before installation and operation. Failure to follow these instructions may result in equipment damage or personal injury.
- Ensure power is disconnected from the compressor system before installation or maintenance.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Installation should be performed by qualified personnel only.
- Do not exceed the specified operating temperature or pressure limits.
2. Product Overview
The Yancinne Temperature Sensor Switch 1605063600 is designed to monitor and control temperature within screw compressor systems. It provides a reliable signal based on a predefined temperature threshold, ensuring optimal operation and protection of the compressor.

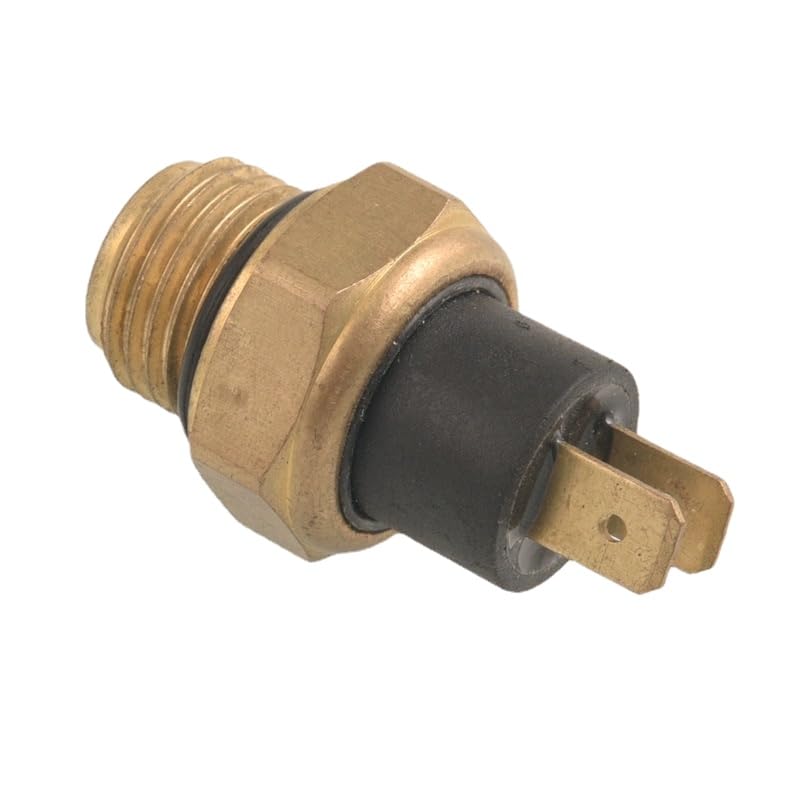

Figure 2.1: Side view of the Yancinne Temperature Sensor Switch, showing the threaded brass body and electrical terminals.
Key Features:
- Accurate temperature sensing.
- Durable brass construction for industrial environments.
- Standard electrical connections for easy integration.
3. Setup and Installation
Follow these steps for proper installation of the temperature sensor switch:
- Preparation: Ensure the compressor system is powered off and depressurized. Identify the correct mounting location for the sensor, typically a threaded port on the compressor or associated piping.
- Mounting: Apply a suitable thread sealant (e.g., PTFE tape or liquid sealant) to the threads of the sensor. Carefully thread the sensor into the designated port. Tighten securely with a wrench, but do not overtighten to avoid damaging the sensor or port.
- Electrical Connection: Connect the electrical terminals of the sensor to the compressor's control circuit according to the compressor manufacturer's wiring diagram. Ensure connections are secure and properly insulated.
- Verification: After installation, visually inspect all connections for tightness and proper routing. Restore power to the compressor system and verify the sensor's functionality as per the compressor's operational checks.

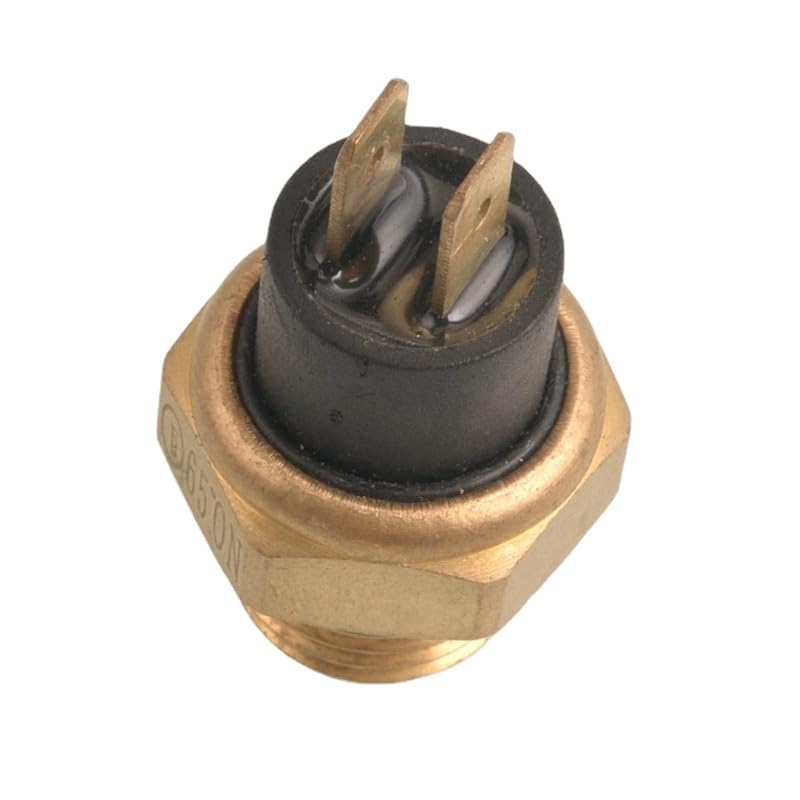

Figure 3.1: Top view of the sensor, showing the two electrical spade terminals for wiring connections.
4. Operating Instructions
The Yancinne Temperature Sensor Switch 1605063600 operates automatically once installed and connected to the compressor's control system. It is a passive component that provides a signal based on temperature. There are no user-adjustable settings on the sensor itself.
The sensor is designed to trigger a specific action (e.g., compressor shutdown, alarm activation) when the monitored temperature reaches its factory-set threshold. Refer to your compressor's operation manual for details on how the system responds to the sensor's signal.
5. Maintenance
Regular maintenance ensures the longevity and accuracy of the temperature sensor switch.
- Cleaning: Periodically inspect the sensor for any buildup of dirt, oil, or debris. Clean the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Connection Check: Annually, or as part of routine compressor maintenance, check electrical connections for corrosion or looseness. Tighten as necessary.
- Functionality Test: If the compressor system includes a diagnostic function for sensors, utilize it to verify the sensor's response. Otherwise, monitor the compressor's temperature readings and ensure they are within expected operating parameters.
- Replacement: If the sensor shows signs of physical damage, erratic readings, or failure to trigger at the correct temperature, it should be replaced with an identical Yancinne 1605063600 model.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Sensor not triggering at expected temperature. | Faulty sensor; incorrect wiring; compressor system issue. | Verify wiring connections. Test sensor with a multimeter if possible (refer to specifications for resistance values). Replace sensor if faulty. Consult compressor manual for system diagnostics. |
| Erratic temperature readings. | Loose electrical connections; sensor contamination; electrical interference. | Check and tighten all electrical connections. Clean sensor exterior. Ensure proper grounding and shielding of wiring. |
| Physical damage to sensor. | Impact; overtightening during installation; chemical exposure. | Replace the sensor immediately. Ensure proper installation techniques are followed for the new sensor. |
7. Specifications
- Model: 1605063600
- Type: Temperature Sensor Switch
- Material: Brass body, rubber seal, metal terminals
- Application: Screw Compressor Accessories
- Note: Specific temperature thresholds and electrical ratings are typically determined by the compressor system it integrates with. Consult your compressor's documentation for exact operational parameters.
8. Warranty and Support
Yancinne products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Yancinne customer support.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Yancinne customer service through their official website or authorized distributors. When contacting support, please have your product model number (1605063600) and purchase information readily available.
