Yiaht Timer-WW-20LED

Yiaht 12 Pack Battery Operated Fairy String Lights with Timer - User Manual

1. Introduction

Thank you for choosing the Yiaht 12 Pack Battery Operated Fairy String Lights. These versatile lights are designed to add a warm and inviting ambiance to various indoor and outdoor settings. Each string features 20 warm white LEDs on a flexible silver wire, powered by CR2032 batteries, and includes a convenient timer function for automated operation.

Twelve coiled warm white fairy light strings, each with a small white battery pack.

Image 1: The Yiaht 12 Pack Battery Operated Fairy String Lights.

2. Product Features

  • Quantity: 12 individual fairy light strings per pack.
  • Length: Each string is 7 feet (2.1 meters) long.
  • LED Count: 20 mini warm white LEDs per string.
  • Wire Material: High-quality flexible silver wire.
  • Power Source: Battery operated (2 x CR2032 batteries per string, included).
  • Timer Function: Automatic 6 hours on, 18 hours off cycle.
  • Waterproof Rating: IP44 for the string lights (suitable for indoor/outdoor use). Note: The battery pack is not waterproof.
  • Safety: Low energy consumption, low heat emission, safe to touch.
  • Flexibility: Easy to bend and shape for various decorative purposes.

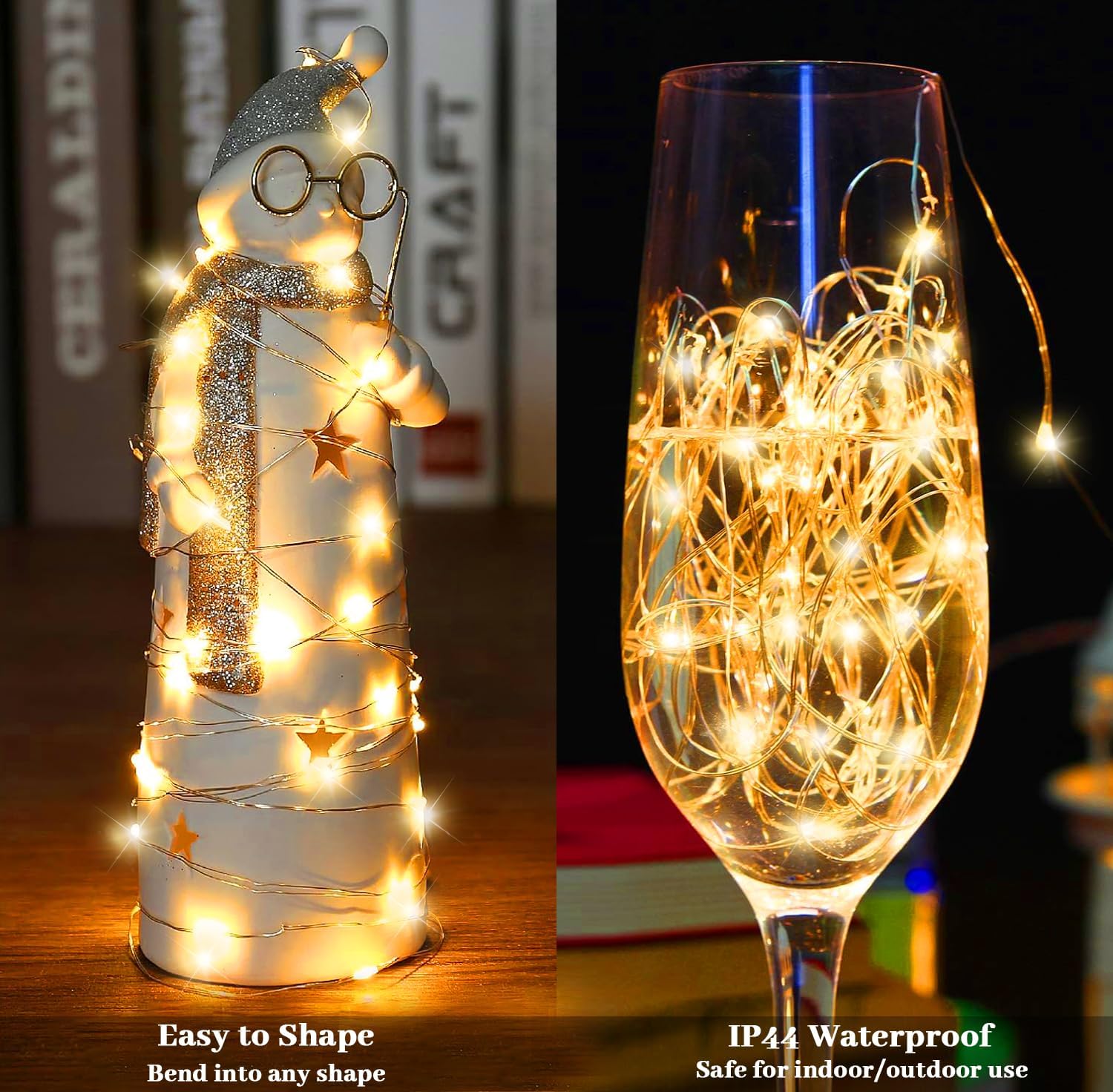

Fairy lights wrapped around a decorative snowman figure and coiled inside a wine glass, illustrating flexibility and waterproof feature.

Image 2: Lights demonstrating flexibility and waterproof design.

3. Package Contents

Please verify that all items are present in your package:

  • 12 x 20LED 7Ft Warm White Fairy Lights (with pre-installed CR2032 batteries)
  • 1 x User Manual (this document)
  • 1 x Small Screwdriver

4. Setup

4.1 Battery Installation/Replacement

  1. Locate the battery compartment on the small white battery pack.
  2. Use the provided small screwdriver to open the battery compartment cover.
  3. Insert two CR2032 batteries, ensuring correct polarity (+/-). The batteries are typically pre-installed.
  4. Securely close the battery compartment cover with the screwdriver.

4.2 Initial Placement

Uncoil the fairy light string carefully. The flexible silver wire allows for easy shaping around objects, draping, or coiling into containers like mason jars. Ensure the battery pack is placed in a dry location, as it is not waterproof.

5. Operating Instructions

Each battery pack has a small button to control the lights.

  1. Press once: Activates the timer function (6 hours on, 18 hours off). The lights will turn on for 6 hours, then automatically turn off for 18 hours, repeating the cycle daily.
  2. Press twice: Turns the lights ON continuously.
  3. Press three times: Turns the lights OFF.
Warm white fairy lights illuminating a room, with text indicating '6 Hours On/18 Hours Off' timer function.

Image 3: Illustration of the timer function in a decorative setting.

6. Maintenance

6.1 Battery Care

  • Replace batteries when lights dim or cease to function.
  • Always use new CR2032 batteries. Do not mix old and new batteries.
  • Remove batteries if the lights will not be used for an extended period to prevent leakage.
  • Dispose of used batteries responsibly according to local regulations.

6.2 Cleaning

Wipe the light strings and battery pack with a soft, dry cloth. Do not use abrasive cleaners or immerse the battery pack in water.

6.3 Waterproof Information

The string lights themselves are IP44 waterproof, meaning they are protected against splashing water from any direction. This makes them suitable for outdoor use where they may be exposed to rain. However, the battery box is not waterproof and must be protected from moisture and direct water exposure.

7. Troubleshooting

  • Lights do not turn on:
    • Check if the batteries are correctly installed with the correct polarity.
    • Replace batteries with new ones if they are depleted.
    • Ensure the power button has been pressed to either ON or TIMER mode.
  • Lights turn off unexpectedly:
    • If in timer mode, the lights will turn off after 6 hours. They will reactivate after 18 hours.
    • Batteries may be low and require replacement.
  • Lights are dim:
    • Batteries are likely low and need to be replaced.

8. Specifications

Model NumberTimer-WW-20LED
BrandYiaht
ColorWarm White
Light Source TypeLED
Number of Light Sources20 per string
Item Length7 Feet (2.1 meters) per string
Power SourceBattery Powered (2 x CR2032 per string)
Special FeaturesSafe to Touch, Timer (6H On/18H Off), Waterproof (string lights only)
Indoor/Outdoor UsageIndoor, Outdoor
MaterialCopper Wire

9. Safety Information

  • Keep batteries and small parts away from children to prevent choking hazards.
  • Do not expose the battery pack to water or extreme temperatures.
  • Do not attempt to modify or repair the product. Contact customer support for assistance.
  • Ensure proper disposal of batteries and electronic components according to local environmental guidelines.
  • While the string lights are safe to touch due to low heat, avoid direct contact with the LEDs for prolonged periods.

10. Warranty and Support

For any questions, concerns, or support needs regarding your Yiaht Fairy String Lights, please refer to the contact information provided with your purchase or visit the official Yiaht store on Amazon. Please retain your purchase receipt for warranty purposes.
