1. Introduction
1.1 Product Overview
The DEWIN 380V 5.5 kW Variable Frequency Drive (VFD) is a sophisticated motor speed controller designed for industrial applications. It utilizes a unique control method to achieve high torque, precision, and a broad range of speed regulation. This VFD is engineered for stable and efficient operation, making it suitable for various motor control needs.
Figure 1.1: The DEWIN VFD unit shown alongside its accompanying user manual, highlighting the compact design and the digital display panel.
2. Safety Instructions
Always adhere to the following safety precautions to prevent injury, electric shock, or damage to the equipment. Improper installation or operation can lead to serious hazards.
- Risk of Electric Shock: This device operates with high voltage. Ensure power is disconnected before any installation, maintenance, or inspection.
- Capacitor Discharge: After disconnecting power, wait at least 10 minutes for the DC bus capacitors to fully discharge before touching any internal components.
- Grounding: Always use proper grounding techniques as specified in the manual to ensure safe operation.
- Terminal Connections: Do not connect main power to the output terminals (U, V, W). Ensure all wiring is correct and secure.
- Read Manual: Thoroughly read and understand the entire instruction manual before installation or operation.
Figure 2.1: A close-up of the warning label on the VFD unit, advising users about potential electric shock, discharge time, grounding, and proper terminal connection.
3. Key Features
The DEWIN VFD incorporates advanced technology to deliver superior performance and reliability:
- High Configuration: Features a smart dual-layer design (power board + motherboard) for high torque, precision, and a wide speed control range.
- Low Noise Operation: Optimized PWM control technology and electromagnetic compatibility ensure low noise and minimal electromagnetic interference.
- High Stability: Excellent anti-tripping performance and adaptability to power supply fluctuations, temperature, humidity, and strong interference. Includes a large heat sink for enhanced cooling and stability.
- IPM and IGBT Module Design: Utilizes IPM and IGBT modules for improved efficiency, high performance, low heat generation, automatic protection, and stable quality.
- Comprehensive Protection Functions: Built-in protections against overcurrent, overvoltage, undervoltage, module failure, electronic thermal relay, overheating, short circuit, input/output phase loss, abnormal motor parameter settings, and internal memory failure.
Figure 3.1: An image illustrating the main features of the VFD, including energy saving capabilities, 485 communication, multiple protection functions, and ease of use.
4. Setup and Installation
4.1 General Installation Guidelines
The VFD is designed for wall-mounted installation. Ensure the installation location is well-ventilated, free from excessive dust, moisture, and corrosive gases. Allow sufficient space around the unit for proper heat dissipation.
4.2 Wiring Instructions
Proper wiring is crucial for the safe and correct operation of the VFD. Refer to the diagrams below for detailed connection instructions. All connections should be made via screw terminals for secure and reliable contact.
Figure 4.1: A detailed wiring diagram showing connections for three-phase power, multi-function input terminals, analog input, programmable relay, and RS485 communication.
Figure 4.2: Simplified wiring diagram for the 380V inverter, showing connections for single-phase 380V power supply, ground wire, and three-phase motor. Note that the machine has a built-in braking resistor, and an external connection can be made at the P+/PB position if required.
4.3 Removable Panel
The control panel of the VFD is designed to be detachable, allowing for flexible installation and easier wiring. This feature enables convenient operation and connection to cables via accessible screw terminals.

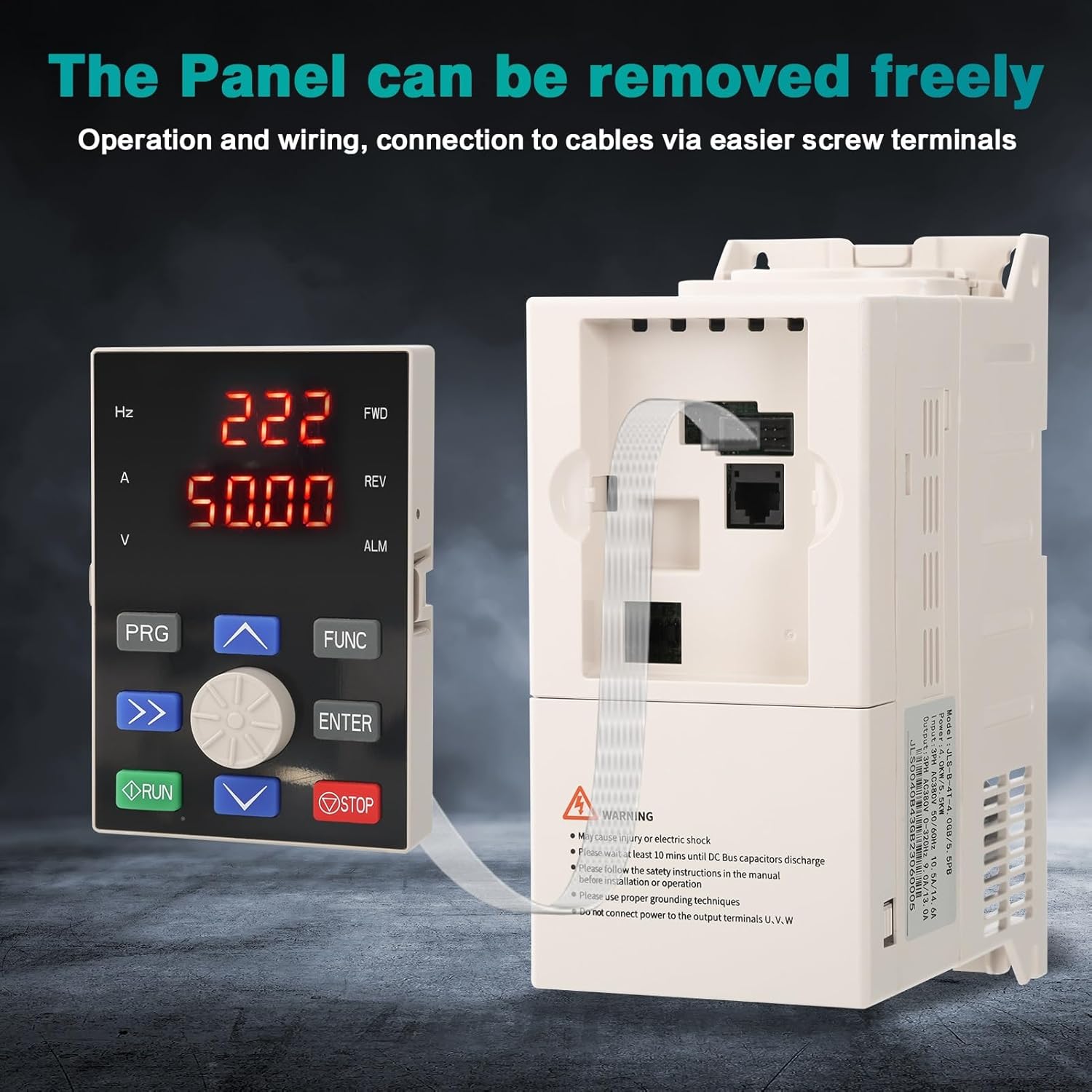

Figure 4.3: The VFD unit with its control panel detached, illustrating the ease of access for wiring and installation.
5. Operation
5.1 Control Panel Overview
The VFD features an intuitive control panel for easy operation and monitoring. The display shows real-time voltage and current, while buttons allow for menu navigation and function selection.
Figure 5.1: A diagram of the VFD's control panel, labeling the status indication (Hz), electric current (A), voltage (V), menu (PRG), shift key, run key, up selection key, function key (FUNC), enter button (ENTER), and stop button (STOP).
5.2 Speed Adjustment
The motor speed can be precisely adjusted using the rotary knob on the control panel. This allows for stepless speed regulation from 0 to 3000Hz, making it adaptable to a wide range of motors and applications.
Figure 5.2: An illustration demonstrating the stepless speed regulation from 0-3000Hz using the rotary knob, emphasizing its applicability to most motors.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your DEWIN VFD. Always disconnect power and wait for capacitor discharge before performing any maintenance.
- Cleaning: Keep the unit clean and free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners.
- Connection Checks: Periodically inspect all wiring connections to ensure they are tight and secure. Loose connections can lead to overheating or malfunction.
- Ventilation: Ensure that the ventilation openings are not obstructed to allow for proper airflow and cooling.
- Environmental Conditions: Operate the VFD within its specified environmental conditions (temperature, humidity) to prevent damage.
7. Troubleshooting
This section provides guidance on common issues you might encounter. For complex problems, consult a qualified technician or contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| VFD does not power on | No input power; loose connections; internal fuse blown. | Check power supply; verify all wiring connections; inspect internal fuses (by qualified personnel only). |
| Motor not running or running erratically | Incorrect motor parameters; phase loss; overload; VFD in fault state. | Verify motor parameters in VFD settings; check input/output phases; reduce load; check VFD display for fault codes and refer to manual for specific fault resolution. |
| Overcurrent/Overvoltage fault | Sudden load change; unstable power supply; incorrect acceleration/deceleration time. | Adjust acceleration/deceleration times; check power supply stability; ensure motor and load are within VFD's capacity. |
| Overheating alarm | Insufficient ventilation; high ambient temperature; prolonged overload. | Ensure proper ventilation and clear obstructions; reduce ambient temperature if possible; reduce load or consider a higher capacity VFD. |
The VFD is equipped with various protection functions, including overcurrent, overvoltage, undervoltage, module failure, electronic thermal relay, overheating, short circuit, input and output phase loss, abnormal motor parameter settings, and internal memory failure. If a fault occurs, the VFD will display an error code. Refer to the complete manual for a detailed list of error codes and their corresponding solutions.
8. Technical Specifications
Below are the detailed technical specifications for the DEWIN 380V 5.5 kW Variable Frequency Drive (Model: KZDBDLFFA-GS109498-04).
Figure 8.1: An image displaying the physical dimensions (180mm height, 95mm width, 150mm depth) of the VFD unit, along with a table of key specifications.
| Specification | Value |
|---|---|
| Model | KZDBDLFFA-GS109498-04 |
| Product Dimensions | 27 x 21 x 15 cm; 1.84 Kilograms |
| Material | Process flame retardant ABS plastic |
| Color | White (380 V, 5.5 Kw) |
| Input Rated Voltage | 3-Phase 380V |
| Input Rated Frequency | 50/60Hz |
| Output Rated Voltage | 3-Phase 380V |
| Rated Output Current | 17A |
| Applicable Maximum Motor Power | 5.5KW |
| Output Frequency | Low frequency mode: 0-300Hz, High frequency mode: 0-3000Hz |
| Installation Method | Wall-mounted |
| Protection Class | IP20 |
| Cooling Method | Forced air cooling |
9. What's in the Box
The product package includes the following items:
- 1 x Variable Frequency Drive (Inverter)
10. Warranty and Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact DEWIN customer service. Please have your model number (KZDBDLFFA-GS109498-04) and purchase information ready when contacting support.
You can find more information and contact details on the official DEWIN store page: DEWIN Store
