1. Product Overview
The FJSaDobo CMR6H Spark Plug is a high-quality replacement component designed for optimal ignition in various small engines, particularly those found in outdoor power equipment. This spark plug ensures efficient combustion, leading to reliable engine starting and consistent performance.
It is compatible with a wide range of models, including but not limited to:
- Stihl BR500, BR550, BR600, FC56, FC70 (Blowers, Edgers)
- Stihl MS171, MS181, MS192, MS201, MS211 (Chainsaws)
- Stihl FS90, FS100, FS110, FS130, HL90, KM90, SP90, HT130 series (Trimmers, Pole Pruners, KombiSystems)
- Specifically: HL90, HL95, HL95K, HL100, HL100K, HL101, HL110, HT100, HT101, KM90, KM90R, KM100, KM100R, KM110R, KM110, SP90, SP90T, HT130, HT131, KM130, KM130R, FS40, FS40C, FS50, FS50C, FS50-L, FS56, FS56R, FS56C, FS56RC, FS70, FS70C, FS70RC, FC56C, FC70C, KM56, KM56R, KM56C, KM56RC, HT56C.
This spark plug replaces part numbers such as Champion 965, Honda 31916-Z0H-003, Husqvarna 531008615, 574519601, 965, Makita 1686524, NGK 3365, CMR6H, and Stihl 0000 400 7011.

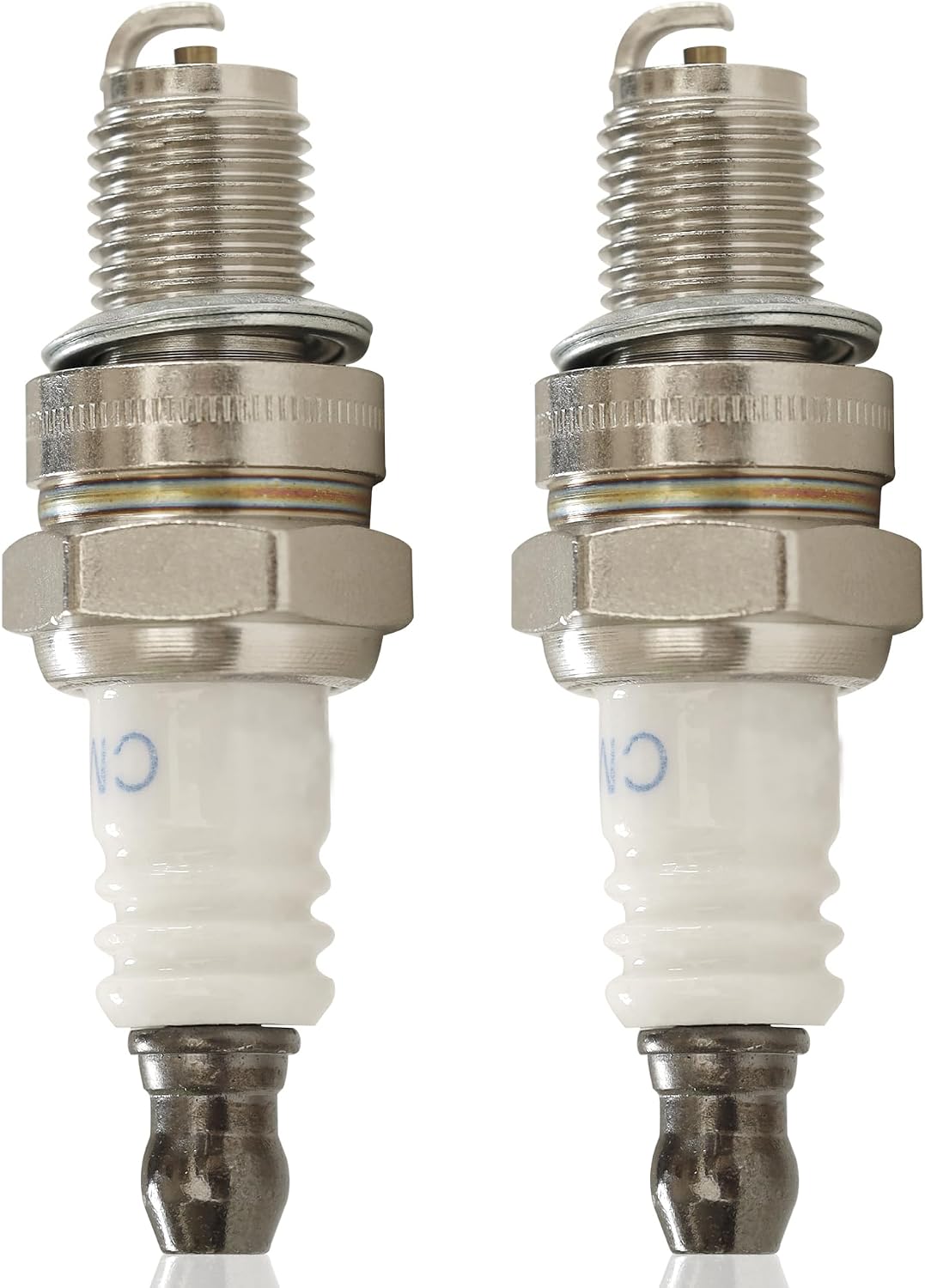

Image 1.1: Two FJSaDobo CMR6H Spark Plugs. These spark plugs feature a white ceramic insulator and a metallic threaded body, designed for reliable engine ignition.
2. Installation Instructions
Proper installation of the spark plug is crucial for engine performance and safety. Always refer to your equipment's specific service manual for detailed instructions and safety precautions.
2.1. Safety Precautions
- Ensure the engine is completely cool before beginning any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
2.2. Tools Required
- Spark plug wrench (correct size for 10mm thread).
- Spark plug gap tool (if checking/adjusting gap).
- Clean cloth.
2.3. Installation Steps
- Locate the Spark Plug: Identify the spark plug on your engine. It is typically covered by a rubber boot connected to the ignition coil.
- Remove the Spark Plug Wire: Firmly pull the spark plug boot to disconnect it from the spark plug. Avoid pulling on the wire itself.
- Clean Around the Plug: Use a clean cloth or compressed air to remove any dirt or debris from around the spark plug base. This prevents contaminants from falling into the combustion chamber when the plug is removed.
- Remove the Old Spark Plug: Place the spark plug wrench over the old spark plug and turn counter-clockwise to loosen and remove it.
- Inspect the New Spark Plug: Before installing, visually inspect the new CMR6H spark plug for any damage.
- Check Spark Plug Gap (Optional but Recommended): While these spark plugs are typically pre-gapped, it is good practice to verify the gap using a spark plug gap tool. Refer to your equipment's manual for the correct gap specification. Adjust if necessary by carefully bending the ground electrode.
- Install the New Spark Plug: Hand-thread the new spark plug into the cylinder head. Ensure it threads smoothly to avoid cross-threading.
- Tighten the Spark Plug: Once hand-tight, use the spark plug wrench to tighten it. For new spark plugs, tighten approximately 1/2 to 2/3 of a turn after the gasket makes contact. For used spark plugs, tighten 1/12 of a turn. Do not overtighten, as this can damage the cylinder head.
- Reconnect the Spark Plug Wire: Push the spark plug boot firmly back onto the new spark plug until it clicks into place, ensuring a secure connection.
Image 2.1: A new FJSaDobo CMR6H Spark Plug with its protective cap. The cap protects the threads and electrode during shipping and handling.
3. Operating Principles
The spark plug is a critical component in the internal combustion engine's ignition system. Its primary function is to ignite the air-fuel mixture in the combustion chamber, creating the power stroke that drives the engine.
When the engine is running, a high-voltage current is sent to the spark plug, creating an electrical arc (spark) across the gap between the center and ground electrodes. This spark ignites the compressed fuel and air, initiating combustion.
A properly functioning spark plug, like the CMR6H, ensures:
- Easy starting of the engine.
- Smooth and consistent engine operation.
- Optimal fuel efficiency.
- Reduced emissions.
Video 3.1: An overview of the CMR6H Spark Plug. This video demonstrates the physical appearance and key features of the spark plug, highlighting its design and components.
4. Maintenance and Care
Regular inspection and timely replacement of your spark plug are essential for maintaining the performance and longevity of your outdoor power equipment.
4.1. Inspection Frequency
It is recommended to inspect your spark plug at least once per season or every 25-50 hours of operation, or as specified in your equipment's owner's manual.
4.2. What to Look For During Inspection
- Fouling: Check for deposits (carbon, oil, fuel) on the electrodes and insulator. Excessive deposits can prevent proper sparking.
- Wear: Examine the center and ground electrodes for erosion or rounding. Worn electrodes lead to a weaker spark.
- Gap: Verify the spark plug gap is within the manufacturer's specifications. An incorrect gap can cause misfires or poor combustion.
- Cracks: Look for any cracks in the ceramic insulator, which can lead to electrical leakage.
Image 4.1: A detailed close-up of a spark plug's electrode. This view helps in identifying signs of wear, fouling, or damage during maintenance checks.
4.3. Cleaning vs. Replacement
Lightly fouled spark plugs can sometimes be cleaned with a wire brush and spark plug cleaner. However, if the electrodes are significantly worn, or if the plug is heavily fouled and cleaning does not restore performance, replacement is recommended. The CMR6H spark plug is designed for durability, but like all spark plugs, it has a finite lifespan.
4.4. Replacement Schedule
Replace spark plugs as part of your regular engine tune-up, typically annually or every 100 hours of operation, whichever comes first. Consult your equipment's manual for precise recommendations.
5. Troubleshooting Common Issues
Many engine performance issues can be traced back to a faulty or improperly installed spark plug. Here are some common symptoms and potential solutions:
| Symptom | Possible Cause (Spark Plug Related) | Solution |
|---|---|---|
| Engine Misfires or Runs Rough | Fouled, worn, or incorrectly gapped spark plug. | Inspect spark plug for fouling or wear. Clean or replace if necessary. Verify and adjust gap. |
| Hard Starting | Weak spark due to worn electrodes, incorrect gap, or carbon buildup. | Check spark plug condition and gap. Replace if worn or heavily fouled. |
| Poor Fuel Economy | Inefficient combustion due to a weak or inconsistent spark. | Inspect and replace spark plug if it shows signs of wear or fouling. |
| Engine Lacks Power | Incomplete combustion or misfires. | Check spark plug for proper function, gap, and cleanliness. Replace as needed. |
| Spark Plug Appears Wet/Oily | Oil fouling (engine issue) or fuel fouling (carburetor/choke issue). | Replace spark plug. Investigate and resolve underlying engine or fuel system issues. |
If troubleshooting steps do not resolve the issue, or if you are unsure about performing these tasks, it is recommended to consult a qualified service technician.
6. Product Specifications
| Attribute | Detail |
|---|---|
| Brand | FJSaDobo |
| Model | CMR6H |
| OEM Part Number (Equivalent) | CMR6H, NGK 3365 |
| Core Material | Copper |
| Thread Size | 10mm |
| Item Weight | 1.76 ounces (approx. per plug) |
| Package Dimensions | 2.64 x 1.73 x 0.55 inches (for 2-pack) |
| Vehicle Service Type | Trimmer, Chain Saw, Blower, Edger, KombiSystem |
Image 6.1: Dimensional diagram of the spark plug, indicating key measurements for compatibility and fit.
7. Warranty and Support
For specific warranty information regarding your FJSaDobo CMR6H Spark Plugs, please refer to the product packaging or contact the seller directly. Keep your proof of purchase for any warranty claims.
For additional support or inquiries, you may visit the official FJSaDobo store on Amazon: FJSaDobo Store.
