ECO-WORTHY 24V 100Ah LiFePO4 Lithium Battery User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your ECO-WORTHY 24V 100Ah LiFePO4 Lithium Battery. Please read this manual thoroughly before installation, operation, or maintenance to ensure optimal performance and longevity of your battery.

The ECO-WORTHY 24V 100Ah LiFePO4 battery features an upgraded Bluetooth monitoring system, deep cycle capability, and integrated low-temperature protection. It is designed for various applications including off-grid solar systems, RVs, campers, trolling motors, and home energy storage.

2. Safety Instructions

Always adhere to the following safety guidelines to prevent injury, damage to the battery, or other equipment.

• Read the Manual: Understand all instructions before use.
• Proper Connections: Ensure all connections are secure and correct polarity is observed. Incorrect wiring can cause severe damage.
• Ventilation: Install the battery in a well-ventilated area.
• Avoid Short Circuits: Do not short-circuit the battery terminals. Use insulated tools.
• Temperature Range: Operate and store the battery within the specified temperature ranges. The battery includes low-temperature cut-off protection for charging, but extreme conditions should be avoided.
• Charging: Use only compatible LiFePO4 chargers. Do not overcharge or discharge beyond specified limits.
• Handling: The battery weighs approximately 44.1 lbs (20.0 kg). Use proper lifting techniques or assistance when moving.
• Disposal: Dispose of the battery according to local regulations. Do not incinerate.

3. Product Overview

The ECO-WORTHY 24V 100Ah LiFePO4 battery is designed for reliable and long-lasting power. Key features include:

• Upgraded Bluetooth Version: Monitor battery status (SOC, voltage, current, remaining capacity) via a smartphone app.
• Compact & Lightweight: Measures 14.4 x 7.4 x 10.7 inches and weighs 44.1 lbs, making it suitable for space-constrained applications.
• Enhanced Low-Temperature Protection: Built-in 100A Smart BMS (Battery Management System) includes low-temperature cut-off to prevent charging below 32°F (0°C) and discharging below -4°F (-20°C).
• Expandable Energy: Supports up to 2 series and 2 parallel connections (2S2P) for higher voltage or capacity battery banks.
• Wide Applications: Ideal for RVs, campers, trolling motors, marine systems, golf carts, solar setups, and emergency backup power.

Figure 3.1: ECO-WORTHY 24V 100Ah LiFePO4 Lithium Battery. This image displays the battery unit with its branding and key features highlighted, alongside a smartphone screen showing the Bluetooth monitoring app interface.

4. Setup and Installation

4.1 Unpacking and Inspection

Upon receiving your battery, carefully unpack it and inspect for any visible damage. Report any damage to the supplier immediately.

4.2 Physical Dimensions and Weight

Ensure the installation location can accommodate the battery's dimensions and support its weight.

• Dimensions (L x W x H): 14.45" x 7.44" x 10.67" (36.7 cm x 18.9 cm x 27.1 cm)
• Weight: 44.1 lbs (20.0 kg)

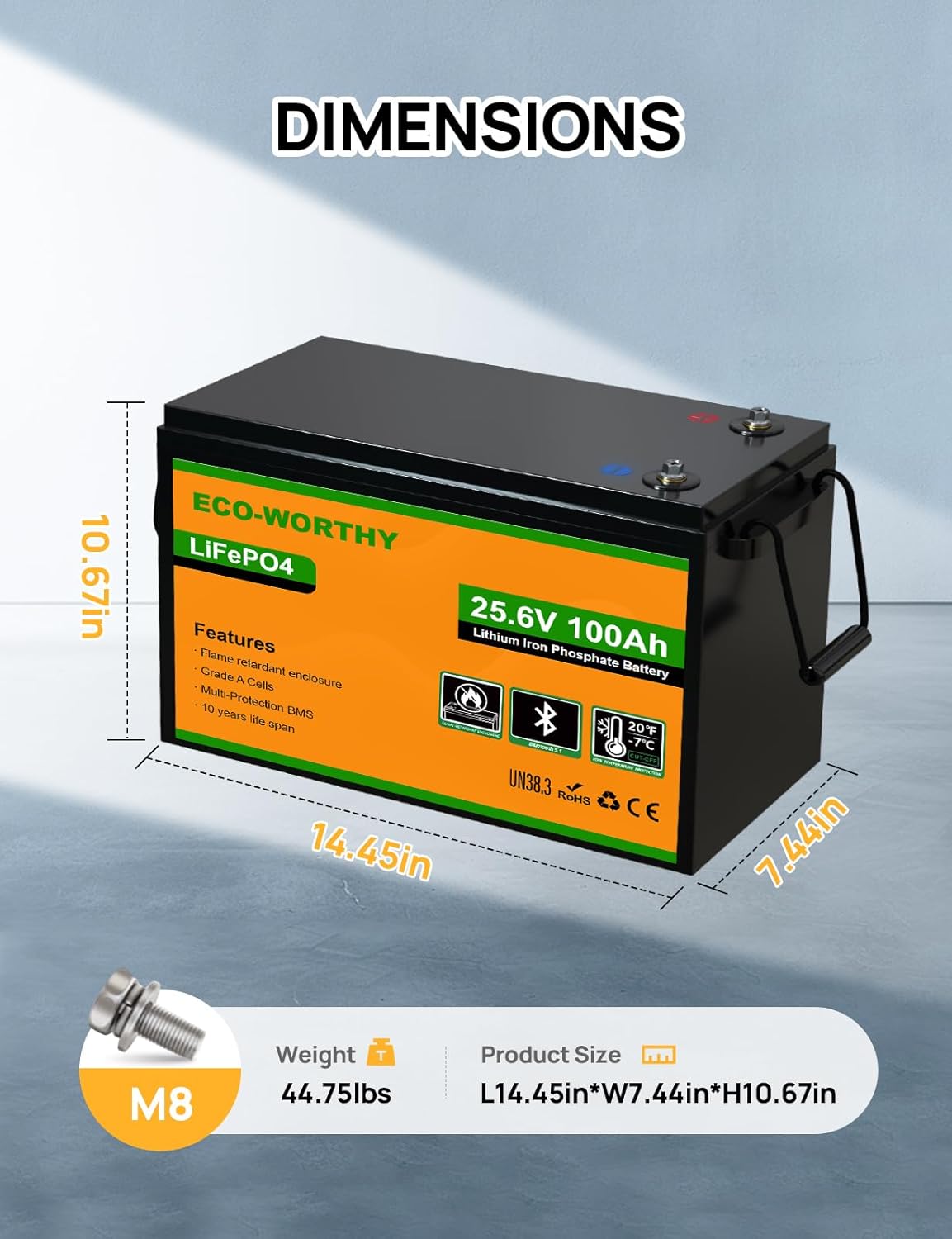

Figure 4.1: Battery Dimensions. This image illustrates the length, width, and height of the ECO-WORTHY 24V 100Ah LiFePO4 battery, along with its weight and M8 terminal type.

4.3 Electrical Connections

The battery uses M8 terminals. Ensure all connections are tight and secure to prevent resistance and overheating. Use appropriate gauge cables for your application.

4.3.1 Series and Parallel Connections

This battery supports flexible expansion. You can connect up to 2 batteries in series (2S) for a 48V system, or up to 2 batteries in parallel (2P) for a 24V 200Ah system. A maximum configuration of 2S2P is supported, resulting in a 51.2V 200Ah system.

• Parallel Connection: Connect positive to positive and negative to negative to increase capacity (Ah) while maintaining the same voltage (24V).
• Series Connection: Connect the positive terminal of one battery to the negative terminal of another to increase voltage (V) while maintaining the same capacity (100Ah).

Figure 4.2: Flexible Expansion Configurations. This diagram illustrates how two ECO-WORTHY 25.6V 100Ah batteries can be connected in series or parallel to an inverter or MPPT charge controller, showing supported configurations like 2P (24V 200Ah), 2S (48V 100Ah), and 2P2S (51.2V 200Ah).

4.4 Bluetooth App Setup

The battery features an upgraded Bluetooth 5.1 module for real-time monitoring via a smartphone application. Download the ECO-WORTHY app from your device's app store. Once installed, open the app and follow the instructions to connect to your battery. The app will display real-time battery status, single cell voltage monitoring, and instant fault alerts.

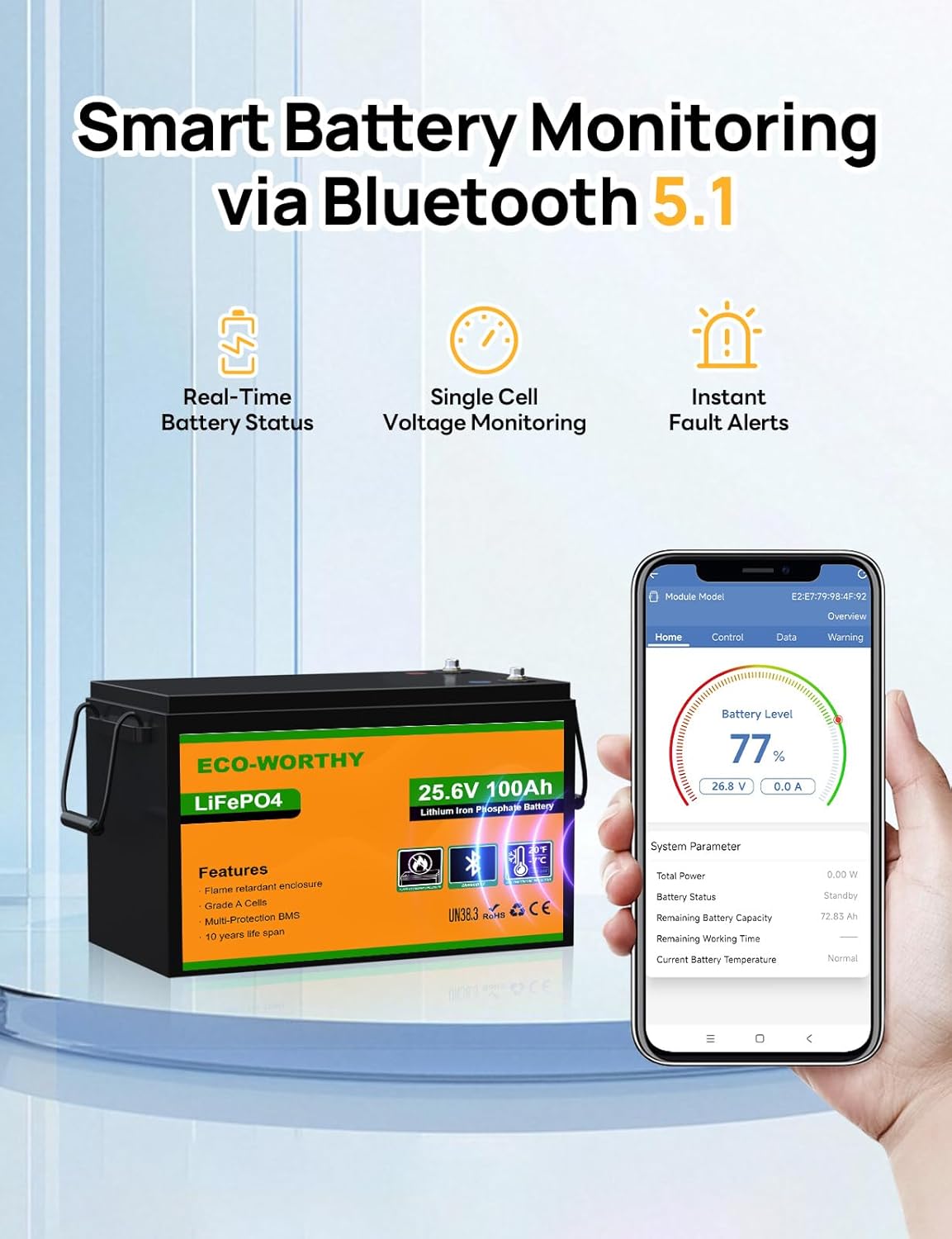

Figure 4.3: Bluetooth Monitoring Interface. This image shows the ECO-WORTHY 24V 100Ah LiFePO4 battery next to a smartphone displaying the Bluetooth app, which provides real-time battery status, single cell voltage monitoring, and instant fault alerts.

5. Operation

5.1 Charging the Battery

The ECO-WORTHY 24V 100Ah LiFePO4 battery can be recharged using various methods. Ensure your charging source is compatible with LiFePO4 batteries and provides the correct voltage and current.

• Solar Panel (MPPT): Connect to an 800W solar panel system with an MPPT charge controller.
• LiFePO4 Battery Charger: Use a dedicated 24V 20A LiFePO4 battery charger.
• Generator + DC to DC Charger: Utilize a generator combined with a DC to DC charger.

Typical charging time is approximately 5 hours for a full charge using recommended methods.

Figure 5.1: Charging Methods. This image illustrates three common ways to recharge the ECO-WORTHY 24V 100Ah LiFePO4 battery: via an 800W solar panel with MPPT, a 24V 20A LiFePO4 battery charger, or a generator with a DC to DC charger, each indicating a 5-hour charging time.

5.2 Discharging and Low-Temperature Protection

The integrated BMS provides protection against overcharge, over-discharge, overcurrent, short circuit, and overheating. Additionally, it features advanced low-temperature cut-off protection:

• Charging: Stops charging below 32°F (0°C).
• Discharging: Stops discharging below -4°F (-20°C).

This ensures safe operation in cold environments, making it suitable for year-round outdoor use.

Figure 5.2: Low Temperature Protection. This image visually represents the battery's low-temperature cut-off protection, showing that discharging stops below -4°F, charging stops below 19.4°F, and charging resumes at or above 32°F.

5.3 Typical Applications

The ECO-WORTHY 24V 100Ah battery is versatile and suitable for a range of applications:

• Trolling Motors: Provides extended runtime for 70-80 lbs thrust trolling motors. For example, a 24V 70lbs thrust motor (52A max current) can run for 2-3 hours at high speed, 5-7 hours at mid-speed, and 12-20 hours at low speed with a 24V 100Ah battery.
• RV & Camper Power: Offers a compact and lightweight power solution for recreational vehicles.
• Off-Grid Solar Systems: Reliable energy storage for solar installations.
• Home Backup Power: Can power essential appliances during outages. For example, a 100W TV for 25.6 hours, a 200W refrigerator for 12.8 hours, an 800W coffee maker for 3.2 hours, or a 1500W heater for 1.7 hours.

Figure 5.3: Trolling Motor Application. This image shows the ECO-WORTHY 24V 100Ah battery installed in a small inflatable boat, powering a trolling motor, highlighting its suitability for marine use.

Figure 5.4: Energy Capacity and Appliance Runtimes. This image illustrates the battery's maximum 2560Wh energy capacity and provides examples of how long it can power common household appliances like a TV, refrigerator, coffee maker, and heater.

6. Maintenance

LiFePO4 batteries require minimal maintenance compared to lead-acid batteries. Follow these guidelines to ensure optimal performance and lifespan:

• Regular Inspection: Periodically check battery terminals for corrosion or loose connections. Clean terminals if necessary.
• Charge Level: Avoid prolonged storage at a completely discharged state. For long-term storage, charge the battery to approximately 50% State of Charge (SOC).
• Temperature: Store the battery in a cool, dry place within the recommended temperature range.
• Cleaning: Keep the battery clean and free of dust and debris. Use a dry cloth for cleaning.

7. Troubleshooting

If you encounter issues with your ECO-WORTHY battery, refer to the following common troubleshooting steps:

• Battery Not Charging:
  • Check all cable connections for tightness and correct polarity.
  • Verify the charger is functioning correctly and is compatible with LiFePO4 batteries.
  • Ensure the ambient temperature is above 32°F (0°C) for charging, due to low-temperature protection.
  • Check the battery's status via the Bluetooth app for any fault codes or warnings.
• Battery Not Discharging/No Power Output:
  • Check load connections and ensure the device being powered is working correctly.
  • Verify the battery's State of Charge (SOC) using the Bluetooth app. The BMS may cut off power if the battery is over-discharged.
  • Ensure the ambient temperature is above -4°F (-20°C) for discharging.
  • Check for any overcurrent conditions that might have triggered the BMS protection. Reduce the load if necessary.
• Bluetooth Connection Issues:
  • Ensure Bluetooth is enabled on your smartphone and the app has necessary permissions.
  • Restart the app and try reconnecting.
  • Ensure you are within close proximity to the battery.

If problems persist after following these steps, please contact ECO-WORTHY customer support.

8. Specifications

Detailed technical specifications for the ECO-WORTHY 24V 100Ah LiFePO4 Lithium Battery:

Figure 8.1: Internal Safety Features and Specifications. This image highlights the battery's 100A intelligent BMS with 6 protections (overcharge, overdischarge, overheating, overcurrent, short circuit, low temperature), Grade A battery cells for stability, and an internal metal frame to prevent cell swelling. A table of key specifications is also presented.

9. Warranty and Support

ECO-WORTHY products are designed for durability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official ECO-WORTHY website.

Please have your model number (L13080202107-1B) and purchase date available when contacting support.
