PUGSDRLY Modern Sideboard with LED Lighting and Acrylic Doors

Model: jw7087 | Brand: PUGSDRLY

Introduction

Thank you for choosing the PUGSDRLY Modern Sideboard, Model jw7087. This elegant and functional piece of furniture is designed to enhance your living space with its modern aesthetic, integrated LED lighting, and versatile storage options. This manual provides essential information for safe assembly, proper operation, maintenance, and troubleshooting to ensure long-lasting enjoyment of your product.

Safety Instructions

  • Read all instructions carefully before assembly and use.
  • Keep all packaging materials away from children to prevent choking hazards.
  • Assemble the unit on a soft, clean surface to prevent scratches.
  • Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten if necessary.
  • Do not overload drawers or shelves. Refer to specifications for weight capacity.
  • This furniture is designed for indoor use only.
  • If the unit includes LED lighting, ensure the power supply is disconnected before any maintenance or cleaning of the lighting components.
  • Always lift the unit when moving it; do not drag to avoid damage to the unit or floor.

Package Contents

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

  • Sideboard panels (top, bottom, sides, back, shelves)
  • Drawer components (fronts, sides, backs, bottoms)
  • Door components (acrylic panels, frames)
  • Hardware kit (screws, dowels, hinges, drawer slides, handles, plastic feet)
  • LED lighting kit (LED strip, power adapter, remote control, controller)
  • Assembly instructions (this manual)

Setup and Assembly

Assembly typically requires two adults. Please follow the numbered steps provided in the separate assembly guide (if included) or the general guidelines below. Ensure you have a Phillips head screwdriver and a hammer (for dowels) readily available.

  1. Prepare the Area: Clear a spacious, clean, and soft area for assembly to prevent damage to the furniture parts or your floor.
  2. Identify Parts: Lay out all panels and hardware. Match them with the diagrams in the assembly guide.
  3. Assemble the Main Frame: Connect the bottom panel to the side panels using dowels and screws. Attach the back panel for structural integrity.
  4. Install Shelves: Insert shelf pins into the pre-drilled holes and place the shelves.
  5. Assemble Drawers: Construct the drawer boxes, attach the drawer slides to the sides, and then attach the drawer fronts and handles.
  6. Install Doors: Attach hinges to the doors and then to the main frame. Adjust hinges for proper alignment.
  7. Attach Handles and Feet: Securely fasten all handles to drawers and doors. Attach the plastic feet to the bottom of the sideboard to protect your floor.
  8. LED Lighting Installation: Carefully place the LED strip into the designated channels. Connect the LED strip to the controller and then to the power adapter. Ensure cables are neatly routed through the cable management holes.
Close-up of a high-quality hinge, a smooth drawer slide, and a cable management hole on the sideboard.

Image: Details of the sideboard's components, including a hinge, drawer slide, and cable management hole, highlighting their quality and function.

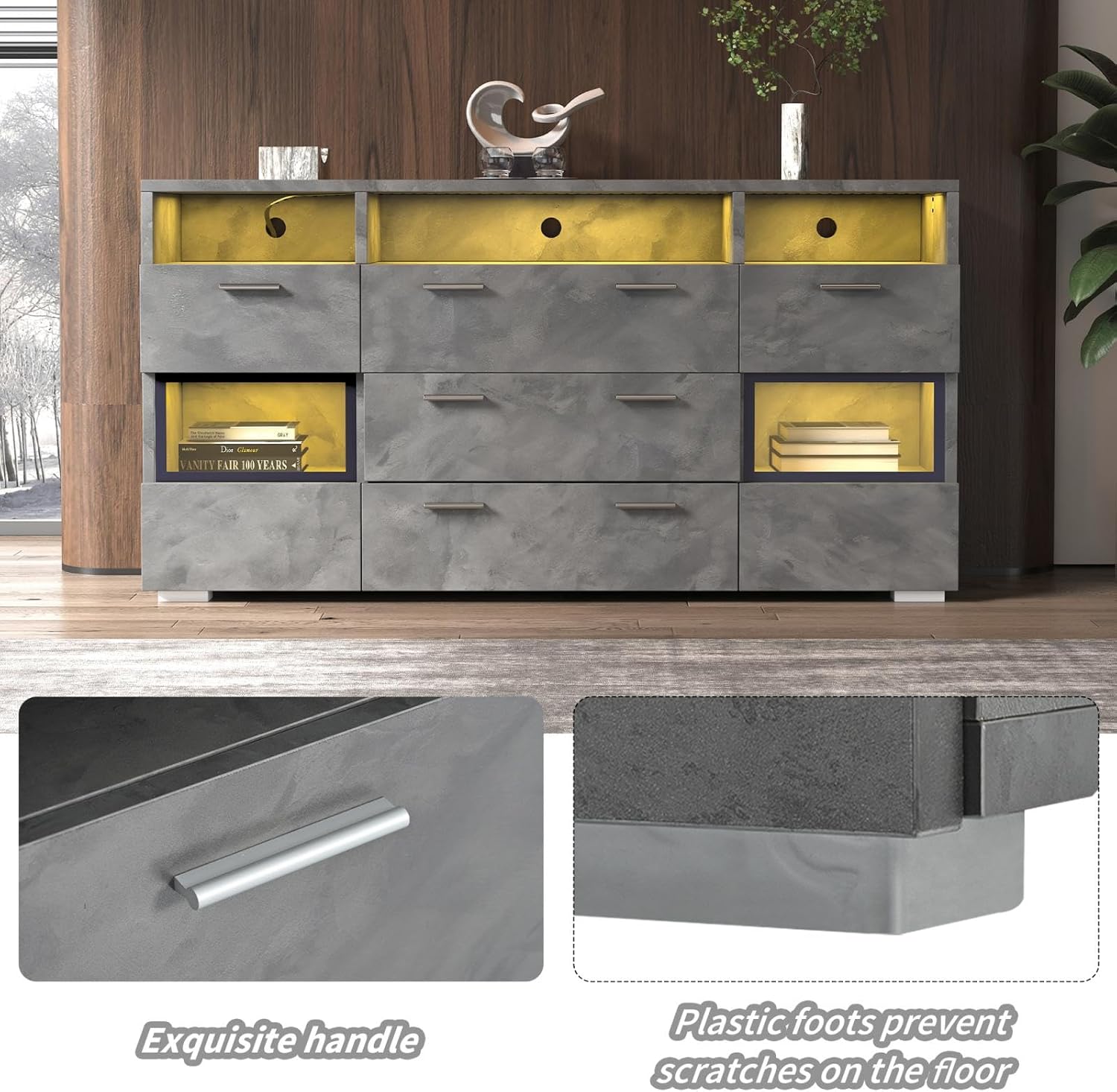

Close-up of an exquisite handle and plastic feet designed to prevent floor scratches.

Image: Detailed view of the sideboard's handle and protective plastic feet, emphasizing design and floor protection.

Operating Instructions

LED Lighting System

The sideboard is equipped with a 16-color LED lighting system and 4 flash effects, controlled by a remote control.

  • Power On/Off: Use the power button on the remote control to turn the LED lights on or off.
  • Color Selection: Press the color buttons on the remote to choose from 16 different static colors.
  • Brightness Adjustment: Use the brightness up/down buttons to adjust the intensity of the chosen color.
  • Dynamic Modes: Select from 4 flash effects (Flash, Strobe, Fade, Smooth) to create different ambiance.
  • Remote Control Battery: The remote control requires a CR2025 battery (usually included). Ensure it is inserted correctly.

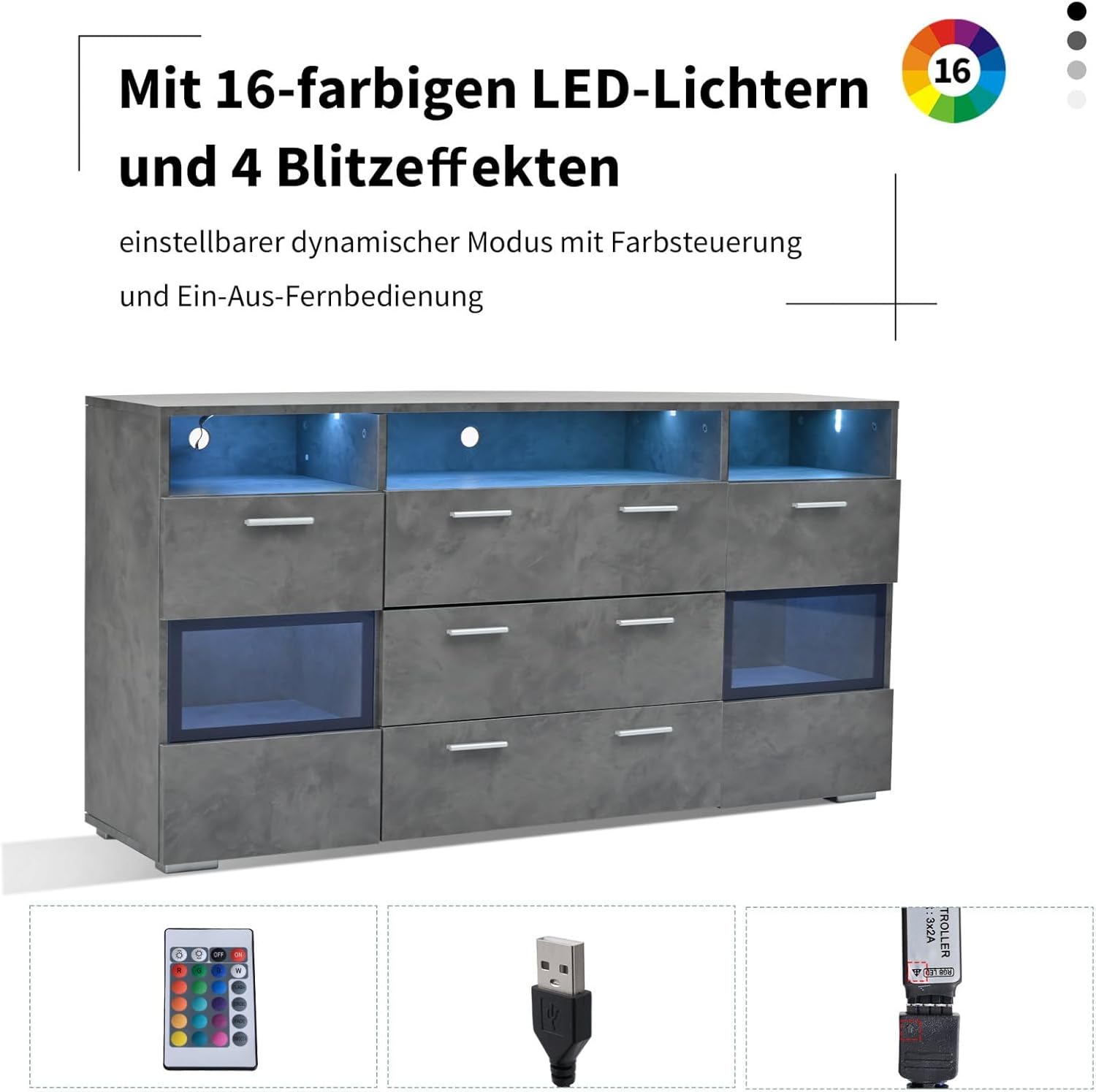

Image showing the LED remote control, USB power cable, and LED controller for the sideboard lighting.

Image: Components of the LED lighting system, including the remote control, USB power, and controller.

The PUGSDRLY sideboard with its doors and drawers open, showcasing the interior illuminated with yellow LED lighting.

Image: Sideboard interior illuminated with yellow LED light, demonstrating the ambient lighting feature.

The PUGSDRLY sideboard with its doors and drawers open, showcasing the interior illuminated with red LED lighting.

Image: Sideboard interior illuminated with red LED light, demonstrating another color option for ambient lighting.

The PUGSDRLY sideboard with its doors and drawers open, showcasing the interior illuminated with blue LED lighting.

Image: Sideboard interior illuminated with blue LED light, demonstrating another color option for ambient lighting.

Storage Compartments

The sideboard features 2 doors with transparent acrylic panels, 3 spacious drawers, and 3 open storage compartments. These are designed for organizing various items such as dinnerware, decorative objects, books, or media devices.

  • Doors: Gently pull the handles to open the doors. The transparent acrylic allows for display of items.
  • Drawers: Pull the handles to open the drawers. Ensure not to overload them to maintain smooth operation of the slides.
  • Open Storage: Utilize the open shelves for easy access or display.
  • Cable Management: Use the integrated cable management holes at the back of the open compartments to route and conceal wires for electronic devices.
The PUGSDRLY sideboard with its doors and drawers open, highlighting the three drawers, two cabinets, and three open storage spaces.

Image: Overview of the sideboard's storage capabilities, including drawers, cabinets, and open shelves.

Maintenance

  • Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish or acrylic panels.
  • Spills: Immediately wipe up any spills to prevent staining or damage to the material.
  • LED Lights: The LED lights are designed for long life. If replacement is needed, consult a qualified technician or contact customer support. Do not attempt to repair electrical components yourself.
  • Hardware: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten as necessary to maintain stability.
  • Avoid Direct Sunlight: Prolonged exposure to direct sunlight may cause fading or discoloration of the material.
  • Weight Distribution: Distribute weight evenly across shelves and drawers to prevent warping or structural stress.

Troubleshooting

Problem Possible Cause Solution
LED lights do not turn on.
  • Power adapter not connected.
  • Remote control battery is dead or incorrectly inserted.
  • LED strip or controller connection issue.
  • Ensure the power adapter is securely plugged into an outlet and the LED controller.
  • Replace the CR2025 battery in the remote control, ensuring correct polarity.
  • Check all connections between the LED strip, controller, and power adapter.
Drawers are difficult to open/close.
  • Overloaded drawer.
  • Drawer slides are misaligned or dirty.
  • Loose assembly screws.
  • Reduce the weight in the drawer.
  • Clean drawer slides and apply a silicone-based lubricant if necessary.
  • Check and tighten all assembly screws for the drawer and its slides.
Doors are misaligned or do not close properly.
  • Hinges are loose or require adjustment.
  • Sideboard is not level.
  • Tighten hinge screws. Adjust hinge screws to align the doors (refer to hinge adjustment guides if unfamiliar).
  • Ensure the sideboard is placed on a level surface. Use shims under the feet if necessary.

Specifications

Brand: PUGSDRLY
Model Number: jw7087
Color: Grey
Product Dimensions (L x W x H): 140 x 33.5 x 72.5 cm
Material: Engineered Wood (Spaanplaat)
Net Weight: 45.95 kg
Gross Weight: 49.95 kg
Weight Capacity (Top Surface): 60 kg
Weight Capacity (Shelves/Drawers): 5-10 kg per partition
Number of Drawers: 3
Number of Doors: 2 (with transparent acrylic)
Special Features: LED lighting (16 colors, 4 effects), Cable Management Holes, Scratch-resistant feet
Dimensional drawing of the PUGSDRLY sideboard, showing overall dimensions of 140 cm length, 33.5 cm width, and 72.5 cm height, along with internal compartment measurements.

Image: Detailed dimensions of the sideboard and its internal compartments.

Warranty and Support

This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer.

For technical assistance, missing parts, or any questions regarding your PUGSDRLY Modern Sideboard, please contact our customer support team. Please have your model number (jw7087) and purchase information ready when contacting support.

Customer Support: [Insert Customer Support Contact Information Here, e.g., email, phone, website]
