HomSof Queen Size Vertical Murphy Bed with Shelf and Drawers Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and proper assembly, operation, and maintenance of your HomSof Queen Size Vertical Murphy Bed with Shelf and Drawers. Please read all instructions carefully before beginning assembly or use. Retain this manual for future reference.

2. Safety Information

• Wall Mounting is Essential: This Murphy bed must be securely fixed to a wall using expanded screws to prevent tipping. Failure to properly anchor the bed can result in serious injury or death.
• Safe Operation: The bed is designed with gas struts for smooth and controlled lowering and raising. Always ensure the area around the bed is clear before operating.
• Weight Capacity: The bed frame is designed to support a maximum weight of 1000 lbs. Do not exceed this limit.
• Mattress Compatibility: Use a Queen size mattress with a recommended thickness of 7.9 inches and a weight between 74-88 lbs for optimal performance of the gas struts.
• Adult Assembly Required: Assembly should be performed by at least two adults.
• Keep Children Away: Keep children and pets away from the assembly area.
• Regular Checks: Periodically check all fasteners and connections to ensure they remain tight and secure.

3. Package Contents

Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

• 1 x Murphy Bed Unit (includes bed frame, carcass, gas struts)
• 1 x Integrated Shelf Unit with Drawers
• Assembly Hardware Kit (screws, bolts, wall anchors, etc.)
• Instruction Manual

Note: Mattress is not included.

4. Setup and Assembly

Assembly of this Murphy bed is required and involves multiple steps, including securing the unit to a wall. It is recommended to have at least two people for assembly.

4.1 Pre-Assembly Checklist

• Ensure you have sufficient space for assembly and operation.
• Gather necessary tools (e.g., screwdriver, drill, level, measuring tape).
• Identify a suitable wall for mounting. The wall must be structurally sound and capable of supporting the weight of the bed.

4.2 Assembly Steps (General Overview)

1. Unpack all components and lay them out. Verify against the package contents list.
2. Assemble the main carcass of the Murphy bed and the integrated shelf unit according to the detailed diagrams in the separate assembly guide (not included in this manual but typically provided with the product).
3. Position the assembled units against the chosen wall. Use a level to ensure proper alignment.
4. Secure to Wall: Mark the drilling points for the wall anchors. Drill pilot holes and securely attach the Murphy bed unit to the wall using the provided expanded screws and wall anchors. This step is critical for safety.
5. Assemble the metal bed frame and attach it to the main unit.
6. Install the gas struts, ensuring they are correctly oriented and securely fastened.
7. Place your Queen size mattress onto the bed frame.
8. Test the folding and unfolding mechanism to ensure smooth operation.

Image 4.1: The HomSof Queen Size Vertical Murphy Bed in its folded, upright position, showcasing the integrated shelf and drawers. This configuration saves space when the bed is not in use.

Image 4.2: The HomSof Queen Size Vertical Murphy Bed in its unfolded position, ready for use. The integrated shelf and drawers are visible to the side.

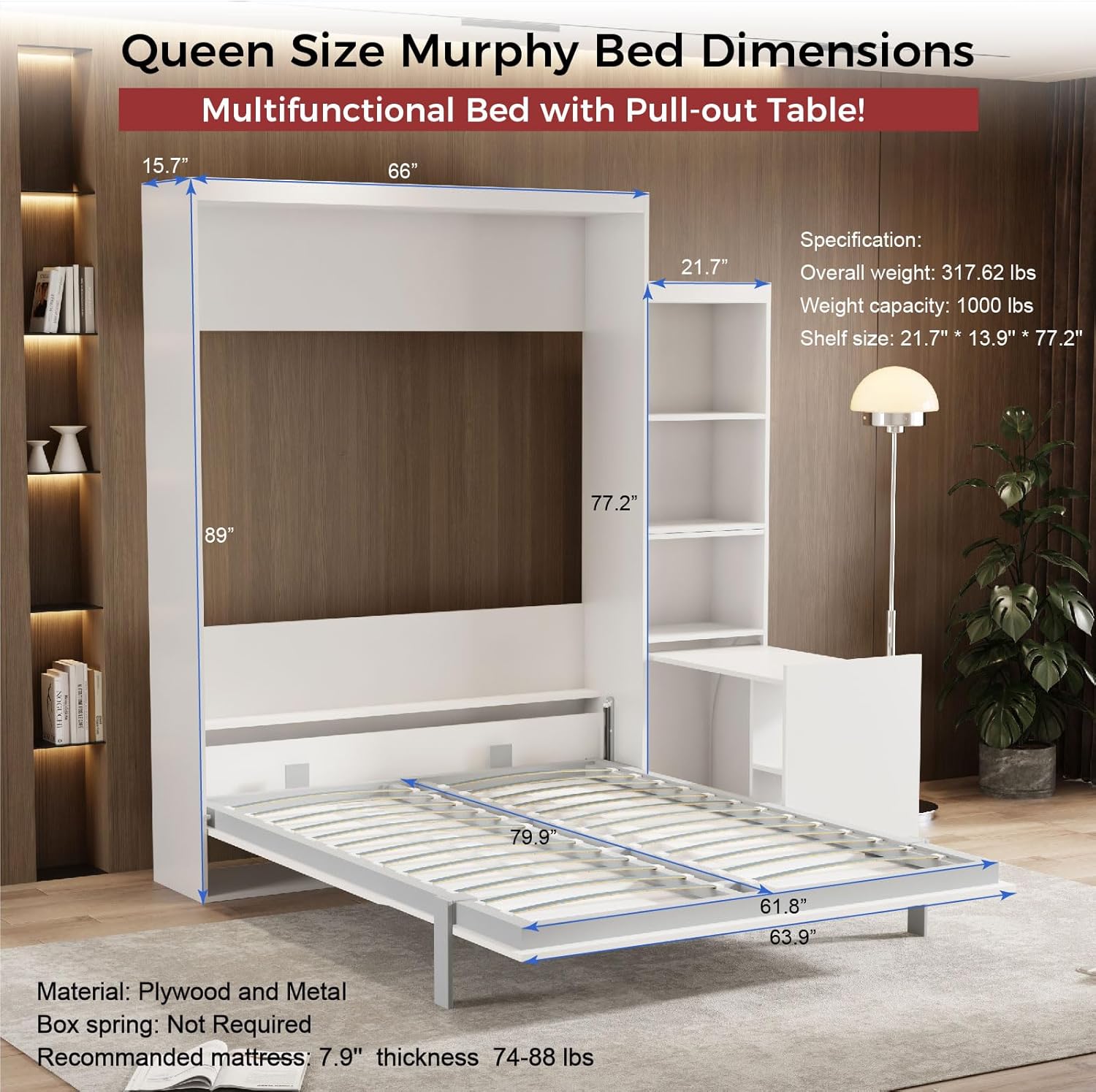

Image 4.3: Detailed dimensions of the Queen Size Murphy Bed, including the pull-out table. Key measurements for length, width, and height are indicated.

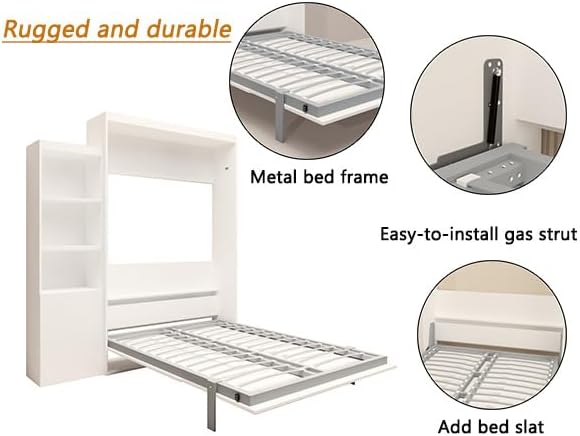

Image 4.4: Close-up view highlighting the robust metal bed frame, the easy-to-install gas strut mechanism, and the added bed slats for mattress support, emphasizing the bed's rugged and durable construction.

5. Operating Instructions

5.1 Folding and Unfolding the Bed

1. To Unfold: Gently pull the bed frame handle downwards. The gas struts will assist in a smooth, controlled descent of the bed into the horizontal position. Ensure the support legs are fully extended and locked.
2. To Fold: Ensure the mattress is properly secured with the retaining straps. Lift the bed frame upwards from the bottom. The gas struts will assist in raising the bed smoothly into the vertical, stored position. Ensure it locks securely in place.

5.2 Using the Integrated Shelf and Drawers

The integrated shelf unit provides convenient storage for books, decor, or personal items. The drawers offer concealed storage. The unit also features a concealed pull-out table for additional workspace.

Image 5.1: Close-up view of the exquisite design details, including the concealed table that can be folded, bedside dividers to prevent items from falling, and the option for a soft backrest at the head of the bed.

Image 5.2: The integrated shelf and pull-out table in use, demonstrating its functionality as a compact workspace for a laptop or other activities.

6. Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Check: Periodically inspect all screws, bolts, and connections. Tighten any loose hardware to ensure stability and safety.
• Gas Struts: The gas struts are designed for long-term use. If you notice any difficulty in folding or unfolding the bed, or if the movement becomes uneven, contact customer support. Do not attempt to repair the gas struts yourself.
• Wall Anchors: Regularly check the wall anchors for any signs of loosening or damage. Re-secure if necessary.

7. Troubleshooting

• Bed is difficult to fold/unfold:
  • Ensure the mattress weight is within the recommended range (74-88 lbs).
  • Check that the gas struts are correctly installed and not obstructed.
  • Verify that all moving parts are free of debris.
• Bed feels unstable or wobbly:
  • Confirm that the bed is securely anchored to the wall with expanded screws.
  • Check and tighten all assembly hardware.
  • Ensure the floor is level.
• Drawers or shelf are sticking:
  • Check for any obstructions or items caught in the drawer slides.
  • Ensure the unit is level and not warped.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or to order replacement parts, please refer to the contact information provided at the point of purchase or visit the official HomSof website. Please have your model number and purchase date available when contacting support.
