1. Product Overview
The Godrej 1.5 Ton 5 Star Inverter Split AC is designed to provide efficient and powerful cooling for medium-sized rooms (111 to 150 sq.ft). This model features 5-in-1 convertible cooling modes, allowing you to adjust the cooling capacity according to your needs, thereby optimizing energy consumption. It is built to perform even in high ambient temperatures up to 52°C.
Figure 1: Godrej 1.5 Ton 5 Star Inverter Split AC Indoor Unit.
Video 1: Overview of Godrej 1.5 Ton 5 Star Inverter Split AC features and benefits.
2. Setup and Installation
The Godrej 1.5 Ton 5 Star Inverter Split AC requires professional installation to ensure proper functioning and safety. It includes both an Indoor Unit (IDU) and an Outdoor Unit (ODU), along with a connecting pipe and necessary accessories.
2.1 Included Components:
- 1 Indoor Unit (IDU)
- 1 Outdoor Unit (ODU)
- User Manual
- Warranty Card
- Connecting pipe (9.8 feet length)
- Remote Control
2.2 Installation Guidelines:
It is highly recommended to have the air conditioner installed by an authorized Godrej service technician. This ensures correct setup, optimal performance, and validates your product warranty. Please refer to the detailed installation instructions provided in the separate installation guide for specific requirements regarding placement, electrical connections, and pipe routing.
Figure 2: Indoor unit dimensions (100cm W x 29.5cm H x 23cm D).
Figure 3: Outdoor unit dimensions (78.1cm W x 55.7cm H x 28.1cm D).
3. Operating Instructions
Your Godrej Inverter Split AC is controlled via a remote control. Familiarize yourself with the remote's buttons and display for optimal use.
3.1 5-in-1 Convertible Cooling Modes:
This AC offers five convertible cooling modes, allowing you to adjust the cooling capacity from 40% to 110% based on the number of people in the room or your cooling preference. This feature helps in saving energy by not always running at full capacity.
- Mode 1 (110% Capacity): For maximum cooling when the room is crowded or needs rapid cooling.
- Mode 2 (100% Capacity): Standard cooling for typical usage.
- Mode 3 (80% Capacity): Reduced cooling for moderate conditions, saving energy.
- Mode 4 (60% Capacity): Further reduced cooling for milder conditions or fewer occupants.
- Mode 5 (40% Capacity): Lowest cooling capacity for maximum energy savings, suitable for single occupancy or very mild weather.
Figure 4: Illustration of the 5-in-1 Convertible Cooling Modes.
3.2 Basic Remote Control Functions:
- Power On/Off: Press the power button to turn the unit on or off.
- Temperature Adjustment: Use the Up/Down arrows to set your desired temperature.
- Mode Selection: Cycle through cooling, fan, dry, and auto modes.
- Fan Speed: Adjust the fan speed to Low, Medium, High, or Auto.
- Swing Function: Activate or deactivate the horizontal and vertical air swing.
- Timer: Set a timer for automatic power on or off.
The remote control features a backlight for convenient use in low-light conditions.
4. Key Features
This Godrej AC is equipped with several advanced features for enhanced performance, durability, and user comfort.
4.1 Energy Efficiency:
The AC boasts a 5 Star Energy Rating with an ISEER value of 5.1, indicating high energy efficiency and lower electricity consumption. The annual energy consumption is approximately 728.37 Kilowatt Hours Per Year.

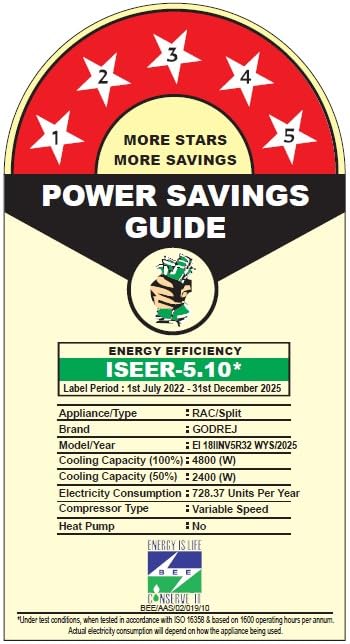

Figure 5: Power Savings Guide (Energy Label) for the AC.
4.2 100% Copper Evaporator and Condenser Coils:
Both the evaporator and condenser coils are made of 100% copper. Copper is known for its excellent heat transfer properties, ensuring efficient cooling and enhanced durability compared to other materials.
Figure 6: Key features including 100% Copper Condenser, Silent Operation, and Anti-freeze Thermostat.
4.3 Blue Fin Anti-Corrosion Coating:
The condenser coil is protected by a Blue Fin anti-corrosion coating. This coating safeguards the unit from rust and corrosion caused by external elements like moisture and pollutants, ensuring long-lasting durability and consistent performance.
4.4 Anti-Microbial Self-Clean Technology:
This technology helps to eliminate moisture from inside the indoor unit, preventing the growth of harmful microorganisms. This keeps your AC clean and hygienic, ensuring healthier air quality.
Figure 7: Features like advanced filters, self-diagnosis, I-sense technology, and heavy-duty cooling.
4.5 Anti-Freeze Thermostat:
The anti-freeze thermostat intelligently protects the compressor by cutting off operation in the event of ice formation on the evaporator coils, preventing damage and ensuring consistent cooling.
4.6 R32 Refrigerant Gas:
The AC uses R-32 refrigerant gas, which is eco-friendly and has no ozone depletion potential, contributing to environmental protection.
4.7 Advanced Filtration:
Equipped with ANTI DUST + ACTIVE CARBON + ANTI VIRAL NANO COATED filters, this AC traps and removes dander, dust particles, and foul odors, providing 99.9% viral sterilization for cleaner air.
4.8 I-Sense Technology:
The I-sense technology features a sensor in the remote control that detects the ambient temperature around you and adjusts the air conditioner's operation to match the set temperature, providing personalized comfort.
5. Maintenance
Regular maintenance is crucial for the efficient and long-lasting performance of your air conditioner. Always ensure the unit is powered off before performing any maintenance.
5.1 Filter Cleaning:
The air filters should be cleaned regularly, typically every two weeks or more frequently depending on usage and air quality. Dirty filters can reduce cooling efficiency and airflow.
- Open the front panel of the indoor unit.
- Carefully remove the air filters.
- Clean the filters using a vacuum cleaner or wash them with lukewarm water and a mild detergent.
- Allow the filters to dry completely in a shaded area before reinserting them.
- Close the front panel securely.
5.2 Coil Cleaning:
The evaporator and condenser coils should be inspected annually by a qualified technician. Dust and debris buildup on the coils can significantly impair heat exchange and efficiency.
5.3 Outdoor Unit Maintenance:
Ensure the outdoor unit is free from obstructions like leaves, dirt, or other debris. Keep the area around the outdoor unit clear to allow for proper airflow.
5.4 Professional Servicing:
It is recommended to schedule professional servicing at least once a year to ensure all components are functioning correctly and to address any potential issues before they become major problems.
6. Troubleshooting
Before contacting customer support, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| AC not turning on | No power supply; Remote control batteries low | Check circuit breaker/fuse; Replace remote batteries. |
| Insufficient cooling | Dirty air filters; Blocked outdoor unit; Wrong mode selected; Room too large | Clean air filters; Clear obstructions around ODU; Select appropriate mode/temperature; Ensure room size is within capacity. |
| Unusual noise | Loose parts; Obstruction in fan; Unit not level | Contact service technician; Check for foreign objects; Ensure unit is installed on a level surface. |
| Water leakage from indoor unit | Blocked drain pipe; Improper installation | Clear drain pipe; Contact service technician for inspection. |
If the problem persists after attempting these solutions, please contact Godrej customer support for assistance.
7. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | Godrej |
| Model Number | AC 1.5T EI 18IINV5R32 WYS |
| Capacity | 1.5 Tons |
| Cooling Power | 5.28 Kilowatts |
| Energy Rating | 5 Star (BEE 2025 guidelines) |
| Annual Energy Consumption | 728.37 Kilowatt Hours Per Year |
| ISEER Value | 5.1 |
| Product Dimensions (IDU) | 23D x 100W x 29.5H Centimeters |
| Item Weight (IDU) | 11 Kilograms |
| Noise Level | 38 Decibels |
| Refrigerant | R-32 |
| Core Material | Copper |
| Filter Type | ANTI DUST + ACTIVE CARBON + ANTI VIRAL NANO COATED |
| Compressor Type | Rotary (Inverter) |
| Control Method | Remote Control |
| Power Source | Corded Electric (230 Volts) |
| Floor Area Coverage | Up to 150 Square Feet |
8. Warranty and Support
Godrej provides comprehensive warranty coverage and dedicated customer support for your peace of mind.
8.1 Warranty Details:
- 5 Years Comprehensive Warranty on Product: Applicable on purchases from September 1, 2024 (until withdrawn at the sole discretion of the Company) for individual and retail customers only.
- 10 Years Warranty on Inverter Compressor: This warranty covers the inverter compressor for a period of 10 years.
To avail warranty services, you must register your product on the Godrej Brand website within 30 days from the date of invoice or installation done by a company-authorized service professional (ASP).
8.2 Customer Support:
For any queries, assistance, or to register your product, please contact Godrej customer support:
- Telephone: 080-67436743 / 022-67965656
- WhatsApp: Send 'Hi' to 9321665511
- Email: smartcare@godrej.com
