Minetom Color Changing Rope Lights

Introduction

The Minetom Color Changing Rope Lights are versatile 33-foot LED string lights designed for both indoor and outdoor decoration. Featuring 16 vibrant colors and multiple lighting modes, these lights can be controlled via an included remote, making them ideal for various occasions such as holidays, parties, or everyday ambiance.

Image: The Minetom 33-foot color changing rope light set, coiled, with its power adapter and remote control. The lights are illuminated in a bright blue color.

Key Features:

• Multifunctional Remote Control: Easily turn lights on/off, select from 16 colors, choose display options (Flash, Strobe, Fade, Smooth), and set a 6 or 18-hour timer. A button on the controller allows manual cycling through colors and modes.
• 16 Vibrant Colors: Offers a wide spectrum of colors for various themes and holidays, such as red for Valentine's Day, green for St. Patrick's Day, or a mix for Christmas.
• Easy Installation: The sturdy yet thin covering allows for flexible wrapping around desired areas. The lightweight design facilitates installation using clear packing tape or clips.
• IP65 Waterproof Lights: The rope light string itself is IP65 waterproof, suitable for outdoor use. Note: The AC adapter and controller must be protected from rain when used outdoors.
• Versatile Application: Perfect for decorating trees, backyard fences, living rooms, porches, decks, windows, pathways, and more, both indoors and outdoors.

Image: A collage showing the rope lights used in different decorative settings, including illuminating an outdoor bar area in blue, wrapped around palm trees, outlining kitchen cabinets in red, and decorating a house for Halloween.

Setup Instructions

1. Unpack Components: Carefully remove the rope lights, power adapter, and remote control from the packaging. Ensure all components listed in the 'What's in the Box' section are present.
2. Choose Location: Select a suitable location for your lights, considering the 33-foot length and the need for a power outlet. These lights are suitable for both indoor and outdoor use.
3. Connect Power: Connect the rope light string to the power adapter. Ensure the connection is secure.
4. Protect Adapter/Controller: If installing outdoors, position the AC adapter and the controller unit in a location protected from direct rain and moisture. While the rope lights are IP65 waterproof, the adapter and controller are not. The plug itself has an IP44 rating.
5. Mounting: Uncoil the rope lights. Use clear packing tape, clips, or other suitable fasteners (not included) to secure the lights along your desired path. The flexible design allows for easy shaping and wrapping.

Image: A diagram showing the total length of the light string (33 ft), the controller with a button to cycle colors/modes, the power adapter, and the plug with its IP44 waterproof rating. The total length from the controller to the light string is 6.5 inches.

Image: An illustration highlighting key features: IP65 waterproof rating, dimming function, memory function (remembers last setting), remote control, and timing function. A blue-lit rope light is shown coiled inside a glass jar.

Operating Instructions

The Minetom Color Changing Rope Lights are primarily operated using the included 28-key remote control. A manual button on the controller provides basic functionality if the remote is unavailable.

Using the Remote Control:

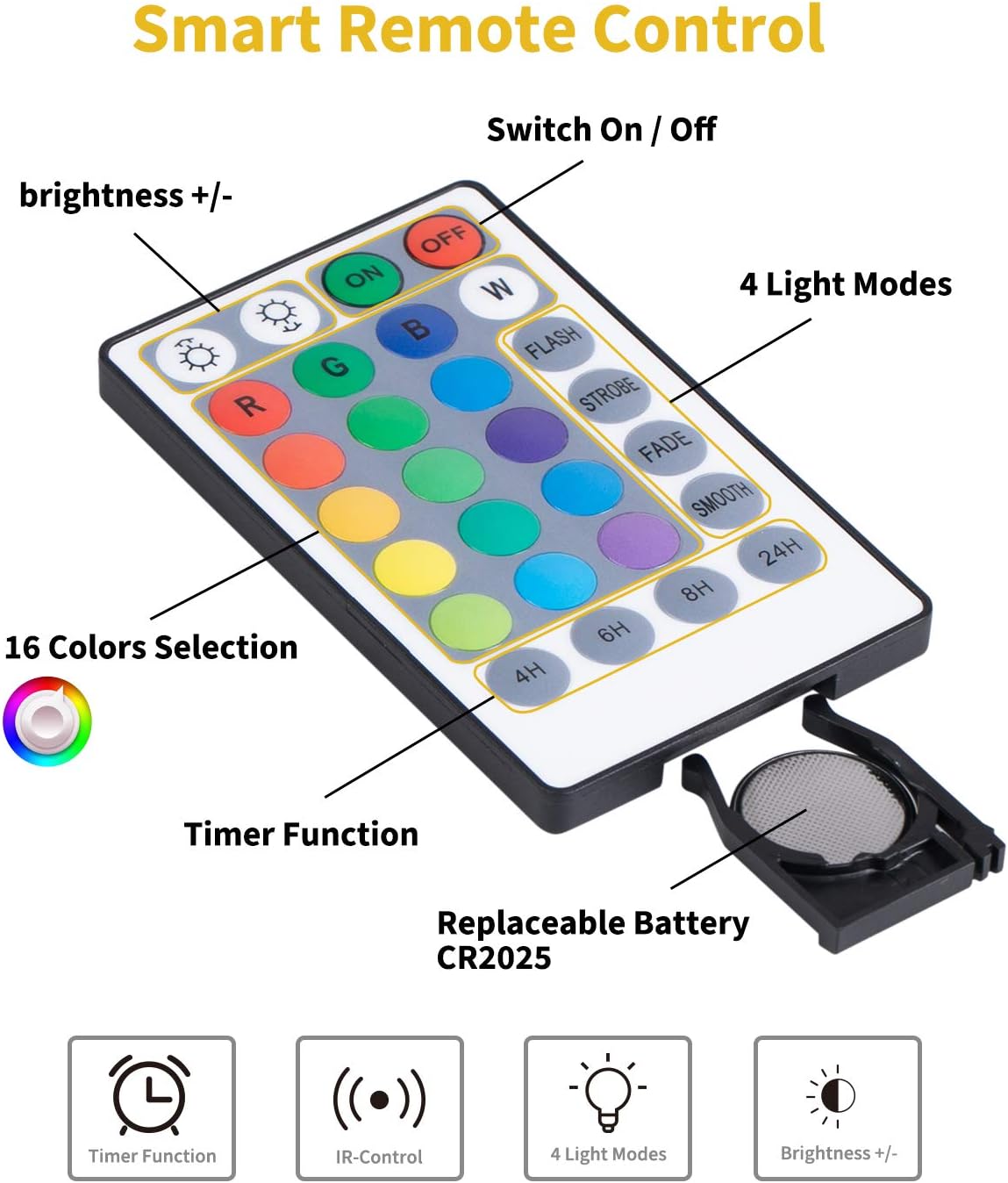

Image: A detailed diagram of the 28-key remote control, labeling buttons for On/Off, brightness adjustment, 16 color selections, 4 light modes (Flash, Strobe, Fade, Smooth), and timer functions (4H, 6H, 8H, 24H). It also indicates the replaceable CR2025 battery.

• Power On/Off: Press the ON button to turn the lights on, and the OFF button to turn them off.
• Color Selection: Press any of the 16 colored buttons to change the light color.
• Brightness Adjustment: Use the brightness +/- buttons to increase or decrease the light intensity.
• Light Modes: Select from four dynamic modes: FLASH (rapid color changes), STROBE (single color flashing), FADE (smooth transition between colors), and SMOOTH (gradual color change).
• Timer Function: Press the TIME button to activate the timer. The lights will automatically turn off after 6 or 18 hours. To cancel the timer, press the TIME button again.

Manual Control (Controller Button):

In case the remote control is lost or not functioning, you can press the button located on the controller unit (near the power adapter) to cycle through the available colors and lighting modes.

Image: A grid of coiled rope lights, each displaying a different vibrant color from the 16 available options, demonstrating the wide range of color choices.

Maintenance

• Cleaning: To clean the rope lights, ensure they are unplugged from the power source. Gently wipe the surface with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Water Protection: As mentioned, the rope light string is IP65 waterproof. However, the AC adapter and controller unit are not fully waterproof and must be protected from direct exposure to rain, snow, or excessive moisture, especially during outdoor use. Consider using a waterproof enclosure or placing them under a covered area.
• Remote Battery Replacement: The remote control uses a replaceable CR2025 button cell battery. If the remote's performance degrades, replace the battery by opening the battery compartment on the back of the remote. Ensure correct polarity when inserting the new battery.
• Storage: When not in use for extended periods, unplug the lights and coil them neatly. Store them in a cool, dry place away from direct sunlight and extreme temperatures to prolong their lifespan.

Troubleshooting

Lights are not turning on:

• Ensure the power adapter is securely plugged into a working electrical outlet.
• Check the connection between the rope light string and the power adapter.
• Verify that the remote control battery is not depleted (if using the remote). Try pressing the button on the controller unit to see if the lights respond.
• Confirm the ON button on the remote or the controller button has been pressed.

Remote control is not responding:

• Ensure there are no obstructions between the remote and the controller unit.
• Replace the CR2025 battery in the remote control.
• Make sure you are within the effective range of the remote control.

Lights are flickering or dim:

• Check the power connection for any looseness.
• Ensure the brightness setting on the remote is not set to the lowest level.
• If used outdoors, ensure the adapter and controller are dry and protected.

Specifications

Warranty and Support

For warranty information or technical support regarding your Minetom Color Changing Rope Lights, please refer to the product packaging or contact Minetom customer service directly. Contact details can typically be found on the manufacturer's official website or through your point of purchase.

Please retain your proof of purchase for any warranty claims.
