1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your YIYIBYUS HBP1100 1.5HP Swimming Pool Pump. This pump is designed for circulating and filtering water in permanently installed in-ground and above-ground pools, hot tubs, and spas.
Key features include a 1.5HP pure copper motor, high rotation speed of 3450r/min, and a maximum flow rate of 100.4 GPM, ensuring effective water filtration while maintaining energy efficiency. The pump is built with F-class insulation and IP X5 protection for durability and safety.
Image 1.1: Overview of the YIYIBYUS HBP1100 1.5HP Swimming Pool Pump.
2. Safety Instructions
Read all safety warnings and instructions carefully before installation and operation to prevent electric shock, fire, or serious injury.
- This pump is intended for use with permanently installed pools only. Do not use it with storable pools.
- Always fill the pump with water before initial use to prevent the motor from overheating and to avoid damage to mechanical seals and impellers.
- Installation and repair must be performed by qualified professionals. All wiring must be carried out by licensed electricians in compliance with all state and local regulations.
- To reduce the risk of electric shock, install the pump at least 10 feet (3 meters) from the inside walls of a pool.
- Do not use an extension cord to connect the unit to the electrical supply. Connect it directly to a grounding-type receptacle protected by a Ground-Fault Circuit Interrupter (GFCI).
- Do not cut the power cord. Ensure electrical components are protected from weather conditions.
- The pump features UL certification, thermal overload protection, and pressure protection for enhanced safety.
3. Package Contents
Verify that all components are present and undamaged upon unpacking. If any parts are missing or damaged, contact customer service immediately.
- 1 x YIYIBYUS HBP1100 1.5HP Swimming Pool Pump
- 1 x English Instruction Manual
- Accessories for Assembly (including various seals, connectors, and fittings)

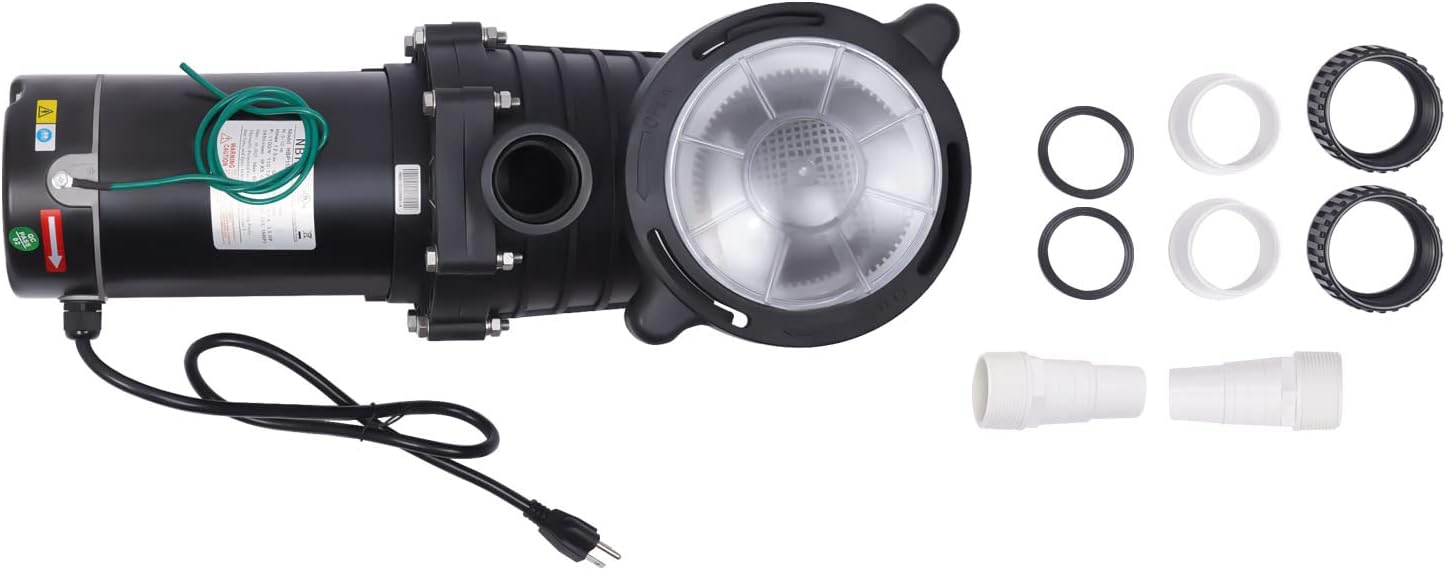

Image 3.1: The pool pump and its included accessories, such as connectors and seals.
4. Setup and Installation
Proper installation is crucial for the pump's performance and safety. It is strongly recommended that installation be performed by a licensed professional.
- Placement: Position the pump on a solid, level surface at least 10 feet (3 meters) away from the pool's edge. Ensure adequate ventilation around the motor.
- Plumbing Connections: The pump is equipped with 1/2" NPT American standard internal thread connectors. Securely attach all plumbing lines to the pump's inlet and outlet ports. Use appropriate sealants and ensure all connections are watertight to prevent leaks and air intrusion.
- Electrical Connection: Connect the pump to a dedicated 110-120V, 60Hz electrical circuit. The circuit must be protected by a Ground-Fault Circuit Interrupter (GFCI). Do not use extension cords. Ensure the power cord is not damaged and is protected from environmental elements.
- Priming the Pump: Before starting the pump for the first time, or after draining, remove the clear lid of the filter basket and fill the basket and pump housing completely with water. Replace the lid securely. This step is critical to prevent dry running and motor damage.

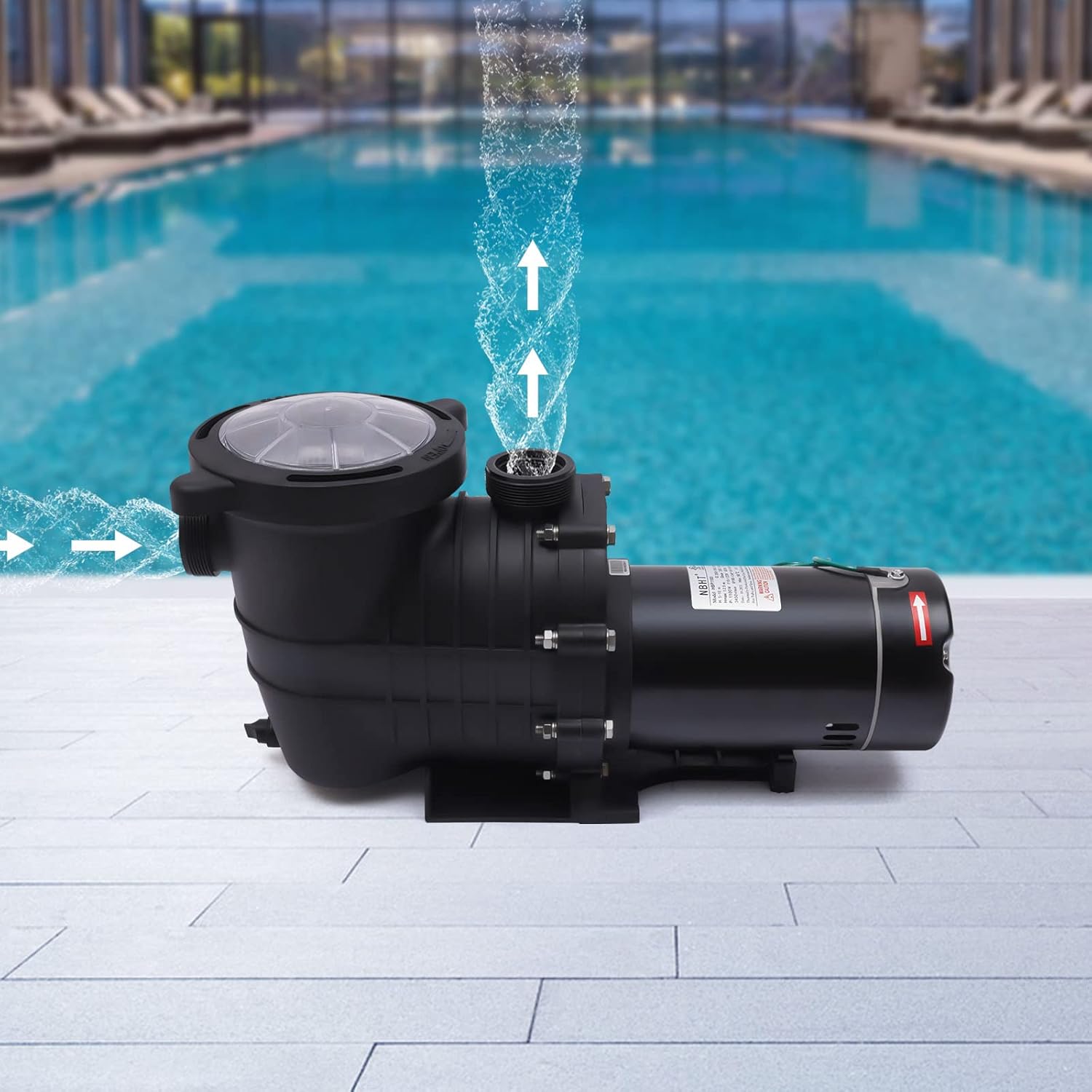

Image 4.1: The pool pump in an operational setting, illustrating water intake and output.
5. Operating Instructions
Once installed and primed, the pump is ready for operation.
- Initial Start-up: After ensuring the pump is primed with water and all connections are secure, turn on the power supply to the pump. The pump will begin circulating water.
- Monitoring: Observe the pump during its first few minutes of operation to ensure proper water flow and no unusual noises or leaks. The pump operates at a single speed.
- Continuous Operation: The pump is designed for continuous filtration. Refer to your pool's specific filtration requirements for recommended daily operating times.
- Shutting Down: To turn off the pump, disconnect the power supply at the GFCI-protected outlet.
Image 5.1: The pump actively filtering water, showing the flow direction.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your pool pump.
- Filter Basket Cleaning: Regularly inspect and clean the filter basket (strainer) to remove debris such as leaves and hair. Turn off the pump and disconnect power before opening the basket lid. Remove the basket, empty debris, and rinse thoroughly. Reinstall the basket and ensure the lid is sealed tightly.
- Motor Ventilation: Ensure the motor's ventilation openings are clear of obstructions to prevent overheating.
- Leak Inspection: Periodically check all plumbing connections for leaks. Tighten connections as needed.
- Winterization: In colder climates, properly winterize the pump to prevent freeze damage. Consult a pool professional for specific winterization procedures for your region.
Image 6.1: View of the pump with the filter basket removed for cleaning.
7. Troubleshooting
This section provides solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; tripped GFCI; motor overload; pump not primed | Check power supply; reset GFCI; allow motor to cool; prime pump with water |
| Reduced water flow | Clogged filter basket; air leak in suction line; restricted plumbing | Clean filter basket; check and seal suction line connections; inspect plumbing for blockages |
| Pump making unusual noise | Air in pump; debris in impeller; worn bearings | Ensure pump is primed and suction line is sealed; turn off and inspect impeller for debris; contact service professional for bearing issues |
| Water leaking from pump | Loose connections; damaged seals; cracked housing | Tighten plumbing connections; inspect and replace seals; contact service professional for housing damage |
If troubleshooting steps do not resolve the issue, contact a qualified service professional or YIYIBYUS customer support.
8. Specifications
Detailed technical specifications for the YIYIBYUS HBP1100 1.5HP Swimming Pool Pump.
- Pump Model: HBP1100
- Motor Model: HT-13
- Power: 1100W, 1.5HP
- Voltage: 110-120V, 60Hz
- Current: 9.1A
- Rotation Speed: 3450 r/min
- Maximum Flow Rate: 380 L/min (100.4 GPM)
- Maximum Head: 12.5 m (41 ft)
- Noise Level: <75dB
- Protection Grade: IP X5
- Insulation Class: F Class
- Max. Water Temperature: 50℃ (122℉)
- Inner Coupling: 1/2" NPT
- Connector Diameter: 48.5mm (2 inch)
- Cord Length: 95cm (37.4 inch)
- Material: Iron, Polypropylene (PP)
- Net Weight: 13 kg (28.66 lbs)
- Dimensions (L x W x H): 62 x 24 x 35 cm (24 x 9.45 x 13 inch)
Image 8.1: Dimensional drawing of the pool pump with measurements.
Image 8.2: Product label displaying model number, power, voltage, flow, and other technical data.
9. Warranty and Support
For warranty information, technical assistance, or to inquire about replacement parts, please contact YIYIBYUS customer service. Keep your purchase receipt as proof of purchase.
