1. Product Overview

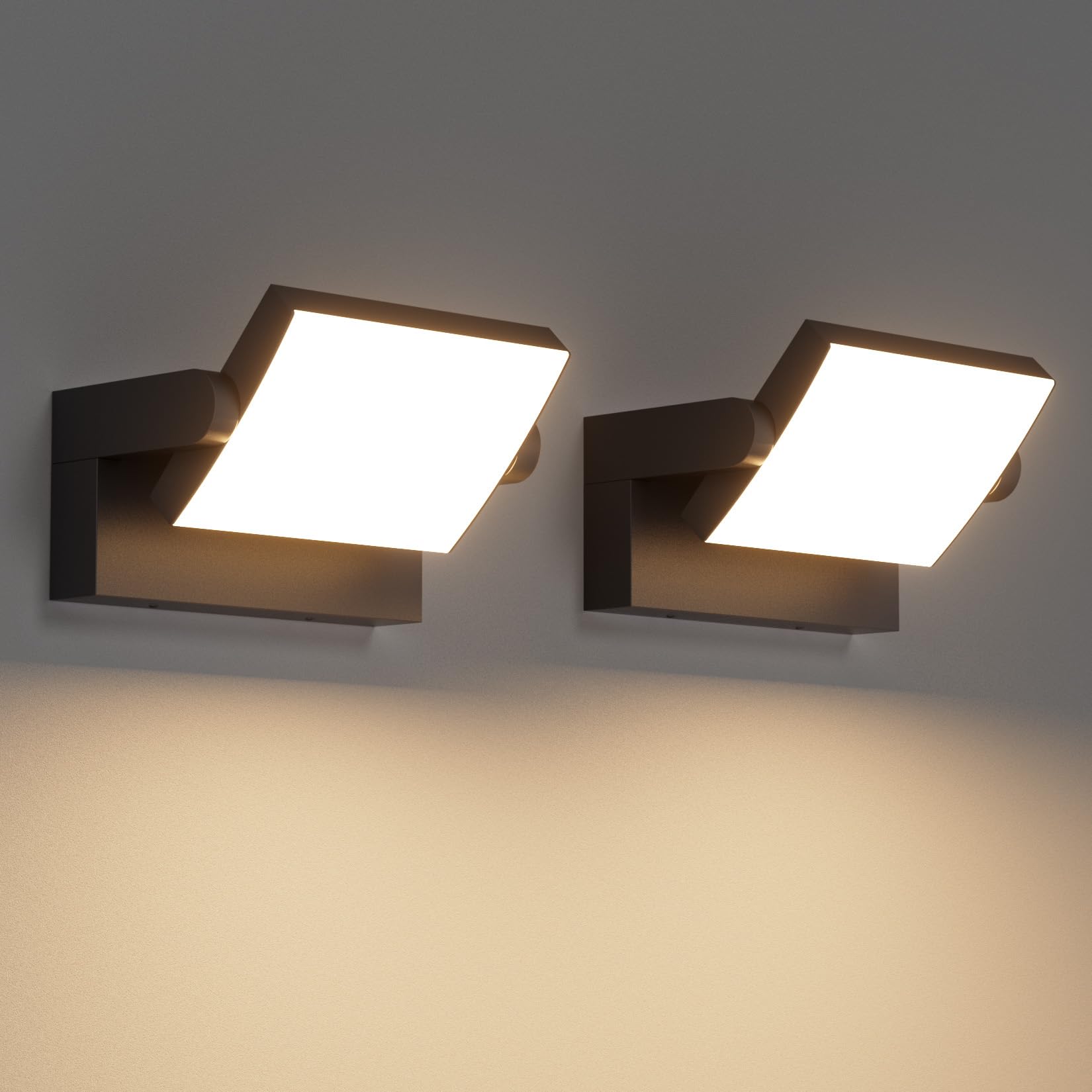

The Klighten GW007 is a modern 24W LED wall light designed for both indoor and outdoor applications. It features an adjustable LED panel, allowing for a 350° vertical rotation to direct light as needed. Constructed from high-quality aluminum with a PC lampshade, this fixture is IP65 rated for water and dust resistance, ensuring durability in various environments. It provides 1500 lumens of warm white light at 3000K.
2. Safety Information
- Always turn off the power supply before installation, maintenance, or cleaning.
- Installation should be performed by a qualified electrician to ensure safety and compliance with local electrical codes.
- Do not modify the product in any way.
- Ensure the mounting surface is sturdy enough to support the fixture.
- Keep out of reach of children.
3. Package Contents
Verify that all components are present before beginning installation:
- Klighten GW007 LED Wall Light (2 units)
- Mounting accessories (screws, wall plugs)
- Instruction Manual
4. Installation Instructions
Tools Required: Drill, screwdriver, wire strippers, pencil, measuring tape.
- Prepare the Mounting Surface: Choose a suitable location on the wall. Mark the drilling points for the mounting bracket using the fixture as a template. Ensure the power supply is turned off at the main circuit breaker.
- Mount the Bracket: Drill holes at the marked points. Insert wall plugs if necessary. Secure the mounting bracket to the wall using the provided screws.
- Wire Connection: Connect the household electrical wires to the fixture's wires. Ensure correct polarity (Live to Live, Neutral to Neutral, Ground to Ground). Use appropriate wire connectors and ensure all connections are secure and insulated.
- Attach the Fixture: Align the light fixture with the mounting bracket and secure it with the remaining screws. Ensure the fixture is firmly attached to the wall.
- Restore Power: Once installation is complete and all connections are secure, restore power at the main circuit breaker.
5. Operation
The Klighten GW007 wall light operates via a standard wall switch (toggle switch type). Once installed and powered, simply use your wall switch to turn the light on or off.
Adjusting the Light Direction
The LED panel can be manually rotated up to 350 degrees vertically. Gently hold the light panel and rotate it to your desired angle to achieve optimal illumination for your space.
6. Maintenance
To ensure the longevity and optimal performance of your Klighten GW007 wall light, follow these maintenance guidelines:
- Cleaning: Regularly wipe the fixture with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish or the PC lampshade.
- Inspection: Periodically check for any loose connections or signs of wear. If any damage is observed, disconnect power and consult a qualified electrician for repair.
- Outdoor Use: Due to its IP65 rating, the light is designed to withstand outdoor elements. However, occasional cleaning of accumulated dirt or debris will help maintain its appearance and light output.
7. Troubleshooting
If you encounter issues with your Klighten GW007 wall light, refer to the following common troubleshooting steps:
- Light Not Turning On:
- Check the power supply at the main circuit breaker.
- Ensure the wall switch is in the 'ON' position.
- Verify all wire connections are secure and correctly installed.
- Light Flickering:
- Check for loose wire connections.
- Ensure the voltage supply is stable and matches the product's specifications (220V).
- Reduced Light Output:
- Clean the lampshade to remove any dirt or dust accumulation.
If the problem persists after performing these steps, please contact Klighten customer support or a qualified electrician.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Klighten |
| Model Number | GW007 |
| Power | 24 Watt |
| Luminous Flux | 1500 Lumen |
| Color Temperature | 3000 Kelvin (Warm White) |
| Material | Aluminum, Polycarbonate |
| IP Rating | IP65 (Water Resistant) |
| Dimensions (LxWxH) | 21L x 16W x 10H cm |
| Voltage | 220 Volt |
| Light Direction | Adjustable LED Panel |
| Number of Lights | 2 (for the 2-piece set) |
| Switch Type | Toggle Switch (Forcellante) |
| Energy Efficiency Class | G |
| Recommended Use | Indoor and outdoor residential lighting |
9. Product Videos
Video 1: This video demonstrates the Klighten GW007 wall light's adjustable panel, internal components, and IP65 waterproof capabilities in action.
Video 2: This video showcases the Klighten GW007 wall light's design, adjustable features, and various application scenarios.
10. Warranty and Support
Klighten products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. For specific warranty details, technical support, or any inquiries regarding your Klighten GW007 wall light, please refer to the warranty card included with your purchase or contact Klighten customer service directly through their official website or the retailer where the product was purchased.
Please retain your proof of purchase for warranty claims.
