1. Introduction and Overview
The Kikkaboo i-Track i-Size child car seat is designed for children with a height ranging from 100 to 150 cm, typically corresponding to ages 4 to 12 years and a maximum weight of 36 kg. This forward-facing car seat provides enhanced safety and comfort for your child during travel. It features a secure Isofix installation system and utilizes the vehicle's 3-point seat belt for child restraint.
Key features include a 12-position height-adjustable headrest with memory foam for optimal comfort and adaptability as your child grows, and a robust Side Protection System (SPS) to provide additional safety in the event of a side impact.

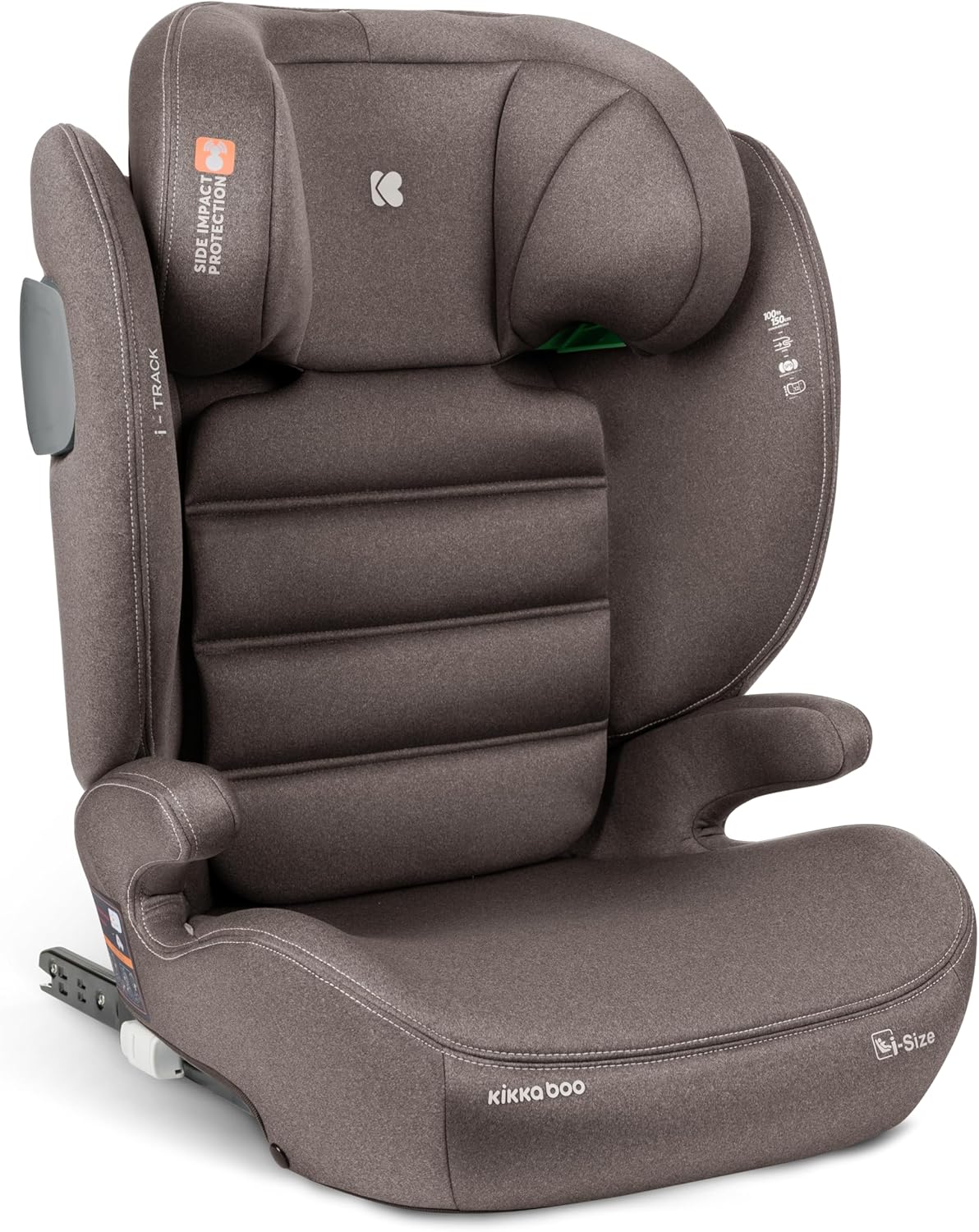

Figure 1: Kikkaboo i-Track i-Size Child Car Seat (Brown)
2. Setup and Installation
Proper installation is crucial for your child's safety. The Kikkaboo i-Track i-Size car seat is designed for easy and secure installation using the Isofix system in your vehicle, combined with the vehicle's 3-point seat belt to secure the child.
2.1 Isofix System Installation
The car seat is equipped with Isofix connectors for a rigid and secure attachment to your vehicle's Isofix anchor points. Locate the Isofix anchor points in your car (usually indicated by labels or symbols between the seat back and cushion). Extend the Isofix connectors from the car seat and push them onto the vehicle's anchor points until they click securely into place. Ensure the indicators on the connectors turn green, confirming correct engagement.
Figure 2: Isofix System and Installation Instructions
2.2 Securing the Child with the Vehicle's 3-Point Seat Belt
Once the car seat is securely installed with Isofix, your child is secured within the car seat using the vehicle's standard 3-point seat belt. Guide the lap portion of the seat belt across your child's hips and through the designated red belt guides on the car seat. Ensure the shoulder portion of the belt passes through the shoulder belt guide, resting securely over your child's shoulder and across their chest, without twisting. Fasten the seat belt buckle and pull the belt tight to remove any slack.
Figure 3: Seat Belt Installation and Forward-Facing Use
3. Operating Instructions
The Kikkaboo i-Track i-Size car seat is designed for ease of use and adaptability as your child grows.
3.1 Headrest Height Adjustment
The headrest can be adjusted to 12 different height positions to ensure optimal fit and comfort for your growing child. To adjust, locate the adjustment lever or button, typically at the back or top of the headrest. Squeeze or press the lever and slide the headrest up or down until it is positioned correctly, with the shoulder belt guide at or slightly above your child's shoulders.
Figure 4: Headrest Adjustment for Growing Children
3.2 Comfort and Safety Features
- Memory Foam Headrest: The headrest is equipped with memory foam to provide enhanced comfort and support for your child's head and neck during travel.
- Side Protection System (SPS): Integrated SPS technology offers superior side impact protection, absorbing energy and dispersing impact forces away from your child.
- Comfortable Armrests: The seat includes comfortable armrests, contributing to the child's overall comfort during longer journeys.
- Quality Materials: Constructed with soft, durable fabrics for a pleasant tactile experience and long-lasting use.
Figure 5: Security and Comfort Features
4. Maintenance
Regular maintenance helps ensure the longevity and hygiene of your Kikkaboo i-Track i-Size car seat.
4.1 Cleaning the Fabric Cover
The car seat features soft, removable fabrics for easy cleaning. It is recommended to clean the fabric cover regularly. Please refer to the care label attached to the fabric for specific washing instructions. Generally, the cover can be hand-washed with mild soap and cold water, or machine-washed on a gentle cycle. Allow the cover to air dry completely before reattaching it to the car seat. Do not use harsh detergents, bleach, or abrasive cleaners.
4.2 Cleaning the Hard Parts
Wipe down the plastic and metal components of the car seat with a damp cloth and mild soap. Ensure no water enters the mechanical parts, especially the Isofix connectors. Dry thoroughly with a soft cloth.
4.3 Inspection
Periodically inspect the car seat for any signs of wear, damage, or loose parts. Check the Isofix connectors, seat belt guides, and headrest adjustment mechanism for proper function. If any damage is found, discontinue use and contact customer support.
5. Troubleshooting
This section addresses common issues you might encounter with your Kikkaboo i-Track i-Size car seat.
| Problem | Possible Cause | Solution |
|---|---|---|
| Car seat not securing with Isofix. | Connectors not fully engaged; obstruction. | Ensure Isofix connectors are fully extended and pushed firmly onto the vehicle's anchor points until you hear a click and the indicators turn green. Check for any fabric or debris obstructing the connection. |
| Vehicle seat belt is loose or twisted. | Incorrect belt routing; slack in the belt. | Verify the lap and shoulder portions of the vehicle's 3-point seat belt are routed correctly through all designated red guides on the car seat. Pull the shoulder belt firmly to remove all slack after buckling. Ensure the belt is not twisted. |
| Headrest difficult to adjust. | Mechanism jammed; fabric caught. | Ensure no fabric or other items are caught in the adjustment mechanism. Apply gentle, even pressure while operating the adjustment lever. If the issue persists, contact customer support. |
If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact Kikka Boo customer support for assistance.
6. Specifications
Detailed technical specifications for the Kikkaboo i-Track i-Size Child Car Seat (Model: 41002150017).
| Model Number | 41002150017 |
| Brand | Kikka Boo |
| Child Height Range | 100 - 150 cm (i-Size compliant) |
| Recommended Age | Approximately 4 to 12 years |
| Minimum Recommended Weight | 15 Kilograms |
| Maximum Supported Weight | 36 Kilograms |
| Installation Type | Isofix system + Vehicle's 3-point seat belt |
| Harness Type (for child) | Vehicle's 3-point seat belt |
| Headrest Positions | 12 height positions |
| Special Features | Side Protection System (SPS), Memory Foam Headrest |
| Main Material | Fabric |
| Product Dimensions (L x W x H) | 44 x 44 x 60 cm |
| Item Weight | 6.7 Kilograms |
| Color | Brown |
| Safety Standard | ECE-R129 i-Size |
7. Warranty and Support
For detailed warranty information, terms, and conditions, please refer to the official Kikka Boo website or the warranty card included with your product. Warranty coverage typically varies by region and retailer.
For technical support, spare parts, or any inquiries regarding your Kikkaboo i-Track i-Size car seat, please contact Kikka Boo customer service. Have your model number (41002150017) and purchase receipt ready when contacting support.
You can often find contact information on the manufacturer's official website: kikkaboo.com
