KIDIZ Child Car Seat Instruction Manual

1. Introduction

Thank you for choosing the KIDIZ Child Car Seat. This manual provides important information for the safe and proper use, installation, and maintenance of your car seat. Please read this manual carefully before use and keep it for future reference.

2. Safety Information

Your KIDIZ car seat is designed with safety as the top priority and is approved according to the strict European safety standard ECE R129/03.

• Approval: ECE R129/03 (Group 1/2/3, body weight 9-36 kg, approx. 1-12 years).
• Harness System: Features a 5-point harness system for optimal security.
• Side Impact Protection: Equipped with large, well-padded side supports for optimal side collision protection.
• Weight and Age Limits: Suitable for children weighing between 9 kg and 36 kg, and approximately 1 to 12 years of age.
• Always ensure the car seat is securely installed in your vehicle using the vehicle's seat belt system.
• Never leave a child unattended in the car seat.
• Ensure the harness straps are snug and properly adjusted to your child's size.

Image: A child seated in the KIDIZ car seat, with graphics indicating ECE R129/03 approval, 5-point harness, adjustability, and recommended age range (1-12 years).

3. Setup and Installation

The KIDIZ car seat is designed to adapt as your child grows, offering multiple configurations.

3.1. Adjusting for Child's Growth

• Adjustable Headrest: The headrest is adjustable to ensure the seat "grows" with your child, providing optimal head and neck support.
• Adjustable Backrest: The backrest adjusts to the inclination angle of your vehicle's seat.

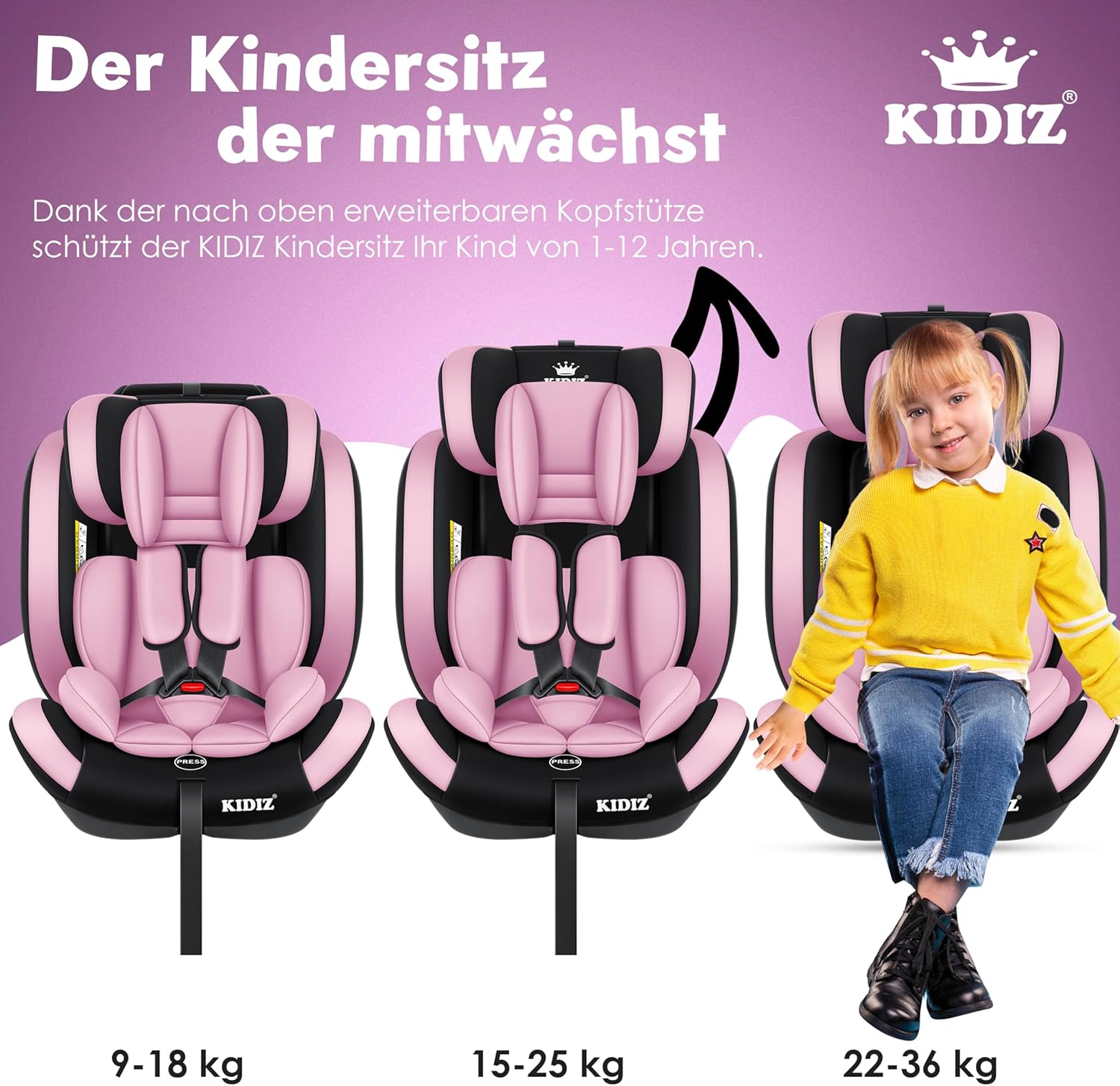

Image: Three car seat configurations demonstrating suitability for different weight ranges: 9-18 kg, 15-25 kg, and 22-36 kg, illustrating how the seat adapts as the child grows.

3.2. Installation Methods

The car seat can be used in different configurations based on your child's age and weight:

1. For Toddlers (approx. 9-18 kg): Use with the integrated 5-point harness system.
2. For Preschoolers (approx. 15-25 kg): Use with the vehicle's standard 3-point seat belt, with the car seat's backrest.
3. For Older Children (approx. 22-36 kg, up to 12 years): Use only the booster cushion (seat base) without the backrest, secured with the vehicle's standard 3-point seat belt.

Note: This car seat is designed for forward-facing installation using the vehicle's seat belt system.

Image: Illustrates the adjustable headrest mechanism and the secure attachment points at the base of the car seat, designed for stable installation with the vehicle's seat belt.

4. Operating Instructions

4.1. Securing Your Child

• 5-Point Harness (for younger children):
  1. Place your child in the seat.
  2. Bring the shoulder straps over your child's shoulders and the waist straps across their hips.
  3. Connect the two buckle tongues into the central buckle until you hear a click.
  4. Pull the adjustment strap to tighten the harness until it is snug against your child's body, ensuring no slack.
• Vehicle Seat Belt (for older children):
  1. Position the car seat in the vehicle.
  2. Route the vehicle's 3-point seat belt through the designated guides on the car seat and buckle it.
  3. Ensure the lap belt is low across your child's hips and the shoulder belt crosses the center of their shoulder and chest.

Image: A close-up view of the 5-point harness system and its central buckle, emphasizing the secure fastening mechanism.

Image: A parent securing a child in the KIDIZ car seat, demonstrating the ease of use and the comfortable padding.

5. Maintenance and Cleaning

Keeping your KIDIZ car seat clean is simple and ensures hygiene for your child.

• Removable Cover: The car seat cover is easy to remove for cleaning.
• Washing Instructions: The cover can be washed at 30°C. Please refer to the care label on the cover for specific instructions.
• Frame Cleaning: Wipe the plastic parts of the car seat frame with a damp cloth and mild soap. Do not use abrasive cleaners.

Image: A parent securing a child in the KIDIZ car seat, with an overlay showing a washing machine symbol and "30°C", indicating the ease of cleaning the removable cover.

6. Troubleshooting

If you encounter any issues with your KIDIZ car seat, please review the following common points:

• Harness not tightening: Ensure the harness straps are not twisted and are routed correctly through the seat. Check for any obstructions in the adjustment mechanism.
• Seat not stable: Verify that the vehicle's seat belt is routed correctly through all designated guides and is pulled taut. Ensure the car seat is firmly pressed into the vehicle's seat.
• Headrest difficult to adjust: Check for any debris or obstructions in the adjustment mechanism. Ensure the release lever (if applicable) is fully engaged.

For further assistance, please contact KIDIZ customer support or the retailer where you purchased the product.

7. Specifications

Image: Diagram showing the dimensions (length, width, height) and weight (3.8 kg) of the KIDIZ car seat, along with weight and age recommendations and safety standards.

Image: Detailed diagram highlighting key features such as 100% polyester cover, ergonomic adjustable headrest, HDPE seat shell, easy headrest adjustment, 5-point harness system, and approved body weight range (9-36 kg).

8. Warranty and Support

For warranty information or customer support, please contact the manufacturer, KIDIZ, or the retailer from whom you purchased this product. Please retain your proof of purchase for any warranty claims.
