Toshiba Stone Kiln Dome Superheated Steam Oven Range ER-YD90-W User Manual

1. Introduction

Thank you for purchasing the Toshiba Stone Kiln Dome Superheated Steam Oven Range ER-YD90-W. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before operation and retain it for future reference.

2. Safety Information

To prevent injury to yourself and others, or damage to the appliance, always observe the following safety precautions:

• Ensure the appliance is placed on a stable, level surface with adequate ventilation.
• Do not block ventilation openings.
• Connect the appliance only to a properly grounded electrical outlet with the correct voltage (100V AC).
• Do not operate the oven if the door seal is damaged or if the appliance is malfunctioning.
• Never heat sealed containers or whole eggs in the microwave, as they may explode.
• Always use oven mitts when handling hot dishes or accessories.
• Keep children away from the appliance during operation.

3. Product Overview

The Toshiba ER-YD90-W is a versatile 26-liter oven range featuring microwave, oven, grill, and superheated steam functions. Its compact countertop design integrates seamlessly into your kitchen.

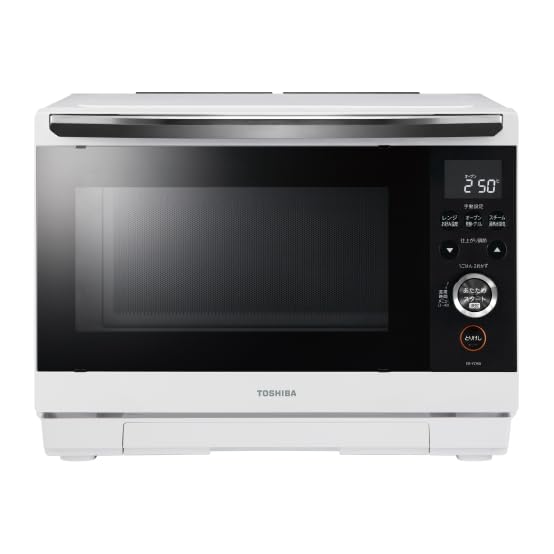

Front view of the Toshiba ER-YD90-W Superheated Steam Oven Range.

The ER-YD90-W oven range positioned on a kitchen countertop.

Key Features:

• Stone Kiln Dome Structure: Designed for even heating and efficient cooking.
• Superheated Steam Function: Allows for healthy cooking, such as reducing salt content in dishes (e.g., approximately 22% salt reduction for salmon).
• Grill Function: For browning and crisping food.
• Automatic Defrost: Conveniently thaws frozen food.
• Easy-Clean Interior: The interior surface repels oil and water for simplified cleaning.

4. Setup

4.1 Unpacking

Carefully remove the oven range from its packaging. Retain all packaging materials for potential future transport or service. Check for any damage during transit.

4.2 Placement

Place the oven range on a flat, stable, heat-resistant surface capable of supporting its weight (approximately 22 kg). Ensure there is sufficient clearance around the appliance for proper ventilation:

• Top: At least 10 cm (4 inches)
• Sides: At least 5 cm (2 inches)
• Rear: At least 10 cm (4 inches)

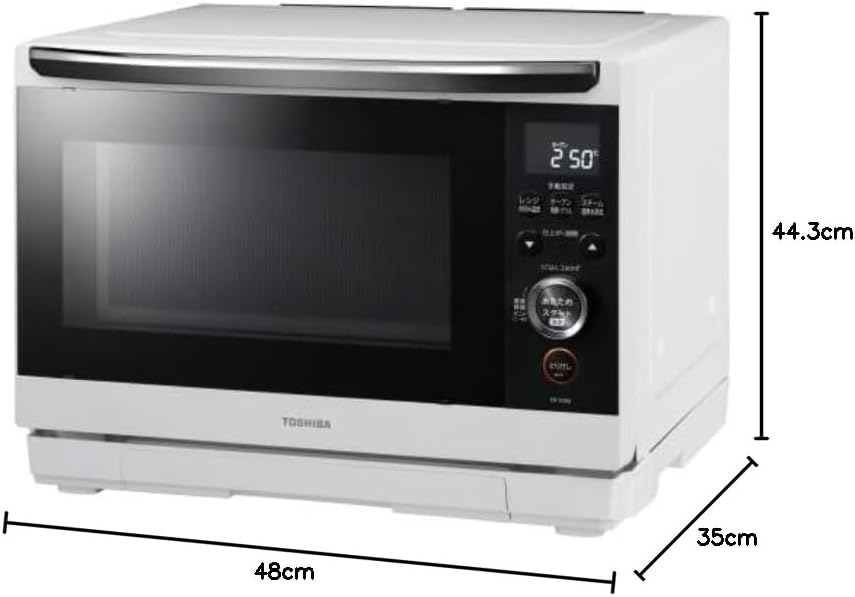

Product dimensions: 48 cm (width) x 44.3 cm (depth) x 35 cm (height).

Internal width of the oven range is approximately 39.7 cm.

4.3 Power Connection

Plug the power cord securely into a dedicated 100V AC wall outlet. Do not use extension cords or adapters.

4.4 Initial Cleaning

Before first use, wipe the interior and exterior of the appliance with a damp cloth. Ensure all accessories, such as the grill plate, are clean.

5. Operating Instructions

The control panel features various buttons and a dial for selecting functions and setting cooking times/temperatures. Refer to the labels on the control panel for specific functions.

Food being heated inside the oven range, demonstrating the interior lighting.

5.1 Microwave Function

• Place food in a microwave-safe dish.
• Close the oven door securely.
• Select the microwave function and adjust the power level and cooking time using the control dial.
• Press the Start button to begin cooking.
• The automatic defrost function can be selected for thawing frozen items.

5.2 Oven Function

• Place food on an oven-safe tray or rack.
• Select the oven function and set the desired temperature and cooking time.
• Allow the oven to preheat if required by the recipe.
• Press the Start button.

5.3 Grill Function

• Use the included grill plate for best results.
• Place food on the grill plate.
• Select the grill function and set the cooking time.
• Press the Start button.

The included grill plate accessory, designed for optimal grilling performance.

5.4 Superheated Steam Function

• Fill the water tank (if applicable, location not specified in JSON, assume standard placement).
• Place food in a suitable dish for steam cooking.
• Select the superheated steam function and set the desired cooking parameters.
• Press the Start button. This function is ideal for healthier cooking, such as reducing the salt content in certain foods.

Example of a dish prepared with the superheated steam function, demonstrating approximately 22% salt reduction for salmon.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your oven range.

6.1 Interior Cleaning

The oven interior is designed to repel oil and water, making cleaning easier. After each use, especially after cooking greasy foods, wipe the interior with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for microwave/oven interiors. Ensure the appliance is cool before cleaning.

The interior surface of the oven range repels oil and water, simplifying the cleaning process.

6.2 Exterior Cleaning

Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents that could damage the finish.

6.3 Accessory Cleaning

Wash the grill plate and any other removable accessories with warm, soapy water. Rinse thoroughly and dry completely before storing or reusing.

7. Troubleshooting

If you encounter issues with your oven range, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Toshiba customer support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Toshiba website. For technical support, service, or inquiries, please contact Toshiba customer service in your region. Have your model number (ER-YD90-W) and purchase date ready when contacting support.
