Newsmarts P60444+Q Sewing Machine Even Feed Quilting Walking Foot Instruction Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of the Newsmarts P60444+Q Even Feed Quilting Walking Foot. This accessory is designed to enhance sewing precision, particularly when working with multiple layers of fabric, slippery materials, or matching patterns.

Product Overview

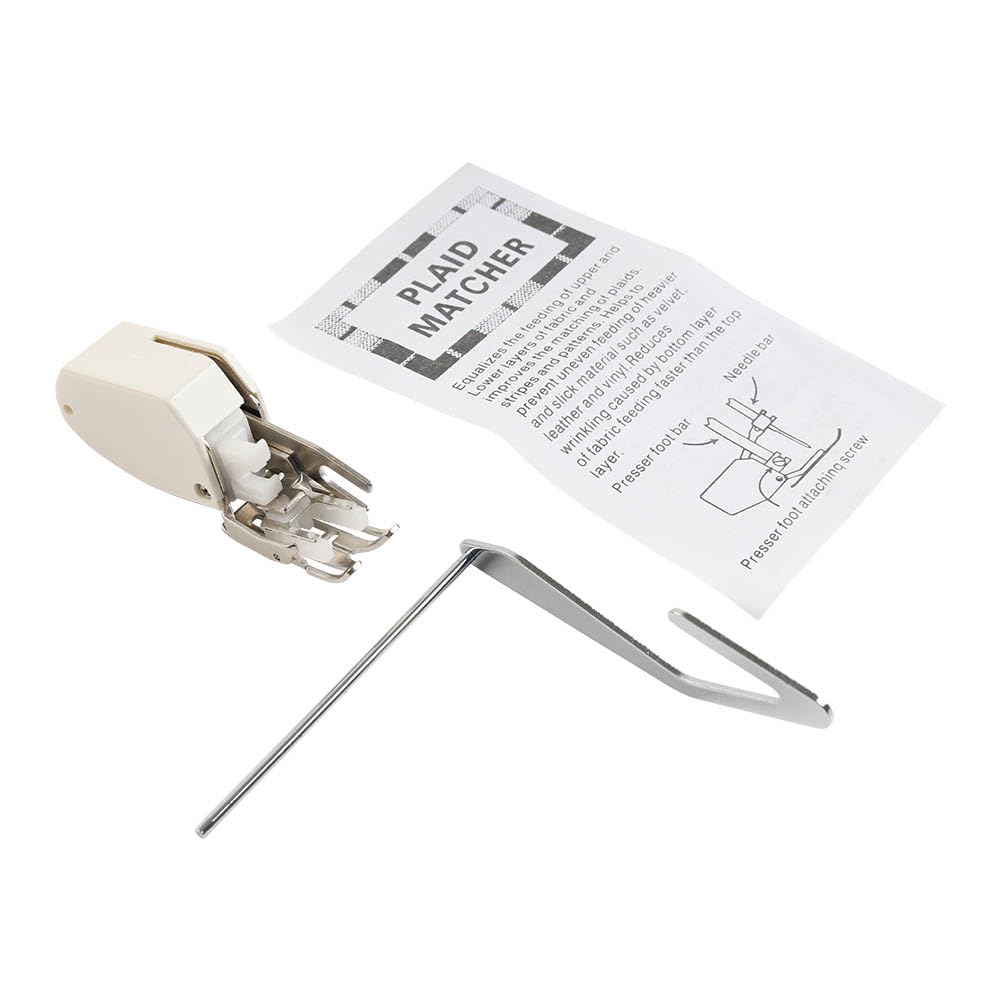

Figure 1: The Newsmarts P60444+Q Even Feed Quilting Walking Foot. This image shows the overall design of the walking foot, including the main body, the feed dogs, and the metal arm that connects to the needle bar.

Figure 2: A detailed view of the walking foot's internal mechanism, highlighting the plastic and metal components that facilitate even fabric feeding. The close-up shows the intricate parts of the foot.

The walking foot is a specialized presser foot designed to move the top layer of fabric at the same rate as the bottom layer, preventing shifting, puckering, and wrinkling. It is particularly useful for quilting, matching plaids or stripes, and sewing on challenging fabrics like velvet, leather, or vinyl.

• Material: Constructed from durable plastic and steel for longevity and resistance to rust and corrosion.
• Function: Ensures smooth and consistent fabric movement, preventing slippage between multiple layers.
• Application: Ideal for quilting, sewing multiple layers, and working with delicate or slippery fabrics.

Compatibility

The P60444+Q Walking Foot is compatible with a wide range of sewing machine models. Please verify your machine's compatibility before installation.

Partial List of Compatible Models:

• Alphasew: 653FA
• Babylock: BL1000, BL1050, BL1108, BL1170, BL1400, BL15, BL1500 Companion
• Bernette: 46, 50, 55, 56, 60, 65, 66
• Bernina: 207, 208, 209, 210, 211, 212, 213
• Brother: 10443, 1241, 150 Campus, 160, 1681 Riveria
• Consew: 118, 130, 18
• Dial Sew: 916FB
• Domestic: 1630, 264R, 268, 4400, 468, 5438, 955
• Dressmaker: 141, 205, 300Z, 423, 492, 770
• Elna: 1010, 11 Star, 110, 120, 13 Starella
• Elnita: 200, 220, 225, 244
• Euro-Pro: 1260, 1260DX, 375, 385, 385X, 415, 420
• J.C. Penny: 1405, 1510, 1515
• Kenmore (Sears): 10, 1040, 116.8391, 12, 12014, 1212180, 12216, 1229
• And many more models.

Installation Instructions

Follow these steps to properly install the walking foot on your sewing machine. Always ensure your machine is turned off and unplugged before changing presser feet.

Figure 3: Diagram illustrating the components of a sewing machine's presser foot and needle bar area, crucial for attaching the walking foot. It labels the presser foot bar, needle bar, and presser foot attaching screw.

Figure 4: Step-by-step instructions for installing the walking foot, detailing how to set up the machine and attach the foot correctly.

1. Prepare Machine: Set your sewing machine for straight or zig-zag stitching.
2. Raise Take-up Lever: Raise the take-up lever to its highest point.
3. Attach Walking Foot: Attach the walking foot by fitting its fork arm over the needle clamp screw. Ensure that both the presser bar and needle clamp screws are securely fastened.
4. Check Needle Clearance: Verify that the needle clears the needle hole in the walking foot.
5. Thread Needle: Draw the needle thread into the needle hole after lowering the needle slightly. Place both the needle and bobbin threads diagonally across the feed dogs.
6. Position Fabric: Place your fabric between the walking foot and the feed dogs.
7. Begin Sewing: You are now ready to sew as normal.

Operating Instructions

The walking foot is designed to equalize the feeding of upper and lower layers of fabric, improving the matching of plaids, stripes, and patterns. It prevents uneven feeding of heavier and slick materials such as velvet, leather, and vinyl, and reduces wrinkling caused by the bottom layer of fabric feeding faster than the top layer.

• Even Fabric Feed: The integrated feed teeth on the walking foot work in conjunction with the machine's needle plate feed dogs to ensure both layers of fabric move through the machine at the same rate.
• Preventing Slippage: This synchronized movement is crucial for preventing slippage between multiple fabric layers, which is common in quilting or when sewing slippery materials.
• Reducing Wrinkles: By maintaining even tension and movement, the walking foot significantly reduces the likelihood of fabric wrinkling or puckering.
• Pattern Matching: It greatly assists in accurately matching patterns like plaids and stripes across seams.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your walking foot.

• Cleaning: Regularly remove lint and dust from the walking foot, especially around the feed dogs and moving parts, using a small brush or lint roller.
• Storage: Store the walking foot in a dry, clean place when not in use to prevent dust accumulation and potential corrosion.
• Inspection: Periodically inspect the foot for any signs of wear or damage. If any parts appear broken or worn, consider replacement.

Troubleshooting

If you encounter issues while using the walking foot, consider the following:

• Uneven Fabric Feed: Ensure the walking foot is securely attached and the fork arm is correctly positioned over the needle clamp screw. Check that the machine's feed dogs are engaged.
• Needle Hitting Foot: Re-check the installation steps, particularly step 4, to ensure the needle clears the foot's opening. Adjust the foot's position if necessary, or ensure the correct needle size is being used for the fabric.
• Excessive Noise: A slight clicking sound is normal due to the walking mechanism. However, if the noise is excessive, ensure all screws are tight and the foot is clean and free of obstructions.
• Fabric Still Slipping/Puckering: While the walking foot significantly reduces these issues, extremely delicate or thick fabrics may still require careful handling. Ensure proper tension settings on your machine and consider using a longer stitch length.
