1. Product Overview
The IXTECH IX-MIC01 is a versatile cardioid dynamic microphone designed for clear and balanced vocal capture. It features both USB and XLR connectivity, making it suitable for a wide range of applications including podcasting, streaming, recording, gaming, and voice-overs. Its robust construction ensures lasting use, while its directional cardioid pattern helps reduce unwanted ambient noise.

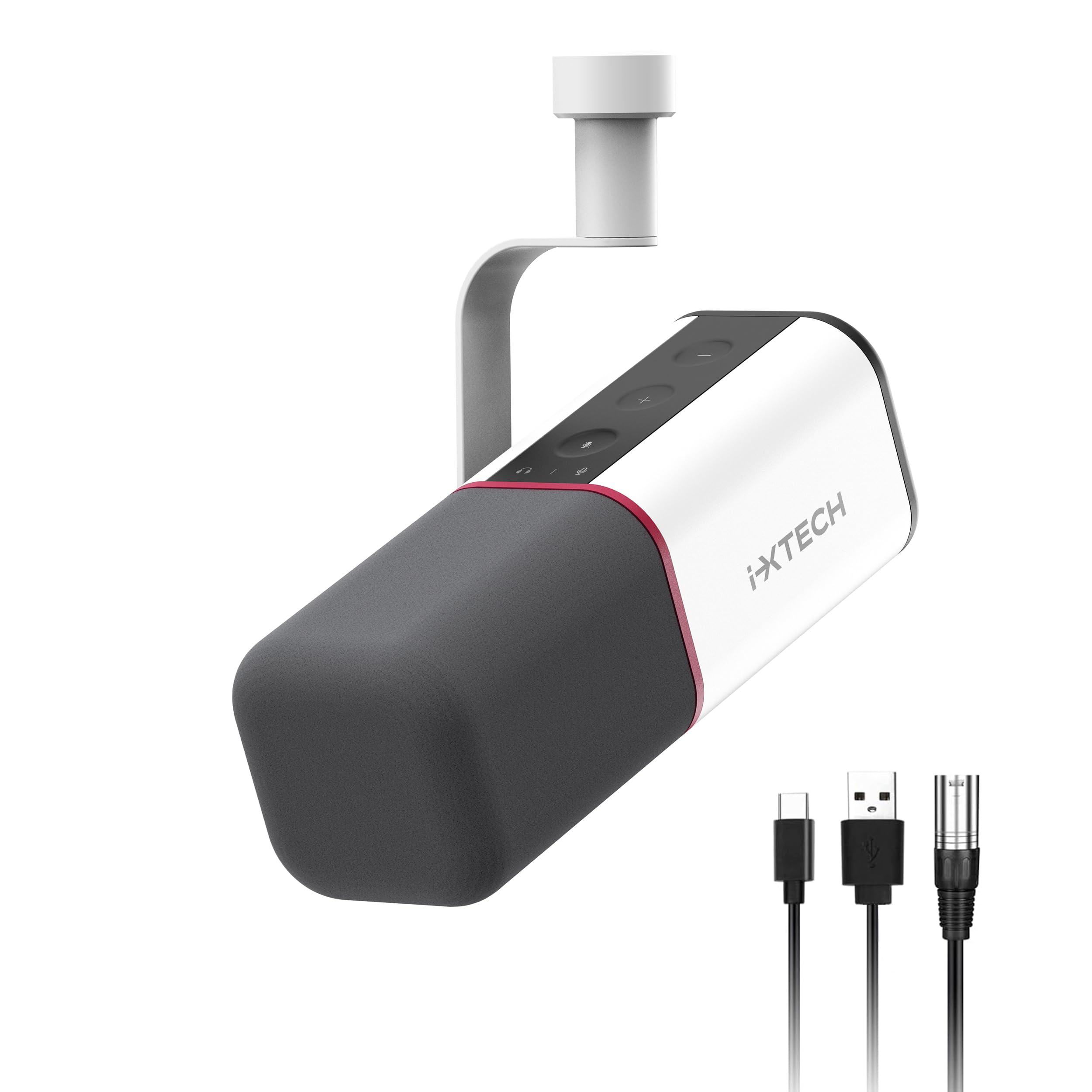

Figure 1: IXTECH IX-MIC01 Cardioid Dynamic USB XLR Microphone.
What's in the Box
- IXTECH IX-MIC01 Dynamic Microphone (x1)
- USB Cable (x1)
- XLR Audio Cable (x1)
- User Manual (x1)
Figure 2: Package contents of the IXTECH IX-MIC01 microphone.
2. Setup Instructions
Connecting the Microphone
The IXTECH IX-MIC01 offers flexible connectivity options:
- USB Connection: For direct connection to a computer (Windows, macOS), PS4/PS5, or compatible mobile devices. Use the provided USB cable. This is a plug-and-play connection.
- XLR Connection: For connecting to audio interfaces, mixers, or sound cards. Use the provided XLR audio cable. This allows for integration into professional audio setups.
Figure 3: USB and XLR connectivity options.
Mounting the Microphone
The microphone is designed for easy mounting on various stands or boom arms. It features a standard 5/8" screw thread for compatibility.
Figure 4: Easy mounting with 5/8" screw thread.
Initial Power-Up
Once connected via USB or XLR, the microphone should power on automatically. The integrated LED indicators will illuminate, confirming power and operational status.
Video 1: Overview of the IXTECH Cardioid Dynamic Microphone, demonstrating its features and setup.
3. Operating Instructions
Controls and Indicators
The IXTECH IX-MIC01 features intuitive controls for ease of use:
- Volume Up/Down: Adjusts the microphone's input gain or headphone monitoring volume.
- Mute/Unmute Button: Toggles the microphone's audio output.
- Headphone Jack: Allows for real-time monitoring of your audio.
- Mode Switch: Long press to switch between microphone volume control and headphone volume control.
Figure 5: Easy control features of the microphone.
Usage Scenarios
This microphone is optimized for various applications:
- Podcasting: Capture clear and natural vocals for your podcast episodes.
- Streaming: Enhance your live streams with high-quality audio.
- Recording: Ideal for studio recording, capturing detailed audio.
- Gaming: Communicate clearly with teammates and enhance in-game audio.
- Voice-Over: Produce professional voice-overs with balanced sound.
Video 2: Demonstration of the IXTECH Dynamic Microphone for podcasting and vocal use.
4. Maintenance
To ensure the longevity and optimal performance of your IXTECH IX-MIC01 microphone, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe the microphone body. Do not use liquid cleaners or solvents.
- Mic Cover: The included mic cover helps protect the capsule from dust and plosives. It can be gently removed and cleaned if necessary.
- Storage: Store the microphone in a dry, dust-free environment when not in use.
- Handling: Avoid dropping or subjecting the microphone to harsh impacts, as this can damage internal components.
5. Troubleshooting
Common Issues and Solutions
- No Sound Output:
- Ensure the microphone is properly connected via USB or XLR.
- Check if the microphone is muted (LED indicator).
- Verify input settings on your computer, mixer, or audio interface.
- For XLR, ensure phantom power is supplied if required by your setup (though this is a dynamic mic, some interfaces might default to phantom power).
- Poor Audio Quality / Background Noise:
- Ensure you are speaking directly into the front of the microphone, utilizing its cardioid pickup pattern.
- Adjust the microphone's gain settings to an appropriate level (avoiding clipping or excessively low levels).
- Use the included mic cover to reduce plosives and some ambient noise.
- Minimize external noise sources in your recording environment.
- Microphone Not Recognized by Computer:
- Try connecting to a different USB port.
- Restart your computer.
- Ensure your operating system drivers are up to date.
6. Specifications
| Feature | Specification |
|---|---|
| Model Name | IX-MIC01 WHITE |
| Microphone Form Factor | Built-in |
| Polar Pattern | Unidirectional (Cardioid) |
| Connectivity Technology | USB, XLR |
| Frequency Response | 40.16 Hz (20Hz-20KHz range mentioned in features) |
| Impedance | 350 Ohms |
| Signal-to-Noise Ratio | 105 dB |
| Item Weight | 1.76 pounds (0.8 Kilograms) |
| Material | ABS Plastic, Metal, Sturdy Material |
| Compatible Devices | Digital Receiver, Laptop, MacOS, Personal Computer, Windows |
7. Warranty and Support
Warranty Information
For specific warranty details and terms, please refer to the official IXTECH website or contact customer support. Optional protection plans may be available for extended coverage.
Customer Support
If you encounter any issues or have questions regarding your IXTECH IX-MIC01 microphone, please visit the IXTECH Store on Amazon or contact their customer service for assistance.
For returns, please adhere to the retailer's return policy, typically 30 days for refunds/replacements.
