1. Product Overview
The Bosch Climate 2000 CL2000 is a high-efficiency monosplit air conditioning system designed for optimal climate control in residential and commercial spaces. It features both cooling and heating capabilities, operating as a heat pump, and boasts an energy efficiency rating of A++/A+.
This system includes an indoor unit, an outdoor unit, and a remote control for convenient operation. It utilizes R32 refrigerant, known for its lower environmental impact.
Figure 1.1: Complete Bosch Climate 2000 CL2000 system including indoor unit, outdoor unit, and remote control.
Key Features:
- 12000 BTU/h Capacity: Provides efficient cooling and heating for medium-sized rooms.
- Inverter Technology: Ensures precise temperature control and energy savings.
- Heat Pump Functionality: Offers year-round comfort with both cooling and heating modes.
- High Energy Efficiency: Rated A++/A+ for reduced energy consumption.
- R32 Refrigerant: Environmentally conscious refrigerant.
- Remote Control: Intuitive control for all functions.
2. Components
The Bosch Climate 2000 CL2000 system consists of the following main components:
2.1 Indoor Unit
Figure 2.1: Bosch Climate 2000 CL2000 Indoor Unit.
The indoor unit is responsible for circulating conditioned air within the room. It houses the evaporator coil, fan, and air filters. Its sleek design integrates seamlessly into various interior decors.
2.2 Outdoor Unit
Figure 2.2: Bosch Climate 2000 CL2000 Outdoor Unit.
The outdoor unit contains the compressor, condenser coil, and expansion valve. It is responsible for releasing or absorbing heat from the outside environment, depending on the operating mode (cooling or heating).
2.3 Remote Control

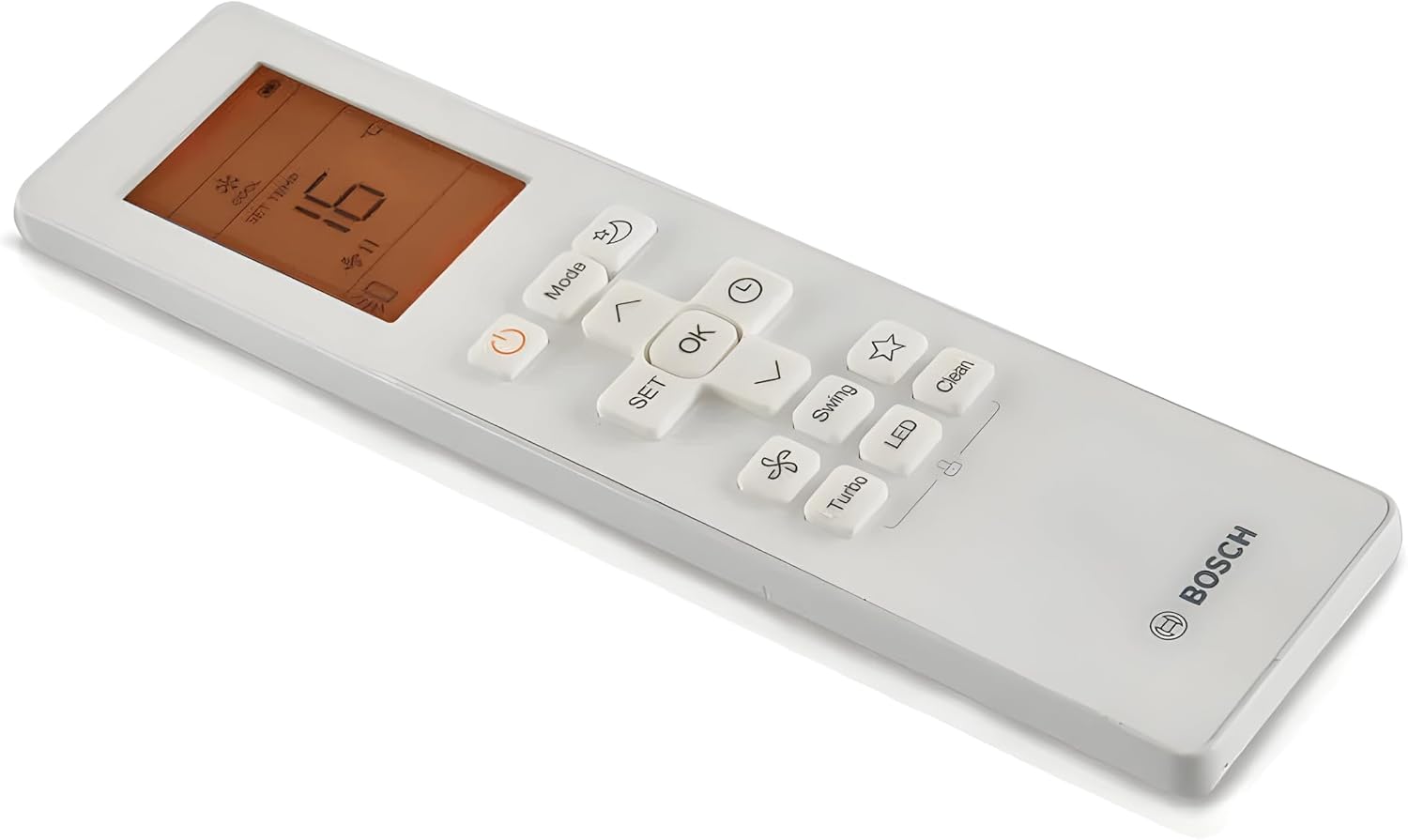

Figure 2.3: Bosch Climate 2000 CL2000 Remote Control.
The wireless remote control allows users to easily adjust settings such as operating mode, temperature, fan speed, and timer functions from a distance.
3. Setup and Installation
Installation of the Bosch Climate 2000 CL2000 system requires specialized knowledge and tools due to the handling of refrigerants and electrical connections. It is strongly recommended that installation be performed by a qualified and certified HVAC professional.
- Site Selection: Ensure proper placement of both indoor and outdoor units for optimal performance and airflow, adhering to local regulations and manufacturer guidelines.
- Electrical Connection: The system requires a dedicated power supply. All electrical work must comply with local electrical codes.
- Refrigerant Piping: Proper evacuation and charging of the refrigerant lines are critical for system efficiency and longevity.
- Drainage: Ensure proper condensate drainage from the indoor unit to prevent water damage.
- Initial Check: After installation, a professional will perform a series of checks to ensure correct operation and leak-free connections.
Refer to the detailed installation manual provided to your HVAC professional for specific instructions and safety precautions.
4. Operating Instructions
The Bosch Climate 2000 CL2000 system is operated primarily via its wireless remote control. Ensure the remote control has fresh batteries (AAA type, not included).
4.1 Basic Operation Modes
- Cool Mode (*): For cooling the room. Set desired temperature.
- Heat Mode (☀): For heating the room. Set desired temperature.
- Fan Mode (☰): Circulates air without cooling or heating. Fan speed can be adjusted.
- Dry Mode (☁): Reduces humidity in the room.
- Auto Mode: The unit automatically selects the operating mode (cool, heat, or fan) based on the room temperature and your set temperature.
4.2 Remote Control Functions
Familiarize yourself with the buttons on the remote control:
Figure 4.1: Layout of the Bosch Climate 2000 CL2000 Remote Control.
| Button | Function |
|---|---|
| Power (⏻) | Turns the unit ON or OFF. |
| Mode | Cycles through operating modes: Auto, Cool, Dry, Heat, Fan. |
| Temp ▲/▼ | Adjusts the desired temperature setting. |
| Fan | Adjusts fan speed (Auto, Low, Medium, High). |
| Swing | Controls the vertical airflow direction (louver swing). |
| Timer | Sets the ON/OFF timer for automatic operation. |
| Sleep | Activates sleep mode for quiet operation and energy saving during sleep. |
| Turbo | Provides rapid cooling or heating to reach the desired temperature quickly. |
| LED | Turns the display light on the indoor unit ON or OFF. |
| Clean | Activates the self-cleaning function for the indoor unit. |
5. Maintenance
Regular maintenance ensures optimal performance, energy efficiency, and longevity of your Bosch Climate 2000 CL2000 system. Always turn off the power to the unit before performing any maintenance.
- Air Filter Cleaning (Every 2-4 Weeks):
- Open the front panel of the indoor unit.
- Remove the air filters.
- Clean filters with a vacuum cleaner or wash with lukewarm water and mild detergent.
- Allow filters to dry completely before reinserting.
- Indoor Unit Surface Cleaning (Monthly): Wipe the surface of the indoor unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Outdoor Unit Cleaning (Annually or Bi-annually):
- Clear any debris (leaves, dirt) from around the outdoor unit.
- Gently clean the outdoor coil fins with a soft brush or water hose (low pressure). Avoid bending the fins.
- Professional Inspection (Annually): It is highly recommended to have a qualified HVAC technician inspect and service your system annually. This includes checking refrigerant levels, electrical connections, and overall system performance.
6. Troubleshooting
Before contacting customer support, please refer to the following table for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, remote control batteries dead, circuit breaker tripped. | Check power supply, replace remote batteries, reset circuit breaker. |
| Insufficient cooling/heating. | Dirty air filters, blocked outdoor unit, wrong mode selected, low refrigerant. | Clean air filters, clear outdoor unit, select correct mode, contact professional for refrigerant check. |
| Unusual noise from unit. | Loose parts, fan obstruction, compressor issue. | Check for loose parts, clear obstructions. If noise persists, contact professional. |
| Water leaking from indoor unit. | Clogged drain pipe, improper installation. | Check and clear drain pipe. If issue persists, contact professional. |
| Remote control not working. | Dead batteries, obstruction, remote out of range. | Replace batteries, ensure no obstruction between remote and unit, operate within range. |
If the problem persists after attempting these solutions, please contact a qualified service technician.
7. Specifications
Below are the key technical specifications for the Bosch Climate 2000 CL2000 system:
| Specification | Value |
|---|---|
| Product Name | Climate 2000 |
| Model Number | CL2000 |
| Cooling Power | 12000 British Thermal Units (3.6 kW Theoretical Cooling Load) |
| Heating Power | 3.8 kW (2.7 kW Average Climate Theoretical Heating Load) |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating) | A+ (Average Climate) |
| SEER (Seasonal Energy Efficiency Ratio) | 6.1 |
| SCOP (Seasonal Coefficient of Performance) | 4 (Average Climate) |
| Refrigerant Type | R32 |
| Refrigerant Filling Quantity | 0.55 kg |
| GWP of Refrigerant | 675 kgCO2eq |
| CO2 Equivalent | 0.371 tCO2eq |
| Sound Power Level Indoor (Cooling) | 5 dB |
| Sound Power Level Outdoor (Cooling/Heating) | 63 dB |
| Nominal Air Flow Rate (Indoor) | 540 m³/h |
| Nominal Air Flow Rate (Outdoor) | 1800 m³/h |
| Voltage | 230 Volts (AC) |
| Wattage | 3516.42 watts |
| Control Method | Remote |
| Indoor Unit Dimensions (W x H x D) | 805 mm x 285 mm x 194 mm |
| Outdoor Unit Dimensions (W x H x D) | 720 mm x 495 mm x 270 mm |
| Max. Operating Temperature (Cooling) | 50 °C |
| Min. Operating Temperature (Cooling) | -15 °C |
| Max. Operating Temperature (Heating) | 24 °C |
| Min. Operating Temperature (Heating) | 0 °C |
8. Safety Information
Please read and adhere to the following safety precautions to prevent injury, property damage, and ensure safe operation of your air conditioning system:
- Professional Installation: As mentioned, installation must be performed by a qualified technician.
- Power Disconnection: Always disconnect power to the unit before cleaning, maintenance, or any service work.
- Electrical Safety: Do not operate the unit with wet hands. Do not pull the power cord to disconnect.
- Refrigerant Handling: Refrigerant is a hazardous substance. Only authorized personnel should handle refrigerant.
- Ventilation: Ensure adequate ventilation around the outdoor unit. Do not block air inlets or outlets.
- Children and Pets: Keep children and pets away from the outdoor unit and ensure they do not play with the remote control.
- No Obstructions: Do not insert objects into the air outlets or inlets of either unit.
- Flammable Materials: Do not place flammable materials or spray aerosols near the unit.
- Abnormal Operation: If you notice unusual smells, sounds, or smoke, immediately turn off the unit and disconnect power. Contact a service professional.
9. Warranty and Support
Bosch products are manufactured to high standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Bosch website.
For technical support, service requests, or to find an authorized service center, please contact Bosch customer service. Contact information can typically be found on the Bosch website or in the product packaging.
Online Resources: For additional information, FAQs, and product registration, visit the official Bosch website: www.bosch-home.com
