1. Safety Information
Please read and understand all instructions before assembling and operating this umbrella. Failure to follow these instructions may result in injury or property damage.
- Always ensure the umbrella base is properly filled with sand (55 lbs) and water (50 lbs) to maintain stability.
- Close the umbrella during strong winds, heavy rain, or other severe weather conditions to prevent damage or injury.
- Do not attempt to use the umbrella as a shelter during thunderstorms.
- Keep children and pets away from the umbrella during operation to avoid accidents.
- Regularly inspect all components for wear and tear. Replace damaged parts immediately.
2. Package Contents
Verify that all components are present before beginning assembly:
- Umbrella Canopy and Frame Assembly
- Aluminum Pole
- Weighted Base (High-density plastic)
- Hardware Pack (Screws, bolts, tools)

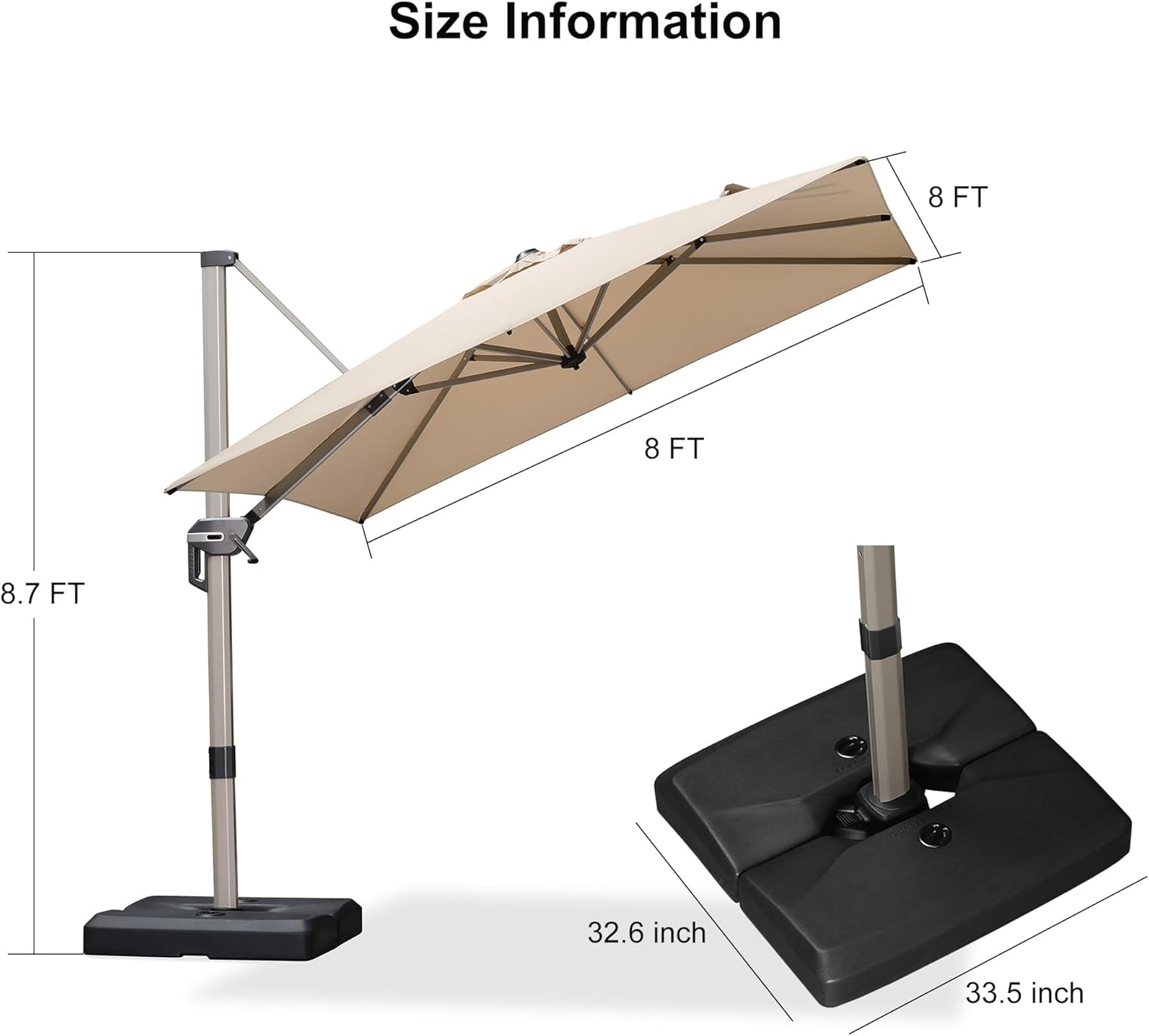

Figure 2.1: Overview of umbrella components and size information.
3. Assembly Instructions
Follow these steps to assemble your PURPLE LEAF Cantilever Umbrella:
- Prepare the Base: Place the high-density plastic base in the desired location. Fill the base with approximately 55 pounds of sand and 50 pounds of water for optimal stability. Ensure the caps are securely fastened.
- Attach the Pole: Secure the aluminum pole to the filled base using the provided hardware. Tighten all screws firmly.
- Mount the Umbrella Frame: Carefully attach the umbrella canopy and frame assembly to the top of the pole. Ensure all connections are secure. The top cap uses cast aluminum material and is tightened with screws to increase stability.
Figure 3.1: Umbrella base and pole setup.
Figure 3.2: The luxury champagne aluminum pole, featuring durable aluminum frame, anti-rust spraying paint, and champagne powder coating for easy maintenance.
Assembly Video Guide:
Video 3.1: Demonstrates the assembly and basic operation of the PURPLE LEAF Square Cantilever Umbrella, including opening, closing, and height adjustments.
4. Operating Instructions
Your cantilever umbrella offers versatile adjustments for optimal shade:
- Opening and Closing: Use the unique handle design to easily open and close the umbrella. Rotate the crank to extend or retract the canopy.
- Height and Tilt Adjustment: The umbrella features a 5-height adjustable tilt operating system. Use the handle to adjust the canopy's angle to block the sun throughout the day.
- 360° Rotation: Step on the foot pedal located at the base to unlock the rotation mechanism. This allows the umbrella to be rotated horizontally 360° to follow the sun's movement. Release the pedal to lock the position.
Figure 4.1: The sleek handle design with an aluminum champagne finish for modern look and easy operation.
Figure 4.2: The umbrella's 360° rotation feature allows for continuous shade throughout the day.
Operation Video Guides:
Video 4.1: Demonstrates the 360-degree rotation feature of the PURPLE LEAF Patio Umbrella.
Video 4.2: Shows the left-right tilting mechanism of the Purple Leaf Patio Umbrella.
5. Maintenance
Proper maintenance will extend the life of your umbrella:
- Cleaning: Clean the canopy and frame with mild detergent and water. Avoid harsh chemicals that may damage the fabric or finish. Rinse thoroughly and dry completely before storing.
- Storage: When not in use for extended periods, especially during off-season or severe weather, close the umbrella and secure it with the provided strap. Consider using an umbrella cover for added protection.
- Inspection: Periodically check all bolts, screws, and moving parts to ensure they are tight and functioning correctly.
Figure 5.1: The canopy is made of high-quality 240/gsm yarn-dyed polyester fabric, offering 50UV sun protection and fade resistance.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Umbrella is unstable or wobbles. | Base not adequately weighted. | Ensure the base is fully filled with sand (55 lbs) and water (50 lbs). |
| Umbrella difficult to open/close. | Mechanism may be stiff or obstructed. | Check for any obstructions. Apply a silicone-based lubricant to moving parts if necessary. |
| 360° rotation is not working. | Foot pedal not fully engaged or released. | Ensure the foot pedal is pressed down to unlock rotation, and released to lock. Check for debris around the pedal mechanism. |
7. Specifications
- Brand: PURPLE LEAF
- Size: 8' x 8'
- Color: Beige
- Canopy Material: 240/gsm Yarn-dyed Polyester Fabric (50UV sun protection)
- Frame Material: All-aluminum bones (Champagne-colored anti-oxidant spray paint)
- Base: High-density plastic, fillable with sand (55 lbs) and water (50 lbs)
- Special Features: 360° Rotation (foot pedal), 5-Height Adjustable Tilt
- Wind Resistance: Withstands up to 25MPH winds
Figure 7.1: The durable aluminum bone structure provides wind-proof and rust-resistant qualities for long-term use.
8. Warranty and Support
PURPLE LEAF is committed to customer satisfaction. If you have any after-sales questions, concerns, or require assistance with your product, please contact our customer service team. Refer to your purchase documentation for specific warranty details and contact information.
