1. Introduction
This manual provides detailed instructions for the safe and effective use of your Hbealifee 3-in-1 40K RF Cavitation Body Sculpting Machine, Model 2IN1. Please read this manual thoroughly before operating the device and retain it for future reference.
The device is designed for skin rejuvenation and body contouring through 40KHz ultrasonic cavitation and radiofrequency (RF) technology. It aims to assist in fat reduction and skin tightening.
Image 1.1: Overview of the Hbealifee 3-in-1 40K Cavitation Vacuum Body Sculpting Machine.
Image 1.2: Illustrates various application areas for the device, including face, back, abdomen, arms, hips, and legs.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing injury and ensuring proper device function.
2.1 General Safety Precautions
- Do not use the device on sensitive skin areas, open wounds, or areas with skin conditions.
- Consult a physician before use if you have any medical conditions, including but not limited to heart disease, pregnancy, epilepsy, or metal implants.
- Keep the device out of reach of children.
- Ensure the power supply matches the device's requirements.
- Do not immerse the device or its probes in water.
- Discontinue use immediately if you experience discomfort or adverse reactions.
- Always use the device with a conductive gel or serum as instructed.
2.2 Contraindications
The device should not be used by individuals with:
- Pregnancy or lactation.
- Heart disease, pacemakers, or other electronic implants.
- Epilepsy or severe neurological disorders.
- Cancer or a history of cancer.
- Skin infections, open wounds, or severe dermatological conditions in the treatment area.
- Metal implants in the treatment area (for RF treatments).
- Severe diabetes or other chronic diseases.
3. Product Overview
The Hbealifee 3-in-1 Body Sculpting Machine combines 40KHz Cavitation and Radio Frequency (RF) technologies for various aesthetic treatments. It includes a main unit and three interchangeable treatment probes.
3.1 Components
- Main Machine: Central control unit with a display screen.
- Cavitation 40K Probe: For ultrasonic cavitation treatments.
- Tripolar RF Probe: For facial and smaller area RF treatments.
- Multipolar RF Probe: For body and larger area RF treatments.
- Power Plug: For connecting the device to an electrical outlet.
- Main Machine Base: Provides stability for the main unit.
- Manual: This instruction guide.
- Electrode accessories: Fuses.
Image 3.1: The Hbealifee 3-in-1 machine with its main unit and three probes.
Image 3.2: All accessories included with the device, showing the main unit, base, three probes, power cable, and fuses.
3.2 Probe Details
Image 3.3: Cavitation 40K Probe
Image 3.4: Multipolar RF Probe
Image 3.5: Tripolar RF Probe
Image 3.6: Detailed view of the Multipolar RF and Tripolar RF probes, showing their electrode configurations and integrated red light indicators.
4. Setup
Follow these steps to set up your Hbealifee Body Sculpting Machine:
- Unpack all components and verify against the components list in Section 3.1.
- Place the main machine unit on a stable, flat surface.
- Attach the main machine base to the main unit for stability.
- Connect the desired treatment probe (Cavitation 40K, Tripolar RF, or Multipolar RF) to the corresponding port on the main unit. Ensure a secure connection.
- Insert the power plug into the power input port on the main unit, then plug the other end into a suitable electrical outlet.
- Ensure the device is switched off before connecting or disconnecting any probes or the power cable.
5. Operating Instructions
Before starting any treatment, ensure the skin is clean and apply a generous amount of conductive gel or serum to the treatment area. This is essential for effective and safe operation.
Image 5.1: Cleanse skin thoroughly.
Image 5.2: Apply conductive gel.
5.1 General Operation Steps
- Power on the device using the main power switch.
- The display screen will illuminate. Select the desired treatment mode (Cavitation 40K, Tripolar RF, or Multipolar RF) from the menu.
- Adjust the intensity level and treatment time according to your comfort and the specific treatment area. Start with lower intensity and gradually increase.
- Apply the chosen probe to the prepared skin area.
- Move the probe in slow, circular, or linear motions over the treatment area.
- Monitor skin temperature and user comfort throughout the session.
- After the session, power off the device and clean the probe.
5.2 Cavitation 40K Treatment
The 40KHz Cavitation probe uses ultrasonic waves to target adipose tissue. This process helps to break down fat cells, which are then naturally processed by the body.
- Probe: Cavitation 40K (Image 3.3)
- Application Areas: Arms, abdomen, waist, thighs, buttocks.
- Duration: Typically 20-30 minutes per area.
- Technique: Apply firm pressure and move the probe in slow, circular motions. Ensure continuous contact with the skin.
- Note: A slight buzzing sound may be heard during cavitation, which is normal.
Image 5.3: The 40KHz ultrasound probe in action, illustrating its mechanism of penetrating adipose tissue.
Image 5.4: Demonstrates the application of Cavitation 40K on the abdomen and thigh.
Image 5.5: Cavitation treatment applied to the back area.
5.3 Radio Frequency (RF) Treatment
RF technology uses controlled heat to stimulate collagen production, leading to skin tightening and improved elasticity.
5.3.1 Multipolar RF Treatment
- Probe: Multipolar RF (Image 3.4)
- Application Areas: Body areas such as abdomen, thighs, arms, and buttocks.
- Duration: Typically 15-20 minutes per area.
- Technique: Move the probe in continuous, slow, circular motions. Ensure the skin feels warm but not uncomfortably hot.
Image 5.6: Multipolar RF treatment applied to the back area.
5.3.2 Tripolar RF Treatment
- Probe: Tripolar RF (Image 3.5)
- Application Areas: Face, neck, and smaller delicate areas.
- Duration: Typically 10-15 minutes per area.
- Technique: Use gentle, continuous circular or upward lifting motions. Maintain constant movement to prevent overheating.
Image 5.7: Tripolar RF treatment applied to the face.
5.4 Post-Treatment Care
- After each session, gently wipe off any remaining gel from the treated area and the probe.
- Consider applying a moisturizing lotion or cream to the treated skin.
- Stay hydrated by drinking plenty of water.
Image 5.8: Post-treatment massage or application of soothing cream.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your device.
6.1 Cleaning
- After each use, wipe the probes and the main unit with a soft, damp cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals.
- Ensure the device is unplugged before cleaning.
- Allow all components to dry completely before storage.
6.2 Storage
- Store the device in a cool, dry place, away from direct sunlight and extreme temperatures.
- Keep the device and its accessories in their original packaging or a protective case to prevent damage.
7. Troubleshooting
If you encounter any issues with your device, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Power cable not connected properly; Power outlet malfunction; Device fuse blown. | Check power cable connection; Try a different outlet; Check and replace fuse if necessary (refer to electrode accessories). |
| No sensation or weak effect during treatment. | Insufficient conductive gel; Probe not making full contact with skin; Intensity setting too low; Probe not connected securely. | Apply more conductive gel; Ensure full contact; Increase intensity gradually; Reconnect probe securely. |
| Skin feels too hot during RF treatment. | Probe held stationary; Intensity setting too high. | Keep the probe moving continuously; Reduce intensity setting. |
| Display screen is blank or unresponsive. | Software glitch; Power issue. | Power off and restart the device; If problem persists, contact customer support. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
Technical specifications for the Hbealifee 3-in-1 40K RF Cavitation Body Sculpting Machine, Model 2IN1.
| Feature | Detail |
|---|---|
| Model | 2IN1 (LW101) |
| Brand | Hbealifee |
| Manufacturer | Binlin Technology |
| Function | 40K Cavitation + Multipolar RF + Tripolar RF |
| Cavitation Frequency | 40KHz |
| RF Output Frequency | 5MHz |
| Power | 50W |
| Screen Size | 4.3 inches |
| Material | ABS |
| Item Weight | 2 Kilograms |
| Color | Silver |
| Mechanical Size | 130*133*190mm (approx. 5 x 5.2 x 7.4 inches) |

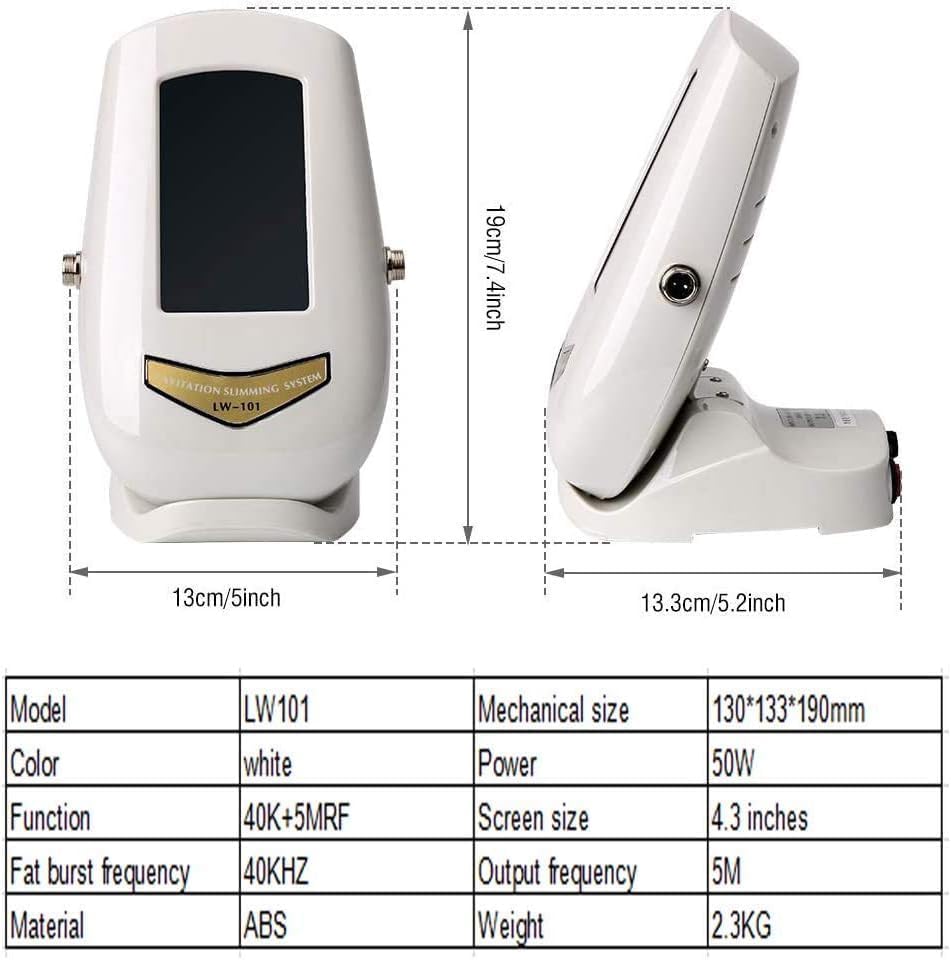

Image 8.1: Device dimensions and a table of specifications.
Image 8.2: Alternative view of device dimensions.
9. Warranty and Support
For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. The product is manufactured by Binlin Technology.
For further assistance, please contact your retailer or the manufacturer's customer service department.
