KOTEK PI-FP10562 Portable Washing Machine Instruction Manual

Important Safety Instructions

Please read all instructions carefully before using the appliance and retain for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Safety: Ensure the washing machine is properly grounded. Do not operate with a damaged power cord or plug.
• Water Temperature: Do not connect the machine to a hot water source that exceeds 50°C (122°F).
• Child Safety: Always activate the child lock function to prevent accidental operation by children.
• Placement: Place the washing machine on a firm, level, and stable surface to prevent vibration and noise during operation.
• Overloading: Do not exceed the maximum load capacity of 12 lbs to ensure efficient washing and prevent damage to the machine.
• Ventilation: Ensure adequate ventilation around the machine.

Product Overview

Key Features

• Versatile Wash Cycles: Features 10 wash cycles and 8 water levels to accommodate various fabric types and soil levels.
• Large Capacity: 1.34 Cu.ft (12 lbs) capacity allows for washing more clothes in a single cycle.
• Customizable Programs: Adjust load size, wash time, rinse time, and spin time for personalized laundry care.
• Transparent Lid: A clear lid allows for real-time monitoring of the washing process.
• Imbalance Adjustment: Automatically adjusts to correct unbalanced loads, reducing noise and vibration.
• Compact Design: Space-saving dimensions (19.7" x 19.8" x 33.6") make it ideal for small living spaces.
• User-Friendly Controls: Easy-to-use control panel with an LED display for clear operation.
• Child Lock: Enhances safety by preventing unintended changes to settings during operation.
• Built-in Drain Pump: Facilitates automatic water expulsion after each wash cycle.

Components Included

• 1x KOTEK Portable Washing Machine
• 1x Drain Hose
• 1x Inlet Hose
• 1x Instruction Manual

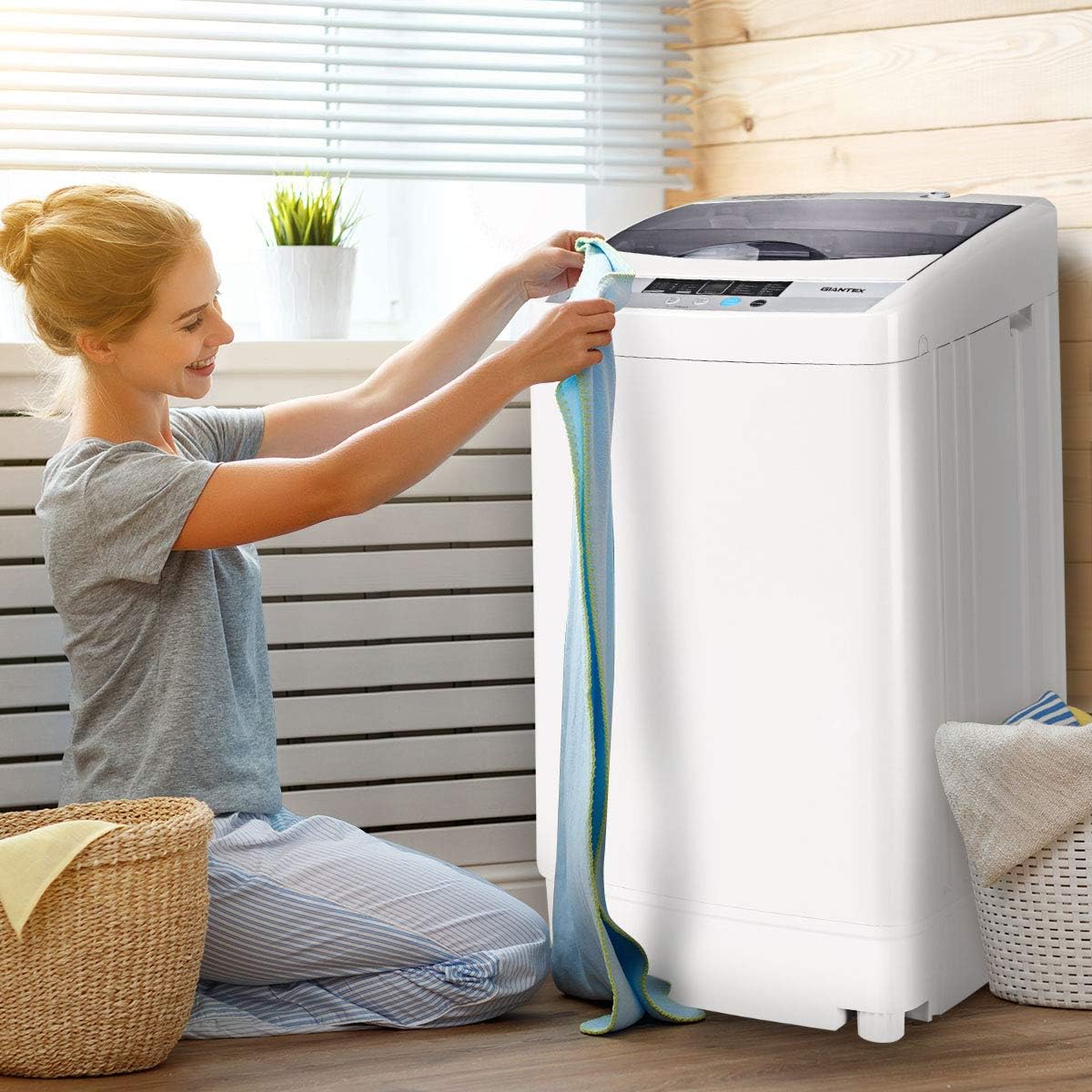

Figure 1: Overall view of the KOTEK Portable Washing Machine, showcasing its compact design suitable for various living spaces.

Figure 2: Illustration of the 12 lbs capacity, demonstrating its ability to handle daily laundry needs including underwear, t-shirts, trousers, and bedding.

Figure 3: Close-up of the intuitive control panel with 10 wash programs, 8 water levels, LED display, and time setting options.

Figure 4: Diagram highlighting key components such as the clear lid, stainless steel inner tub, control panel, and adjustable feet.

Figure 5: Visual representation showing the washing machine's compact size makes it ideal for dorms, apartments, houses, and RV camping.

Figure 6: Detailed view of the side handles for easy moving, the lint collection box for debris removal, and the special interior design for fabric protection.

Figure 7: Image illustrating the child lock feature, ensuring safe operation around children.

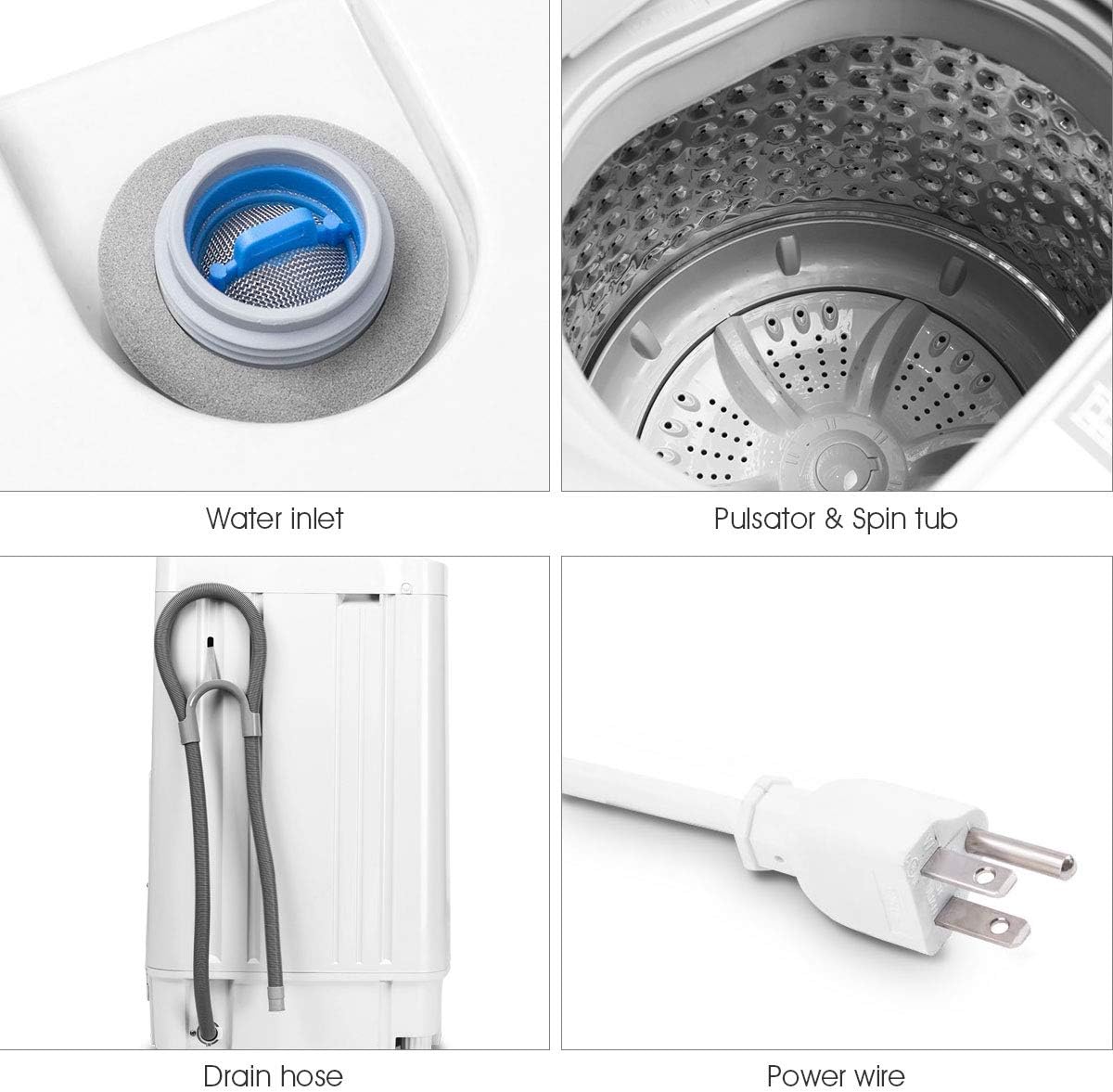

Figure 8: Close-up views of the water inlet, pulsator & spin tub, drain hose, and power wire connections.

Setup and Installation

1. Unpacking

• Carefully remove the washing machine from its packaging.
• Remove all internal packing materials, including any foam or cardboard inserts from the drum.
• Inspect the machine for any signs of damage. If damaged, do not proceed with installation and contact customer support.

2. Connecting the Water Inlet Hose

• Locate the water inlet connection point on the back of the washing machine.
• Attach the L-shaped end of the provided inlet hose to the machine's water inlet. Hand-tighten securely to prevent leaks.
• Connect the other end of the inlet hose to a standard water tap. Ensure the tap connection is also tight. If your tap does not have a screw thread, a quick connect adapter (not included) may be required.
• Turn on the water supply and check for any leaks at both connection points.

3. Connecting the Drain Hose

• Attach the corrugated drain hose to the drain outlet on the washing machine.
• Position the free end of the drain hose to direct wastewater into a sink, laundry tub, or a standpipe. Ensure the hose is not kinked, blocked, or submerged in water to allow for proper drainage.

4. Installing the Base Cover

• Gently tilt the washing machine to access its underside.
• Align the base cover with the designated slots or screw holes on the bottom of the machine.
• Secure the base cover using the provided screws or by snapping it firmly into place. This helps protect internal components and reduce noise.

Operating Instructions

1. Loading Laundry

• Open the top lid of the washing machine.
• Place clothes loosely into the stainless steel inner tub. Do not pack clothes tightly, as this can hinder washing performance and damage the machine. Ensure the load does not exceed the 12 lbs capacity.

2. Adding Detergent

• Add the appropriate amount of laundry detergent directly into the tub with the clothes. Refer to your detergent's instructions for recommended quantities based on load size and water hardness.

3. Selecting Wash Programs and Water Levels

• Press the "Power" button to turn on the machine.
• Press the "Program" button repeatedly to cycle through the 10 available wash cycles (e.g., Normal, Standard, Fast, Blanket, Soak&Wash, Wash, Wash&Rinse, Rinse&Spin, Spin, Air Dry). Select the program best suited for your laundry.
• Press the "Water Level" button to choose one of the 8 water levels (23L, 26L, 29L, 33L, 36L, 39L, 42L, 46L) that matches your load size.
• Once your selections are made, press "Start/Pause" to begin the wash cycle.

4. Child Lock Function

• To Activate: With the machine powered on, press and hold the "Water Level" and "Program" buttons simultaneously for a few seconds until "CL" appears on the LED display. This locks the control panel.
• To Deactivate: Repeat the same process (press and hold "Water Level" and "Program" buttons) until "CL" disappears from the display.

Maintenance

1. Cleaning the Lint Filter

• Regularly check and clean the lint filter, typically located inside the tub.
• Remove the filter, open it, and discard any accumulated lint and debris.
• Rinse the filter thoroughly under running water and reinsert it securely into its position.

2. Tub Self-Clean Function

• To maintain hygiene and prevent bacterial buildup, use the "Tub Clean" program periodically.
• Follow the specific instructions for this cycle on your control panel. This program uses water to scour the inner and outer walls of the tub.

Troubleshooting

If you encounter any issues with your KOTEK Portable Washing Machine, please refer to the following common troubleshooting tips. For more detailed solutions, consult the full manual included with your product.

• Machine Not Starting: Ensure the power cord is securely plugged in, the water supply is turned on, the lid is fully closed, and the "Start/Pause" button has been pressed.
• Water Leakage: Check all water inlet and drain hose connections to ensure they are tight and properly sealed. Verify the drain hose is not kinked or blocked.
• Excessive Vibration or Noise: Make sure the washing machine is placed on a level and stable surface. Distribute the laundry evenly inside the tub to balance the load.
• Clothes Not Clean: Confirm that the correct amount of detergent was used, the appropriate water level was selected, and the wash program matches the fabric type and soil level.
• Error Codes: If an error code appears on the LED display, consult the troubleshooting section of your detailed manual for specific explanations and solutions.

Specifications

Technical Specifications

Warranty and Support

Warranty Information

The KOTEK PI-FP10562 Portable Washing Machine comes with a 6-month warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use conditions.

Customer Support

For any questions, technical assistance, or warranty-related inquiries, please contact KOTEK customer service. Refer to the contact information provided in your product packaging or on the official KOTEK website for the most up-to-date support details.
