1. Product Overview
The SERVO 5 Layer Overhead Water Tank 500L is a next-generation water storage solution designed for durability and temperature stability. This tank features a unique 5-layer construction, including a double foam layer, which provides excellent insulation. This advanced layering system helps maintain a stable water temperature regardless of external weather conditions, ensuring your water remains at a more consistent temperature throughout the year.
This product is manufactured by Soni treders and is designed for reliable water storage in various applications.

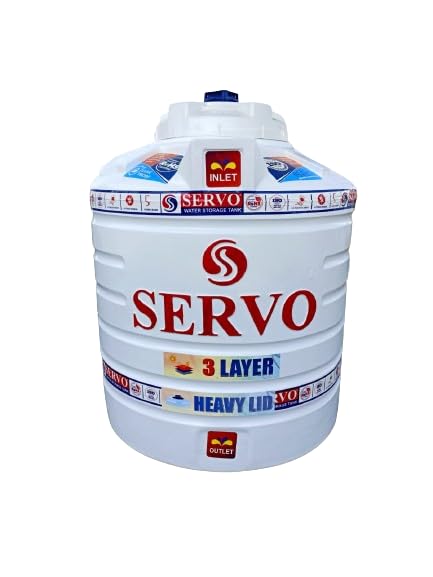

Figure 1: Front view of the SERVO 5 Layer Overhead Water Tank 500L. This image shows the white tank with the 'SERVO' logo, 'INLET' and 'OUTLET' markings, and labels indicating '3 LAYER' and 'HEAVY LID' features.
2. Setup and Installation
The SERVO 5 Layer Overhead Water Tank 500L comes pre-assembled and does not require complex assembly. Proper placement and connection are crucial for optimal performance and longevity.
2.1 Unpacking
- Carefully remove the tank from its packaging.
- Inspect the tank for any signs of damage during transit. If damage is found, contact your supplier immediately.
- Confirm that the package contains the main tank unit as specified: 1 x tank.
2.2 Placement
- Choose a stable, level, and structurally sound surface capable of supporting the full weight of the tank when filled with water (500 liters of water weighs approximately 500 kg, plus the weight of the tank itself).
- Ensure the chosen location allows for easy access for future maintenance and inspection.
- Position the tank to allow for proper connection of inlet and outlet pipes.
2.3 Connections
- Connect the water supply line to the designated INLET port on the tank. Ensure all connections are secure and watertight using appropriate plumbing fittings and sealants.
- Connect the water distribution line to the designated OUTLET port. Again, ensure secure and watertight connections.
- It is recommended to install a shut-off valve on both the inlet and outlet lines for easier maintenance and control.
- Consider installing an overflow pipe to prevent overfilling and potential damage.
3. Operating Instructions
Operating the SERVO 5 Layer Overhead Water Tank 500L is straightforward once properly installed.
- Initial Filling: After all connections are secure, slowly open the inlet valve to begin filling the tank. Monitor the tank for any leaks during the initial filling process.
- Water Level: The tank is designed to be filled to its capacity. Avoid overfilling if an overflow mechanism is not in place.
- Water Usage: Water will be supplied from the outlet port as needed. The tank's design helps maintain water temperature, providing a more consistent supply.
- Monitoring: Periodically check the water level and the integrity of the tank and its connections.
4. Maintenance
Regular maintenance ensures the longevity and hygienic operation of your water tank.
- Cleaning: It is recommended to clean the interior of the tank periodically, typically once every 6-12 months, depending on water quality.
- Drain the tank completely.
- Access the interior (if possible and safe) and scrub the inner surfaces to remove any sediment or biofilm.
- Rinse thoroughly with clean water before refilling.
- Inspection: Regularly inspect the tank for any signs of cracks, leaks, or damage to the tank body or connections. Pay close attention to pipe joints and the lid.
- Lid Security: Ensure the heavy lid is securely in place at all times to prevent contamination and debris from entering the tank.
- Surrounding Area: Keep the area around the tank clean and free of debris to prevent potential damage or pest infestation.
5. Troubleshooting
This section addresses common issues you might encounter with your water tank.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Loose pipe connections, damaged tank body, faulty fittings. | Tighten all pipe connections. Inspect the tank for cracks; if found, professional repair or replacement may be necessary. Replace faulty fittings. |
| Low Water Flow/Pressure | Inlet valve partially closed, blockage in pipes, airlock. | Ensure inlet valve is fully open. Check pipes for blockages. Consult a plumber if an airlock is suspected. |
| Unusual Water Odor/Taste | Sediment buildup, bacterial growth, contaminated water source. | Drain and thoroughly clean the tank (refer to Maintenance section). If the problem persists, check your water source quality. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact a qualified professional or the manufacturer for assistance.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Generic |
| Model Number | S-1213 |
| Capacity | 500 Litres |
| Material | Plastic |
| Layers | 5-layer with Double Foam Layer |
| Shape | Rectangular |
| Item Dimensions (LxWxH) | 50 x 50 x 80 Centimeters |
| Assembly Required | No |
| Manufacturer | Soni treders |
| Date First Available | 19 February 2024 |
7. Warranty and Support
For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact the manufacturer directly. The manufacturer of this product is Soni treders.
For technical support, troubleshooting assistance beyond this manual, or inquiries regarding parts and service, please reach out to your retailer or the manufacturer's customer service department. Always provide your product model number (S-1213) and date of purchase when seeking support.
Note: Keep your purchase receipt as proof of purchase for warranty claims.
