User Manual for Solar PTZ Outdoor Security Camera

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Solar PTZ Outdoor Security Camera. This device is designed for outdoor video surveillance, offering features such as Pan/Tilt/Zoom capabilities, solar power, and connectivity options via 4G SIM card or Wi-Fi.

Figure 1.1: Overview of the Solar PTZ Outdoor Security Camera with integrated solar panel.

2. Setup and Installation

2.1. Battery and Storage Installation

The camera requires six 18650 batteries for operation (not included). Ensure batteries are inserted with correct polarity. For local storage, a Micro SD card (e.g., 64GB or 128GB) can be installed.

Figure 2.1: The camera supports Micro SD card for storage, such as the 64GB card shown.

2.2. Connectivity Options

This camera comes in two main connectivity variants:

• Wi-Fi Camera: Connects exclusively to a Wi-Fi network. Does not support 4G SIM cards.
• 4G Camera: Connects exclusively via a 4G SIM card. Does not support Wi-Fi connectivity.

Ensure you have the correct camera variant for your intended network setup. No household wires or LAN cables are required for either variant.

2.3. Mobile Application Setup

The camera operates with the ICSee APP on Android devices. Download the application from your device's app store and follow the in-app instructions to add and configure your camera.

2.4. Mounting the Camera

The camera is designed for wall mounting. Choose a location that provides optimal sunlight exposure for the solar panel and a clear view of the area to be monitored. Ensure the mounting surface is stable and secure.

Figure 2.2: The camera supports solar energy, allowing flexible installation in various outdoor environments.

3. Operation

3.1. Pan, Tilt, and Zoom (PTZ) Functionality

The camera features Pan/Tilt/Zoom capabilities, allowing you to remotely adjust the viewing angle. It offers approximately 350° pan and 95° tilt for comprehensive coverage.

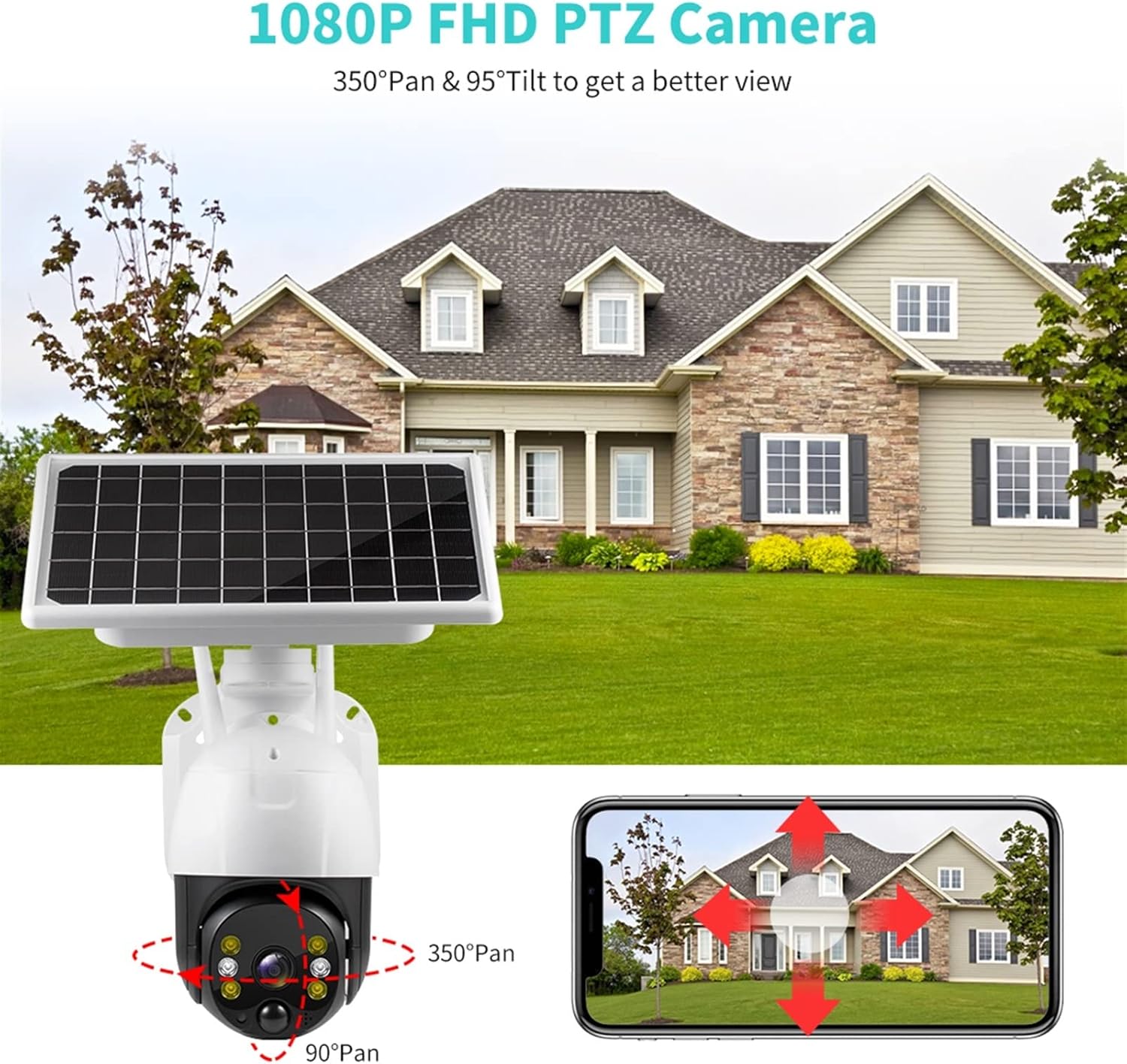

Figure 3.1: The camera's PTZ functionality provides a wide range of motion for monitoring.

3.2. Recording Modes

The camera supports continuous recording, however, it is not recommended due to high power consumption. For optimal battery life and efficiency, motion detection recording is suggested. Configure recording settings within the ICSee APP.

3.3. Power Management

The integrated solar panel provides continuous power, ensuring energy saving and environmental protection. This allows for monitoring and disconnection for up to 365 days under optimal conditions.

4. Maintenance

4.1. Weather Resistance

The camera boasts an IP65 waterproof rating, making it resistant to water, dust, and sun. It is designed to cope with various weather conditions, including rain, snow, and strong sunlight.

Figure 4.1: The IP65 rating ensures the camera's durability in various outdoor elements.

4.2. Cleaning

Periodically clean the solar panel and camera lens with a soft, damp cloth to ensure optimal performance and clear image quality. Avoid using harsh chemicals.

5. Troubleshooting

5.1. Frequently Asked Questions (FAQ)

Q: Does this solar camera include a battery?

A: No, the camera does not include batteries. It requires six 18650 batteries, which must be purchased separately.

Q: Does the solar camera record non-stop?

A: While continuous recording is supported, it is not recommended as it significantly consumes power. Motion detection recording is suggested for better battery life.

Q: What application does it work with on Android?

A: The camera works with the ICSee APP on Android devices.

Q: Is this Solar camera working with both SIM card and Wi-Fi at the same time?

A: No. The Wi-Fi Camera variant only works with Wi-Fi and does not support 4G SIM cards. The 4G Camera variant only works with a 4G network via a SIM card and does not support Wi-Fi connectivity.

Q: What is the solution if the camera does not show the blue light?

A: Please contact customer service for assistance. They will provide a solution promptly.

6. Specifications

Figure 6.1: Approximate dimensions of the Solar PTZ Outdoor Security Camera.

7. Support and Contact

For technical assistance, troubleshooting not covered in this manual, or any other inquiries, please contact the manufacturer's customer service. Refer to your product packaging or purchase documentation for specific contact details.
