Jeimgrso 2440205040
Solenoid 24VDC Instruction Manual
Model: 2440205040 | Brand: Jeimgrso
1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Jeimgrso 24VDC Solenoid, Part Number 2440205040. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and to prevent damage or injury.
2. Product Overview
The Jeimgrso 24VDC Solenoid (Part Number 2440205040) is an electrical component designed for specific applications requiring electromagnetic actuation. This solenoid is compatible with Haulotte H21TX, H23TPX, and H25TPX models. It is crucial to verify both the part number and the compatible models to ensure correct fitment and operation.
Figure 2.1: Front view of the Jeimgrso 24VDC Solenoid, showing the main body and electrical connector.

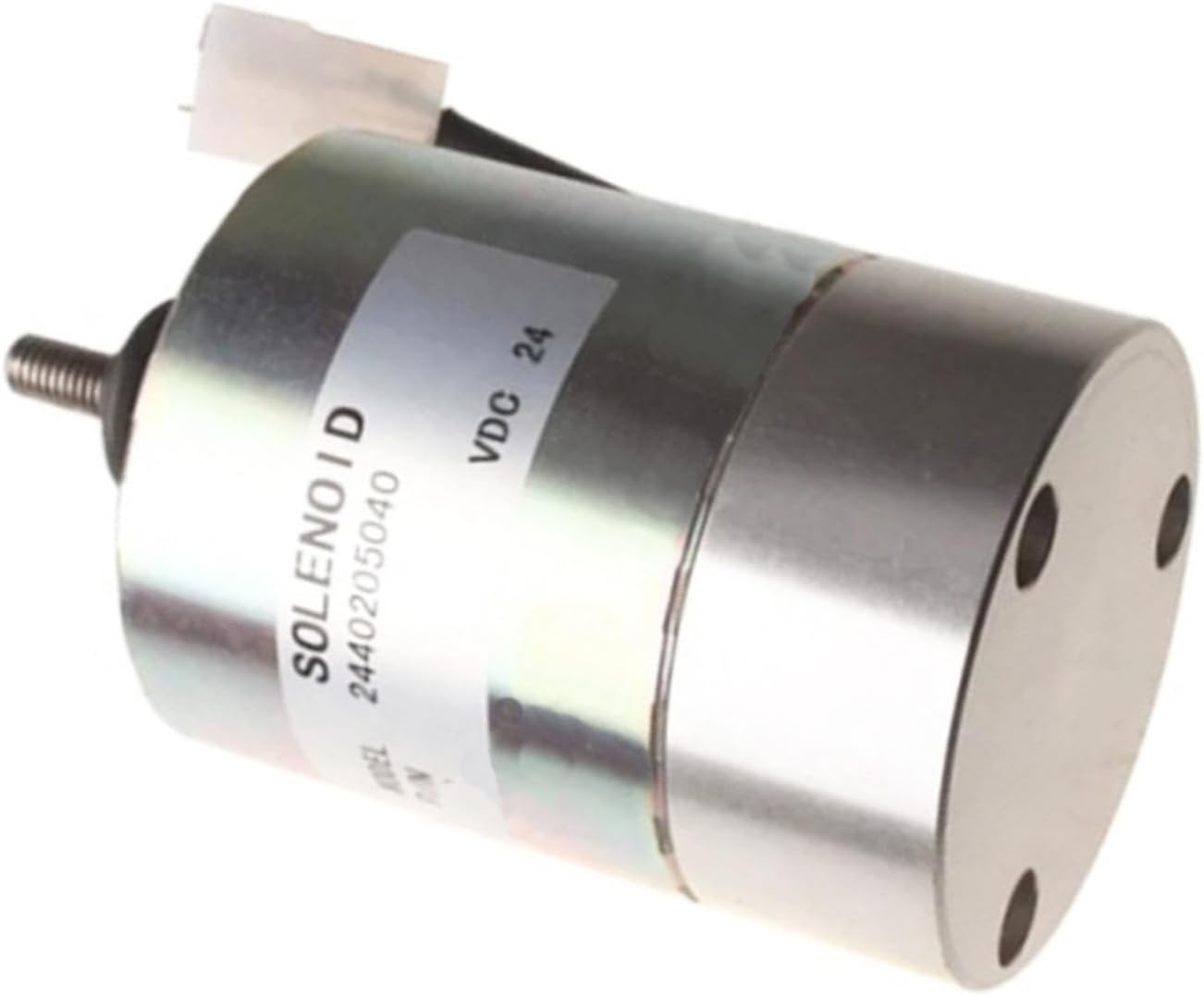

Figure 2.2: Side view of the Jeimgrso 24VDC Solenoid, displaying the "SOLENOID 2440205040" label and "VDC 24" marking.
3. Setup and Installation
Proper installation is critical for the solenoid's performance and longevity. If you are unsure about any step, consult a qualified technician.
3.1 Safety Precautions
- Always disconnect power to the equipment before beginning installation or maintenance.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves.
- Ensure the work area is well-lit and free of obstructions.
- Verify the voltage of the new solenoid matches the system's requirements (24VDC).
3.2 Installation Steps
- Identify the Old Solenoid: Locate the solenoid to be replaced on your Haulotte equipment.
- Disconnect Wiring: Carefully disconnect all electrical wiring from the old solenoid, noting the position of each wire for correct re-connection. Take photos if necessary.
- Remove Old Solenoid: Unbolt or unmount the old solenoid from its position.
- Inspect Mounting Area: Clean the mounting surface and inspect for any damage or corrosion.
- Mount New Solenoid: Position the new Jeimgrso 24VDC Solenoid (Part Number 2440205040) and secure it using appropriate fasteners. Ensure it is firmly mounted and does not wobble.
- Connect Wiring: Reconnect the electrical wiring to the new solenoid according to your previous notes or the equipment's wiring diagram. Ensure all connections are secure and free from corrosion.
- Verify Connections: Double-check all connections for proper polarity and tightness.
- Restore Power: Once installation is complete and verified, restore power to the equipment.
4. Operating Instructions
The solenoid operates as an electromagnetic switch or actuator within the Haulotte equipment. Its operation is typically integrated into the machine's control system.
- When an electrical current (24VDC) is applied to the solenoid's coil, it generates a magnetic field.
- This magnetic field actuates a plunger or armature, which in turn performs a mechanical action (e.g., opening/closing a valve, engaging a starter).
- The solenoid is designed to operate within the specified voltage range (24VDC). Operating outside this range may lead to malfunction or damage.
- Refer to your Haulotte equipment's specific operational manual for details on how the solenoid integrates into its functions.
5. Maintenance
Regular inspection and basic maintenance can extend the life of your solenoid.
- Visual Inspection: Periodically inspect the solenoid for signs of physical damage, corrosion, or loose connections.
- Cleanliness: Keep the solenoid and its connections clean and free from dirt, dust, and moisture. Use a dry, lint-free cloth for cleaning.
- Connection Integrity: Ensure all electrical connections remain tight and secure. Loose connections can lead to intermittent operation or overheating.
- Environmental Protection: While designed for industrial use, protect the solenoid from excessive moisture, extreme temperatures, and corrosive environments where possible.
6. Troubleshooting
If the solenoid is not functioning as expected, consider the following common issues and solutions. Always disconnect power before troubleshooting electrical components.
| Problem | Possible Cause | Solution |
|---|---|---|
| Solenoid does not actuate | No power supply; Incorrect voltage; Loose or corroded wiring; Faulty coil. | Check power source and fuse; Verify 24VDC supply; Inspect and secure all connections; Test coil resistance (consult a professional if unsure). |
| Solenoid hums but does not actuate | Insufficient voltage/current; Mechanical obstruction; Plunger sticking. | Ensure adequate power supply; Check for foreign objects obstructing plunger movement; Clean or lubricate plunger (if accessible and recommended by manufacturer). |
| Solenoid overheats | Continuous duty cycle on intermittent solenoid; Overvoltage; Short circuit in coil. | Ensure solenoid is rated for continuous duty if required; Verify 24VDC supply; Inspect for internal short (replace if necessary). |
If problems persist after attempting these solutions, it may indicate an internal fault with the solenoid, and replacement may be necessary. Always consult a qualified technician for complex electrical issues.
7. Specifications
| Attribute | Value |
|---|---|
| Item Name | Solenoid |
| Part Number | 2440205040 |
| Brand | Jeimgrso |
| Manufacturer | Jeimgrso |
| Voltage | 24 Volts DC |
| Compatibility | Haulotte H21TX, H23TPX, H25TPX |
| Country of Origin | China |
8. Warranty Information
This Jeimgrso Solenoid (Part Number 2440205040) comes with a 6-month warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, accident, neglect, or unauthorized modification.
For warranty claims or inquiries, please retain your proof of purchase and contact the seller or manufacturer directly.
9. Support
For technical assistance, questions regarding installation, or troubleshooting beyond the scope of this manual, please contact the seller or the manufacturer, Jeimgrso. When contacting support, please have your product model number (2440205040) and purchase information readily available.
It is recommended to consult a certified professional for any complex repairs or installations.
