1. Introduction
Thank you for choosing the Kiato 3-in-1 Cordless Window Vacuum Squeegee. This innovative device is designed to simplify your cleaning routine, providing a streak-free finish on various smooth surfaces such as windows, mirrors, tiles, and glass. With its integrated spray, wipe, and vacuum functions, achieving sparkling clean surfaces has never been easier.
This manual provides detailed instructions on how to set up, operate, and maintain your new window vacuum squeegee to ensure optimal performance and longevity.
The Kiato 3-in-1 Window Vacuum Squeegee in action, demonstrating its ease of use and cleaning power.
2. Product Components
Familiarize yourself with the parts of your Kiato Window Vacuum Squeegee:

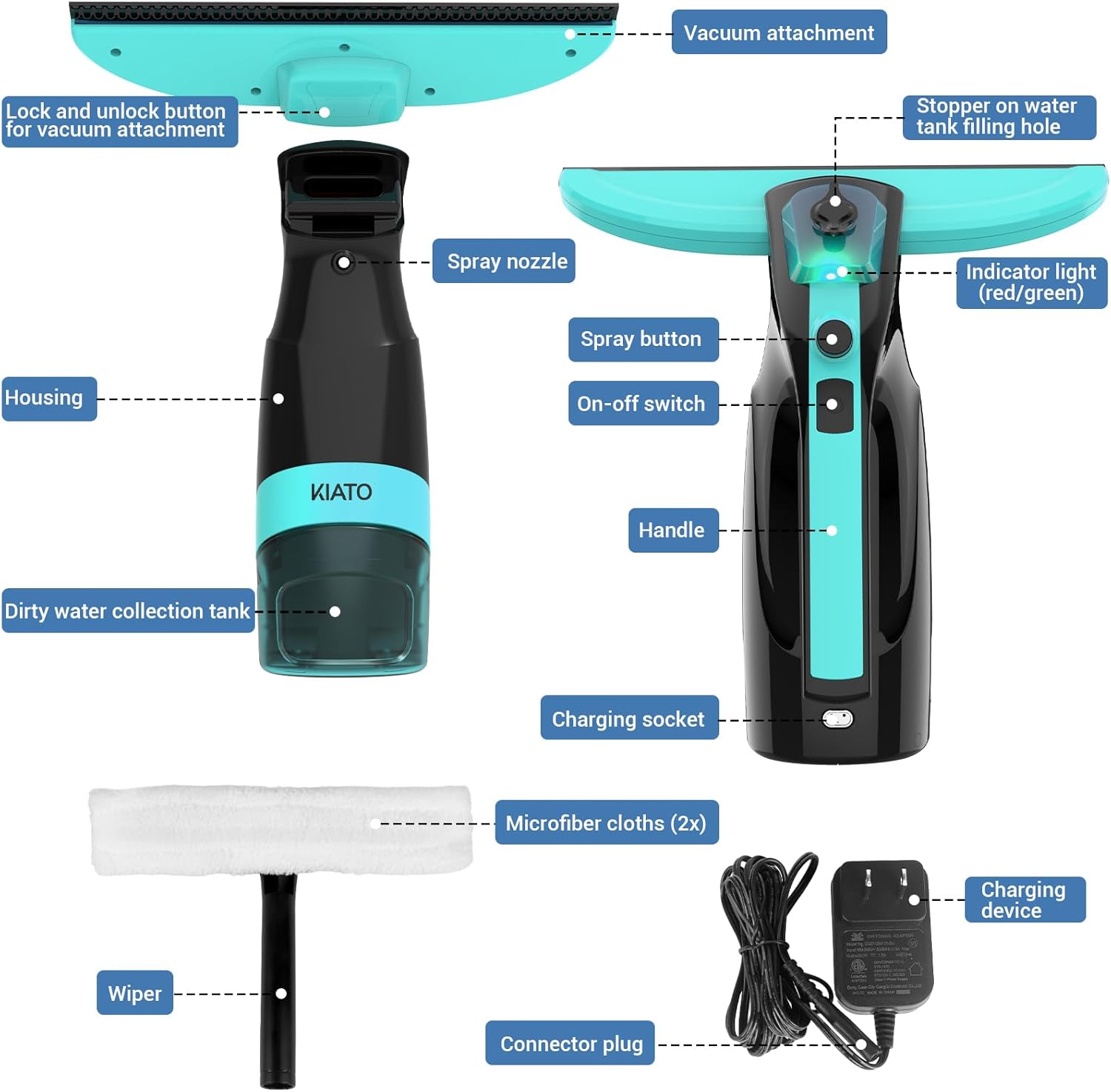

Detailed diagram of the Kiato Window Vacuum Squeegee and its accessories.
- Vacuum Attachment: The main squeegee head with suction capability.
- Lock and Unlock Button: For attaching and detaching the vacuum head.
- Spray Nozzle: Dispenses cleaning solution.
- Spray Button: Activates the spray function.
- On-off Switch: Powers the vacuum on or off.
- Handle: Ergonomic grip for comfortable use.
- Dirty Water Collection Tank: Collects wastewater (200ml capacity).
- Charging Socket: For connecting the charging device.
- Indicator Light: Shows charging status (red/green).
- Stopper on Water Tank Filling Hole: For the clean water tank.
- Wiper: Separate tool with microfiber cloth for initial cleaning.
- Microfiber Cloths (2x): For the wiper tool.
- Charging Device: Power adapter for recharging the unit.
3. Setup and Charging
3.1 Initial Charge
Before first use, fully charge the device. Connect the charging device to the charging socket on the unit. The indicator light will show the charging status. A full charge provides approximately 40 minutes of continuous operation.
Connect the charging device to the unit's charging socket.
3.2 Filling the Clean Water Tank
The unit has a 70ml clean water tank. Open the stopper on the filling hole. Pour some water and a suitable low-foaming detergent into the tank. Ensure the load capacity is within 70ml. Close the stopper securely.
4. Operating Instructions
The Kiato Window Vacuum Squeegee offers a 3-in-1 cleaning process: Spray, Wipe, and Vacuum.
The 3-in-1 functionality: spray, wipe, and vacuum for efficient cleaning.
Visual guide for the cleaning process.
- Step 1: Prepare the Surface
Pour some water and suitable detergent into the spray tank (load capacity within 70ml). - Step 2: Wipe to Loosen Dirt
Wet the microfiber cloth, wring it out, and attach it to the cloth holder. Use the wiper tool to loosen dirt and stains on the window. Ensure the surface remains wet. If the microfiber pad absorbs most of the fluid, spray water or detergent again. - Step 3: Spray Cleaning Solution
Press the spray button on the main unit to apply cleaning solution directly onto the surface. - Step 4: Vacuum Dirty Water
Turn on the vacuum unit using the on-off switch. Place the squeegee diagonally on the surface and gently slide it downwards, allowing the vacuum to suck up the dirty water. This ensures a streak-free finish.
The spray and suction controls are conveniently located on the handle.
4.1 Multi-Surface Cleaning
The Kiato Window Vacuum Squeegee is suitable for cleaning a variety of smooth surfaces, including:
- Windows
- Mirrors
- Glass tables
- Shower screens
- Tiles
The device is versatile for various smooth surfaces.
5. Maintenance and Care
5.1 Emptying the Dirty Water Tank
The dirty water collection tank has a 200ml capacity. It is important to empty the tank regularly, especially when it reaches its maximum level, to prevent overflow and maintain suction efficiency. The tank is detachable for easy emptying.
Emptying the dirty water tank is simple and essential for performance.
5.2 Cleaning the Microfiber Cloths
The microfiber cloths are reusable. After each use, remove them from the wiper tool and wash them with water and mild detergent. Allow them to air dry completely before reattaching or storing.
5.3 Charging the Battery
The built-in 2200mAh rechargeable battery provides up to 40 minutes of runtime. Recharge the device when the indicator light signals low battery or when suction power decreases. Avoid frequent charging if the battery is not significantly depleted to prolong battery life.
The powerful rechargeable battery ensures extended cleaning sessions.
6. Troubleshooting
If you encounter issues with your Kiato Window Vacuum Squeegee, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No suction or weak suction | Dirty water tank is full. Vacuum attachment is not properly secured. Battery is low. | Empty the dirty water tank. Ensure the vacuum attachment is locked into place. Recharge the battery. |
| Streaks left on surface | Surface not wet enough. Too much detergent/foaming. Squeegee blade is dirty or worn. | Ensure the surface is sufficiently wet before vacuuming. Use low-foaming detergent; if foam is excessive, flatten with microfiber cloth. Clean the squeegee blade or replace if worn. |
| Spray function not working | Clean water tank is empty. Spray nozzle is clogged. | Refill the clean water tank. Clean the spray nozzle. |
| Device not turning on | Battery is completely drained. | Charge the device for at least 30 minutes before attempting to turn it on. |
7. Specifications
| Feature | Detail |
|---|---|
| Model | Large (B0CVTZGWLC) |
| Brand | Kiato |
| Battery | 2200mAh Rechargeable |
| Runtime | Approx. 40 minutes (on full charge) |
| Dirty Water Tank Capacity | 200ml |
| Clean Water Tank Capacity | 70ml |
| Dimensions (Package) | 11.5 x 6.65 x 4.37 inches |
| Item Weight | 2.35 pounds |
| Blade Material | Silicone |
| Handle Material | Plastic |
8. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact Kiato customer service directly through the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
For more information, you may visit the official Kiato Store on Amazon: Kiato Store
