Puribath Multi-Filtration System Shower Head User Manual

1. Product Overview

The Puribath Multi-Filtration System Shower Head is designed to enhance your showering experience by providing filtered water and strong water pressure. It features a two-stage filtration system to remove impurities and chlorine, contributing to healthier skin and hair.

Image: Puribath Filter Shower Head with key features: High Quality, High Pressure, 2-Stage Filter, Strong Durability.

Key Features:

• Certified Multi-Filter System: Effectively removes fine particles, rust, and other impurities from water.
• Activated Carbon Filter (ACF): Reduces chlorine and unpleasant odors, which can negatively impact skin and hair.
• Strong Water Pressure: Features a smartly designed spray plate and ultra-fine processed stainless steel for smooth water flow and intensified pressure.
• Excellent Durability: Constructed from polycarbonate (PC) for high impact resistance and a SUS304 stainless steel spray plate for corrosion resistance.

2. Package Contents

Before installation, please verify that all components are present in the package:

• Shower Head (1EA)
• Sediment Filter (1EA)
• Activated Carbon Filter (ACF) (1EA)

Image: All components of the Puribath shower head laid out, including the shower head, handle, and two types of filters.

3. Installation Instructions

The Puribath shower head is designed for easy installation, typically requiring no tools. Follow these steps:

1. Remove Existing Shower Head: Unscrew your current shower head from the shower arm by turning it counter-clockwise. If it's tight, you may use a wrench with a cloth to avoid scratching.
2. Prepare Puribath Shower Head: Ensure the sediment filter and ACF filter are correctly inserted into the shower head handle. The sediment filter is typically inserted first, followed by the ACF filter.
3. Attach New Shower Head: Screw the Puribath shower head onto the shower arm by turning it clockwise until it is hand-tight. Avoid over-tightening.
4. Check for Leaks: Turn on the water and check for any leaks around the connection point. If leaks occur, tighten slightly more.

Image: A filter being inserted into the transparent handle of the Puribath shower head, demonstrating the ease of assembly.

4. Operating Instructions

Once installed, the Puribath shower head operates like a standard shower head, but with the added benefits of filtration and enhanced water pressure.

Water Filtration System:

The shower head utilizes a two-stage filtration process:

• 1st Stage (Sediment Filter): This filter, made of fine and thick fibrous tissue, removes rust, sand, and other particulate impurities from the water.
• 2nd Stage (Activated Carbon Filter - ACF): The ACF works to remove residual chlorine and unpleasant odors, which can contribute to skin dryness and irritation.

Image: Diagram showing the progression of a sediment filter from clean to discolored as it removes rust and impurities.

Image: Diagram of the Activated Carbon Filter (ACF) with a non-woven fabric layer, detailing its function in removing residual chlorine.

Water Pressure:

The shower head's design, featuring 166 minute holes of 0.37Φ size on the water plate, ensures a powerful and consistent water flow, providing an invigorating shower experience.

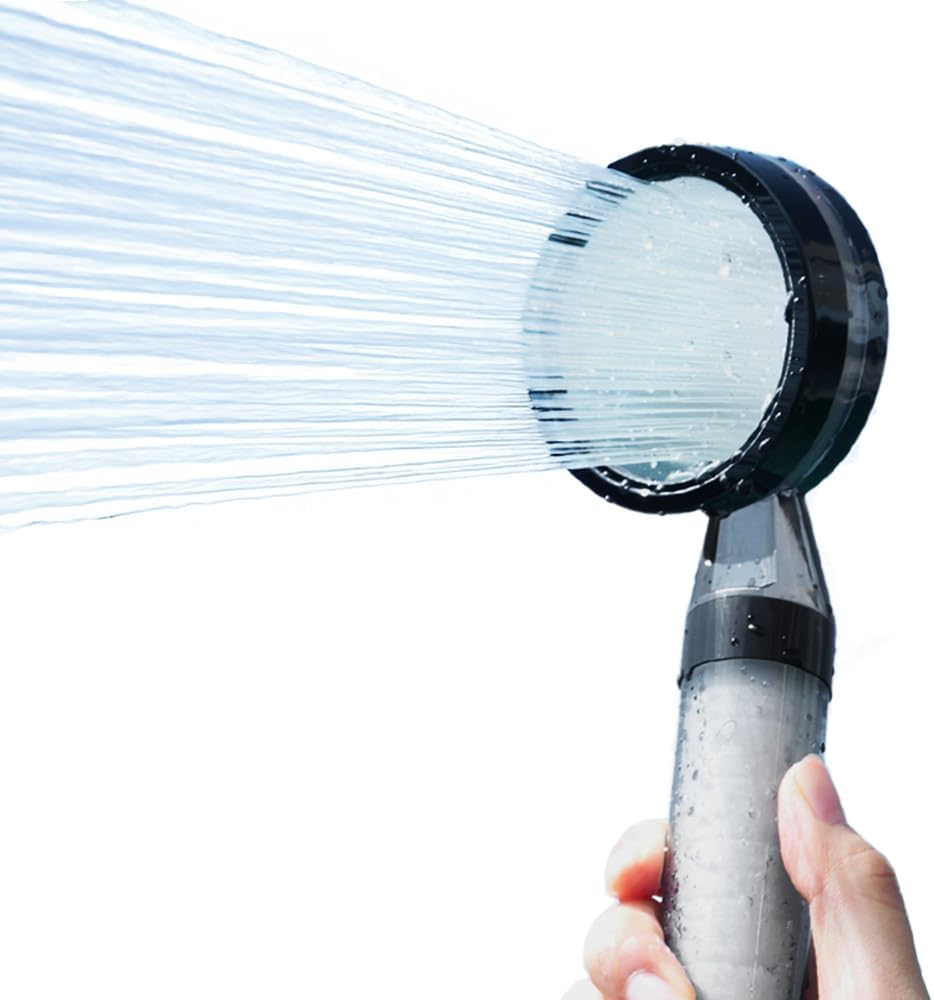

Image: The Puribath shower head actively spraying strong, consistent streams of water.

5. Maintenance

Regular filter replacement is crucial for maintaining optimal performance and water quality. The transparent handle allows for visual inspection of the sediment filter's condition.

Filter Replacement:

Refer to the following instructions for replacing the filters:

Image: Detailed instructions for replacing both the Sediment Filter and the ACF Filter, including visual aids and recommended replacement intervals.

1. Sediment Filter:
   • Rotate the shower head handle clockwise to separate it and remove the discolored filter.
   • Install a new sediment filter with the red rubber ring facing up.
   • Reassemble the handle in reverse order.
   • General Replacement Period: 1-2 months, depending on water quality and usage.
2. ACF Filter:
   • Rotate the shower head counter-clockwise to separate the head from the handle and remove the ACF filter.
   • Install a new ACF filter, ensuring the "FRONT" mark is showing towards the front.
   • Reassemble the shower head in reverse order.
   • General Replacement Period: 2-3 months, depending on water quality and usage.

Cleaning:

Periodically wipe the exterior of the shower head with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish or materials.

6. Troubleshooting

If you encounter any issues with your Puribath shower head, please refer to the following common problems and solutions:

• Reduced Water Pressure:
  • Check if the filters are clogged. Replace them if they appear discolored or if it's past their recommended replacement period.
  • Ensure the shower head is securely tightened to the shower arm.
• Water Leaks from Connection:
  • Ensure the shower head is tightly screwed onto the shower arm.
  • Check if the rubber washer (gasket) inside the connection point is properly seated and not damaged.
• Unpleasant Odor or Taste in Water:
  • The Activated Carbon Filter (ACF) may be exhausted. Replace the ACF filter.

If the problem persists after attempting these solutions, please contact customer support.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please contact Puribath customer service through the official brand store or your point of purchase. Keep your purchase receipt as proof of purchase.

Visit the Puribath Store on Amazon for more information and to purchase replacement filters.
