Outsunny Portable Charcoal Grill (Model 846-141V00YL) - Instruction Manual

Important Safety Information

Please read all instructions carefully before assembling and using this charcoal grill. Failure to follow these instructions can result in fire, property damage, or personal injury.

• Always use the grill outdoors in a well-ventilated area.
• Keep children and pets away from the grill during use.
• Do not use gasoline, kerosene, or alcohol to light charcoal. Use only charcoal starter fluid.
• Never move the grill while it is hot or in use.
• Allow charcoal to cool completely before disposing of ash.
• Keep a fire extinguisher or water source nearby.
• Do not use the grill under overhead combustible construction.
• Wear protective gloves when handling hot components.

Package Contents

Verify that all components are present before assembly. If any parts are missing or damaged, please contact customer service.

• 1 x Charcoal Grill Frame (Yellow)
• 2 x Grill Grates
• 1 x Grill Plate
• 1 x Removable Charcoal Bowl
• 4 x Foldable Legs (with yellow and silver sections)
• 1 x Carrying Bag
• 1 x Instruction Manual

Setup Instructions

Follow these steps to assemble your Outsunny Portable Charcoal Grill:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Ensure all listed package contents are present.

2. Attach Legs: Insert the silver leg sections into the designated slots on the grill frame. Ensure they click securely into place. Then, attach the yellow foot sections to the bottom of the silver legs. The legs are designed for quick assembly and disassembly for portability.

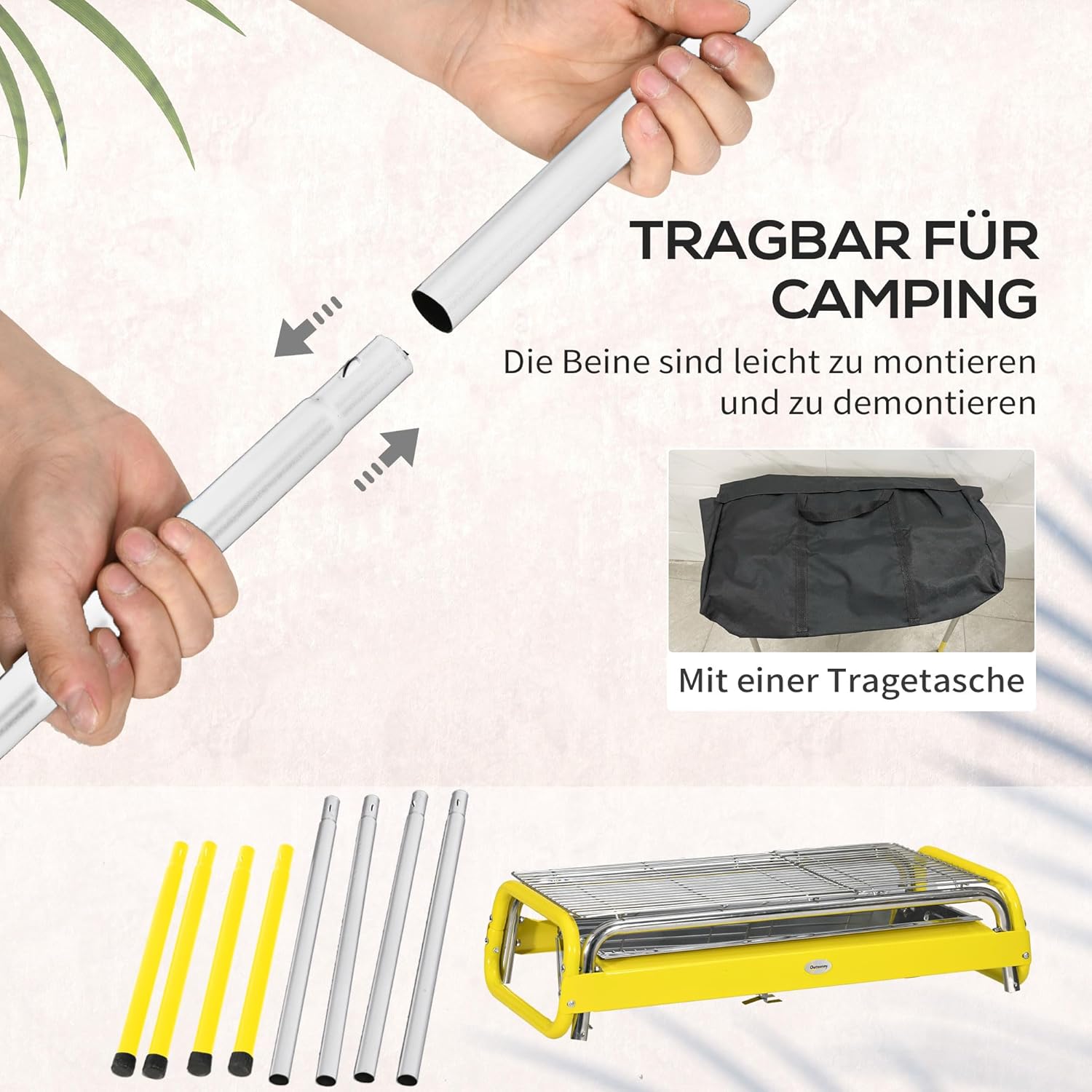

   Image: Illustration of leg assembly and the included carrying bag for transport.

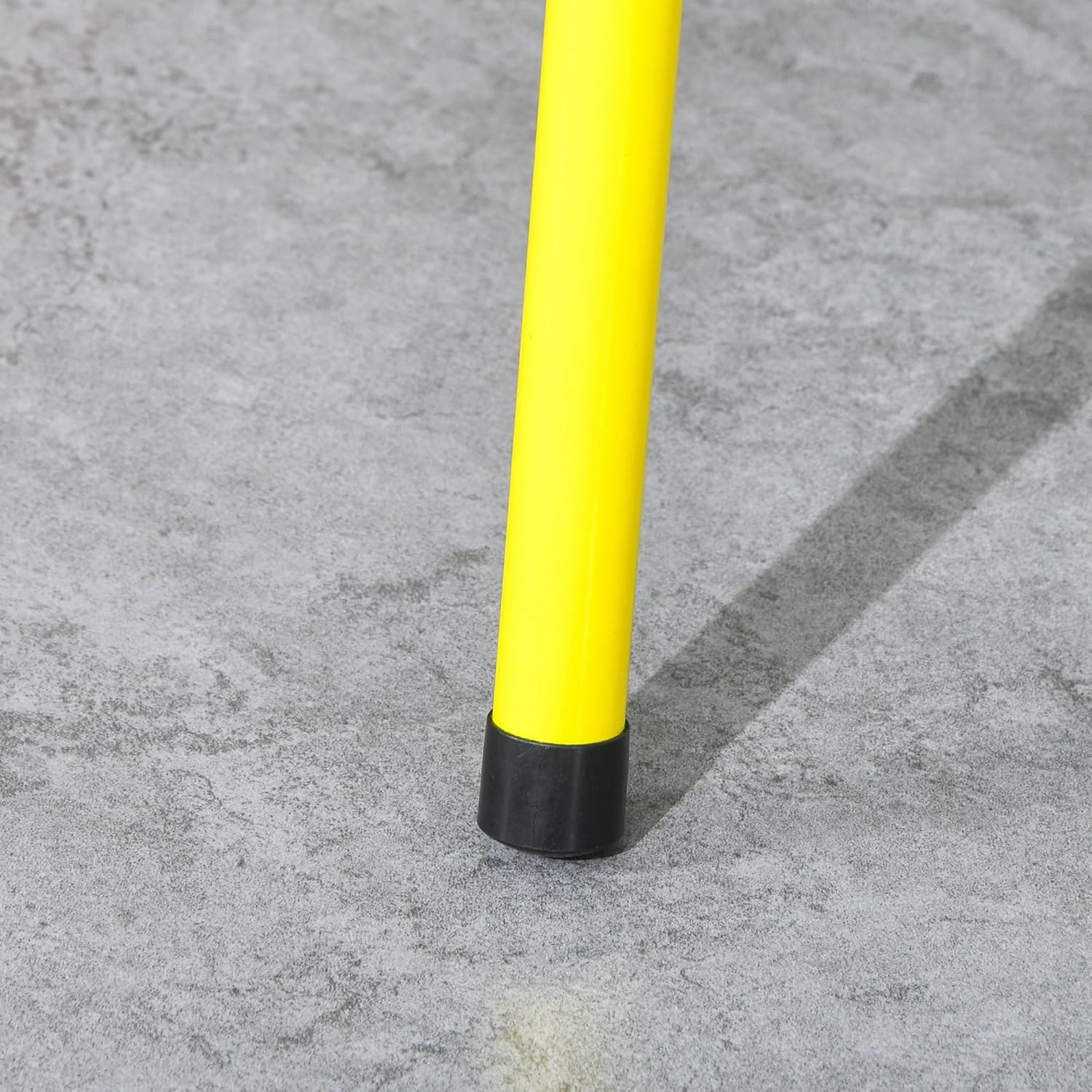

   Image: Detail of the leg foot, showing the protective cap.

3. Insert Charcoal Bowl: Slide the removable stainless steel charcoal bowl into the lower section of the grill frame. Ensure it is seated correctly.



   Image: Detail of the charcoal bowl with its handle for easy removal.

4. Place Grill Grates and Plate: Position the two grill grates and the grill plate on top of the grill frame, above the charcoal bowl. Arrange them according to your cooking needs.



   Image: The grill surface featuring two grates and a griddle plate, suitable for various foods.

Image: The Outsunny Portable Charcoal Grill fully assembled and ready for use.

Operating Instructions

Follow these guidelines for safe and effective grilling:

1. Add Charcoal: Pull out the extendable charcoal bowl from the side of the grill. Place charcoal briquettes or lump charcoal into the bowl. Do not exceed 70% capacity or 1.5 kg of charcoal. The extendable design allows for easy charcoal addition and ash removal without disturbing the cooking surface.



   Image: The extendable charcoal basin, demonstrating how to add charcoal or remove ash.

2. Light Charcoal: Use a charcoal chimney starter or approved charcoal starter fluid to light the charcoal. Allow the charcoal to burn until it is covered with a light gray ash, indicating it is ready for cooking. This typically takes 15-20 minutes.

3. Place Food: Once the charcoal is ready, place your food on the grill grates or grill plate. The large grilling surface is designed to accommodate 4 to 7 portions simultaneously.



   Image: The grill in operation, cooking various foods on its surface.

4. Monitor Cooking: Keep an eye on your food to prevent burning. Adjust food placement as needed for even cooking.

5. After Use: Allow the grill and charcoal to cool completely before cleaning or moving. Do not pour water directly onto hot charcoal or grill components.

Maintenance

Proper maintenance ensures the longevity and performance of your grill:

• Cleaning the Grates and Plate: After each use, once cooled, scrape off any food residue from the grill grates and plate using a grill brush. Wash with warm, soapy water and rinse thoroughly. Dry completely before storage.

• Cleaning the Charcoal Bowl: Once the charcoal has completely cooled and turned to ash, carefully slide out the charcoal bowl using its handle. Dispose of the ash safely. Wash the bowl with warm, soapy water and dry thoroughly.

• Cleaning the Frame: Wipe down the metal frame with a damp cloth. Avoid abrasive cleaners that could damage the powder-coated finish.

• Storage: When not in use, disassemble the legs and store the grill in its carrying bag in a dry, protected area. This protects the grill from weather elements and extends its lifespan.



  Image: The grill's portability feature, showing detachable legs and the carrying bag for compact storage.

Troubleshooting

Here are solutions to common issues you might encounter:

• Charcoal not lighting or staying lit: Ensure you are using fresh charcoal and proper starter fluid. Make sure there is adequate airflow around the charcoal. Avoid overfilling the charcoal bowl.

• Uneven heating: Distribute charcoal evenly in the bowl. If using briquettes, ensure they are fully ash-covered before cooking. Adjust food placement on the grates as needed.

• Difficulty assembling legs: Ensure the leg sections are aligned correctly and pushed firmly until they click into place. Refer to the setup instructions and image for guidance.

• Ash buildup: Regularly remove ash from the charcoal bowl to maintain proper airflow and prevent clogging. The extendable bowl makes this process easier.
