1. Introduction
Thank you for choosing the Casa Vieja 52-inch Windspun Modern Indoor Ceiling Fan. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.

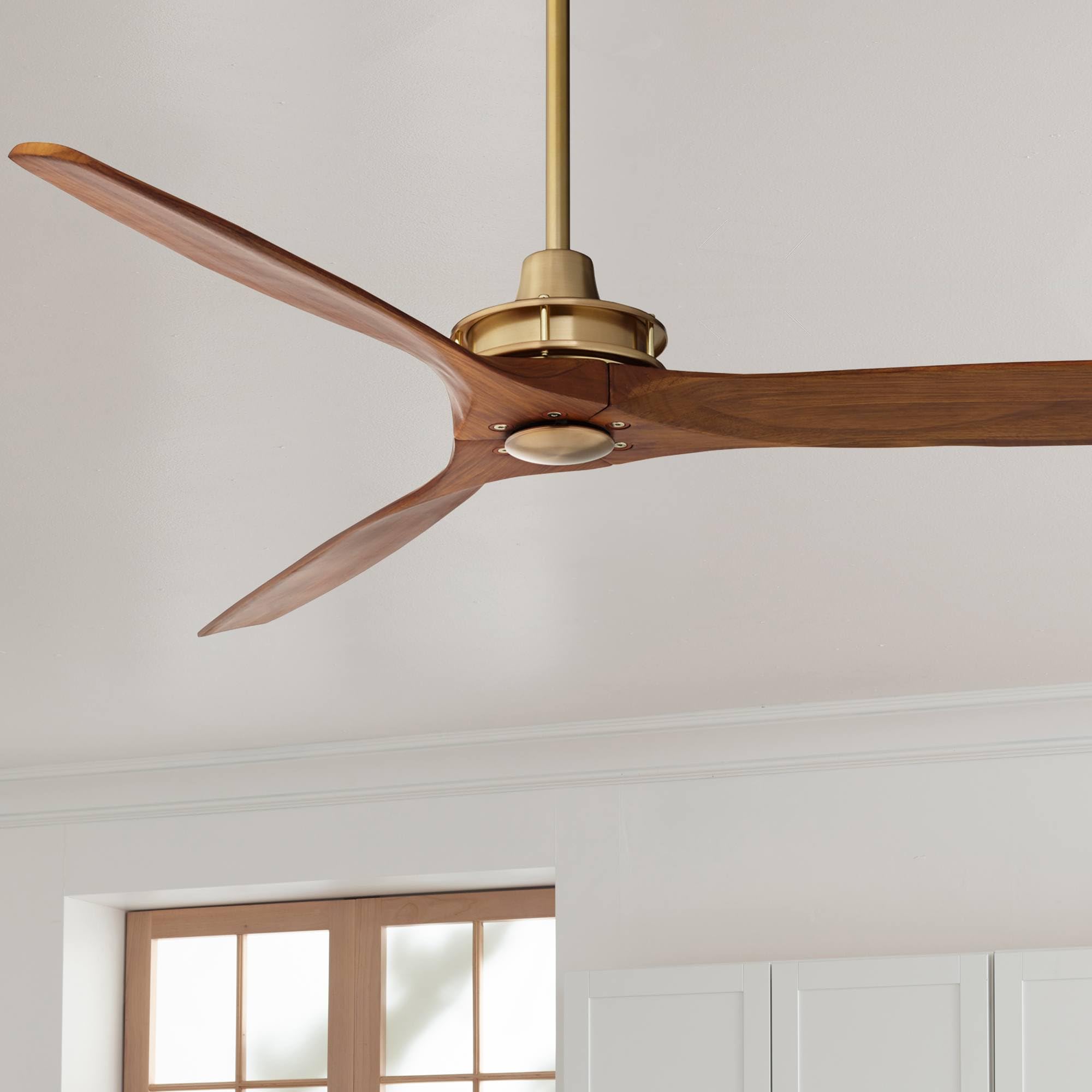

Image: Casa Vieja 52-inch Windspun Modern Indoor Ceiling Fan.
2. Safety Information
To reduce the risk of electrical shock, fire, or personal injury, always follow these safety precautions:
- Disconnect power at the main circuit breaker or fuse box before beginning installation or performing any maintenance.
- All electrical connections must be in accordance with local codes, ordinances, and the National Electrical Code. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- Ensure the installation site is suitable for the fan's weight and size. The fan must be mounted to a ceiling fan-rated outlet box or directly to the building structure.
- Do not bend the blade holders during installation, balancing, or cleaning.
- Keep hands, clothing, and other objects clear of the fan blades when the fan is operating.
- This fan is rated for indoor use only.
3. Package Contents
Carefully unpack your ceiling fan and check that all contents are present and undamaged. Refer to the diagram below for component identification.
Image: Close-up of the fan motor and blade connection.
- Fan Motor Assembly (Brass Finish)
- 3 x Walnut Finish Solid Wood Carved Blades
- Canopy
- 6-inch Downrod
- Mounting Bracket
- Full-function 5-speed Remote Control
- Wall Bracket for Remote Control
- Hardware Pack (screws, wire nuts, etc.)
4. Setup and Installation
Before installation, ensure power is disconnected at the circuit breaker. Follow these general steps for assembly and mounting. For a visual guide, refer to the installation video below.
4.1. Mounting the Ceiling Bracket
Secure the ceiling bracket to a ceiling fan-rated outlet box or directly to the building structure using appropriate hardware. Ensure it is firmly attached to support the fan's weight.
4.2. Assembling the Fan Blades
Attach the three walnut finish solid wood carved blades to the fan motor assembly using the provided screws. Ensure all screws are tightened securely.

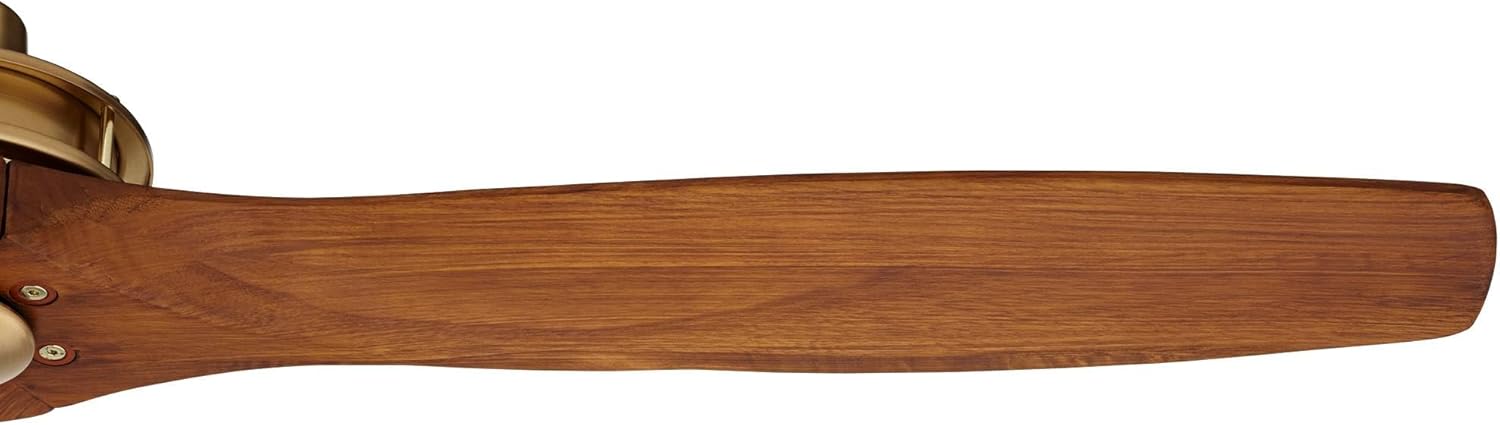

Image: Detailed view of a fan blade.
4.3. Installing the Downrod
Insert the 6-inch downrod through the canopy and connect it to the fan motor assembly. Secure with the provided pin and screws. Ensure all connections are tight.
4.4. Wiring the Fan
Carefully lift the fan assembly and hang it on the ceiling bracket. Connect the electrical wires (live, neutral, ground) from the fan to the corresponding wires in the ceiling outlet box using wire nuts. Ensure the ground wire is securely connected.
4.5. Securing the Canopy
Slide the canopy up to the ceiling bracket and secure it with the provided screws. Ensure no wires are pinched.
Installation Video Guide
Video: General ceiling fan installation guide. Note: This video is provided by 'Haipeel Direct' and shows a similar fan model. The installation steps are generally applicable.
5. Operating Instructions
Your Casa Vieja Windspun ceiling fan comes with a full-function 5-speed remote control for convenient operation.
5.1. Remote Control Functions
- Fan ON/OFF: Press to turn the fan on or off.
- Speed Control: Select from 5 different fan speeds (1-5) to adjust airflow.
- Forward/Reverse (F/R): Changes the direction of blade rotation. Use forward mode for cooling in warm weather (downward airflow) and reverse mode for circulating warm air in cool weather (upward airflow).
- Timer: Set the fan to turn off automatically after a set period (e.g., 1H, 4H, 8H).
Image: Fan with 52-inch dimension shown.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Use a soft brush or lint-free cloth to clean the fan blades and motor housing. Do not use abrasive cleaners or solvents.
- Tightening Screws: Periodically check all screws on the fan assembly and mounting hardware. Tighten any loose screws to prevent wobbling or noise.
- Blade Balance: If the fan wobbles, ensure all blades are securely attached and balanced. A balancing kit may be used if necessary.
7. Troubleshooting
If you experience issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wire connections are secure; Replace remote control batteries. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use a balancing kit to balance blades; Ensure mounting bracket is securely fastened. |
| Noisy operation | Loose screws; Fan not properly seated in mounting bracket; Internal motor issue. | Check and tighten all screws; Ensure downrod ball is correctly seated in the bracket groove; Contact customer support if noise persists. |
| Remote control not working | Low battery; Incorrect pairing. | Replace batteries; Refer to remote control pairing instructions in the full manual (if applicable). |
8. Specifications
- Brand: Casa Vieja
- Model Number: 6650C
- Blade Span: 52 inches
- Blade Pitch: 18-degree
- Motor: 165x16H DC motor
- Canopy Dimensions: 5 5/8 inches wide x 2 1/4 inches high
- Maximum Ceiling Slope: 20-degrees (with included canopy)
- Finish: Soft Brass (motor), Walnut (blades)
- Number of Blades: 3
- Downrod Included: 6 inches
- Fan Height (ceiling to blades): 12 inches
- Control Method: Remote (5-speed, full-function)
- Indoor/Outdoor Usage: Indoor only
- Voltage: 120 Volts
- Wattage: 40 watts
- Item Weight: 12 pounds
9. Warranty and Support
This Casa Vieja ceiling fan is backed by the manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, replacement parts, or any inquiries, please contact Casa Vieja customer service through the retailer where the product was purchased or visit the official Casa Vieja website.
