1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Casa Vieja 6647C Windspun 52-inch Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Casa Vieja Windspun ceiling fan features a 52-inch blade span, an integrated dimmable LED light, and is controlled by a full-function 5-speed remote. It is designed for indoor use only.

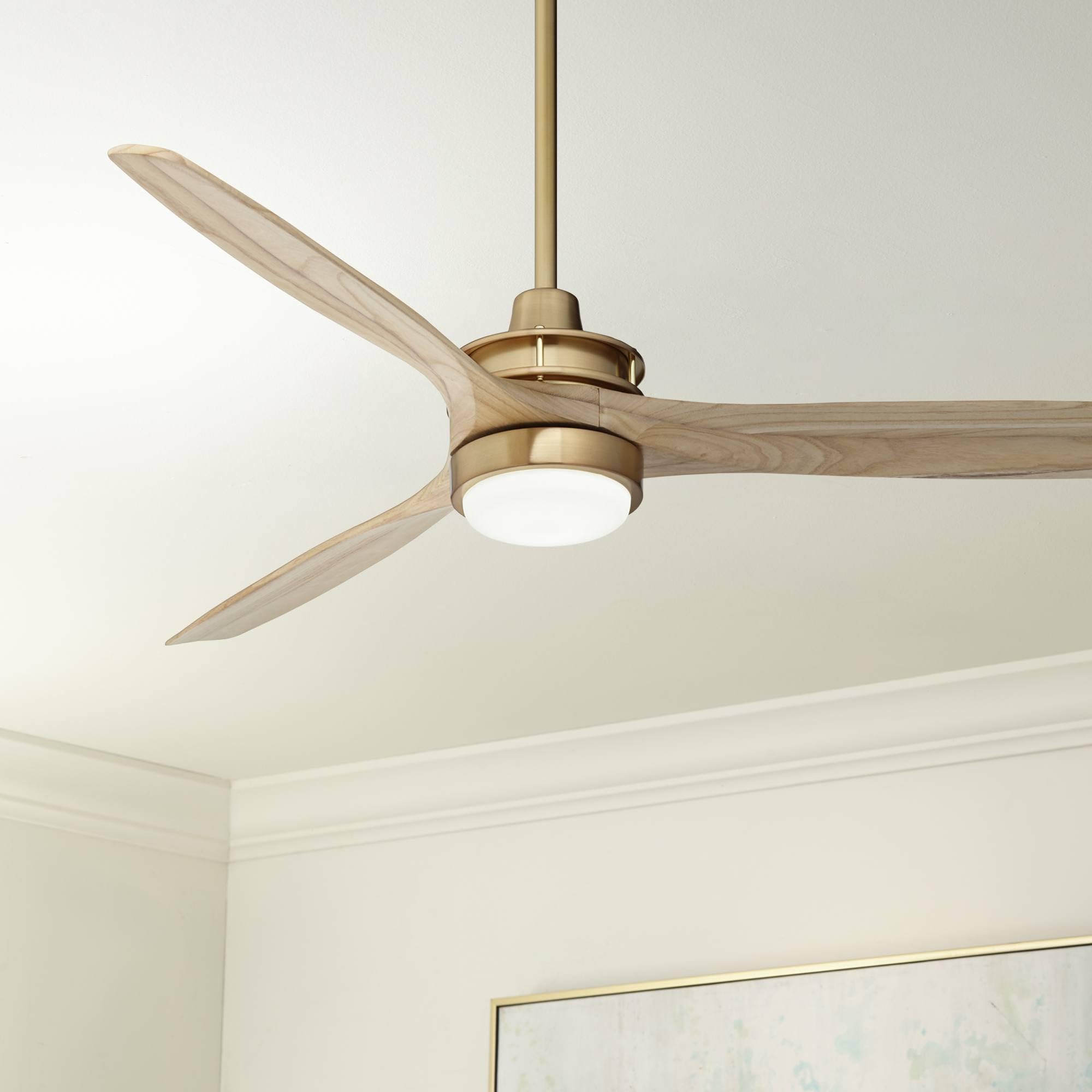

Image 1.1: Overview of the Casa Vieja Windspun 52-inch Ceiling Fan.
2. Safety Information
To reduce the risk of electrical shock, fire, or personal injury, always follow these basic safety precautions:
- Read all instructions: Ensure you understand all instructions before installation and operation.
- Electrical Disconnection: Before starting installation or performing any maintenance, disconnect power by turning off the circuit breakers to the fan's electrical box.
- Qualified Electrician: All electrical wiring must be performed by a qualified electrician and comply with all local and national electrical codes.
- Mounting Support: The outlet box and support structure must be securely mounted and capable of supporting a minimum of 35 lbs (15.9 kg). Use only UL/ETL listed outlet boxes marked "FOR FAN SUPPORT."
- Blade Clearance: Ensure there is adequate clearance from the blades to any walls or obstructions. A minimum of 7 feet (2.1 meters) from the floor to the blade trailing edge is recommended.
- Indoor Use Only: This fan is rated for indoor use only. Do not install in outdoor or damp locations.
- Remote Control Batteries: Keep batteries out of reach of children. Dispose of used batteries properly.
3. Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact customer support.
- Fan Motor Assembly (Soft Brass Finish)
- Three (3) Natural Finish Solid Wood Carved Blades
- Integrated LED Light Module
- Canopy
- Downrod (6-inch)
- Mounting Bracket
- Full-Function 5-Speed Remote Control with Dimmable Light Control
- Hardware Pack (screws, washers, wire nuts, etc.)
4. Setup and Installation
Follow these steps for proper installation of your ceiling fan. It is recommended to have two people for installation.
4.1 Prepare for Installation
- Turn off power at the circuit breaker or fuse box.
- Ensure the mounting location is suitable for a ceiling fan and can support the fan's weight.
- Unpack all components and lay them out on a soft, clean surface to prevent scratches.
4.2 Install the Mounting Bracket
- Attach the mounting bracket to the ceiling outlet box using the screws and washers provided. Ensure the bracket is securely fastened.
- The included canopy supports a maximum ceiling slope of 20 degrees.
4.3 Assemble the Fan
- Feed the electrical wires from the fan motor through the downrod.
- Secure the downrod to the fan motor assembly.
- Carefully lift the fan assembly and hang it from the mounting bracket.
4.4 Wiring the Fan
- Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the separate wiring instructions (not included in this manual).
- The remote control transmitter must be wired with the fan. Ensure the transmitter and its gold box trim are carefully placed within the ceiling box to avoid interference with the fan's balance. Improper placement can lead to the fan not hanging straight or running off-balance.
- Note: This fan is designed for control solely via the included remote. It does not support separate wall switches for fan and light functions.
4.5 Attach Blades and Light Kit
- Attach the three natural finish solid wood blades to the fan motor housing using the provided screws. Ensure all screws are tightened securely.
- Connect the integrated LED light module to the fan's light wiring.
- Secure the light module cover to the fan.
Image 4.1: Detail of the fan's motor housing and LED light module.
5. Operating Instructions
Your Casa Vieja Windspun ceiling fan is operated using the included full-function 5-speed remote control.
5.1 Remote Control Functions
- Fan Speed: Use the speed buttons to cycle through 5 fan speeds (low to high).
- Fan On/Off: Press the fan button to turn the fan on or off.
- Light On/Off: Press the light button to turn the integrated LED light on or off.
- Light Dimming: Hold the light button to dim or brighten the LED light.
- Fan Direction (if applicable): Refer to the remote control's specific instructions for changing fan direction (e.g., for summer/winter modes). This model's remote supports 5 speeds.
5.2 Important Operational Notes
- The fan and light functions are exclusively controlled by the remote. There is no provision for separate wall switch control for fan and light.
- If the fan is running with the light off and power is cut at the wall switch (or circuit breaker), upon restoring power, only the light will turn on. The fan will not automatically resume its previous setting. You will need to use the remote to turn the fan back on.
Video 5.1: Casa Vieja Brand Video. This video demonstrates various Casa Vieja ceiling fan designs in different room settings, showcasing their aesthetic appeal and operational features, including the movement of blades and integrated lighting.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your ceiling fan.
- Cleaning: Periodically dust the fan blades and motor housing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
- Blade Cleaning: For the natural wood blades, use a dry cloth. Avoid moisture to prevent warping or damage to the wood.
- Tighten Fasteners: Check all screws and fasteners on the fan and mounting hardware annually. Tighten any loose connections to prevent wobbling and noise.
- Blade Balancing: If the fan wobbles excessively, ensure all blades are securely attached and that the remote transmitter box is not interfering with the fan's balance within the ceiling box. A balancing kit (often sold separately) can be used to correct minor wobbles.
Image 6.1: Close-up view of a natural wood blade, highlighting the material for cleaning and care.
7. Troubleshooting
Before contacting customer support, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Remote control battery low or dead; Incorrect wiring. | Check circuit breaker; Replace remote battery; Verify wiring connections are secure. |
| Light does not work | No power to the light; LED module faulty; Remote control issue. | Check circuit breaker; Ensure light is turned on via remote; Contact support if LED module is suspected faulty. |
| Fan wobbles or is noisy | Loose blade screws; Improperly mounted fan; Remote transmitter box interfering with balance; Unbalanced blades. | Tighten all blade screws; Ensure mounting bracket is secure; Reposition remote transmitter box carefully within the ceiling box; Use a blade balancing kit. |
| Fan does not move much air on highest setting | Incorrect fan direction for cooling; Room size too large for fan; Obstructions. | Ensure fan is set to downdraft mode for cooling (if reversible); Verify fan size is appropriate for the room; Remove any obstructions to airflow. |
| Fan does not remember last setting after power interruption | This is normal operation for this model. | Upon power restoration, the light will turn on. Use the remote to reactivate the fan to your desired speed. |
8. Specifications
Detailed technical specifications for the Casa Vieja 6647C Windspun 52-inch Ceiling Fan:
- Model Number: 6647C
- Blade Span: 52 inches
- Blade Pitch: 17 1/2 degrees
- Motor: 165 x 16 DC motor
- Canopy Dimensions: 5 5/8 inches wide x 2 1/4 inches high
- Maximum Ceiling Slope: 20 degrees (with included canopy)
- Light Module: Integrated 18 watt dimmable LED
- Light Output: 1,500 lumens
- Color Temperature: 3000K
- Color Rendering Index (CRI): 80
- Downrod: 6 inches (included)
- Fan Height (with 6" downrod): 12 inches (ceiling to blades), 14 1/2 inches (ceiling to bottom of light)
- Control: Full-function 5-speed remote control with dimmable light control
- Voltage: 120 Volts
- Indoor/Outdoor Use: Indoor only
- Materials: Brass (soft brass finish), Wood (natural finish solid wood blades)
- Item Weight: Approximately 14 Pounds
- UPC: 886305643445
Image 8.1: The 52-inch blade span of the Casa Vieja Windspun ceiling fan.
9. Warranty and Support
Your Casa Vieja 6647C Windspun 52-inch Ceiling Fan comes with the following warranty:
- Lifetime Motor Warranty: The fan motor is covered by a lifetime warranty.
- Limited 1-Year Warranty: All other components of the fan are covered by a limited 1-year warranty.
For warranty claims, technical assistance, or any questions regarding your product, please contact the retailer or manufacturer's customer support. Please have your model number (6647C) and proof of purchase available when contacting support.
