Product Overview
This manual provides essential information for the safe and efficient operation of your BILT HARD 6.5 Ton Electric Log Splitter. Designed for horizontal log splitting, this machine features a 15 Amp motor with a hydraulic ram, making it suitable for processing firewood. Please read this manual thoroughly before assembly, operation, or maintenance.
Safety Information
WARNING: Failure to follow these safety instructions can result in serious injury or death.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
- Ensure the log splitter is placed on a stable, level surface before operation.
- Keep hands and feet clear of the splitting wedge and ram during operation. Never place hands on the log while the ram is moving.
- Only operate the log splitter with one person. Do not allow others to assist or be in the immediate vicinity during operation.
- Do not attempt to split logs larger than the recommended capacity (up to 9.8 inches in diameter and 20.5 inches in length).
- Inspect the log splitter for damage before each use. Do not operate if any parts are damaged or missing.
- Keep the work area clear of debris and ensure adequate lighting.
- Disconnect power before performing any maintenance or adjustments.
- Avoid operating the log splitter in wet conditions or near flammable materials.
Components and Features
Familiarize yourself with the key components of your BILT HARD Electric Log Splitter:
Overall Product View
This image displays the complete BILT HARD 6.5 Ton Electric Log Splitter, highlighting its robust blue frame, electric motor, and the horizontal splitting mechanism. It also shows the wheels for portability and the control panel.
Portable Design with Rear Wheels
The log splitter is equipped with 5.7-inch rear wheels, allowing for easy transportation and maneuverability around your work area. Simply tilt the unit and roll it to your desired location.

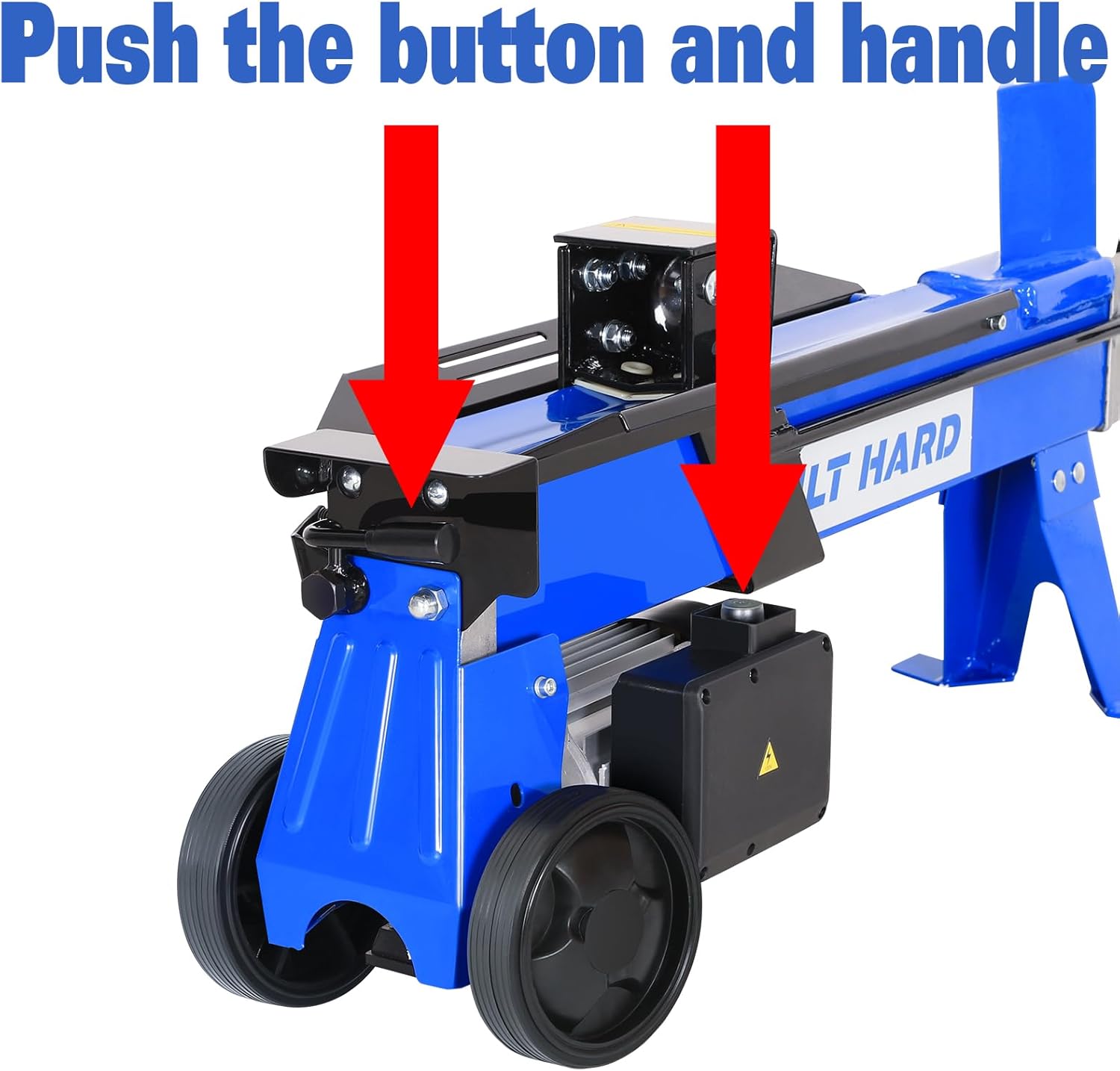

Control Handle and Button
Operation requires simultaneous engagement of the control handle and the push button for safety. This two-hand operation ensures both hands are away from the splitting area during use.
Flexible Log Length Adjustment
The log splitter features a flexible lock design that allows you to adjust the workbench according to the length of the logs you are splitting, accommodating logs up to 20.5 inches.
Key Components Overview
This collage highlights the pull handle for easy movement, the sturdy splitting wedge, the powerful 1.75 HP electric motor, and the durable 5.7-inch wheels for portability.
Setup Instructions
- Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage.
- Assembly: Follow the assembly instructions provided in the separate assembly guide (if applicable). Ensure all bolts and fasteners are securely tightened.
- Placement: Position the log splitter on a firm, level, and dry surface. Ensure there is ample clear space around the machine for safe operation and log handling.
- Bleed Screw: Before initial operation and after any transportation, the bleed screw (located near the oil tank) must be loosened by several rotations. This allows air to enter and exit the oil tank smoothly, preventing pressure buildup. Airflow should be detectable during operation. Remember to tighten the bleed screw before moving the log splitter to prevent oil leakage.
- Electrical Connection: Connect the log splitter to a suitable 120V, 15 Amp grounded electrical outlet. Use an appropriate heavy-duty extension cord if necessary, ensuring it is rated for outdoor use and the amperage requirements of the splitter.
Operating Instructions
Follow these steps for safe and effective log splitting:
- Prepare Logs: Ensure logs are cut to a manageable length, not exceeding 20.5 inches, and a diameter of 9.8 inches. Remove any branches or knots that could interfere with splitting.
- Adjust Log Length Stop: Use the flexible lock design to adjust the log length stop to match the length of your log. This prevents the ram from over-extending.
- Position Log: Place the log firmly on the splitting beam against the wedge. Ensure it is stable and will not roll during splitting.
- Two-Handed Operation: To activate the splitting ram, simultaneously press the power button and pull the control handle. The ram will extend, splitting the log. Release both controls to stop the ram.
- Split Log: Allow the ram to fully split the log. If the log does not split completely on the first pass, rotate it 90 degrees and attempt to split it again.
- Retract Ram: Once the log is split, release both controls. The ram will automatically retract to its starting position.
- Remove Split Wood: Carefully remove the split wood from the splitting beam.
Log Splitting in Action
This image shows the log splitter in operation, effectively splitting a log into two pieces. Observe the proper placement of the log and the machine's stable position.
Maintenance
Regular maintenance ensures the longevity and safe operation of your log splitter:
- Hydraulic Oil: Regularly check the hydraulic oil level. Refer to the oil tank's dipstick or sight glass. Top up with recommended hydraulic oil if necessary.
- Bleed Screw: Always loosen the bleed screw during operation to allow proper air circulation. Tighten it before moving or storing the unit to prevent leaks.
- Cleaning: Keep the log splitter clean from wood chips, sawdust, and debris. This prevents interference with moving parts and ensures proper cooling of the motor.
- Inspections: Periodically inspect all bolts, nuts, and hydraulic connections for tightness. Check the splitting wedge for sharpness and damage.
- Storage: Store the log splitter in a dry, protected area when not in use. Ensure the ram is fully retracted and the bleed screw is tightened. The unit can be stored vertically to save space.
Vertical Storage Option
The log splitter can be stored vertically, as shown in the image, to minimize its footprint and save storage space in your garage or shed.
Troubleshooting
If you encounter issues with your log splitter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor hums but ram does not move or moves slowly. | Bleed screw is not loosened; low hydraulic oil level; air in hydraulic system; motor bolts too tight. | Loosen the bleed screw; check and refill hydraulic oil; operate the ram several times to purge air; if motor hums and trips breaker, try loosening the 6 bolts at the back of the motor slightly, then slowly re-tighten while running. |
| Log does not split completely. | Log is too large or too hard; wedge is dull. | Rotate the log 90 degrees and try again; do not attempt to split logs exceeding recommended capacity; sharpen or replace the wedge if necessary. |
| Oil leakage. | Bleed screw not tightened after operation/storage; loose hydraulic connections. | Ensure bleed screw is tightened when not in use; check and tighten all hydraulic fittings. |
For issues not covered here, please contact BILT HARD customer support.
Specifications
- Model: BILT HARD 6.5 Ton Electric Log Splitter
- Splitting Force: 6.5 Tons
- Motor: 15 Amp Electric Motor (1.75 HP, 3400 RPM)
- Voltage: 120 Volts
- Max Log Diameter: 9.8 inches
- Max Log Length: 20.5 inches
- Operation: Horizontal
- Portability: 5.7 inch Rear Wheels, Pull Handle
Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact BILT HARD customer service. Refer to your purchase documentation for specific warranty terms and contact details.
Website: Visit the BILT HARD Store on Amazon
