Maxzord Stainless Steel Portable Electric Kettle User Manual

Introduction

Thank you for choosing the Maxzord Stainless Steel Portable Electric Kettle. This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Safety Instructions

To ensure safe operation, always follow these basic safety precautions:

• Do not immerse the kettle or its base in water or other liquids.
• Ensure the voltage indicated on the appliance matches your local mains voltage before connecting.
• Keep the appliance out of reach of children.
• Do not operate the kettle if the cord or plug is damaged.
• Always place the kettle on a stable, flat, heat-resistant surface.
• Do not fill above the maximum fill line to prevent boiling water overflow.
• Unplug the kettle from the outlet when not in use and before cleaning.
• Avoid contact with steam escaping from the spout or lid during boiling.

Product Overview

Components

The Maxzord Portable Electric Kettle consists of the following main components:

• Kettle Body (Stainless Steel Interior)
• Lid
• Spout
• Handle
• Power Base with Cord
• On/Off Button with LED Indicator
• Water Level Window

Features

• Energy-Efficient 1000W Power: Boils water quickly with reduced power consumption. Approximately 40 seconds for one cup, and 5 minutes for 1 liter.
• 0.8 Liter Capacity: Ideal for 1-3 persons, capable of boiling up to 4 cups of water at once.
• Visual Water Window: Easily monitor the water level.
• Stainless Steel Interior: Ensures odorless and clean drinking water.
• Push-Button Operation: Simple and intuitive control.
• Automatic Shut-off: The LED indicator turns off automatically when water reaches boiling point.

Figure 1: The Maxzord Portable Electric Kettle, yellow with a white base and handle, shown on a table alongside various snacks and a drink.

Figure 2: Diagram illustrating the dimensions of the kettle: approximately 220mm in width, 200mm in height, and a base depth of 150mm.

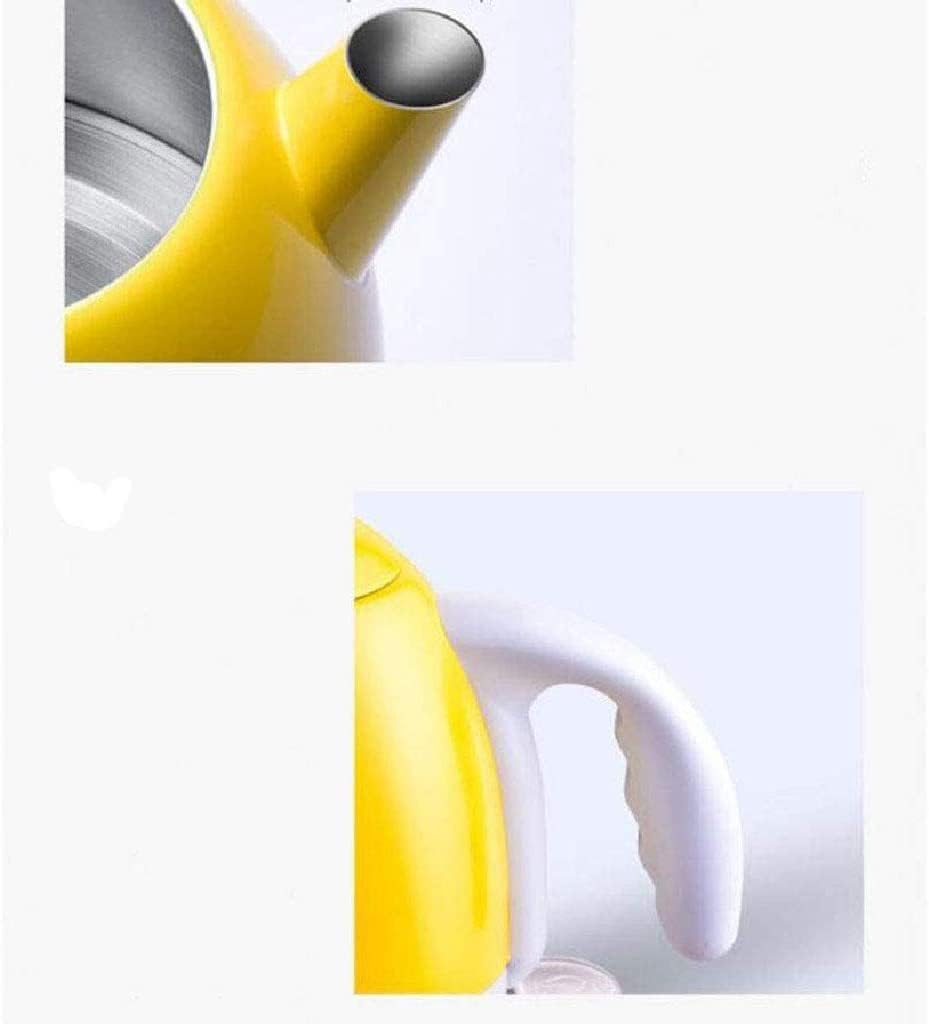

Figure 3: A close-up view of the kettle's spout, highlighting its design and the stainless steel interior.

Figure 4: A detailed view of the kettle's ergonomic handle, designed for comfortable grip.

Setup

1. Unpack: Carefully remove the kettle and all accessories from the packaging. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, fill the kettle with clean water to the maximum level. Boil the water, then discard it. Repeat this process 2-3 times to remove any manufacturing residues.
3. Placement: Place the power base on a dry, flat, and stable surface, away from the edge of the countertop and out of reach of children.
4. Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the kettle's specifications.

Operating Instructions

1. Fill the Kettle: Open the lid and fill the kettle with the desired amount of water. Do not fill below the minimum mark or above the maximum mark indicated by the water level window.
2. Close the Lid: Ensure the lid is securely closed before operating.
3. Place on Base: Place the kettle firmly onto its power base.
4. Start Boiling: Press the On/Off button. The LED indicator will illuminate, indicating that the kettle is heating.
5. Automatic Shut-off: The kettle will automatically switch off once the water has boiled, and the LED indicator will extinguish.
6. Pouring: Carefully lift the kettle from its base and pour the hot water. Be cautious of escaping steam.
7. Re-boiling: If you need to re-boil, wait a few moments for the thermostat to reset before pressing the On/Off button again.

Figure 5: The electric kettle shown actively steaming, indicating that the water has reached boiling temperature.

Figure 6: The kettle being used to pour hot water into a glass filled with ice and lemon slices, demonstrating its pouring function.

Maintenance and Cleaning

Regular cleaning will prolong the life of your kettle and ensure optimal performance.

• Before Cleaning: Always unplug the kettle from the power outlet and allow it to cool completely before cleaning.
• Exterior Cleaning: Wipe the exterior of the kettle with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
• Interior Cleaning: The stainless steel interior can be cleaned with a soft brush or sponge. Rinse thoroughly with clean water.
• Descaling: Over time, mineral deposits (limescale) may build up, especially in hard water areas.
  • Fill the kettle with a mixture of one part white vinegar and two parts water.
  • Bring the mixture to a boil and let it stand for at least 30 minutes, or longer for heavy scale.
  • Pour out the mixture and rinse the kettle thoroughly several times with fresh water.
  • For stubborn deposits, gently scrub with a non-abrasive sponge.
• Storage: When not in use, store the kettle in a dry place, away from direct sunlight and moisture.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Maxzord website. Keep your proof of purchase for warranty claims.

Manufacturer: Maxzord
